Starter Switch 181679M1 Fits Massey Ferguson TO20 TO30

Name: Starter Switch 181679M1 Fits Massey Ferguson TO20 TO30
Brand: AIC Replacement Parts
SKU: 181679M1_17
Price: 11.05 USD
Availability: InStock

Starter Switch 181679M1 Fits Massey Ferguson TO20 TO30

AIC Replacement Parts

TO VIEW PRICE

LOGIN or REGISTER

Product variants

One New Aftermarket Replacement Push Button Starter Switch Fits Massey Ferguson TE/TO Series Tractors

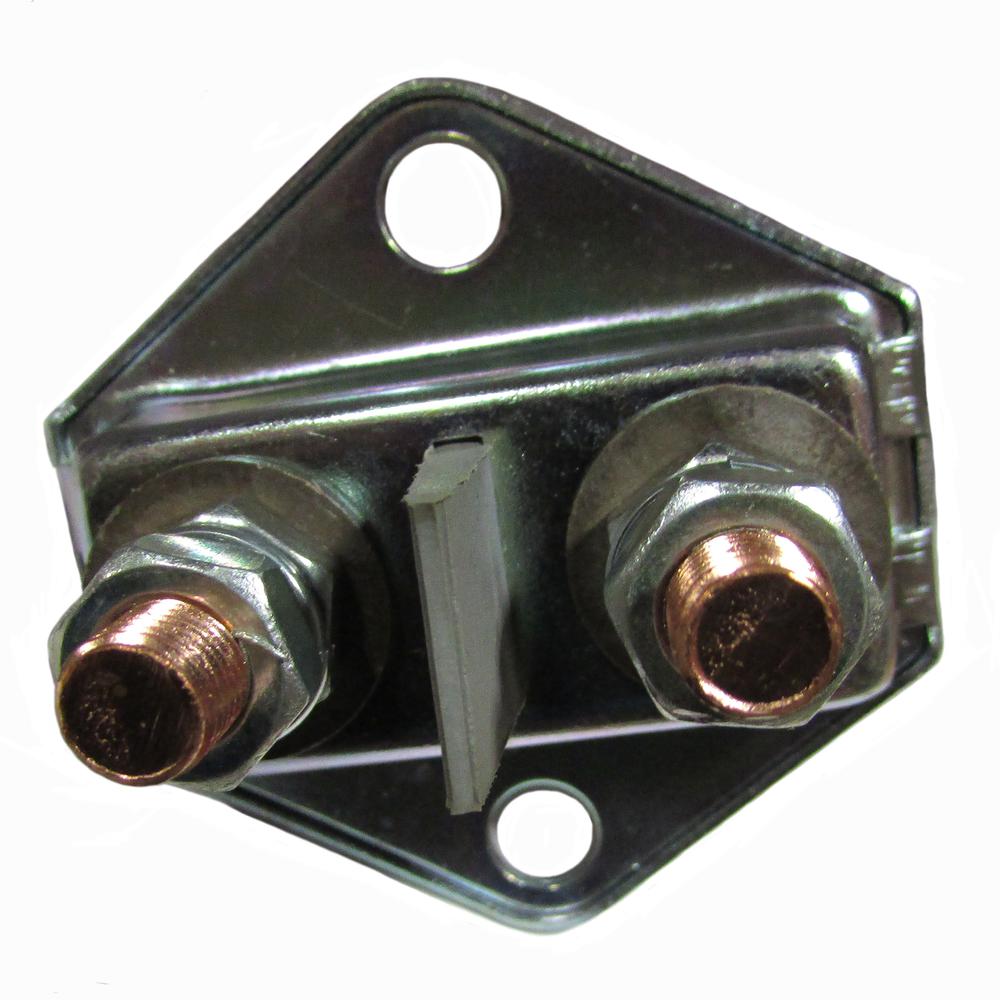

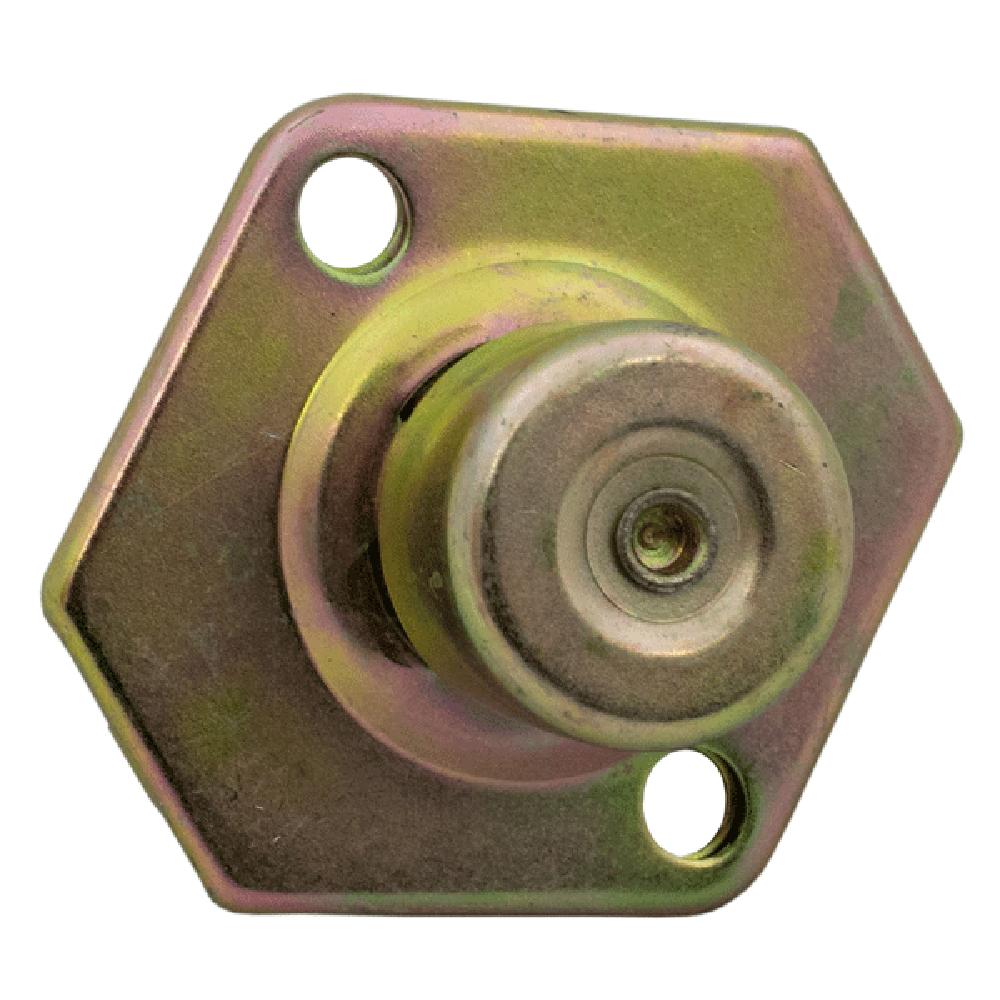

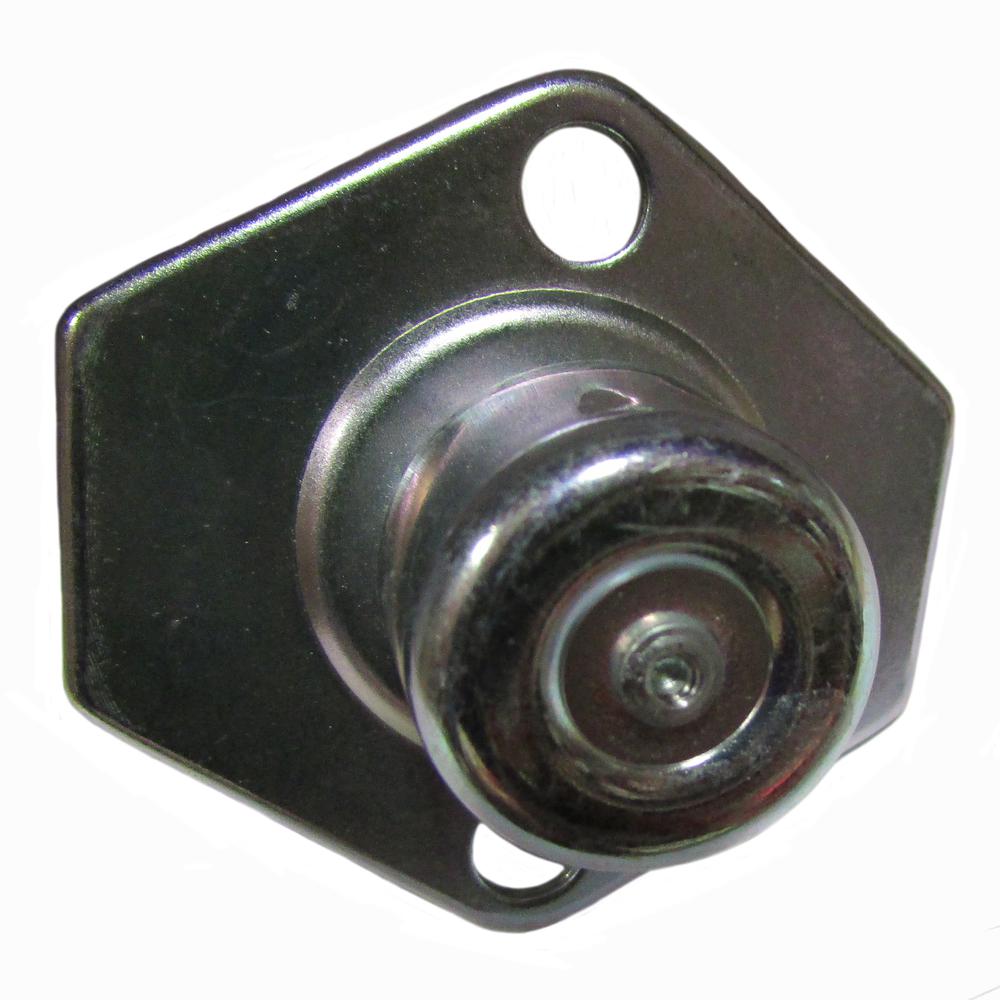

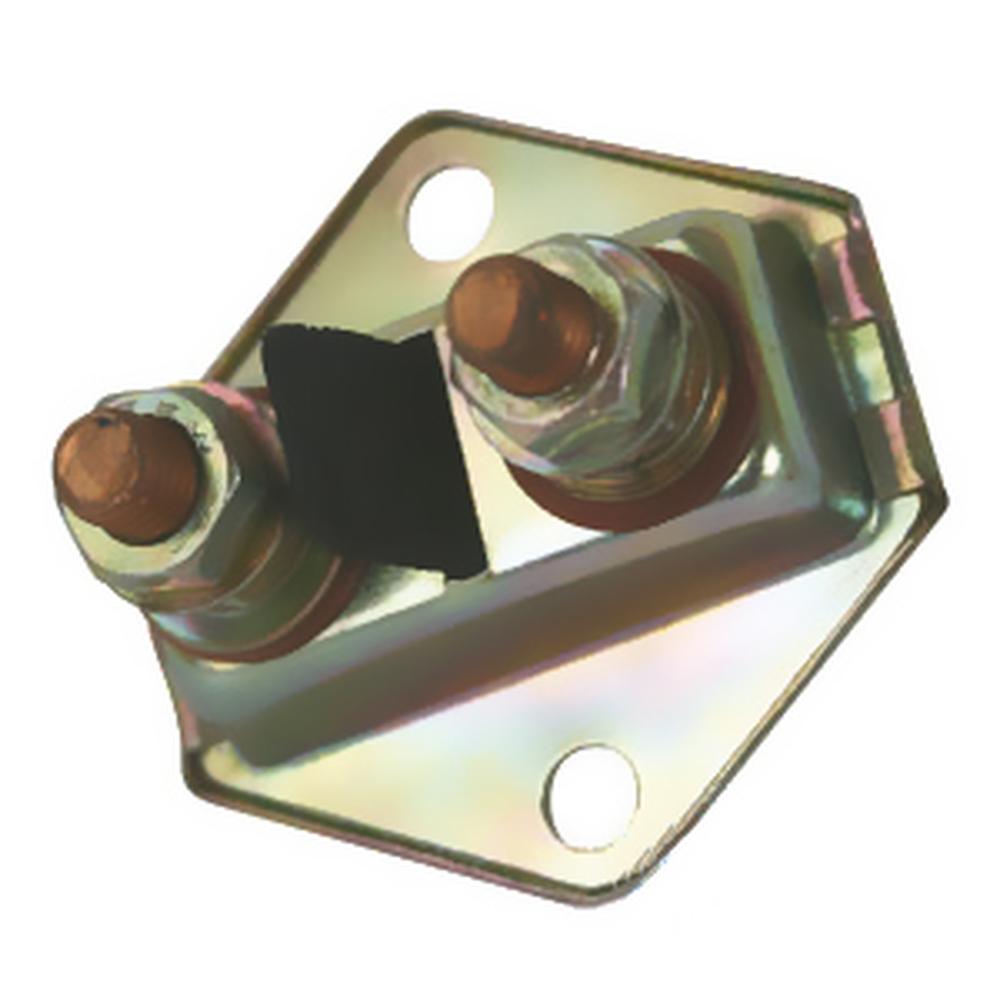

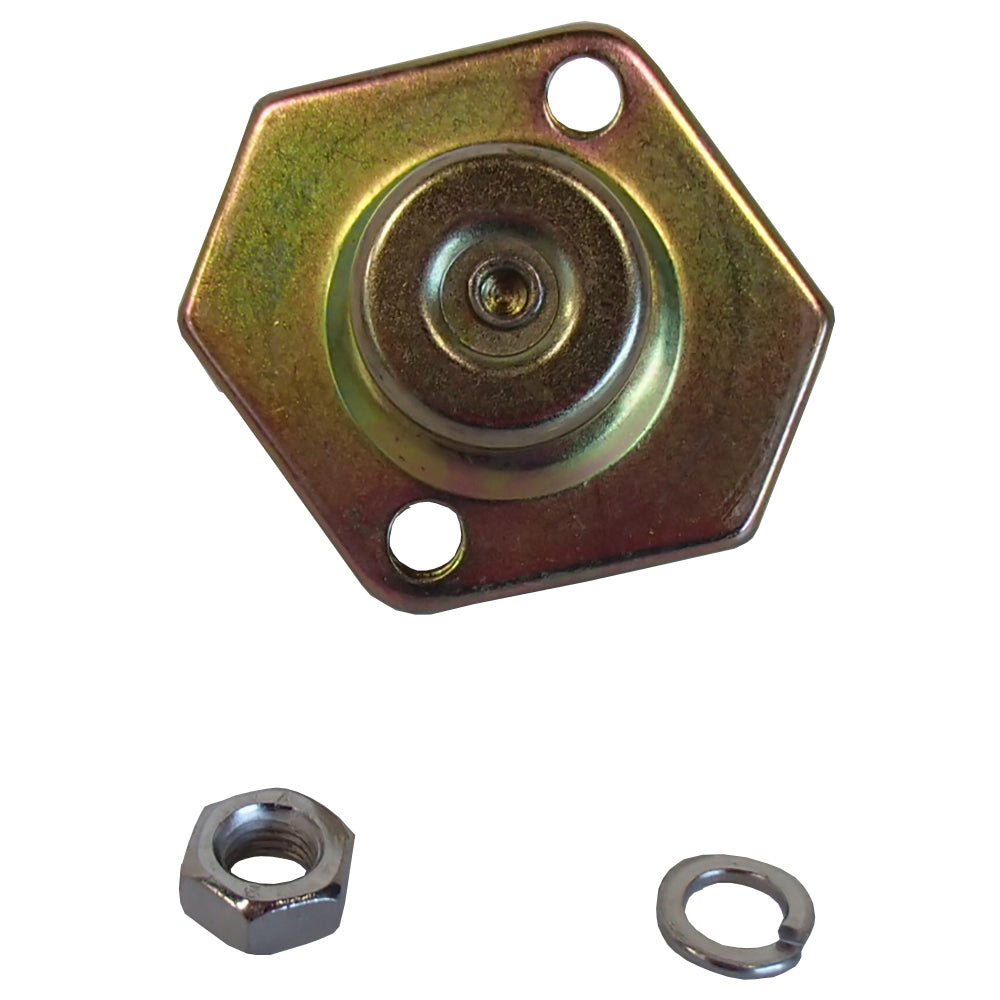

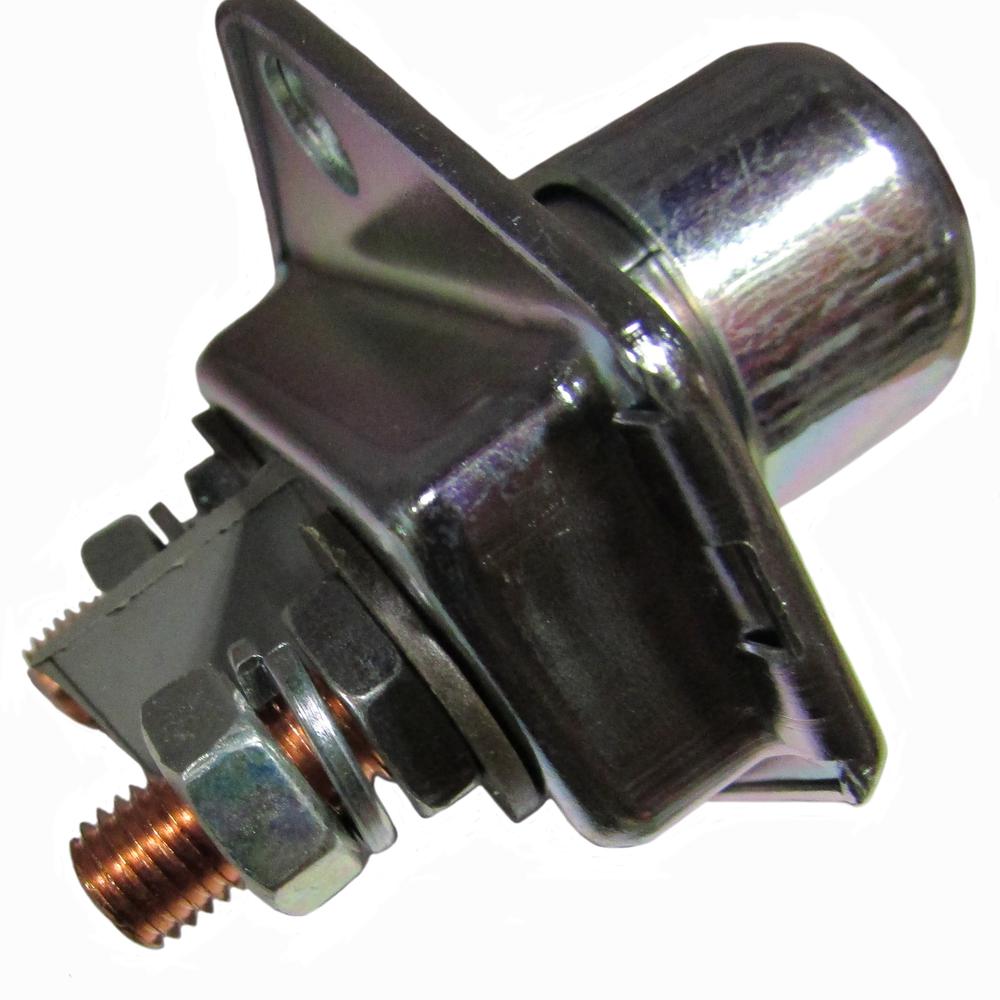

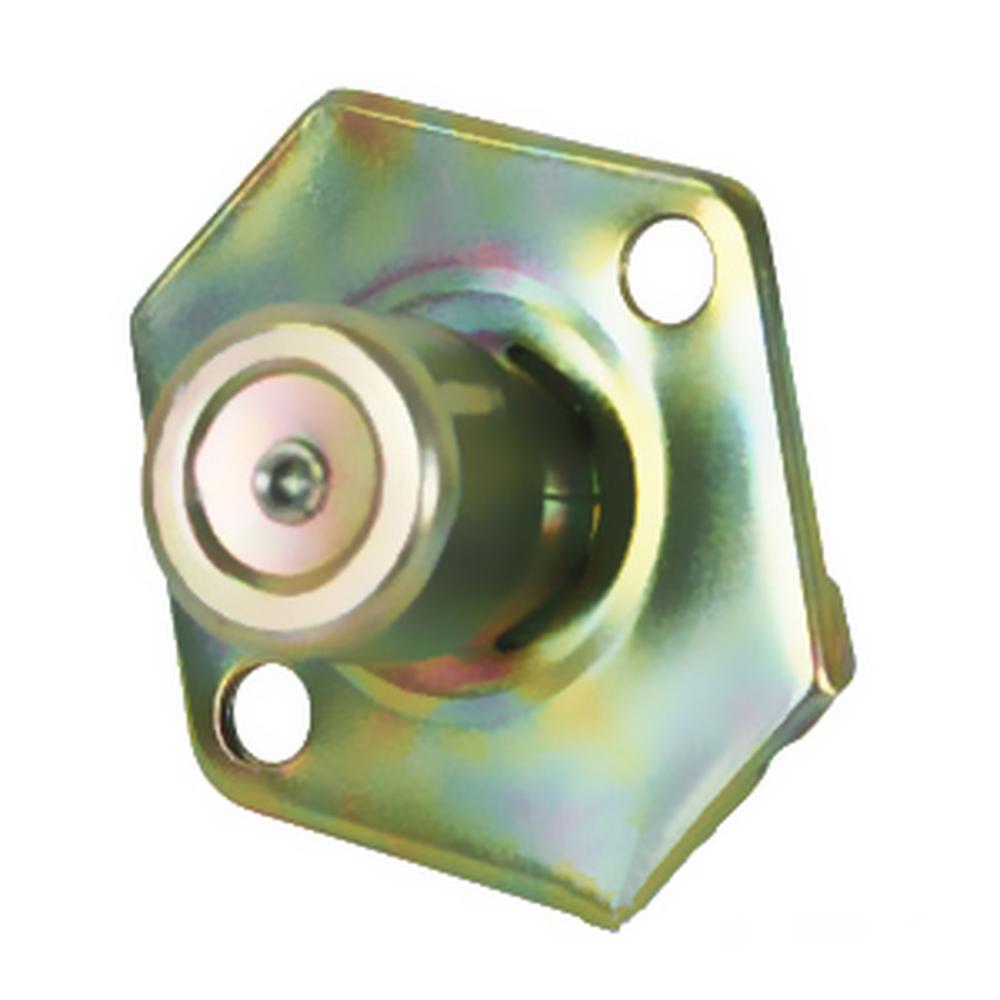

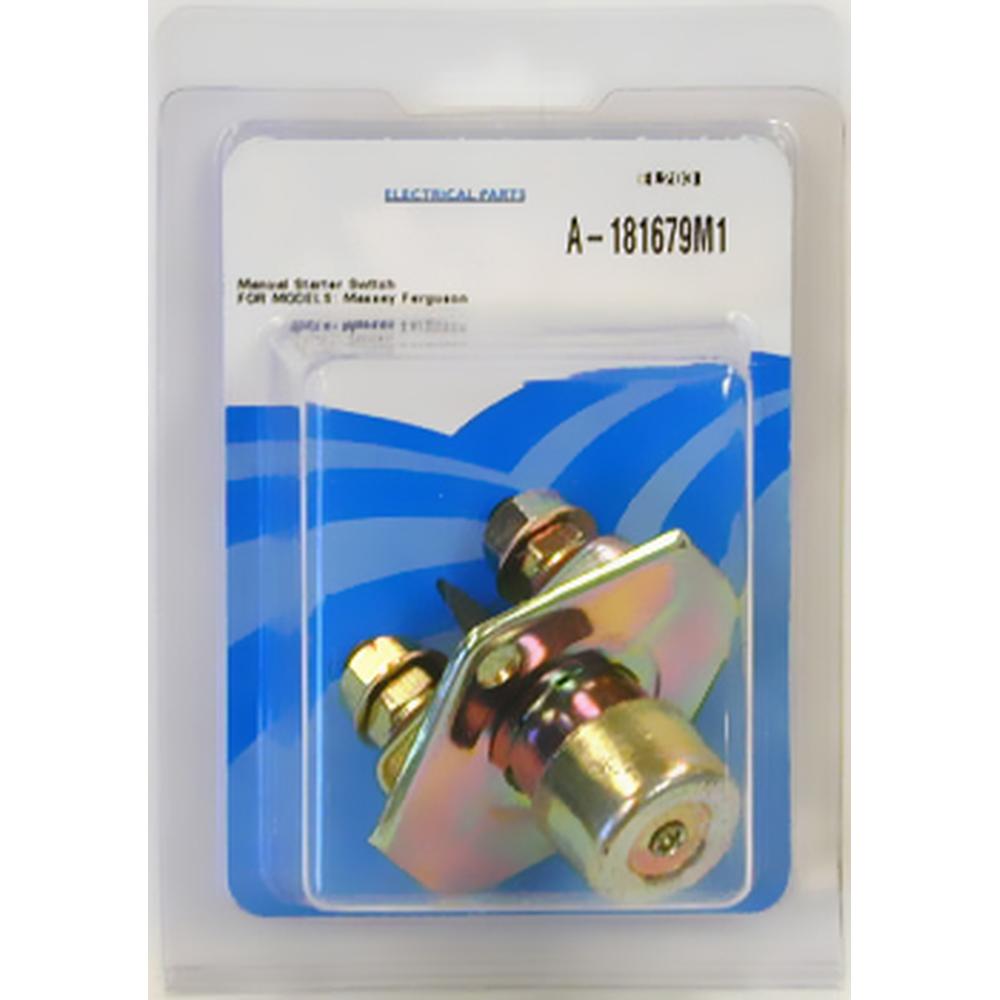

This push button starter switch is a direct-fit replacement for the electrical system on Fits Massey Ferguson TE and TO series tractors, as well as compatible Fits International Harvester and Cockshutt applications. The momentary-action, gear-shift-lever-operated switch provides reliable engine cranking engagement. It is a Single Pole Single Throw (SPST) design rated at 70 amps max, operating on 6/12V systems with two screw terminals and a two-hole mounting plate.

Specifications

Type: Push Button Starter Switch (Momentary, SPST)
Amp Rating: 70 Amp Max
Voltage: 6/12V
Contact Configuration: Single Pole, Single Throw (SPST)
Number of Positions: 2
Number of Terminals: 2
Mounting: 2 x 7.1mm holes, 38mm apart
Lighted: No
Anti-Restart: No
Weather Sealed: No
Self Grounding: No

Compatible Models

Fits Massey Ferguson: TE20, TEA20, TO20, TO30, TO35

Fits International Harvester (Fits FARMALL/IH): Fits Cub (SN: 224401-239826), Fits Cub Lo-Boy (SN: 18701 and up), 140 (SN: 26801-45000)

Cockshutt / White: Cockshutt 30 (1946-1959), White (Cockshutt) 30 (1952-1959), CO-OP 30

Other Applications: Fits Allis Chalmers (1942-1950 applications), Gambles Farmcrest 30 4-cyl (1946-1954), Buda 4B-153 (1946-1955), Nash Applications

Replaces Part Number(s):

181679M1, 181679M91, 181679V1, TO11450A, 376295R91, G13047, AE13547, AE13547E, AN151896, VT3588, B7392A, 10-MS106, 7-1006, CH9183, SPL6003, SWX47, SW2916, SW4001, SW4002, SW4005, SW4010, SW4013, SW4015, SW4017, SW4101, 20A1748

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

60, TEA20, 70, TO30, TO20, 301B, 140, 2-44, 320 Diesel, 550, 320, 420B Diesel, Cub Loboy, SUPER 99, 550 DIESEL, 300, TE20, 400B, planting equipment, agricultural, tillage and planting equipment, 300B, tractors, 300 Diesel, 2-44 DIESEL, Cub, 80, 320B, 420B, 300B Diesel, 90, 320B Diesel, tillage equipment, 100

Additional Information:

70 Amp mp Range100 Anti-Restart False Contact Config Single Pole, Single Throw (SPST) Lighted False Momentary True Mounting(2) 7.1mm Holes, 38mm Apart No of Positions 2 No of Terminals 2 Self Grounding False Voltage Input 6/12V Weather Sealed False Starter Switch

Reference Numbers:

B7392A, SWX47, SW2916, SW4001, SW4002, SW4005, SW4010, SW4013, SW4015, SW4017, SW4101, 181679M1, TO11450A, 376295R91, 10-MS106, 7-1006, CH9183, SPL6003, AE13547, AE13547E, AN151896, G13047, G13047, VT3588, 181679M1
