Steering Gear Hardware Fits John Deere D100 D105 D110 D120 D125 D130 D140 D150
Steering Gear Hardware Fits John Deere D100 D105 D110 D120 D125 D130 D140 D150
AIC Replacement Parts - FEDEX2DAY
**TO VIEW PRICE**
LOGIN or REGISTER

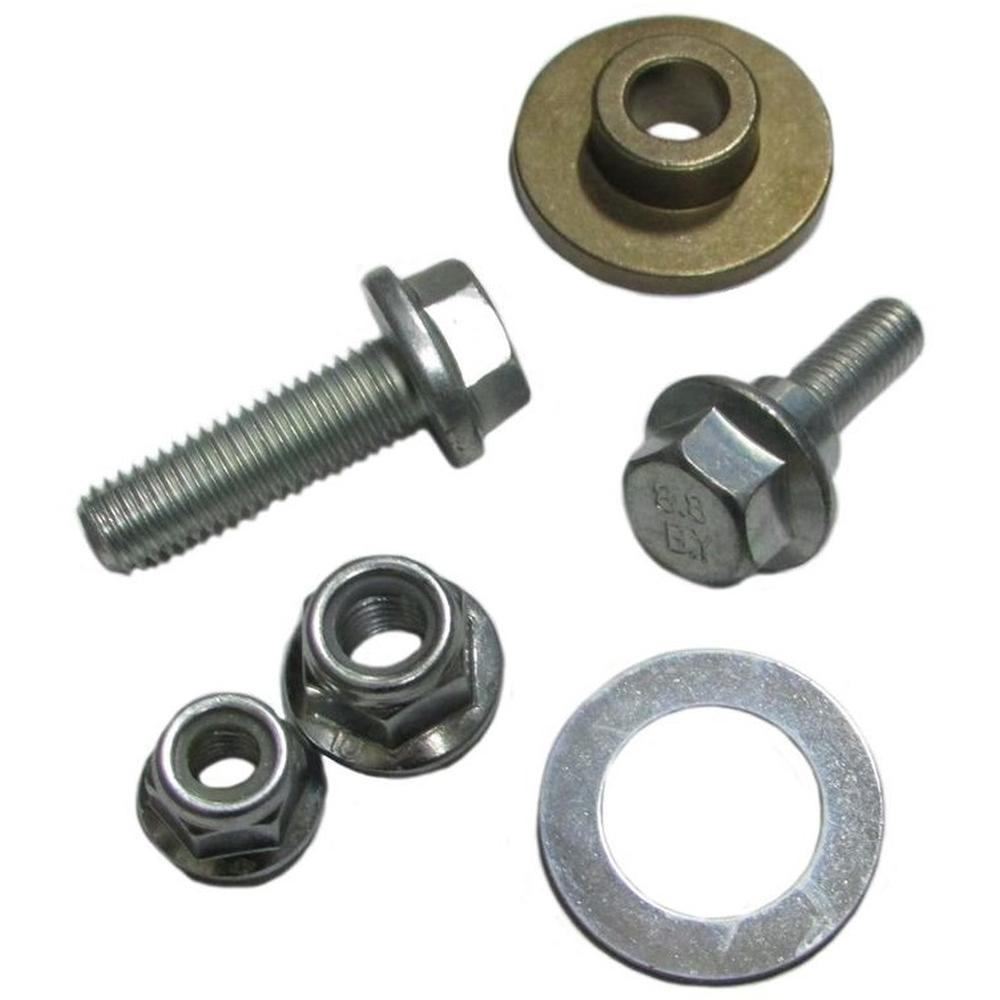

One New Aftermarket Replacement Steering Gear Hardware Kit Fits John Deere Riding Mowers
(Hardware Kit to mount the Steering Sector Gear)
Fits Models:
D100, D105, D110, D120, D125, D130, D140, D150, D160, D170

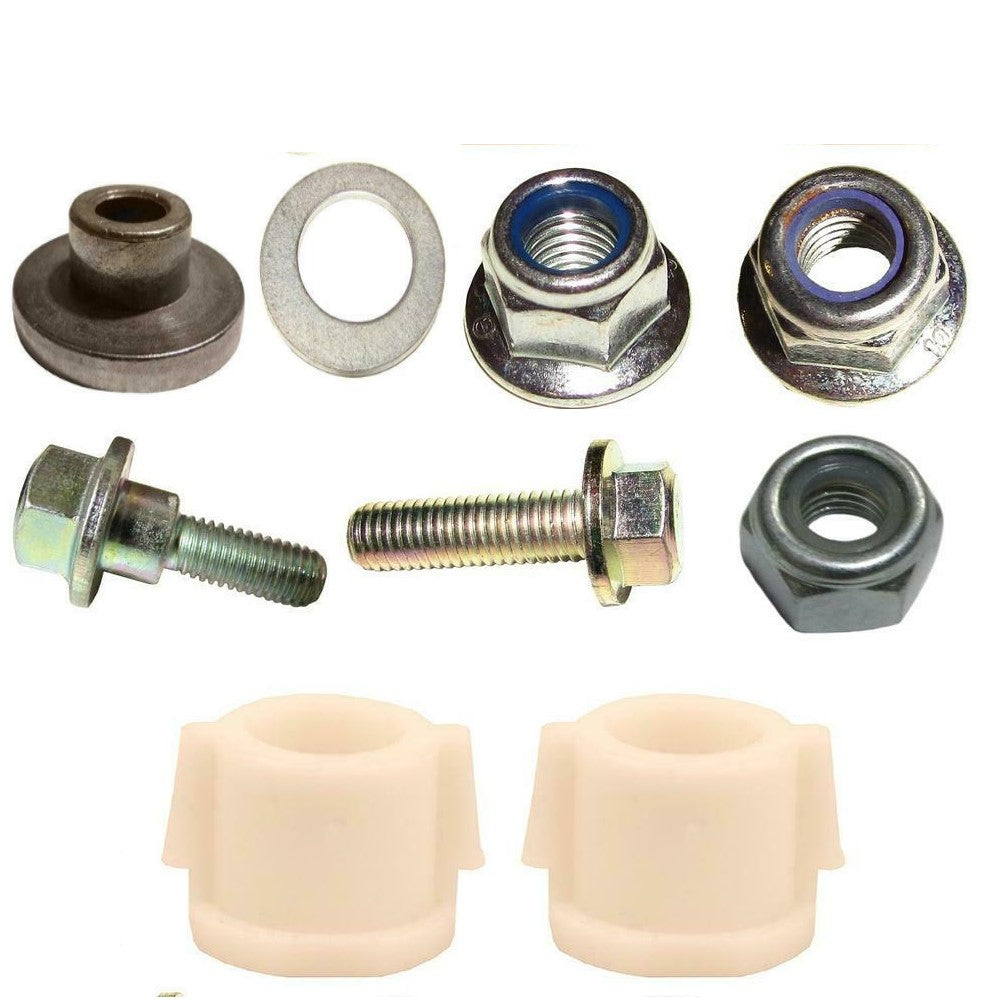

Kit Contains:
(1) Shoulder Bolt # M153513
-- 8mm Threads

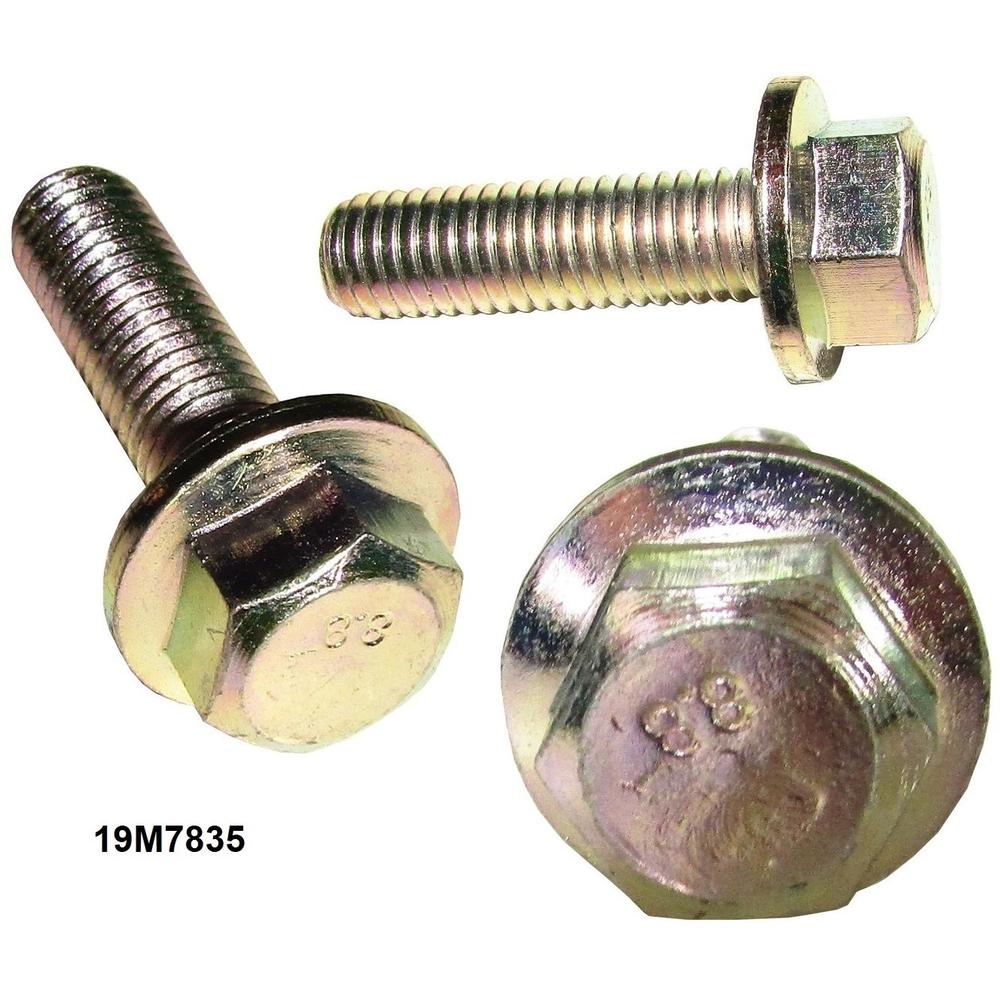

(1) Steering Bolt # 19M7835
-- Hex Flange Bolt
-- Thread Size: 10mm
-- Length: 35mm
-- Thread Pitch: 1.25mm
(1) Steering Gear Bushing # GX20054
-- Alternative # UC13360
(2) Steering Shaft Bushings # GX21994
-- ID: 0.625"
-- OD: 0.900"
-- Height: 0.870"
-- Flange OD: 1"
(1) Flat Washer # 24H1856

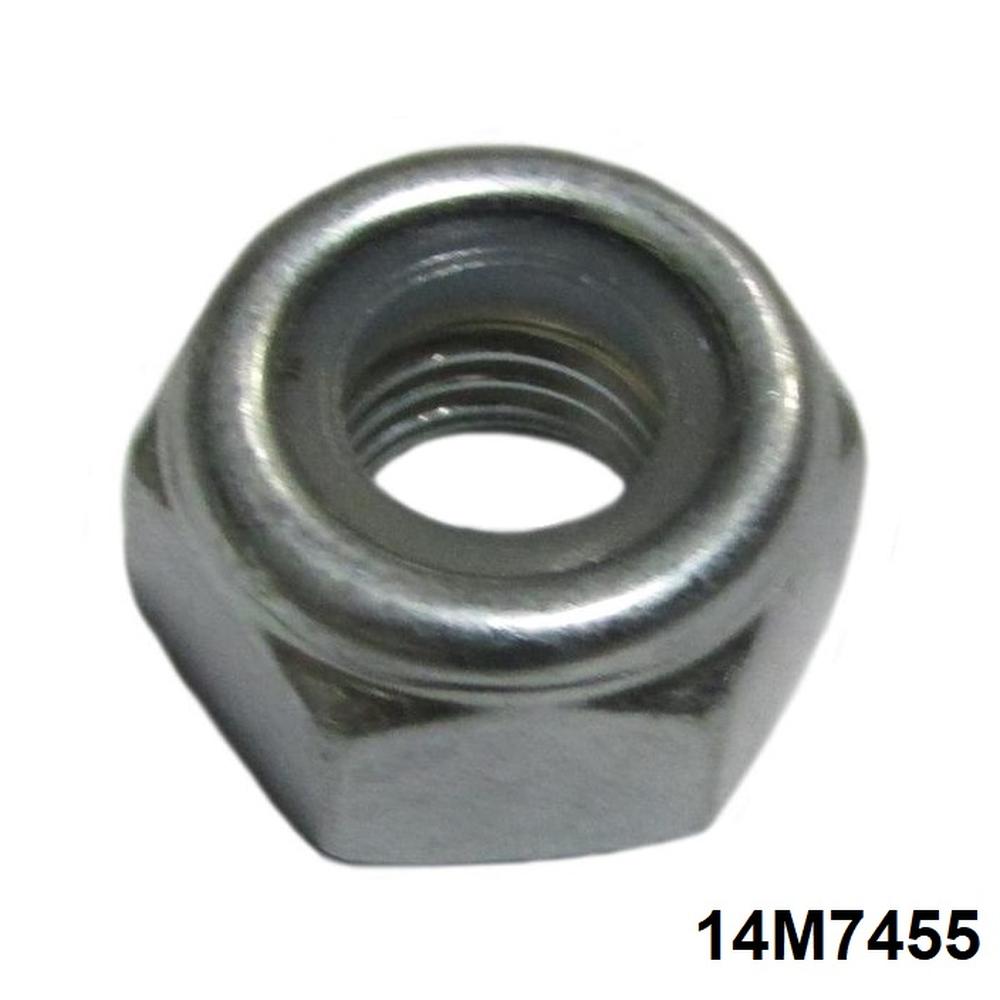

(1) Lock Nut # 14M7455
(1) Lock Nut # 14M7396

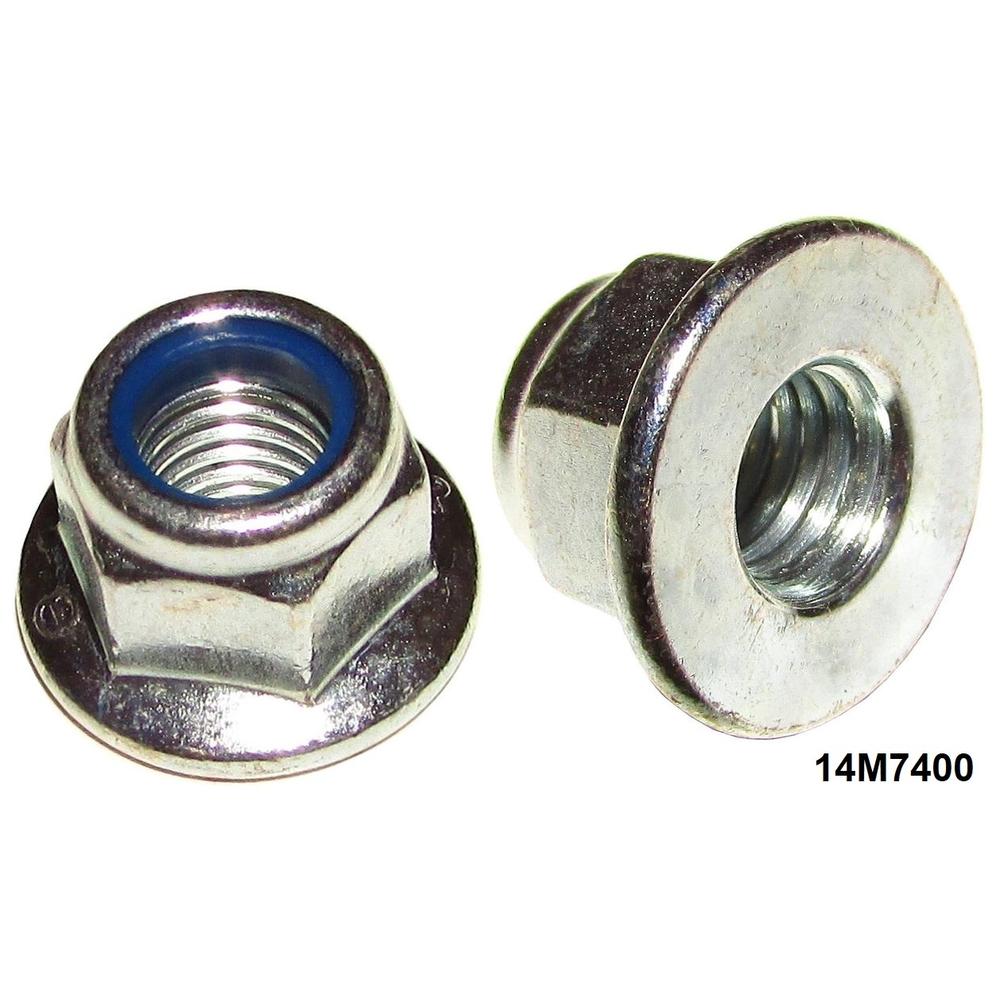

(1) Lock Nut # 14M7400
(Hardware Kit to mount the Steering Sector Gear)
Fits Models:
D100, D105, D110, D120, D125, D130, D140, D150, D160, D170
Kit Contains:
(1) Shoulder Bolt # M153513
-- 8mm Threads
(1) Steering Bolt # 19M7835
-- Hex Flange Bolt
-- Thread Size: 10mm
-- Length: 35mm
-- Thread Pitch: 1.25mm
(1) Steering Gear Bushing # GX20054
-- Alternative # UC13360
(2) Steering Shaft Bushings # GX21994
-- ID: 0.625"
-- OD: 0.900"
-- Height: 0.870"
-- Flange OD: 1"
(1) Flat Washer # 24H1856
(1) Lock Nut # 14M7455
(1) Lock Nut # 14M7396
(1) Lock Nut # 14M7400
Models This Part Fits:
SeveralAdditional Information:
Hardware Kit to mount the Steering Sector Gear Kit Contains: (1) Sector Pivot Bushing Flange Thickness: 0.16" Flange Outside Diameter: 1.382" Inside Diameter: 0.407" Length: 0.45" Outside Diameter: 0.710" Replaces Part Number(s): UC13360 (1) Hex Flange Bolt Thread Size: 0.394" Thread Pitch: 0.059" Length: 1.378" Thread Length: 1.201" Flange Diameter: 0.878" Head Height: 0.409" Material or Grade: 10.9 Drive Size: 0.591" Replaces Part Number(s): 19M7835 (1) Flat Washer I.D.: .781" O.D.: 1.25" Thickness: .036" Material: Steel Replaces Part Number(s): 24M7053 (2) Steering Shaft Bushing Flange Outside Diameter: 1.09" Height: 0.886" Inside Diameter: 0.632" Outside Diameter: 0.928" Replaces Part Number(s): GX21994 (1) Shoulder Bolt Threads: 8mm Overall length: 28mm Replaces Part Number(s): M153513 (1) Lock Nut Thread Size: 10mm Thread Pitch: 1.5mm Thickness: 13.5mm Width Across Flats: 15mm Flange Diameter: 21.8mm Wrenching Height: 5.6mm Locking Element Type: B Replaces Part Number(s): 14M7400 (1) Lock Nut Thread Size: 8mm Flange Diameter: 17.9mm Wrenching Height: 4.6mm Thickness: 11.10mm Locking Element Type: B Replaces Part Number(s): 14M7396 (1) Lock Nut Thread Size: 10mm Thread Pitch: 1.25mm Thickness: 10mm Width Across Flats: 17mm Wrenching Height: 7mm Locking Element Type: B Replaces Part Number(s): 14M7455 Steering Gear Hardware KitReference Numbers:
14M7455, 14M7396, 14M7400, M153513, GX21994, 24M7053, 19M7835, UC13360Makes This Part Fits:
Shop John Deere Wholesale PartsProduct Category:
Lawn & Garden Replacement PartsProduct Group:
