Steering Kit Fits John Deere Tractor LA100 LA105 LA110 LA120 LA125 LA130 LA135
Steering Kit Fits John Deere Tractor LA100 LA105 LA110 LA120 LA125 LA130 LA135
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

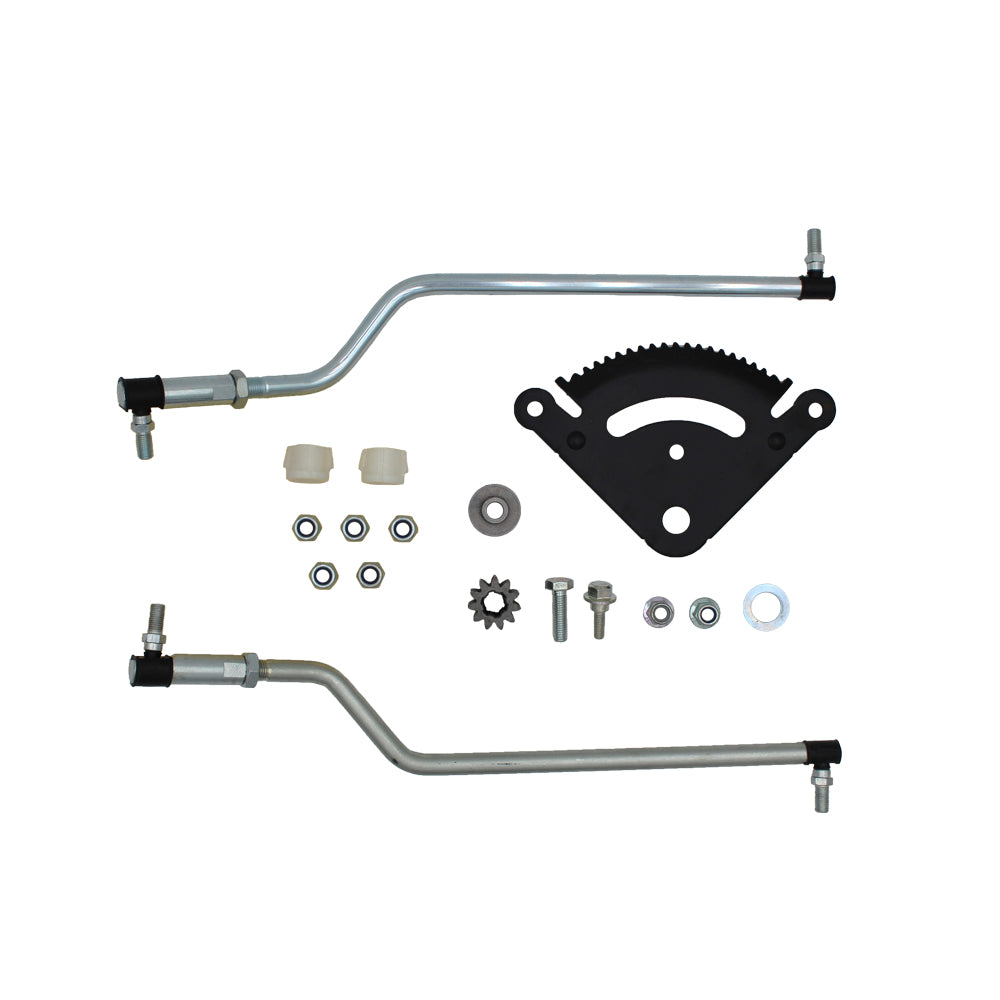

One New Aftermarket Replacement Steering Sector with Drag Link Kit
Fits John Deere Lawn Tractor Models:
LA100, LA105, LA110, LA120, LA125, LA130, LA135
Kit Includes:
(1)- Steering Sector gear
(1)- RH Drag Link
(1)- LH Drag Link
(1)- Pinion Gear
(1)- Steering Gear Hardware
(2)- Steering Shaft Bushings
(4)- Lock Nuts, (10mm x 1.25mm Pitch)
Replaces Part Numbers:
GX25785, GY20771, GY21251, 13340, GY20770, GY21250, GX20053, GX20053, 14M7396, M153513, 20225, GX21994, GX21994, 14M7455.
Fits John Deere Lawn Tractor Models:
LA100, LA105, LA110, LA120, LA125, LA130, LA135
Kit Includes:
(1)- Steering Sector gear
(1)- RH Drag Link
(1)- LH Drag Link
(1)- Pinion Gear
(1)- Steering Gear Hardware
(2)- Steering Shaft Bushings
(4)- Lock Nuts, (10mm x 1.25mm Pitch)
Replaces Part Numbers:
GX25785, GY20771, GY21251, 13340, GY20770, GY21250, GX20053, GX20053, 14M7396, M153513, 20225, GX21994, GX21994, 14M7455.
Models This Part Fits:
LA115, D120, 190C, LA100, D105, LA165, X105, D150, D170, 107S, 105, X130R, X165, LA110, X125, D110, LA175, S240, 135, 102, D125, D160, D100, D155, LA140, X115R, LA120, 92H, D140, LA125, 155C, 115, LA130, LA105, LA150, 145, D130, X145, 107H, X135R, 125, X155RAdditional Information:
(1) Left Hand Adjustable Draglink Left Hand Length: 18" Thread: M10x1.25mm Replaces Part Number(s): GY20770, GY21250 (1) Right Hand Adjustable Draglink Right Hand Length: 18" Thread: M10x1.25mm Replaces Part Number(s): GY21251, GY20771 (1) Pinion Gear Height: 1" OD: 1 3/8" Replaces Part Number(s): GX20053 (1) Steering Sector Gear Teeth: 21 Replaces Part Number(s): GX21924BLE, GX25785BLE, GX25785 (1) Steering Gear Bushing Flange Thickness 0.16" Flange Outside Diameter 1.382" Inside Diameter 0.407" Length 0.45" Outside Diameter 0.710" Replaces Part Number(s): UC13360, GX20054 (1) Steering Bolt Hex Flange Bolt Thread Size: 10mm Length: 35mm Thread Pitch: 1.25mm Replaces Part Number(s): 19M7835 (1) Flat Washer ID: .781" OD: 1.25" Thickness: .036" Material: Steel Replaces Part Number(s): 24M7053 (2) Steering Shaft Bushing I.D.: .625" O.D.: .900" Height: .870" Flange OD: 1" Replaces Part Number(s): GX21994 (1) Hexagonal Lock Nut - M10 Flange Diameter: 21.80mm Wrench Height: 5.60mm Thickness: 13.50mm Replaces Part Number(s): 14M7400 (5) Hexagonal Lock Nut - M10 10mm x 1.25mm Pitch Width Across Flats: 17mm Wrench Height: 7mm Replaces Part Number(s): 14M7455 (1) Locking Flange Nut Thread Size: 8mm Pitch: NC Thread Style: Right Hand Replaces Part Number(s): 14M7396 (1) Shoulder Bolt Thread Size: 8mm Length: 1.1” Replaces Part Number(s): M153513 Steering KitReference Numbers:
GY20770, GY21250, 14M7400, GY21251, GY20771, GX20053, GX21924BLE, UC13360, 19M7835, 24M7053, GX21994, 14M7455, M153513Makes This Part Fits:
