Steering Sector/Pinion Gear Kit Fits John Deere LA120, LA125, LA130, LA135 Mower

Steering Sector/Pinion Gear Kit Fits John Deere LA120, LA125, LA130, LA135 Mower

AIC Replacement Parts - FEDEX2DAY


**TO VIEW PRICE**

LOGIN or REGISTER


One New Aftermarket Replacement Steering Gear Repair Kit

Fits:
Fits John Deere Models:
L118 / L120 / L130
17.542HS Fits SABRE Lawn Tractor
L17.542 Fits Scotts Lawn Tractor with 42-inch Mower Deck
108-17HS Fits SABO Lawn Tractor
L1742 Fits Scotts Lawn Tractor with 42-inch Mower Deck
14.542GS Fits SABRE Lawn Tractor
L2548 Lawn Tractor with 48-inch Mower Deck
1642HS and 1742HS Export Fits SABRE Lawn Tractors Model year 2002
108-14.5 Fits SABO Lawn Tractor
L2048 Fits Scotts Lawn Tractor with 48-inch Mower Deck
L110 Lawn Tractor
L118 Lawn Tractor
L105 Lawn Tractor
L108 Lawn Tractor
L111 Lawn Tractor
G110 Garden Tractor
L130 Lawn Tractor
L120 Lawn Tractor

Tech Info:

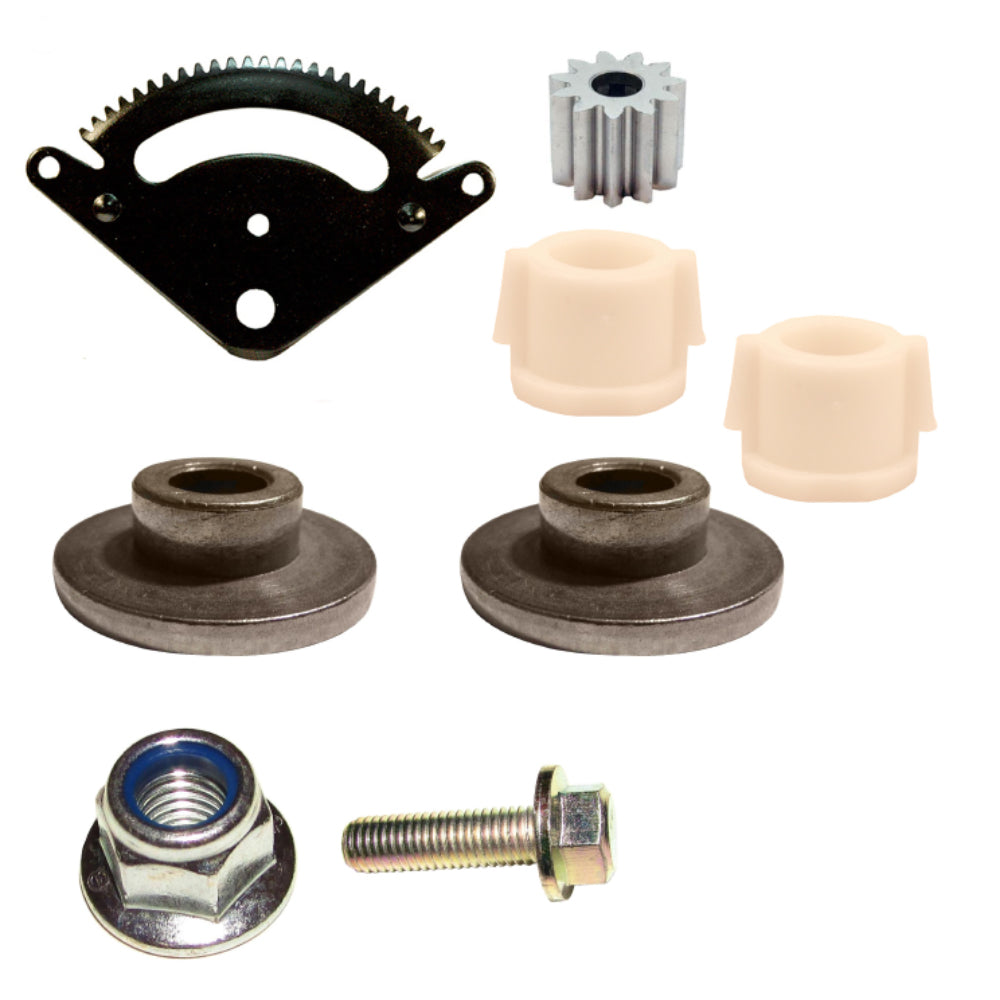

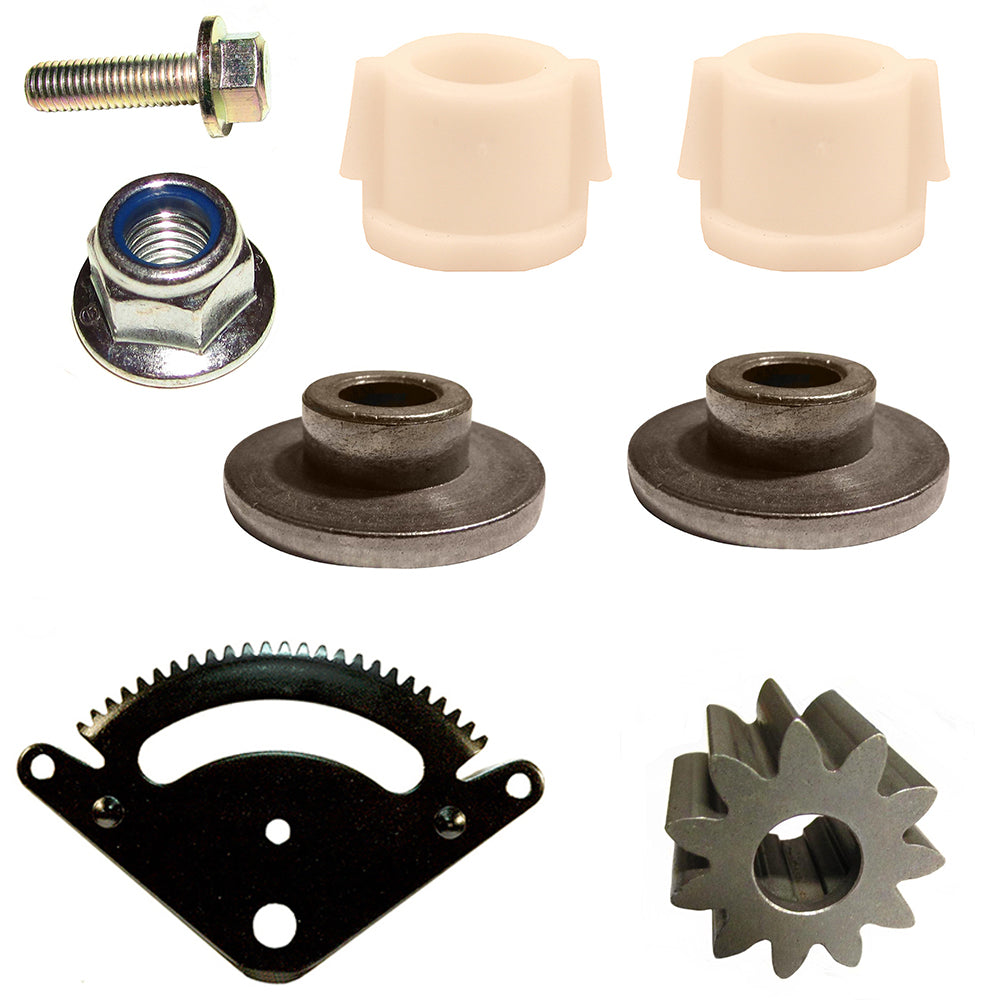

Kit Includes:

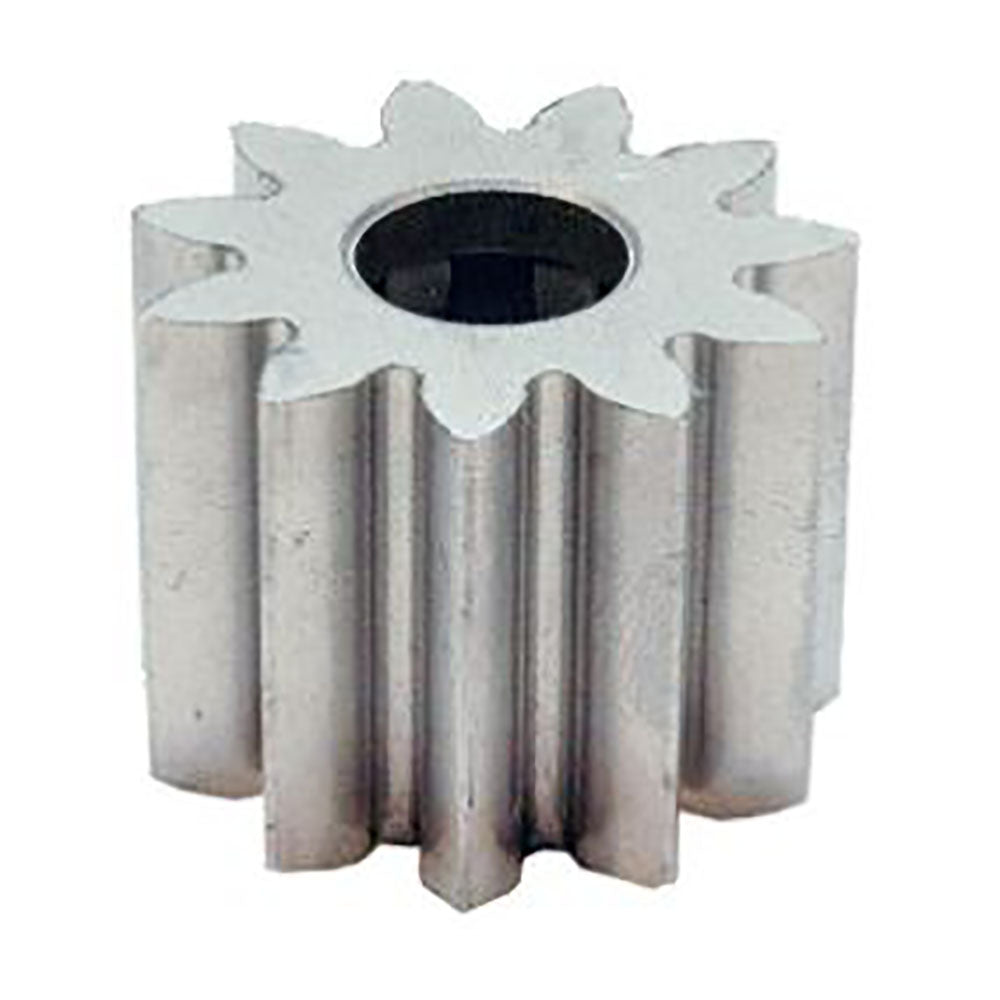

(1) Pinion Gear

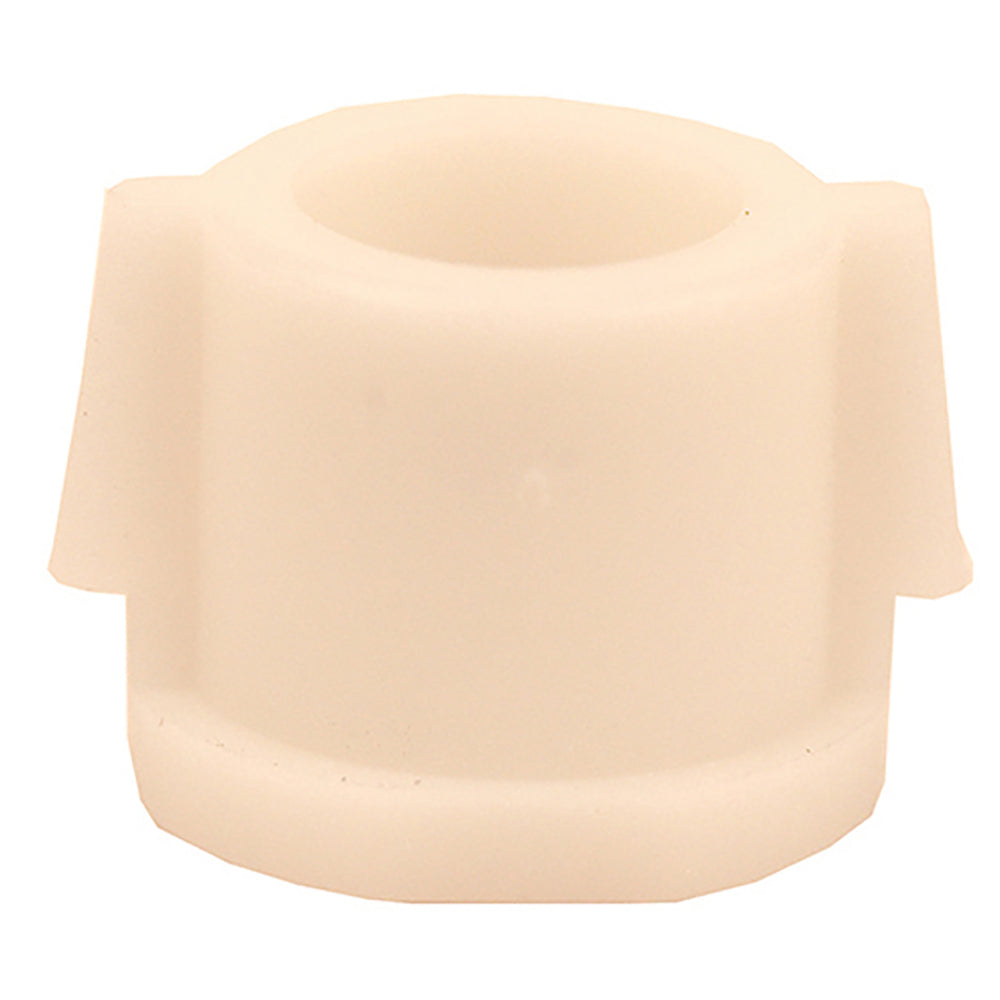

(2) Steering Shaft Bushings

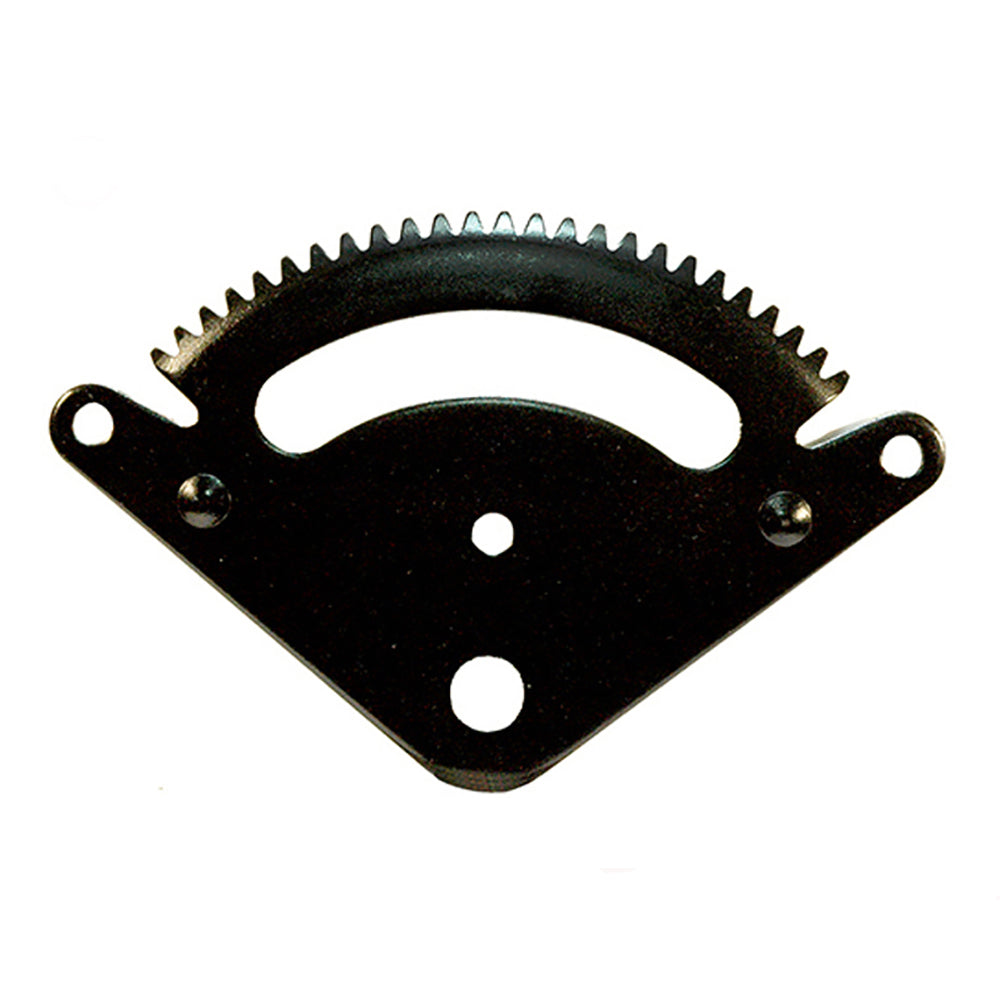

(1) Sector Gear

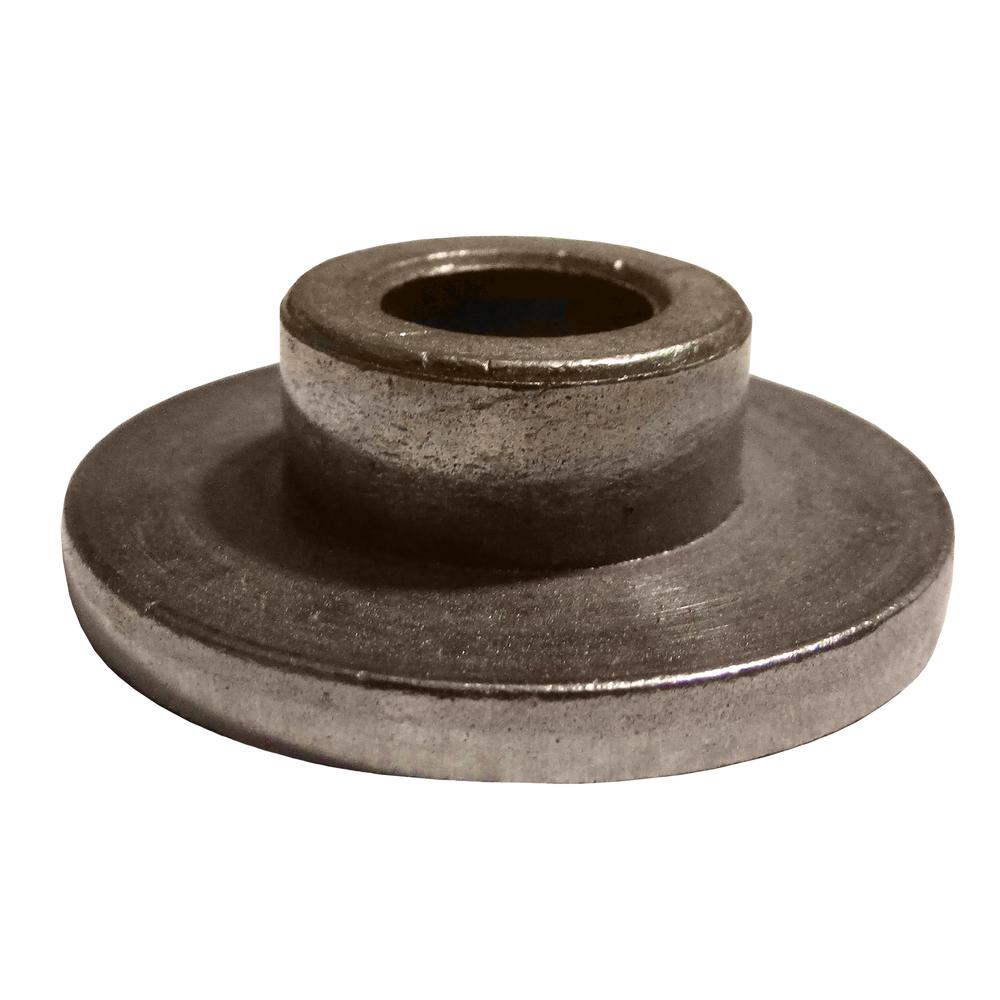

(2) Steering Gear Bushings

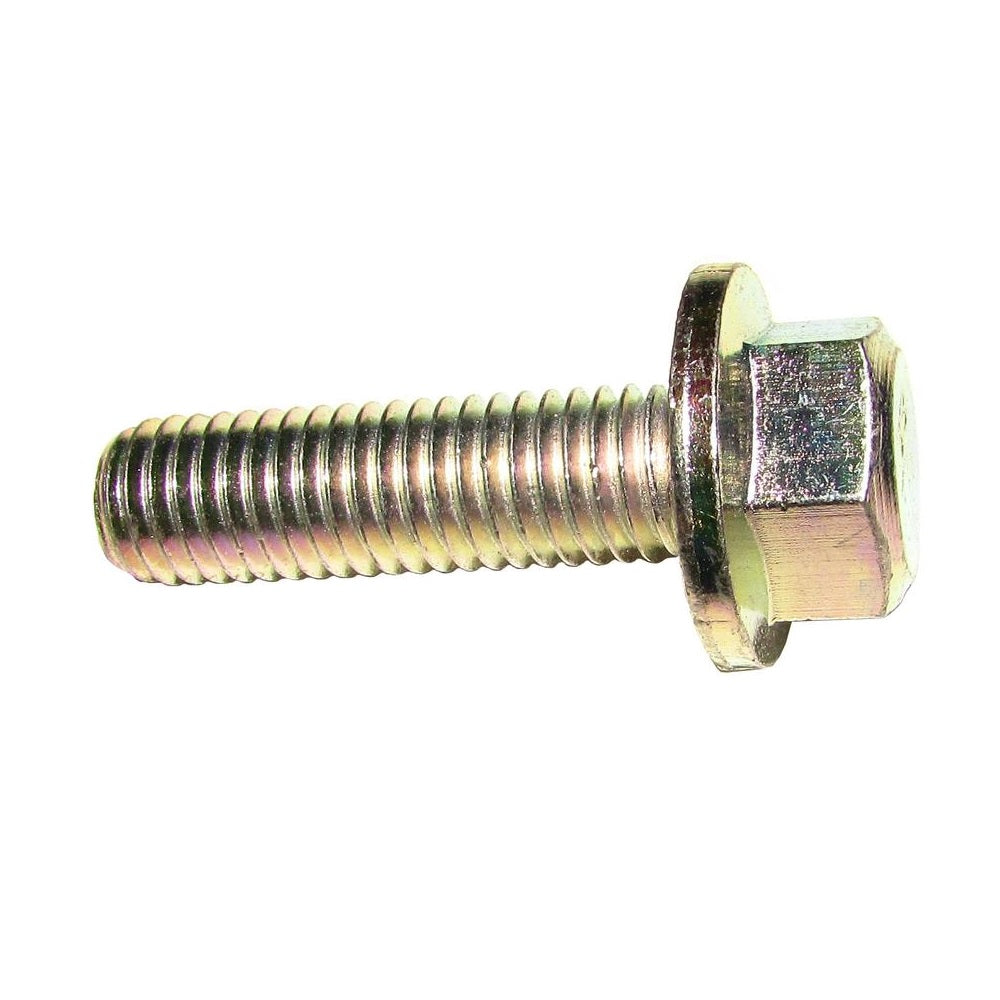

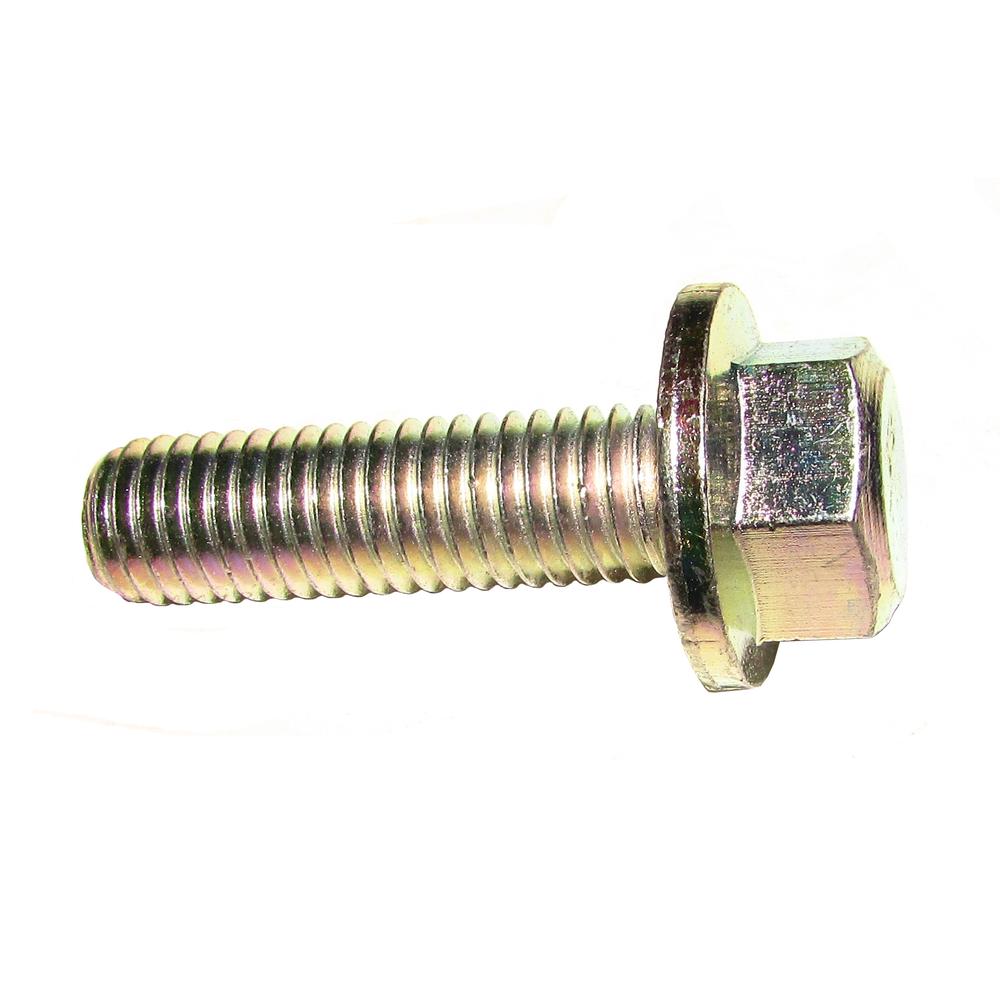

(1) Steering Bolt

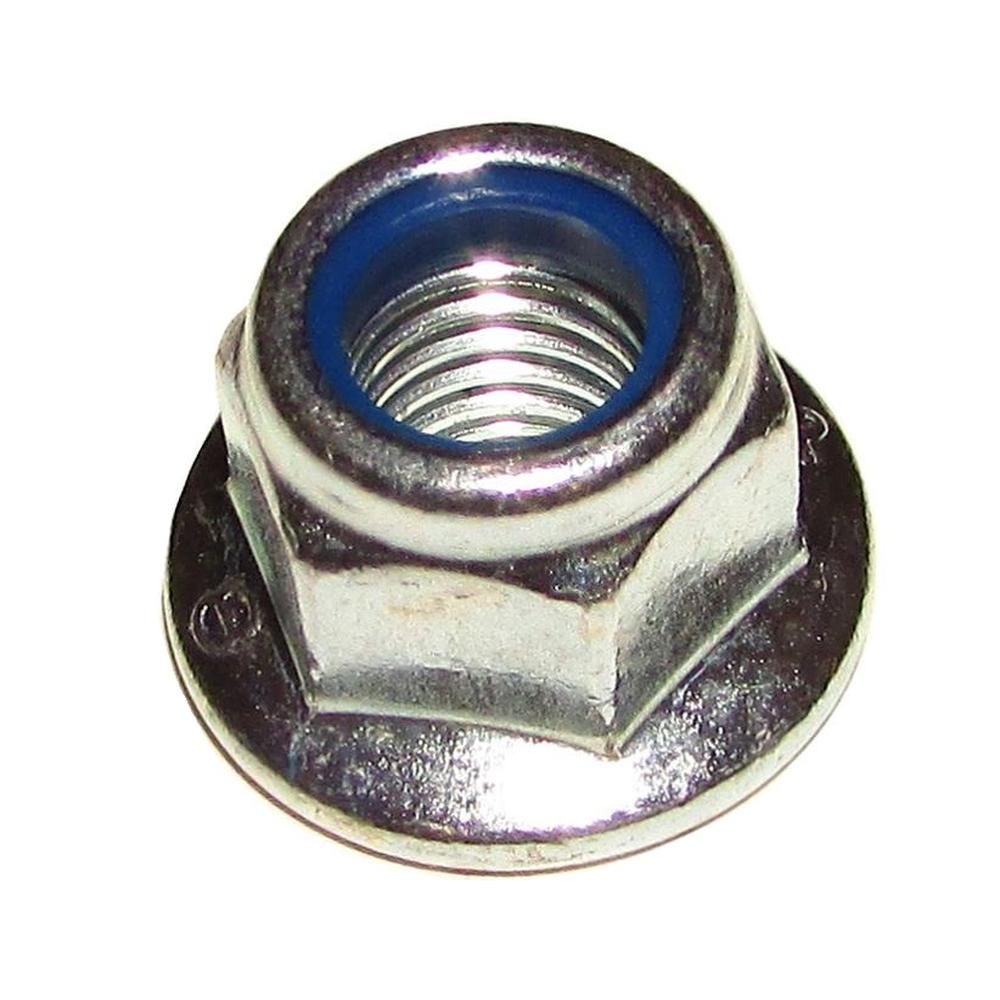

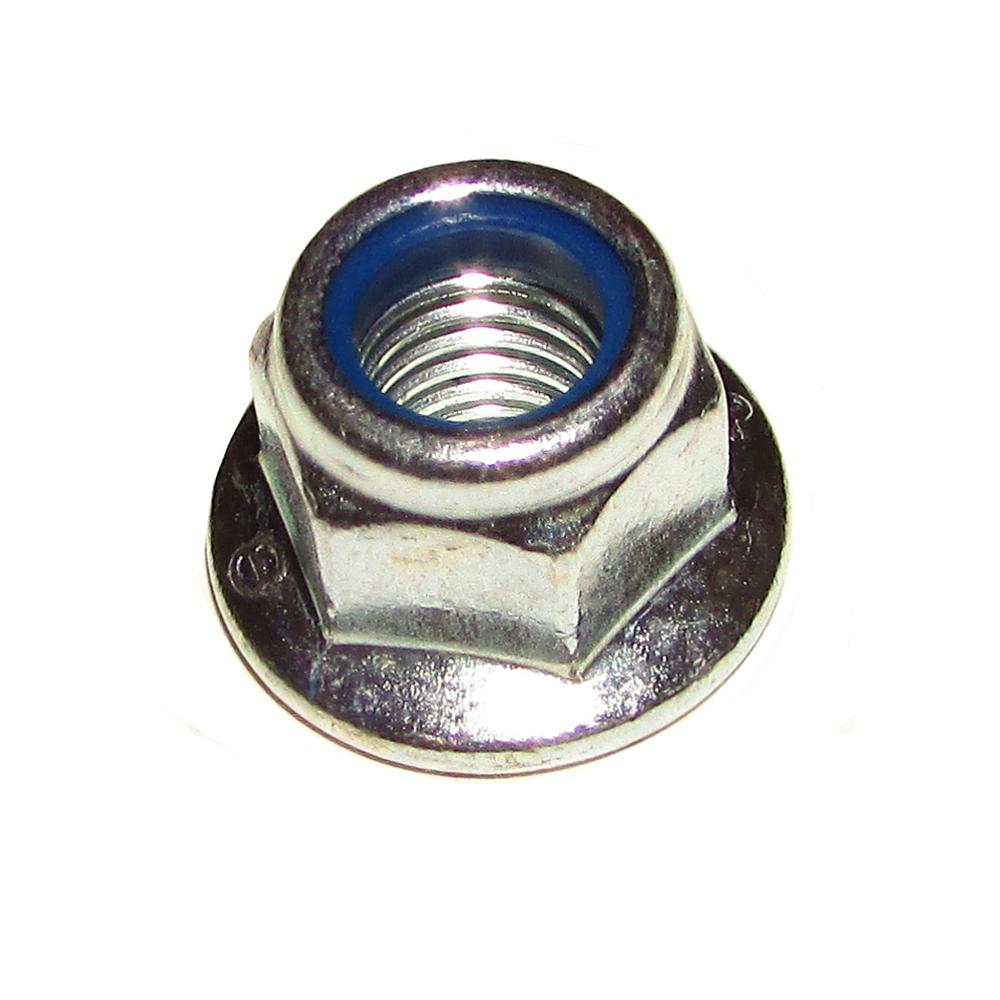

(1) Lock Nut

Replaces Part Number(s):
5774GE108HF, GX21994, UC13360, 19M7835, 14M7400, GX20053, GX20052, GX20052BLE, GX20054

Models This Part Fits:

Additional Information:

(1) Sector Gear 25 Teeth Replaces Part Number(s): GX20052, GX20052BLE (1) Pinion Gear HRC 30 Height: 1" OD: 1-3/8" Replaces Part Number(s): GX20053 (2) Steering Gear Bushing Flange Thickness 0.16" Flange Outside Diameter 1.382" Inside Diameter 0.407" Length 0.45" Outside Diameter 0.710" Replaces Part Number(s): UC13360, GX20054 (2) Steering Shaft Bushing I.D.: .625" O.D.: .900" Height: .870" Flange OD: 1" Replaces Part Number(s): GX21994 (1) Steering Bolt Diameter: 10mm (0.39”) Length: 35mm (1-3/8”) Replaces Part Number(s): 19M7835 (1) Hexagonal Lock Nut - M10 Flange Diameter: 21.80mm Wrench Height: 5.60mm Thickness: 13.50mm Replaces Part Number(s): 14M7400 Steering Gears with Hardware

Reference Numbers:

GX20052, GX20052BLE, GX20053, 19M7835, 14M7400, GX21994, UC13360, GX20054

Makes This Part Fits:

Shop John Deere Wholesale Parts

Product Category:

Lawn & Garden Replacement Parts
