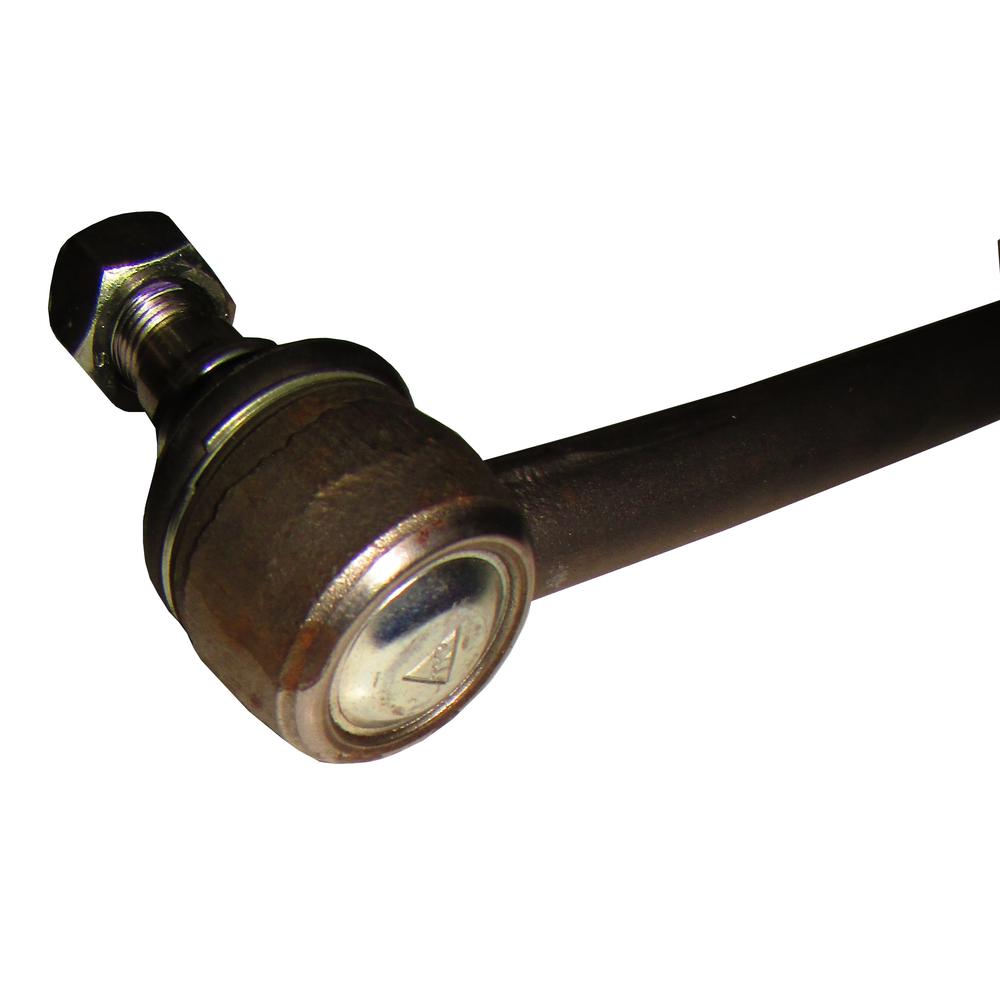

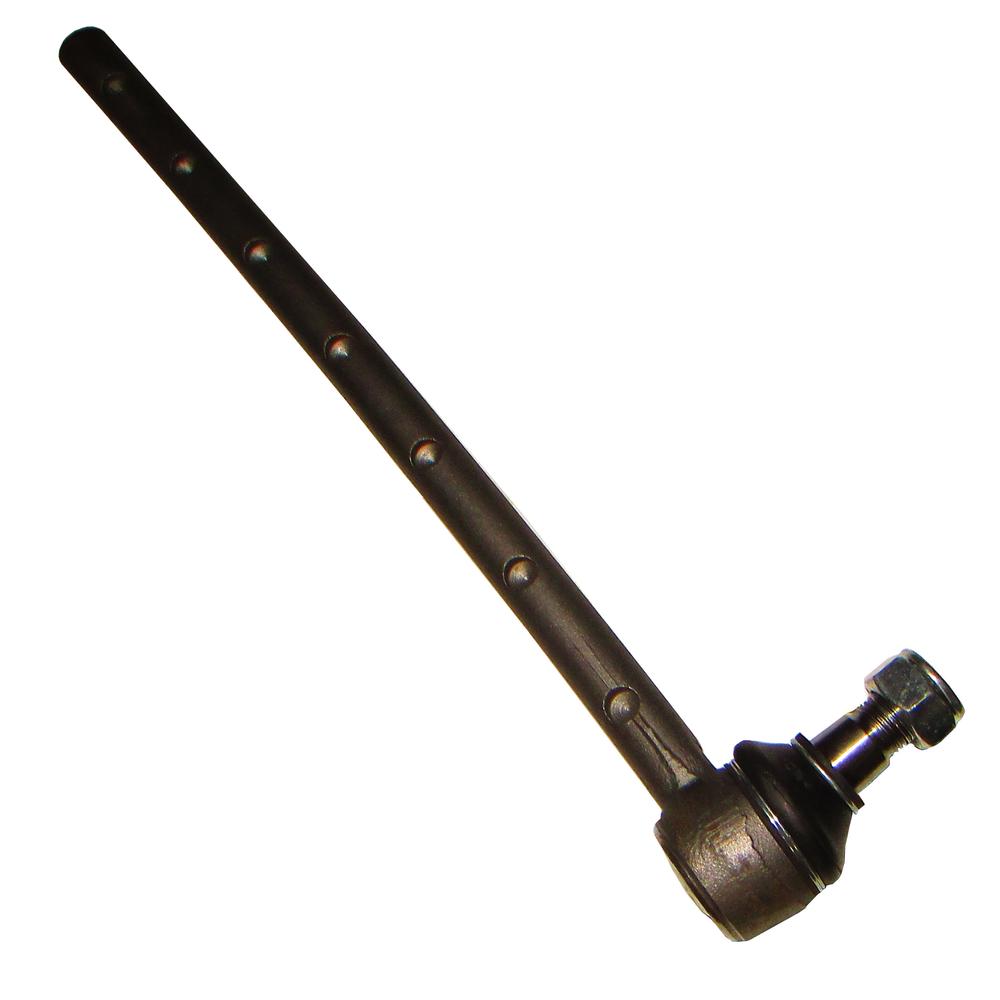

One New Aftermarket Replacement Tie Rod End (Left Hand Outer) Fits Massey Ferguson Tractors

This left-hand (LH) outer tie rod end is a direct-fit replacement for the front axle steering system on Fits Massey Ferguson 50, 65, and 765 models. The tie rod end connects the steering linkage to the front spindle, maintaining proper front-end alignment, consistent steering response, and even tire wear. This part carries a 16-inch overall length with a 3/4-inch diameter shaft and M16x1.50 right-hand male thread, angling upward 10 degrees -- matching the original Fits Massey Ferguson design exactly.

Specifications

• Side: Left Hand (LH) Outer
• Overall Length: 16.00 in.
• Center to End: 14-11/16 in. (7-5/16 in. stud center to rod end)
• Shaft Diameter: 3/4 in. (0.737 in.)
• Thread: M16x1.50 Right Hand
• Notches/Holes: 7
• Angle: Upward 10 degrees

Compatible Models

Fits Massey Ferguson Tractors: 50 (s/n 528163 and earlier), 65 Gas (s/n 671680 and earlier), 65 Diesel (s/n 667918 and earlier)

Fits Massey Ferguson Construction & Industrial / Backhoe Loader: 765

Fits Massey Harris Tractors: MH50 (s/n 528163 and earlier)

Replaces Part Number(s):

186235M91, 182507M91, 186235M1-LH16, 186235V91-LH16, AM186235M91-LH16, HM186235-LH16, HM186235, VPJ3010-LH16, 102507-LH16

New aftermarket replacement part - not remanufactured, not used.
