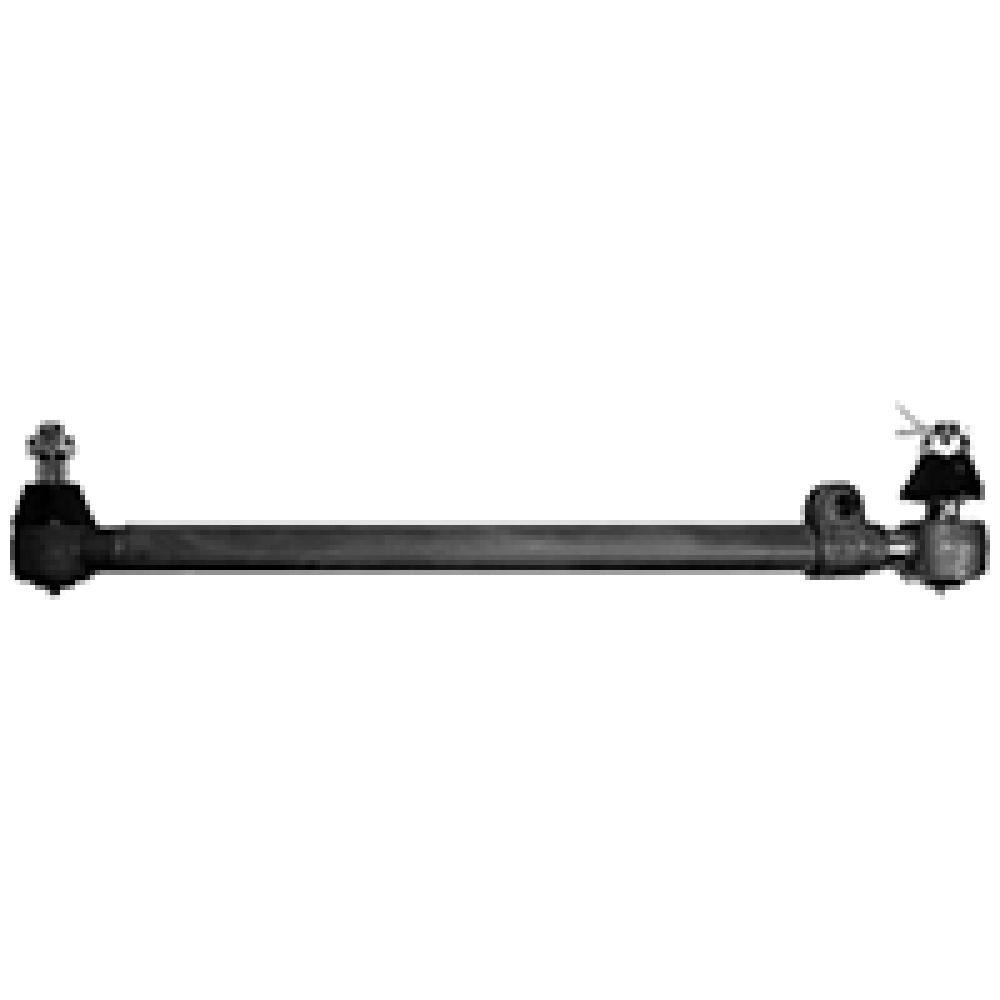

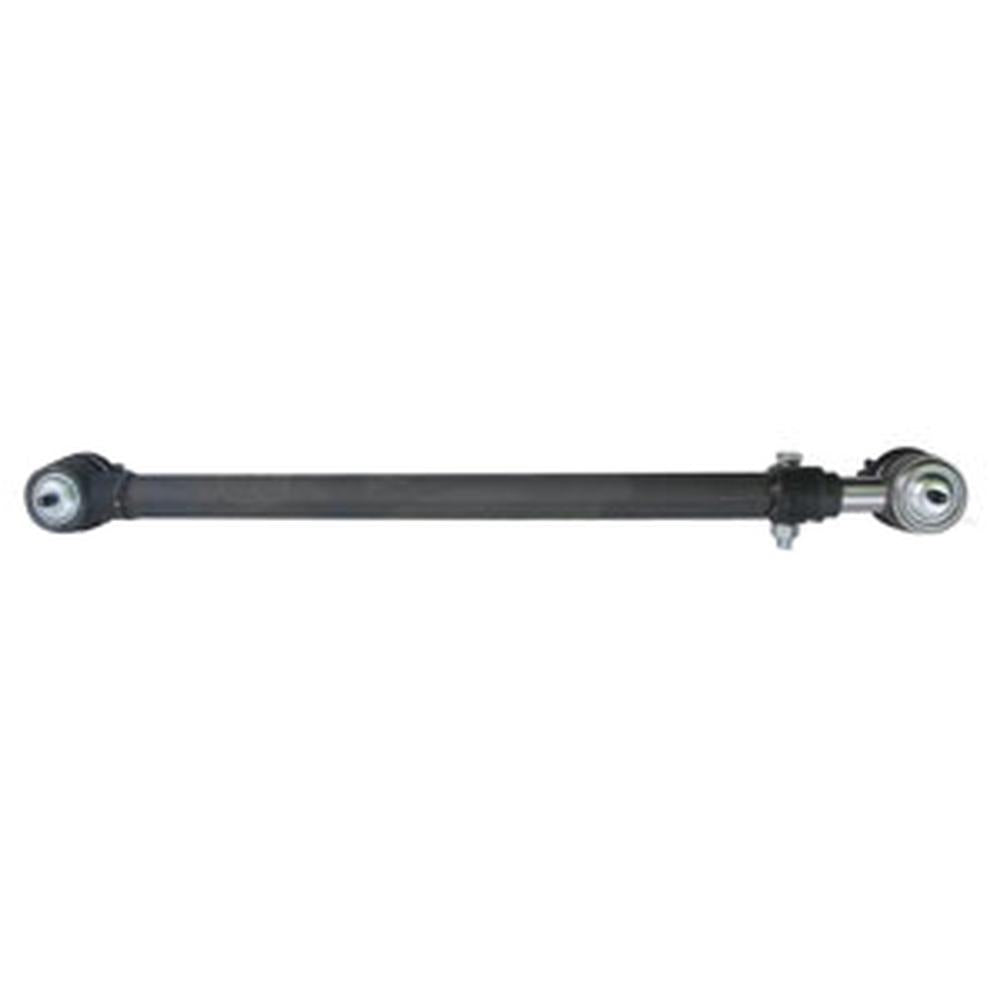

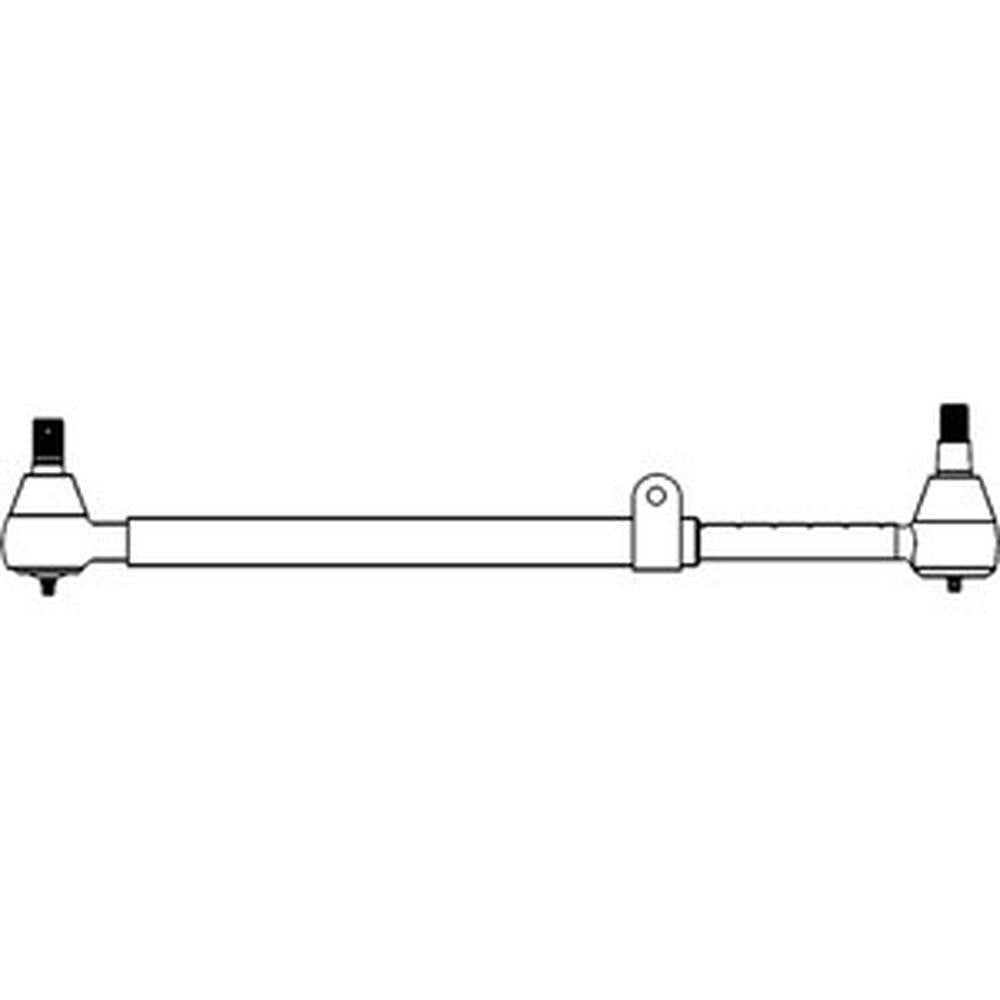

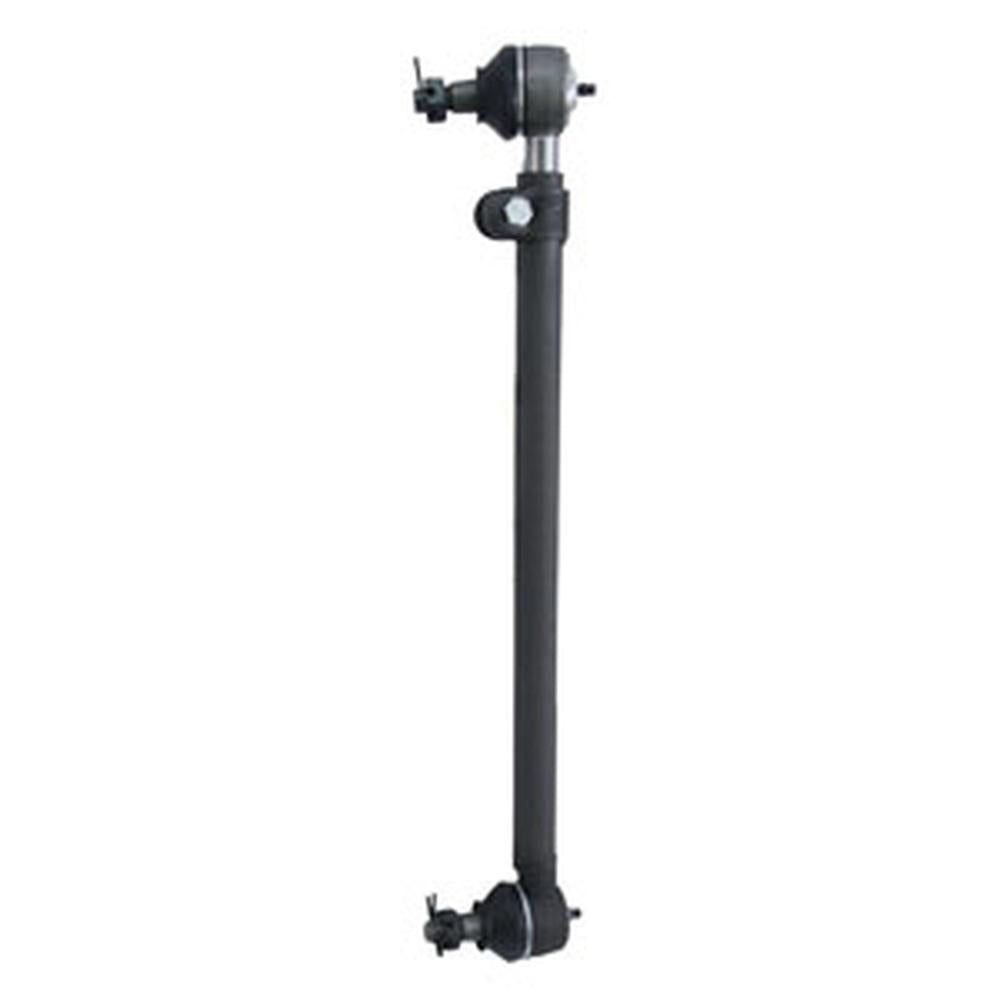

Tie Rod Assembly Fits Allis Chalmers 180 D15 200 190 WD 175 D17 170 WD45 185

Name: Tie Rod Assembly Fits Allis Chalmers 180 D15 200 190 WD 175 D17 170 WD45 185
Brand: AIC Replacement Parts
SKU: AGER1305333
Price: 56.88 USD
Availability: InStock

Tie Rod Assembly Fits Allis Chalmers 180 D15 200 190 WD 175 D17 170 WD45 185

AIC Replacement Parts

TO VIEW PRICE

LOGIN or REGISTER

Product variants

Complete Tie Rod

Fits: A C, Fits Allis Chalmers
Models: 170, 175, 180, 185, 190, 190XT, 200, D14, D14 D15 D17 D19 WD WD45 170 175 180 185 190 190XT, D15, D17, D19, WD WD45 D14 D15 D17 170 175 180 185, WD45

Replaces Part Number(s)225279, 225280, 249418, 254660, 254661, 254662, 254860, 70254660, 70254660-A, 70254661, 70254662, Drag Links, Front Axle Parts, Tie Rod Assemblies, Tie Rod Assembly, Tie Rod Ends, Tie Rods

Models This Part Fits:

190XT, WD, 170, 190XT III, D15, CA, 185, 180, D17, WD45, D19, 200, 190, 175, 190XTIII, D14

Additional Information:

The inside tie rod measures 16-3/8" long from the grease fitting to the end 0.782" diameter rod Outer tube is 17-3/8" long from the grease fitting to the end 1.56" tube outside diameter The tie rod end tapers from 0.660" to 0.735" Extended length with tie rod inserted 3 1/4 inches is 30 1/2 inches.(measurement from tie rod center to tie rod center) Collapsed it is 18 3/4 inches. (measurement from tie rod center to tie rod center) Complete Tie Rod

Reference Numbers:

70254660, 70250141, 70254661, 70227830, 70254662, 70253249, 70247836, 70235789, 70249418, 254661, 70249418, 70250141, 70250142, 250141, 250142, 225279, 249418, 70225279, 70227481, 70254661, 70254662, 227481, 225280, 254662, 70222084, 222084, 70225280, 70254660, 70254661, 70254662, 70254662V
