Tie Rod End Fits Case 1394 584 586 580SD 1690 1594 480E 580SE 760 580D 1494 585
Tie Rod End Fits Case 1394 584 586 580SD 1690 1594 480E 580SE 760 580D 1494 585
AIC Replacement Parts - FEDEX2DAY
**TO VIEW PRICE**
LOGIN or REGISTER

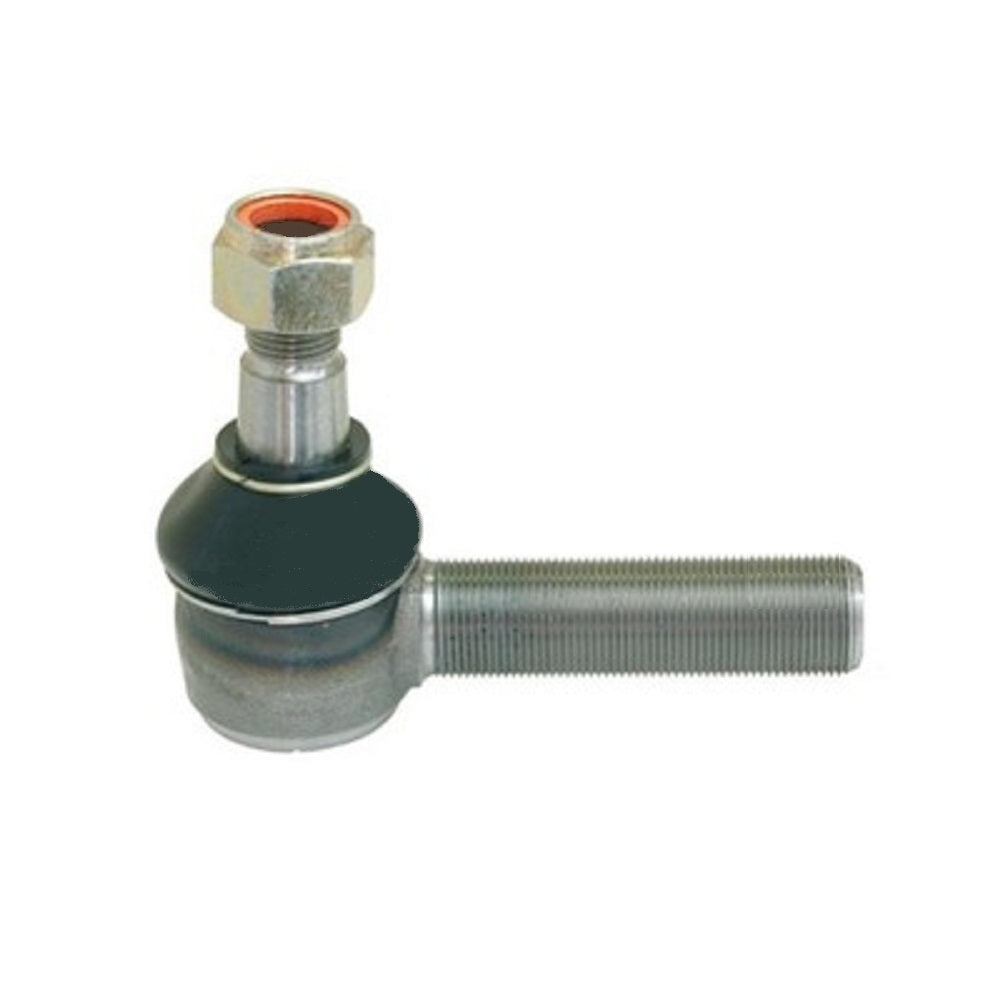

One New Aftermarket Replacement Tie Rod End Fits Case
Replaces Part Numbers:
K260254, K262982
Fits Models:
Tractors: 1394, 1494, 1594, 1690, 1694
Construction & Industrials:
480E, 480LL, 580D, 580SD, 580SE, 584, 585, 586, 760, 860

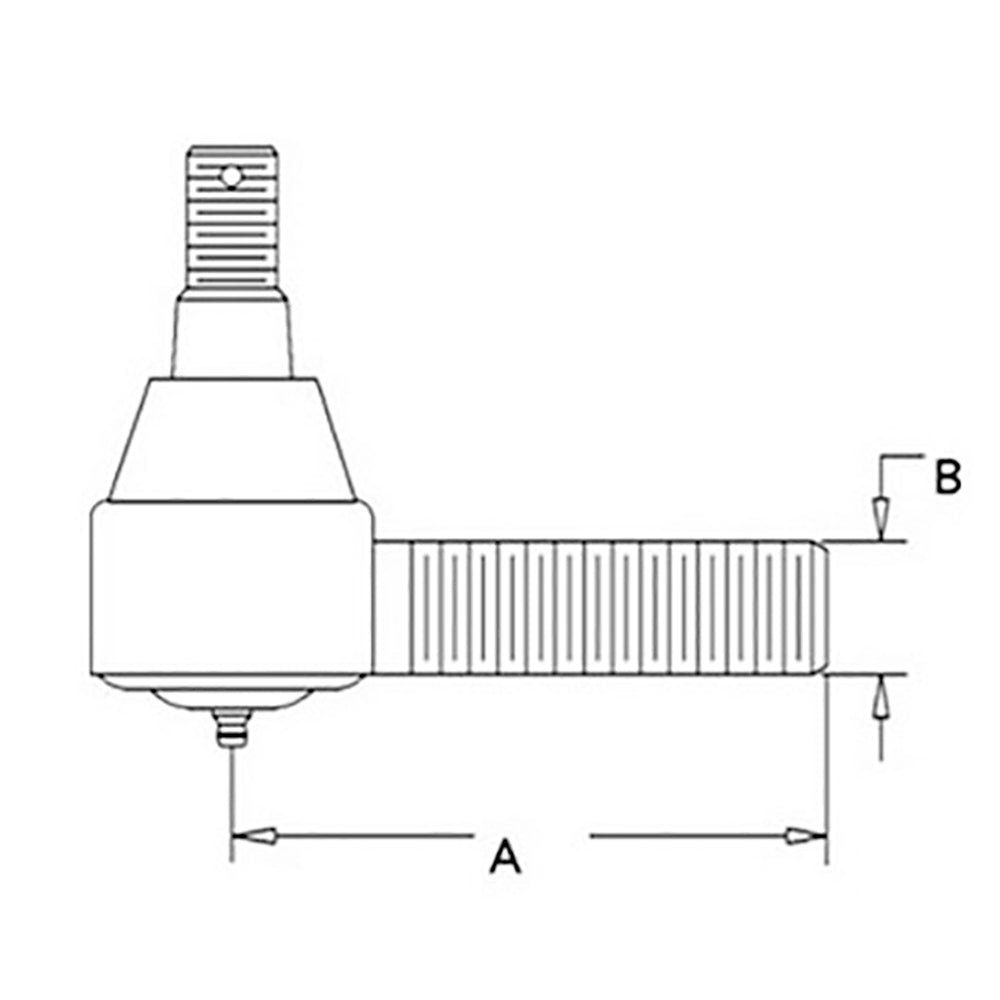

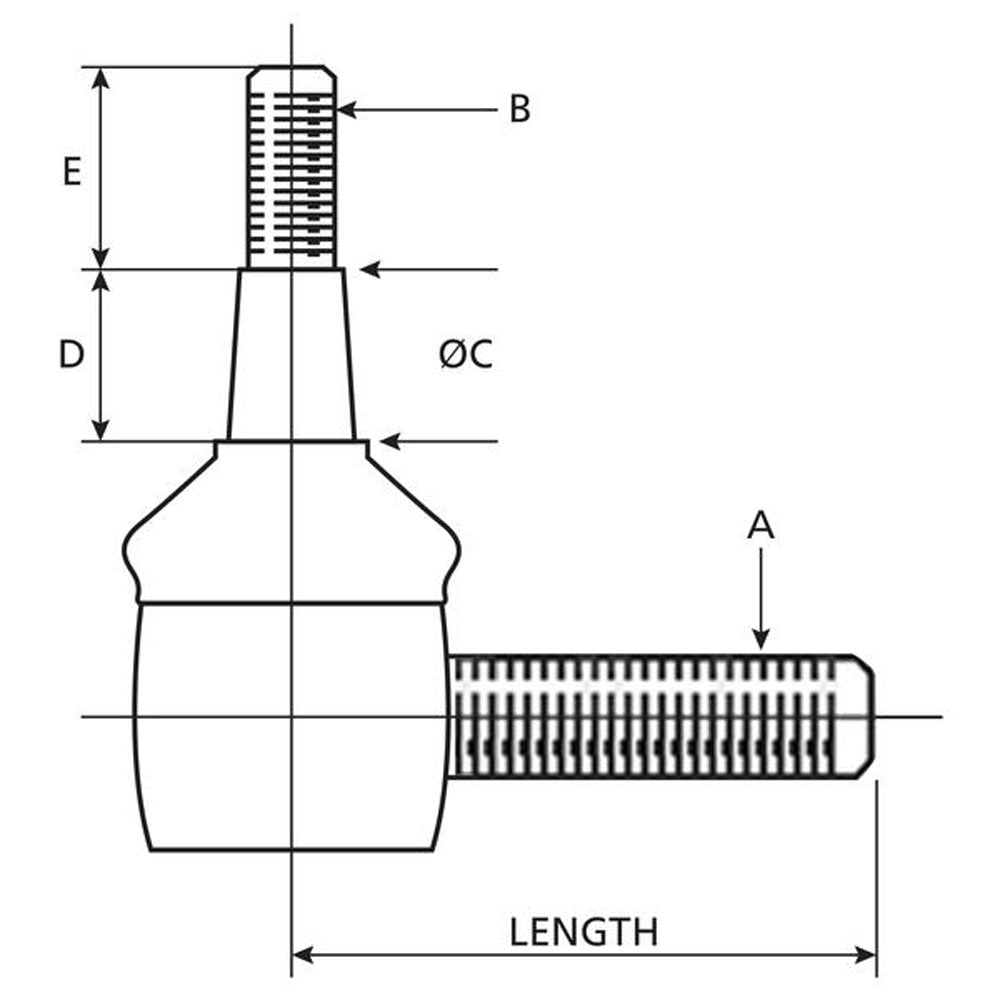

Tech Info:
Right Hand
Thread size (major diameter of the male thread): M24 x 1.5
Thread size (stud thread/upper threaded portion): M18 x 1.5
Taper diameter (large end of the tapered stud): 21.6-20mm/ 0.85" - 0.79"
Taper length (length of the tapered section): 16.5mm/0.65"
Models This Part Fits:
580F, 3030, 586E, 1694, 580C, 1690, 586FL, 480C, 550, 580B, 580D, 580 SUPER D, 1394, 580G, 580SE, 1690 TURBO, 585D, 3130, 3120, 586D, 480E, 480B, 655, 580E, 580, 1594, 555, 584E, 585E, 480D, 584FL, 1494, 584DAdditional Information:
Right Hand Thread size (major diameter of the male thread): M24 x 1.5 Thread size (stud thread/upper threaded portion): M18 x 1.5 Taper diameter (large end of the tapered stud): 21.6-20mm/ 0.85" - 0.79" Taper length (length of the tapered section): 16.5mm/0.65" RH Tie Rod EndReference Numbers:
K260254, K262982, G45368, A39119, K262888, K262809, 87031, AL38645, K262888, WN-CAR87031, WN-CAR87031-PEXMakes This Part Fits:
