One New Aftermarket Replacement Outer Tie Rod End for John Deere (JD) Tractors and Cotton Pickers

This outer tie rod end (8-hole) is a front axle steering component for John Deere (JD) 40 and 55 Series tractors equipped with a regular wide front axle, as well as John Deere 9910 and 9920 cotton pickers equipped with a standard adjustable axle. The 8 cross holes allow for precise toe-in adjustment during installation.

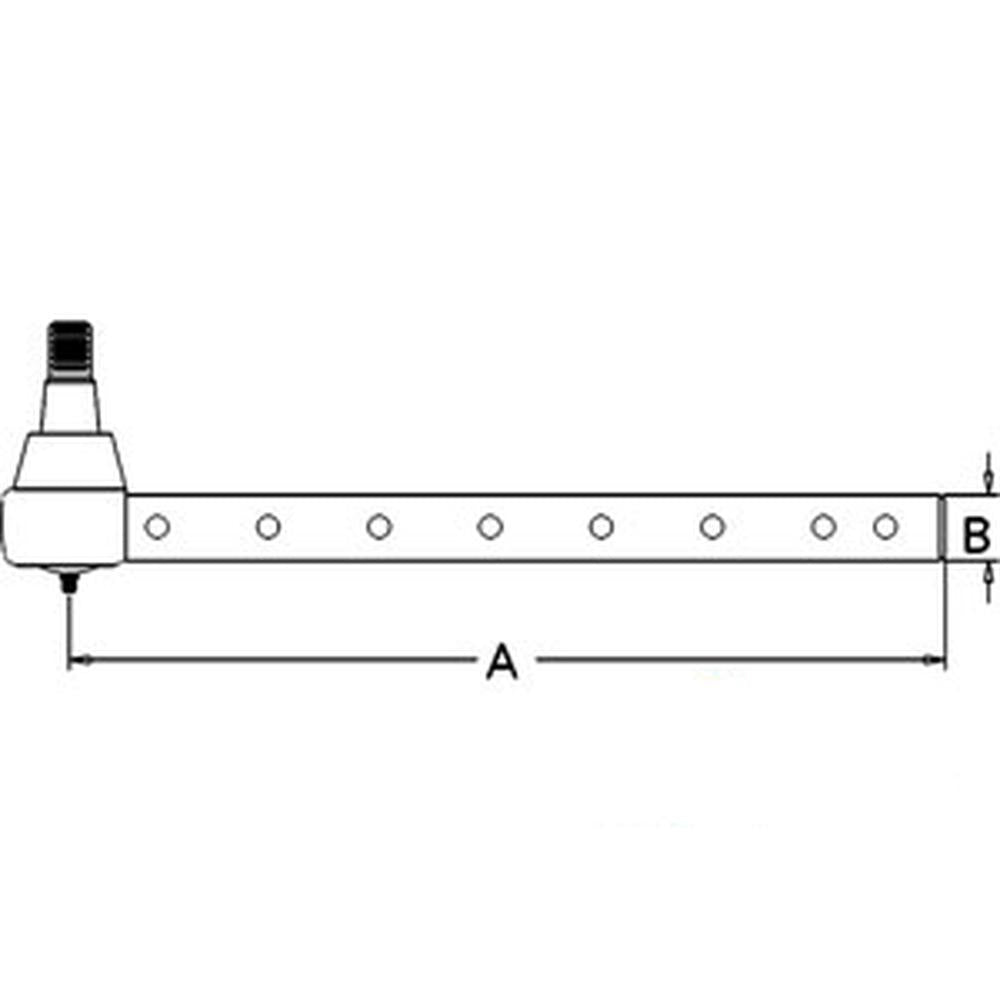

Specifications

• Length: 16"
• Outer Diameter: 1"
• Stud Size: 0.625"
• Threads Per Inch: 18
• Hole Spacing: 2"
• Number of Adjustment Holes: 8
• Axle Fitment: Regular Wide Front Axle (tractors); Standard Adjustable Axle (cotton pickers)

Compatible Models

John Deere Tractors (Regular Wide Front Axle): 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4430, 4440, 4450, 4455

John Deere Cotton Pickers (Standard Adjustable Axle): 9910, 9920

Replaces Part Number(s):

AR63592, AR63592-A

Aftermarket Interchange Numbers

A-AR63592, TP-AR63592

New aftermarket replacement part - not remanufactured, not used.
