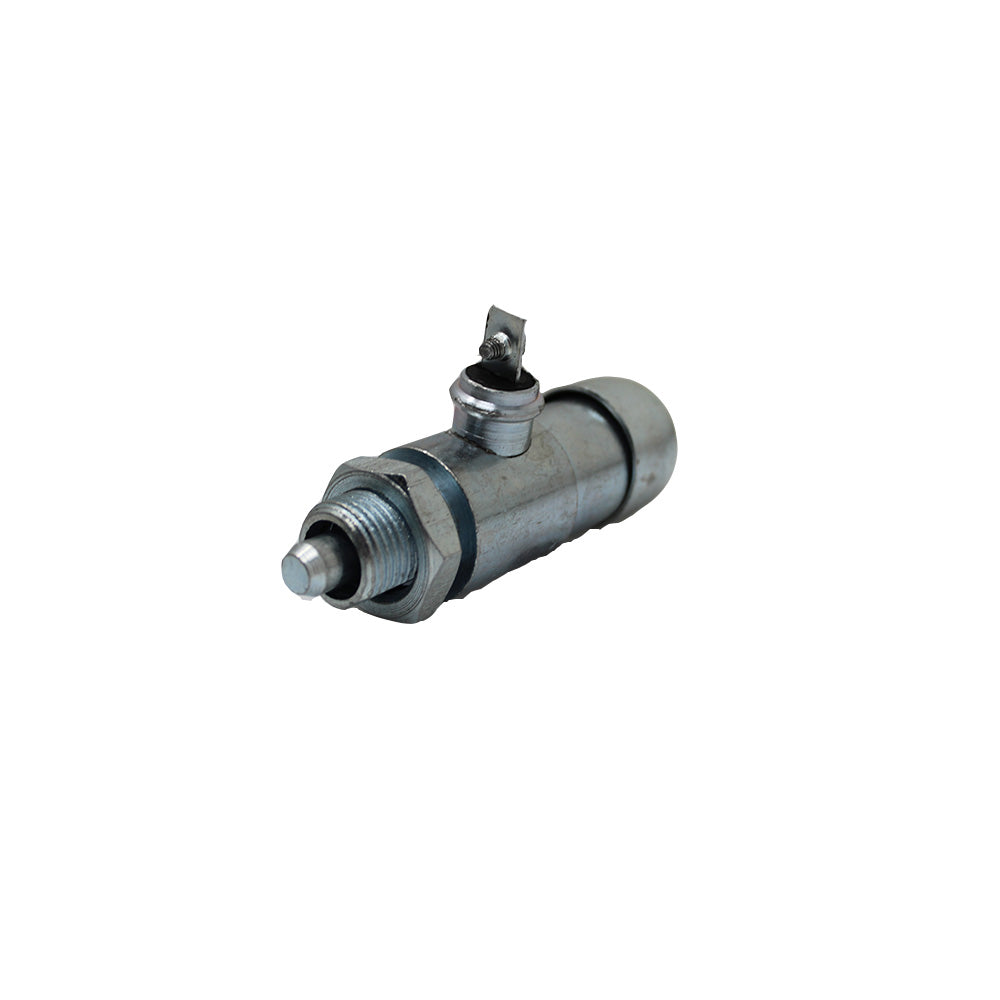

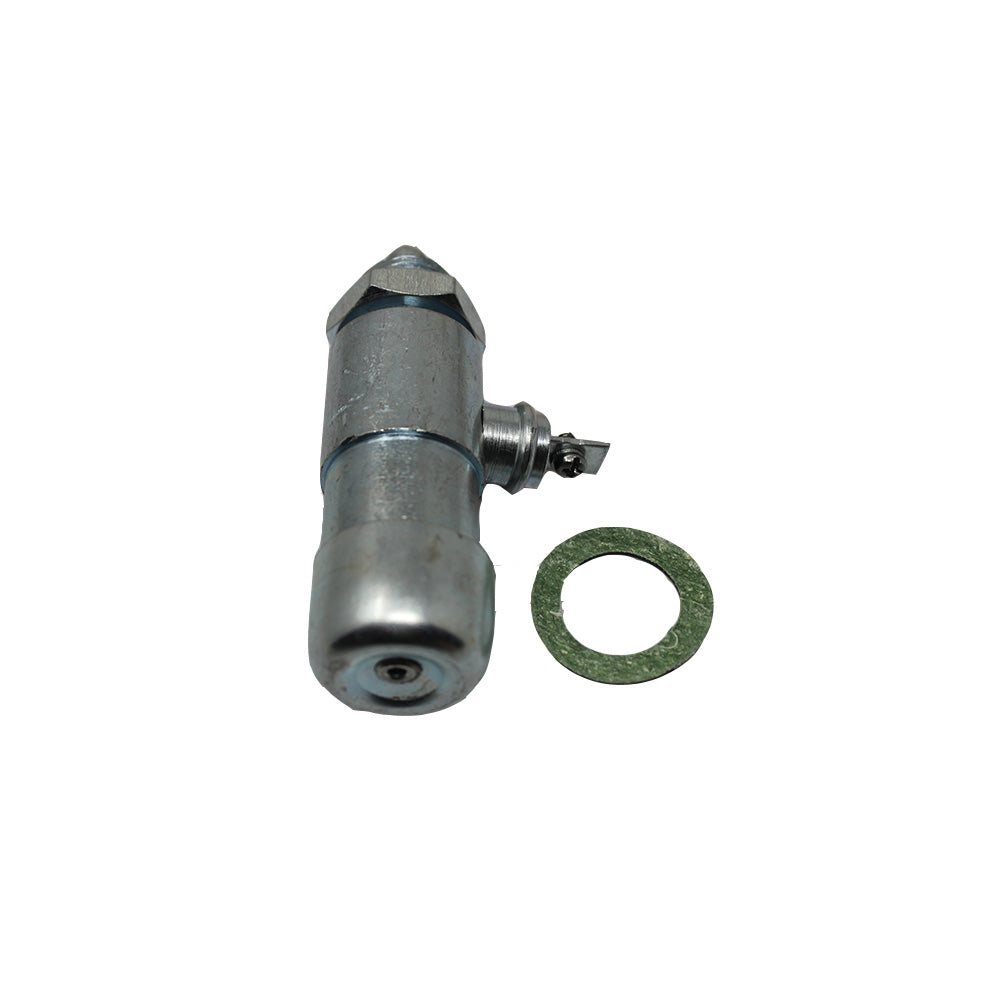

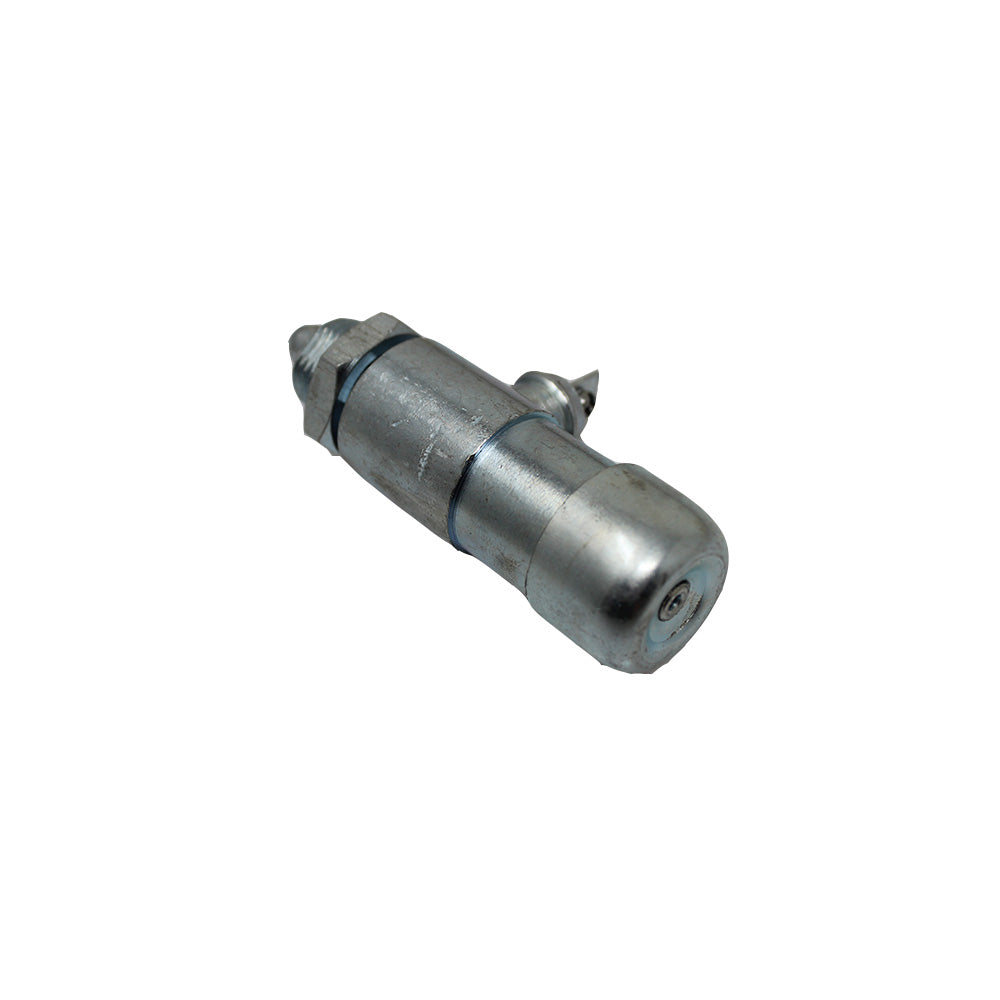

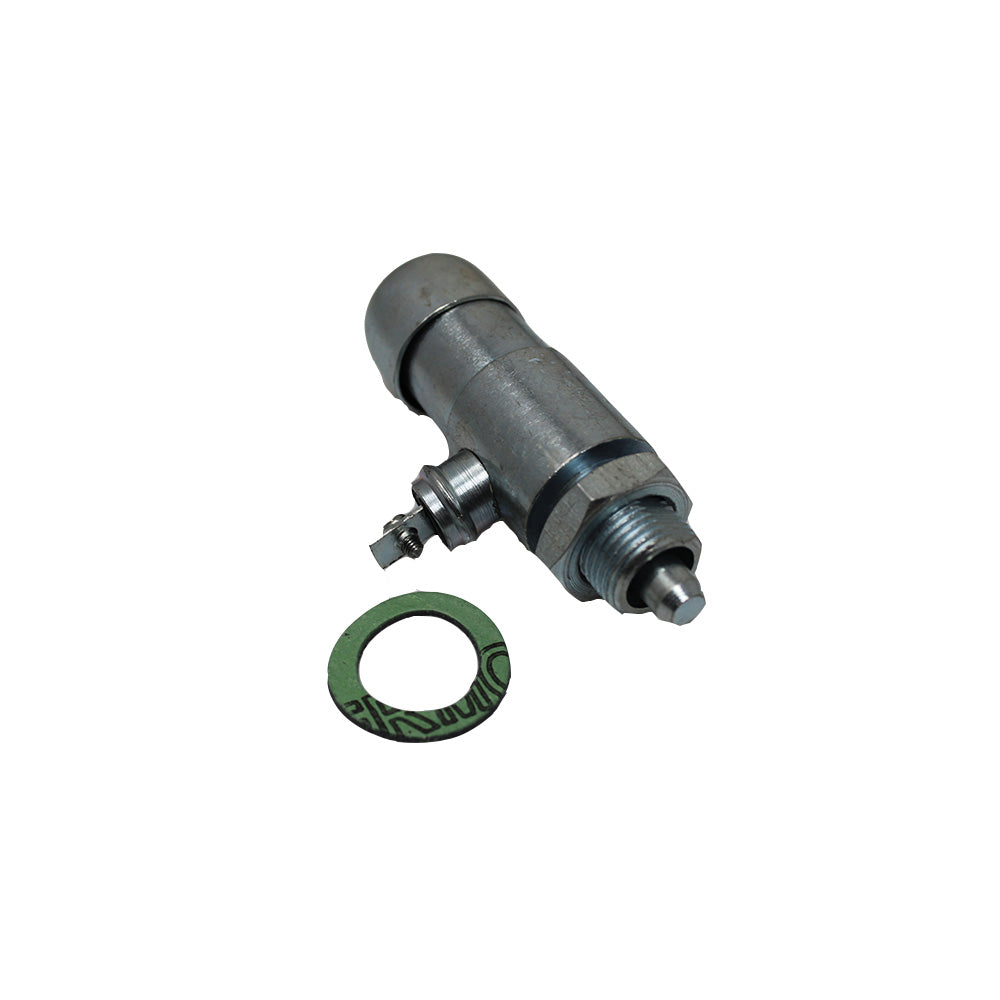

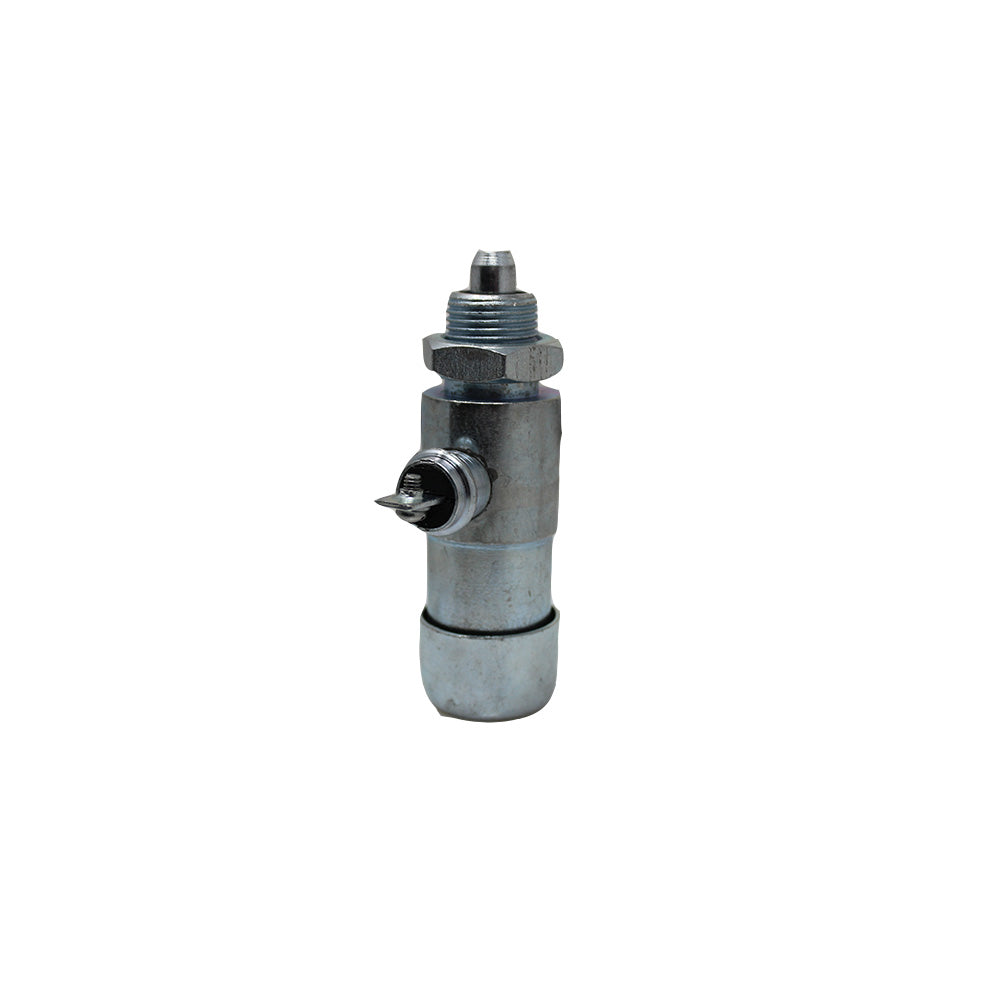

One New Aftermarket Replacement Starter Safety Switch with Gasket for Ford (Ford/New Holland) Tractors
This push-button starter safety switch mounts on the dash or instrument panel and engages the starter circuit on classic Ford tractors built from 1948 through 1964. Includes the mounting gasket. The switch is a Single Pole, Single Throw (SPST) push-button design rated at 30 amps, threaded at 3/4"-16, and is compatible with both 6-volt and 12-volt electrical systems. Note: Fits Ford 8N tractors built 1948-1952, excluding Select-O-Matic models.
Specifications
- Type: Push Button, Single Pole Single Throw (SPST)
- Amperage: 30 Amp
- Thread Size: 3/4"-16
- Terminals: 1
- Positions: 2
- Voltage: Compatible with 6-volt and 12-volt systems
- Includes mounting gasket
Compatible Models
Ford/New Holland: 8N (1948-1952, excluding Select-O-Matic), 9N, 2N, NAA (Jubilee), 501, 541, 600, 601, 611, 620, 621, 630, 631, 640, 641, 650, 651, 660, 661, 700, 701, 740, 741, 800, 801, 811, 820, 821, 840, 841, 850, 851, 860, 861, 900, 901, 941, 950, 951, 960, 961, 2000 (4-cylinder), 2030, 2031, 2111, 2130, 2131, 4000 (4-cylinder), 4030 (4-cylinder), 4031, 4040, 4110, 4120, 4121, 4130 (4-cylinder), 4140; New Holland 1801, 1811, 1821, 1841, 1871, 1881 (1953-1964 series)
Replaces Part Number(s):
8N11500WG, 8N11500, 84290889
Aftermarket Interchange Numbers
8N11550 (superseded by 8N11500WG)
New aftermarket replacement part - not remanufactured, not used.
Models This Part Fits:
2000 4 cylinder, 630, 4140, 2031, 501, 840, 2030, 660, 641, 631, 841, 611, 700, 1871, 2130, 4031, 651, 820, 1841, 2111, 900, 1881, 811, 1821, 701, 800, 1811, 541, 4030 4 cylinder, 4110, 600, 2N, 661, 740, 650, 2131, 741, 4121, 861, 950, 851, 850, 640, 951, 941, Jubilee, 960, 901, 821, 4040, 9N, 621, 4120, 601, 1801, 620, 860, 4000 4 cylinder, 4130 4 cylinder, 8N, 801, NAA, 961Additional Information:
Push Button 30 Amp 3/4" - 16 Threads Single Pole, Single Throw (SPST) 1 Terminal 2 Position Works on 6 volt and 12 volt Tractors Starter SwitchReference Numbers:
84290889, 8N11500WG, 84290889, 8N11500Makes This Part Fits:
