One New Steering Kit Fits John Deere D100 D105 D110 D120 D125 D130 D140
One New Steering Kit Fits John Deere D100 D105 D110 D120 D125 D130 D140
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

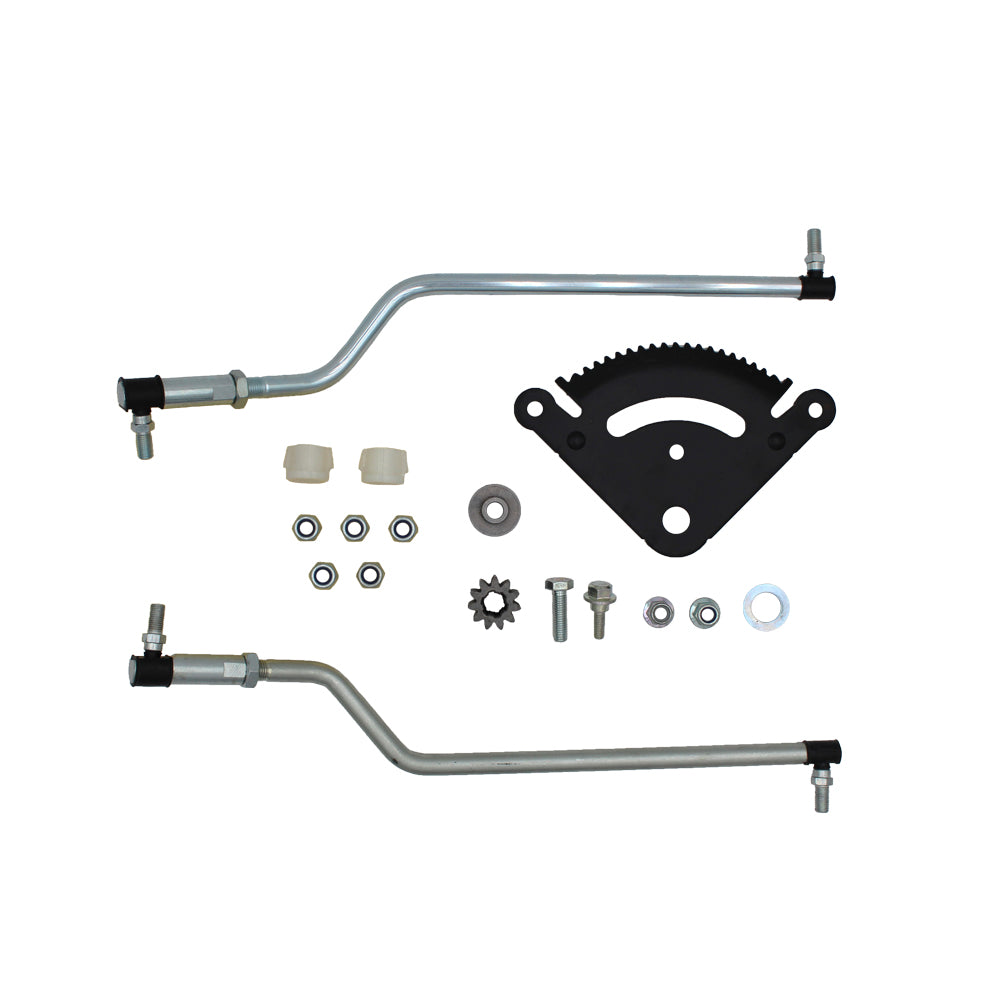

One New Aftermarket Replacement Steering Sector with Drag Link Kit
Fits John Deere Lawn Tractor Models:
D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170
Kit Includes:
(1)- Steering Sector gear
(1)- RH Drag Link
(1)- LH Drag Link
(1)- Pinion Gear
(1)- Steering Gear Hardware
(2)- Steering Shaft Bushings
(4)- Lock Nuts, (10mm x 1.25mm Pitch)
Replaces Part Numbers:
GX25785, GY20771, GY21251, 13340, GY20770, GY21250, GX20053, GX20053 Fits JD, 14M7396, M153513, 20225, GX21994, GX21994 Fits JD, 14M7455.
Fits John Deere Lawn Tractor Models:
D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170
Kit Includes:
(1)- Steering Sector gear
(1)- RH Drag Link
(1)- LH Drag Link
(1)- Pinion Gear
(1)- Steering Gear Hardware
(2)- Steering Shaft Bushings
(4)- Lock Nuts, (10mm x 1.25mm Pitch)
Replaces Part Numbers:
GX25785, GY20771, GY21251, 13340, GY20770, GY21250, GX20053, GX20053 Fits JD, 14M7396, M153513, 20225, GX21994, GX21994 Fits JD, 14M7455.
Models This Part Fits:
LA115, D120, 190C, LA100, D105, LA165, X105, D150, D170, 107S, 105, X130R, X165, LA110, X125, D110, LA175, S240, 135, 102, D125, D160, D100, D155, LA140, X115R, LA120, 92H, D140, LA125, 155C, 115, LA130, LA105, LA150, 145, D130, X145, 107H, X135R, 125, X155RAdditional Information:
(1) Left Hand Adjustable Draglink Left Hand Length: 18" Thread: M10x1.25mm Replaces Part Number(s): GY20770, GY21250 (1) Right Hand Adjustable Draglink Right Hand Length: 18" Thread: M10x1.25mm Replaces Part Number(s): GY21251, GY20771 (1) Pinion Gear Height: 1" OD: 1 3/8" Replaces Part Number(s): GX20053 (1) Steering Sector Gear Teeth: 21 Replaces Part Number(s): GX21924BLE, GX25785BLE, GX25785 (1) Steering Gear Bushing Flange Thickness 0.16" Flange Outside Diameter 1.382" Inside Diameter 0.407" Length 0.45" Outside Diameter 0.710" Replaces Part Number(s): UC13360, GX20054 (1) Steering Bolt Hex Flange Bolt Thread Size: 10mm Length: 35mm Thread Pitch: 1.25mm Replaces Part Number(s): 19M7835 (1) Flat Washer ID: .781" OD: 1.25" Thickness: .036" Material: Steel Replaces Part Number(s): 24M7053 (2) Steering Shaft Bushing I.D.: .625" O.D.: .900" Height: .870" Flange OD: 1" Replaces Part Number(s): GX21994 (1) Hexagonal Lock Nut - M10 Flange Diameter: 21.80mm Wrench Height: 5.60mm Thickness: 13.50mm Replaces Part Number(s): 14M7400 (5) Hexagonal Lock Nut - M10 10mm x 1.25mm Pitch Width Across Flats: 17mm Wrench Height: 7mm Replaces Part Number(s): 14M7455 (1) Locking Flange Nut Thread Size: 8mm Pitch: NC Thread Style: Right Hand Replaces Part Number(s): 14M7396 (1) Shoulder Bolt Thread Size: 8mm Length: 1.1” Replaces Part Number(s): M153513 Steering KitReference Numbers:
GY20770, GY21250, 14M7400, GY21251, GY20771, GX20053, GX21924BLE, UC13360, 19M7835, 24M7053, GX21994, 14M7455, M153513Makes This Part Fits:
