Trimmer Head Rebuild Kit Fits Stihl FS100 FS110 FS120 FS130 FS200 FS250 FS44

Trimmer Head Rebuild Kit Fits Stihl FS100 FS110 FS120 FS130 FS200 FS250 FS44



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

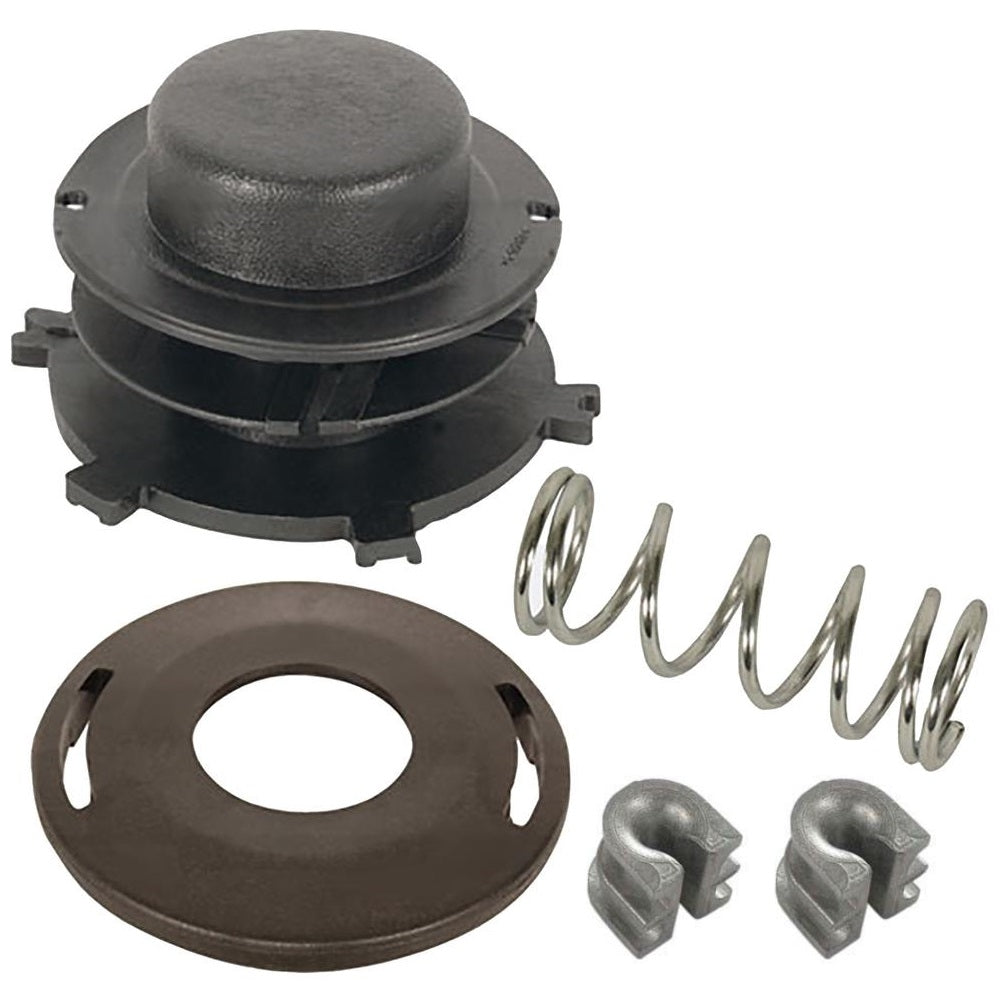

(1) Aftermarket Replacement Trimmer Head Spool, Cap, Spring & Eyelet Sleeve Kit

Fits Stihl Trimmer Models:
FS44, FS55, FS80, FS83, FS85, FS90, FS100, FS110, FS120, FS130, FS200, FS250, FS-KM, KM55, KM85, KM90, KM110, KM130

Kit Includes:

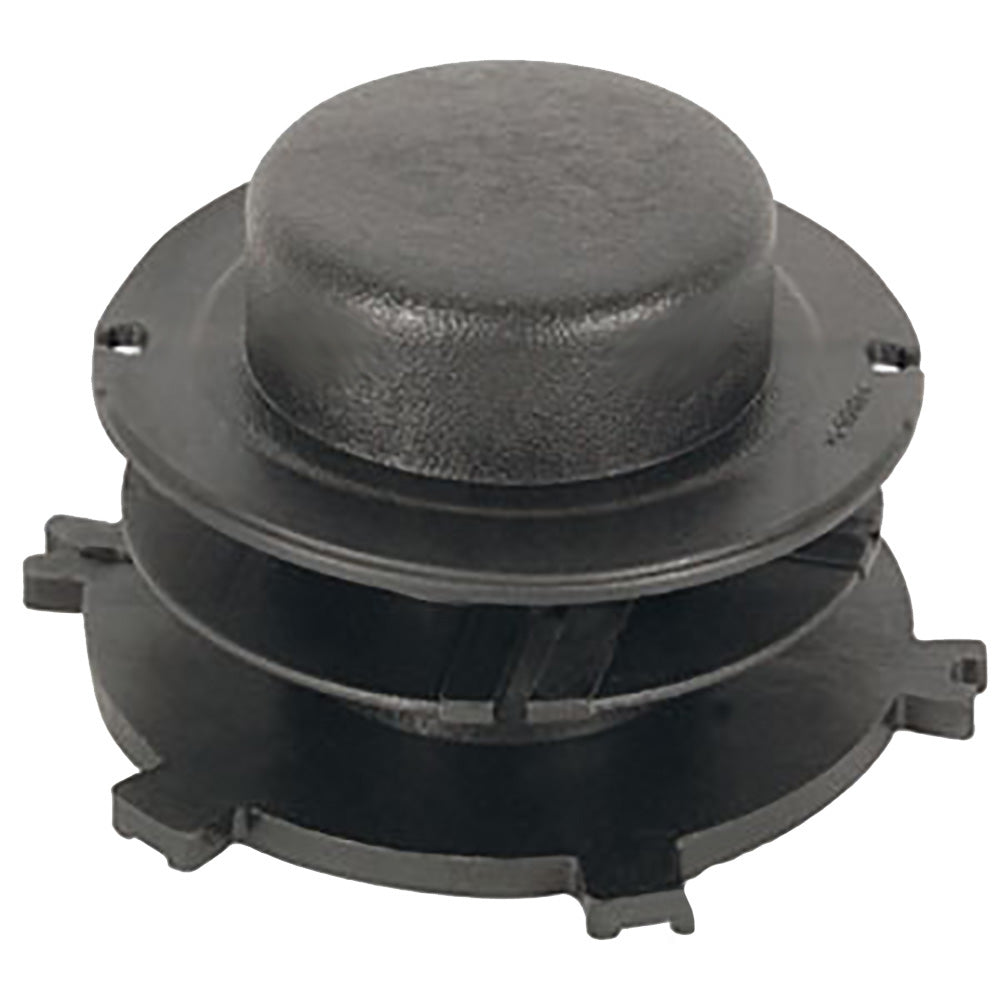

(1) Trimmer Head Bump Spool (w/o Line) (Replaces: 4002-710-2191, 4002-713-3017)

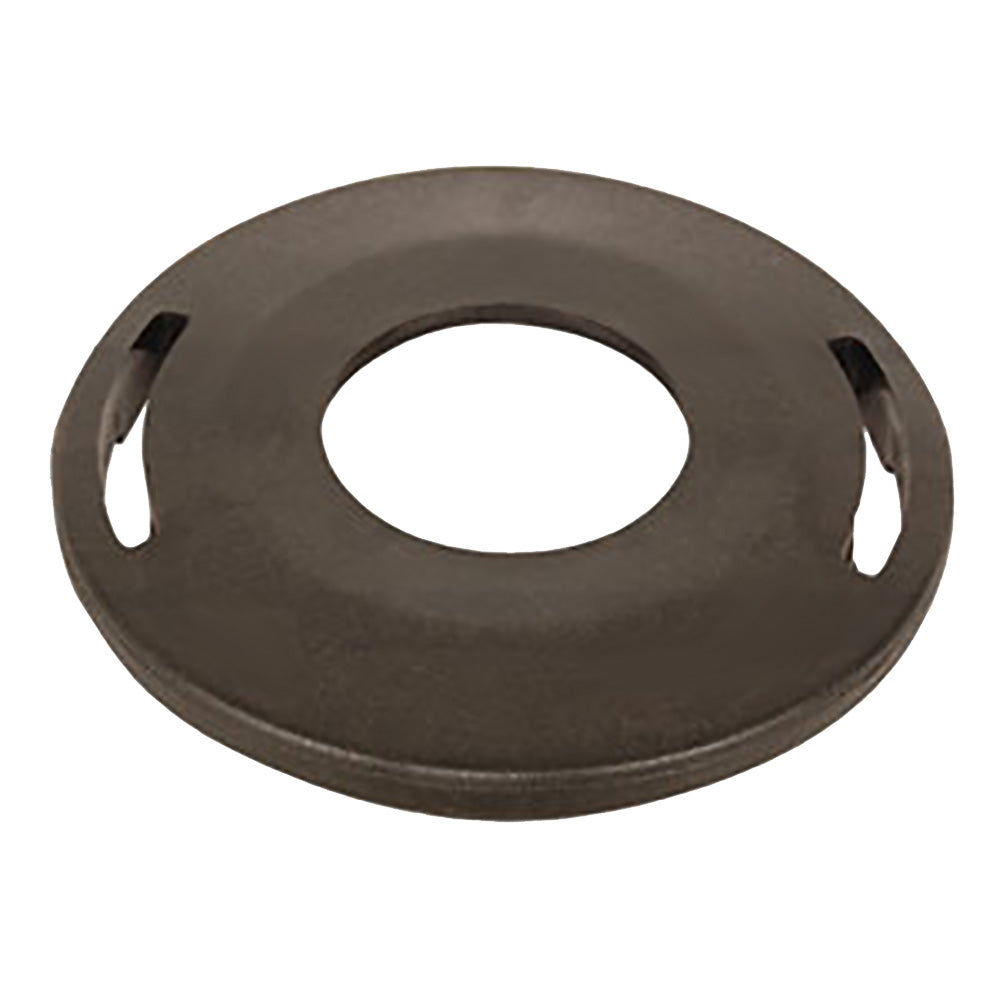

(1) Upper Trimmer Head Bump Spool Cap (Replaces: 4002-713-9708)

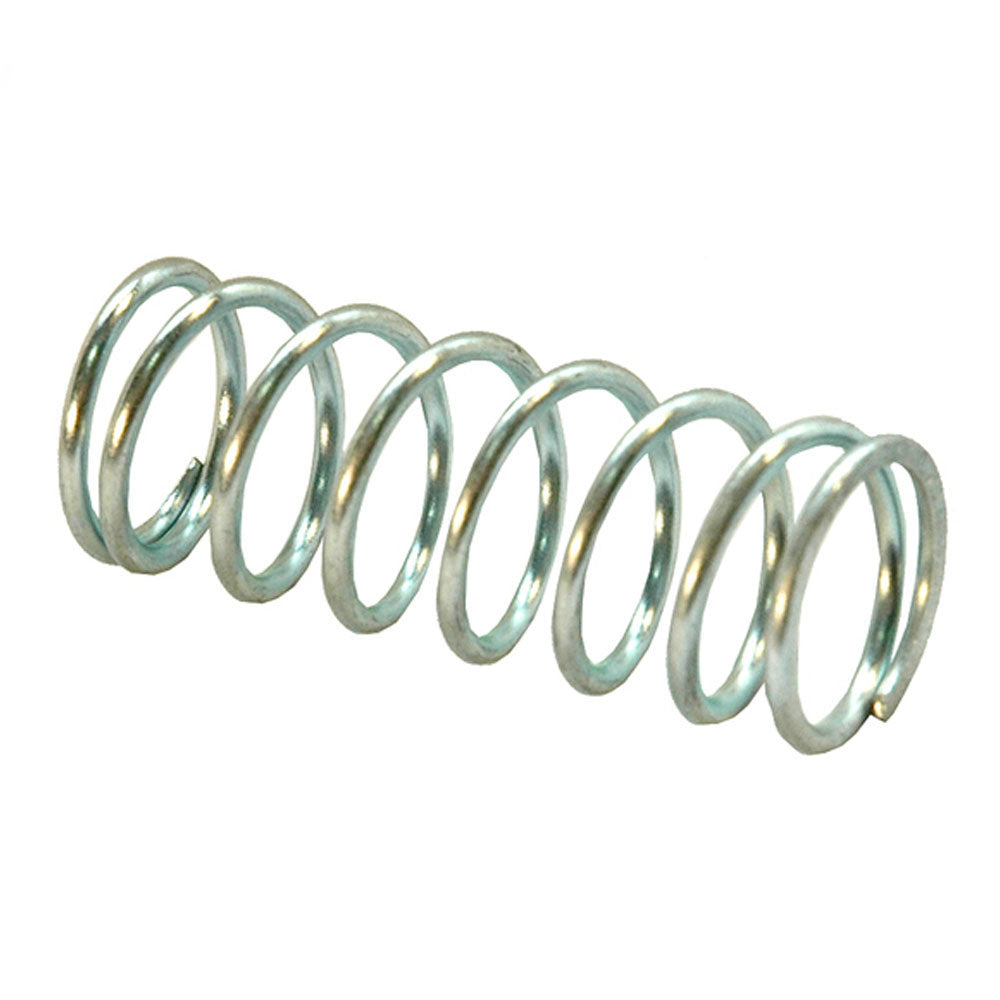

(1) Trimmer Head Bump Spool Cap Cover Spring (Replaces: 0000-997-1501)

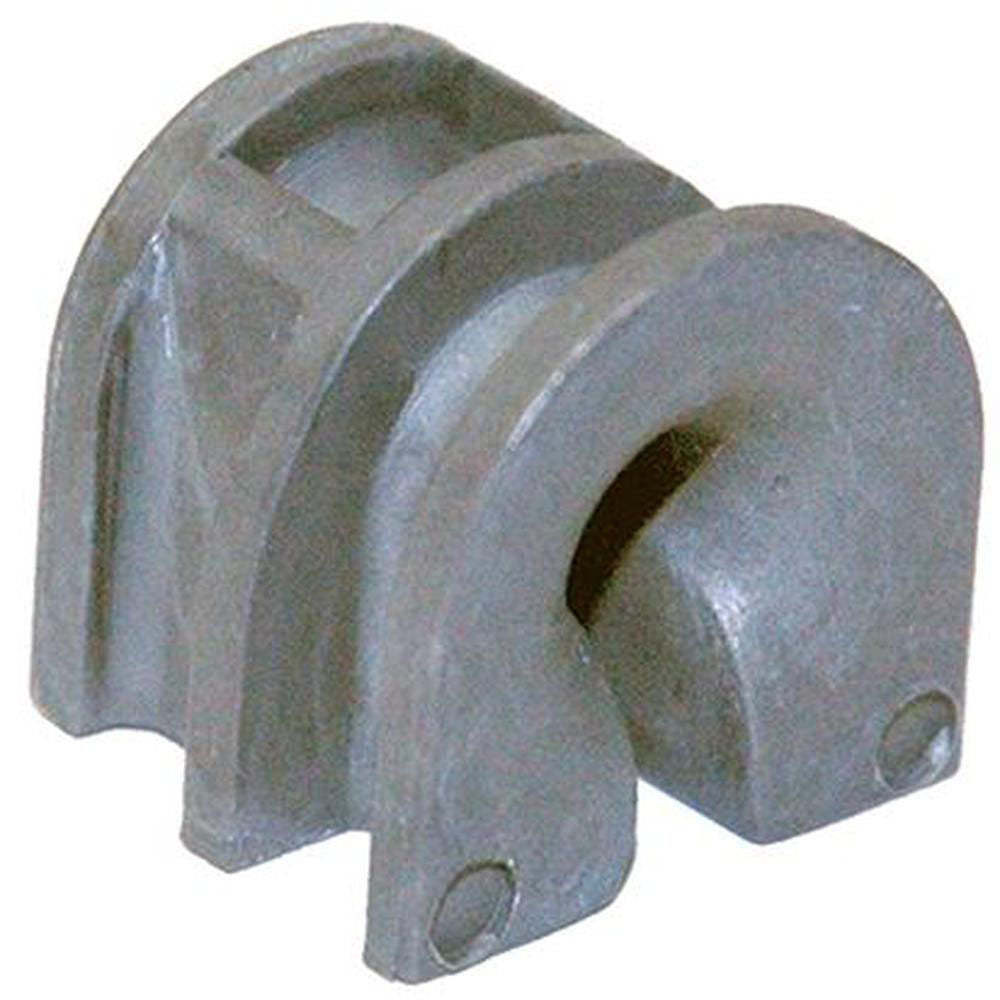

(2) Trimmer Head Eyelet Sleeves (Aluminum Material) (Replaces: 4002-713-8300, 4002-713-8301)

Models This Part Fits:

FS44, FS80, KM55, KM130, FS55, FS-KM, KM85, KM90, FS90, FS100, KM110, FS85, FS100RX, FS83

Additional Information:

(1) Trimmer Head Spool Replaces Part Numbers: 4002 713 3017 (1) Trimmer Head Cover Replaces Part Numbers: 4002 713 9708 (1) Trimmer Head Spring Fits to Stihl 25-2 Trimmer Head Spool & Cap Cover This is for the Spring ONLY Length: 1-5/8" Outside Diameter: 9/16" Replaces Part Number: 0000 997 1501 (2) Trimmer Head Eyelet Sleeves Material: Aluminum Replaces Part Numbers: 4002 713 8300,4002 713 8301,4002-713-8300,4002-713-8301

Reference Numbers:

4002-713-9708, 4002713-9708, 4002-7139708, 40027139708, 4002-713-3017, 4002713-3017, 4002-7133017, 40027133017, 0000-997 1501, 0000997 1501, 0000997-1501, 00009971501, 4003-713-8301, 4003713-8301, 4003-7138301, 40037138301
