Tune Up Filter Kit Fits John Deere G100 G110 L130 GY20576 CV23S CV730 M78543

Tune Up Filter Kit Fits John Deere G100 G110 L130 GY20576 CV23S CV730 M78543

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

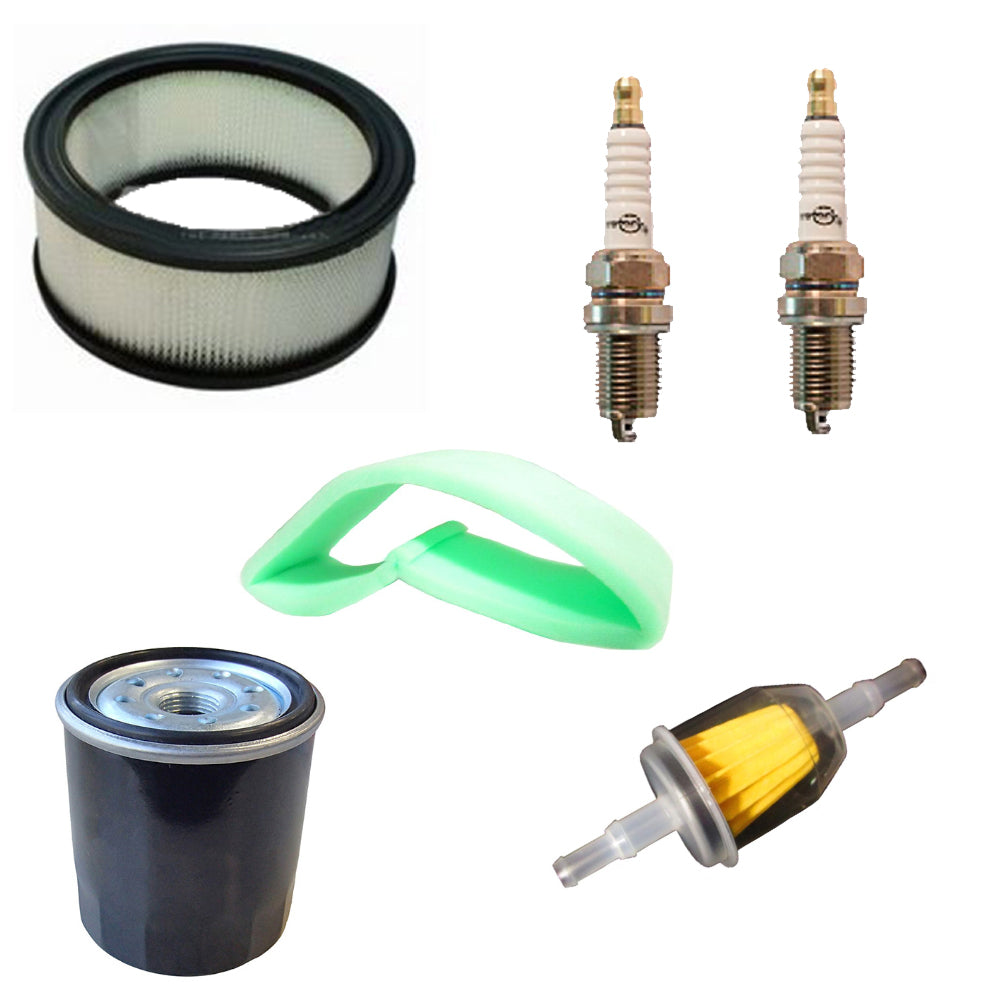

One New Aftermarket Replacement Engine Maintenance Filter Kit


Fits John Deere Lawn Tractor Models: G100, G110, L130

Fits Kohler Engine Models: CH18-CH25, CV18-CV25, CH730-CH740, CV675-CV740; 18 thru 25 HP Command

Included: (1) Air Filter, (1) Pre-Filter, (1) Oil Filter, (1) Fuel Filter, (2) Spark Plugs

Air Filter:
Inside Diameter: 5-1/2"
Outside Diameter: 7"
Height: 3"

Pre-Filter:
Foam

Oil Filter:
Outside Diameter: 3-1/32"
Length: 3-1/2"
Thread: 3/4-16 UNF-2B

Fuel Filter:
Compatible with 1/4" or 5/16" Fuel Lines

Spark Plug:
Resistor

Replaces Part Numbers:
GY20576, M133094, M133095, AM101054, AM101207, AM125424, AM116304, AM1163041, AM38708, M78543, RC12YC, 2408303, 24 083 03, 24 083 03-S, 24 083 03-S1, 24 883 03-S1, 24-083-03-S, 24 083 03BP, 24 083 03-C, 23-083-02-S, 2308302S, 24 083 05, 24 083 05-B, 24 083 05-C, 24 083 05-S, 24 083 05-S1, 24 083 05BP, 24-083-05, 24-083-05-S, 24-083-05-S1, 12 050 01, 12 050 01-S, 12 050 01-S1, 12 050 08, 52 050 02-S25 050 27, 25 050 33-S, 25 050 34-S, 52 050 02, 52-05025S, 25 050 27-S, 52 050 02 S, 52-050-02-S, 52-050-2-S, 12 132 06-S, 14 132 03-S, 20 132 02-S, 25 132 12-S, 25 132 14-S, 25 050 03, 25 050 03BP, 25 050 03-S, 25 050 08, 25 050 08-S, 25 050 08-S1, 25 050 22, 25 050 22-S, 25 050 22-S1, 2505008-S, 25-050 08-S, 25-050 22-S, 25-050 03-S

Models This Part Fits:

M655, M665, CV18-CV25, 3100, EFI ECH630-ECH749, ECV630-ECV749, CH620-CH750, CH18-CH26, CV620-CV740, ZG20, 800, ZG23

Additional Information:

(1) Oil Filter Outside Diam.: 3-1/32 (77.0) Length: 3-1/2 (88.9) Thread: 3/4-16 UNF-2B Replaces Part Number(s): 08597500, 20715100, 042366, 21397200, AM101207, HE 122-033P, TCA10018, AM-101207, 25 050 27, 25 050 33-S, 25 050 34-S, 52 050 02, 52 050 02-S, 52-05025S, 5205025S, 114-3494, 5205002-S, 85-4930, NN10147 (1) Air Filter ID: 5 1/2" OD: 7" Height: 3" Replaces Part Number(s): 21536400, GY20576, M133094, M133095, 24 083 03, 24 083 03BP, 24 083 03-C, 24 083 03-S, 24 883 03-S1 (1) Pre-Filter Replaces Part Number(s): 2153630, 21536300, GY20576, M133094, M133095, 24 083 05, 24 083 05BP, 24 083 05-S (2) Spark Plug Plug Type Resistor Replaces Part Number(s): M78543, 5 132 23-S, KH-25-132-23-S, K5RTC, ZFR5F, RC12YC (1) Fuel Filter Diameter: 1-1/2" Overall Length: 4-1/8" Micron: 23-28 Compatible with 1/4" or 5/16" Fuel Lines Replaces Part Number(s): 21410800, 21541500, AM101126, AM116178, AM116304, AM1163041, AM38708, GY20709, M147272, 25 050 03BP, 25 050 03-S, 25 050 08-S, 25 050 08-S1, 25 050 22-S, 25 050 22-S1, 2505008-S, 71-5960, 98021

Reference Numbers:

24 083 03-S, 24 883 03-S1, 21536400, 08597500, 20715100, 21536400, 21410800, 21541500, 25 050 22-S1, 2153630, 21536300, 100928, 24 083 03, 2488303-S1, 2408303-S1, 24 083 03-S1, 24 883 03-S1, 2408303-S, 24 083 03-S, 2408303, 25 050 27, 25 050 33-S, 25 050 34-S, 52 050 02, 52 050 02-S, 52-05025S, 5205025S, 24 083 03, 24 083 03BP, 24 083 03-C, 24 083 03-S, 24 083 03-S1, 24 883 03-S1, 5 132 23-S, KH-25-132-23-S, 25 050 03BP, 25 050 03-S, 25 050 08-S, 25 050 08-S1, 25 050 22-S, 25 050 22-S1, 2505008-S, 24 083 05, 24 083 05BP, 24 083 05-S, 100-758, GY20576, M133094, M133095, 30-089, KH-24-883-03-S1, 042366, 21397200, 21536400, 21410800, 21541500, 114-3494, 52 050 02-S, 5205002-S, 85-4930, NN10147, 24 083 03-S, 24 883 03-S1, 71-5960, 98021, AM101207, HE 122-033P, TCA10018, AM-101207, GY20576, M78543, AM101126, AM116178, AM116304, AM1163041, AM38708, GY20709, M147272, GY20576, M133094, M133095
