Tune-Up Kit, Spark Plugs, Wiring Set, & Distributor Cap Fits Minneapolis-Moline
Tune-Up Kit, Spark Plugs, Wiring Set, & Distributor Cap Fits Minneapolis-Moline
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

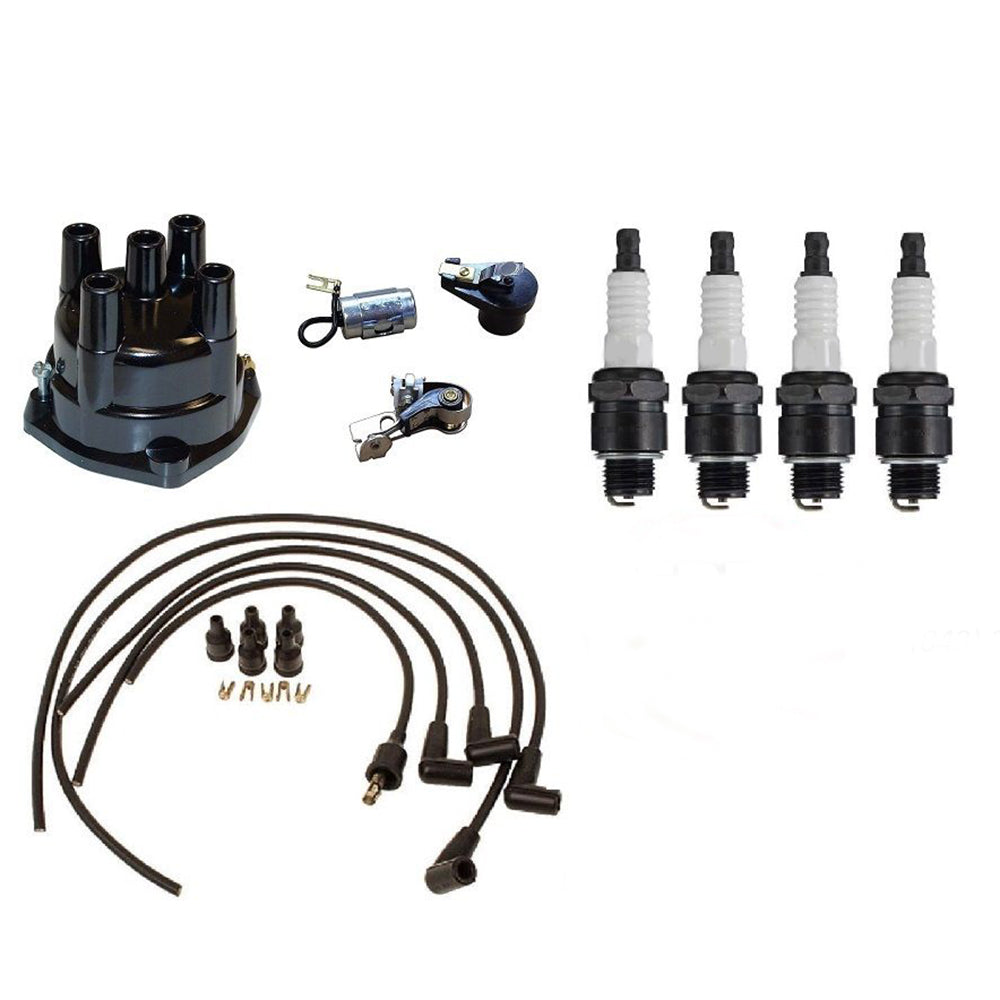

One New Aftermarket Tune-Up Kit, Spark Plugs, Wiring Set, & Distributor CapTech Info:
-(1) 4 Cylinder Spark Plug Wiring Set
--These will fit most 4 cylinder models. They have copper core wires with aluminum coating to prevent corrosion and 90 degree boots.
--Note: You must cut the wires to length and crimp the ends with a crimping tool.
--Wire lengths are approximately;
-(2) 24-3/4" spark plug wires
-(1) 29-3/4" spark plug wire
-(1) 34-1/2" spark plug wire
-(1) 23-1/2" long coil wire.
--The coil wire is made from excess wire left over from the spark plug wire.
-
-(4) Spark Plugs
-Thread Size: 18mm
-Hex Size: 13/16" (20.6mm)
-Reach: 12mm (.472")
-Gap: .028" (0.7mm)
-Heat Range: 2
-Resistor: No
-Thread Pitch: 1.5mm
-
-
-(1) Distributor Cap
-For use on 4 cylinder Delco distributor with screw held cap (1963 and up)
-Replaces Part Number(s): 4058876, 74058876, R11257, 1024914M91, 10P3022, 30-3024016
-
-(1) Ignition Tune-Up Kit
-Contains: Points, Rotor and Condenser
-Fits distributors with screw held cap
-Point Gaps vary by applications
-Replaces Part Number(s): 79001128, 79001168, 19545587, 1954566, 1956007, 1962640, AR12000, AR31814, AR4864, AT14468, AT14873, AT15929, ATK10DSR, R12260, 1024916M1, 839008M1, 839008M91, 10P3024, 10P3025, 156360A, 156365A, 156367AMade to Fit Minneapolis-Moline:
Tractor Models: M670 Super, U302, U302 Super
Model Breaks: with Delco distributor with screw held cap
Replaces Part Number(s): 10P3024, 10P3025, 10P3022, 30-3024016
-(1) 4 Cylinder Spark Plug Wiring Set
--These will fit most 4 cylinder models. They have copper core wires with aluminum coating to prevent corrosion and 90 degree boots.
--Note: You must cut the wires to length and crimp the ends with a crimping tool.
--Wire lengths are approximately;
-(2) 24-3/4" spark plug wires
-(1) 29-3/4" spark plug wire
-(1) 34-1/2" spark plug wire
-(1) 23-1/2" long coil wire.
--The coil wire is made from excess wire left over from the spark plug wire.
-
-(4) Spark Plugs
-Thread Size: 18mm
-Hex Size: 13/16" (20.6mm)
-Reach: 12mm (.472")
-Gap: .028" (0.7mm)
-Heat Range: 2
-Resistor: No
-Thread Pitch: 1.5mm
-
-
-(1) Distributor Cap
-For use on 4 cylinder Delco distributor with screw held cap (1963 and up)
-Replaces Part Number(s): 4058876, 74058876, R11257, 1024914M91, 10P3022, 30-3024016
-
-(1) Ignition Tune-Up Kit
-Contains: Points, Rotor and Condenser
-Fits distributors with screw held cap
-Point Gaps vary by applications
-Replaces Part Number(s): 79001128, 79001168, 19545587, 1954566, 1956007, 1962640, AR12000, AR31814, AR4864, AT14468, AT14873, AT15929, ATK10DSR, R12260, 1024916M1, 839008M1, 839008M91, 10P3024, 10P3025, 156360A, 156365A, 156367AMade to Fit Minneapolis-Moline:
Tractor Models: M670 Super, U302, U302 Super
Model Breaks: with Delco distributor with screw held cap
Replaces Part Number(s): 10P3024, 10P3025, 10P3022, 30-3024016
Models This Part Fits:
U302 Super, U302, M670 SuperAdditional Information:
(1) 4 Cylinder Spark Plug Wiring Set -These will fit most 4 cylinder models. They have copper core wires with aluminum coating to prevent corrosion and 90 degree boots. -Note: You must cut the wires to length and crimp the ends with a crimping tool. -Wire lengths are approximately; (2) 24-3/4" spark plug wires (1) 29-3/4" spark plug wire (1) 34-1/2" spark plug wire (1) 23-1/2" long coil wire. -The coil wire is made from excess wire left over from the spark plug wire. (4) Spark Plugs Thread Size: 18mm Hex Size: 13/16" (20.6mm) Reach: 12mm (.472") Gap: .028" (0.7mm) Heat Range: 2 Resistor: No Thread Pitch: 1.5mm (1) Distributor Cap For use on 4 cylinder Delco distributor with screw held cap (1963 and up) Replaces Part Number(s): 4058876, 74058876, R11257, 1024914M91, 10P3022, 30-3024016 (1) Ignition Tune-Up Kit Contains: Points, Rotor and Condenser Fits distributors with screw held cap Point Gaps vary by applications Replaces Part Number(s): 79001128, 79001168, 19545587, 1954566, 1956007, 1962640, AR12000, AR31814, AR4864, AT14468, AT14873, AT15929, ATK10DSR, R12260, 1024916M1, 839008M1, 839008M91, 10P3024, 10P3025, 156360A, 156365A, 156367AReference Numbers:
10P3024, 10P3025, 10P3022, 30-3024016Makes This Part Fits:
