Tune-Up Kit, Spark Plugs, Wiring Set, & Distributor Cap Fits Massey Ferguson

Tune-Up Kit, Spark Plugs, Wiring Set, & Distributor Cap Fits Massey Ferguson

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

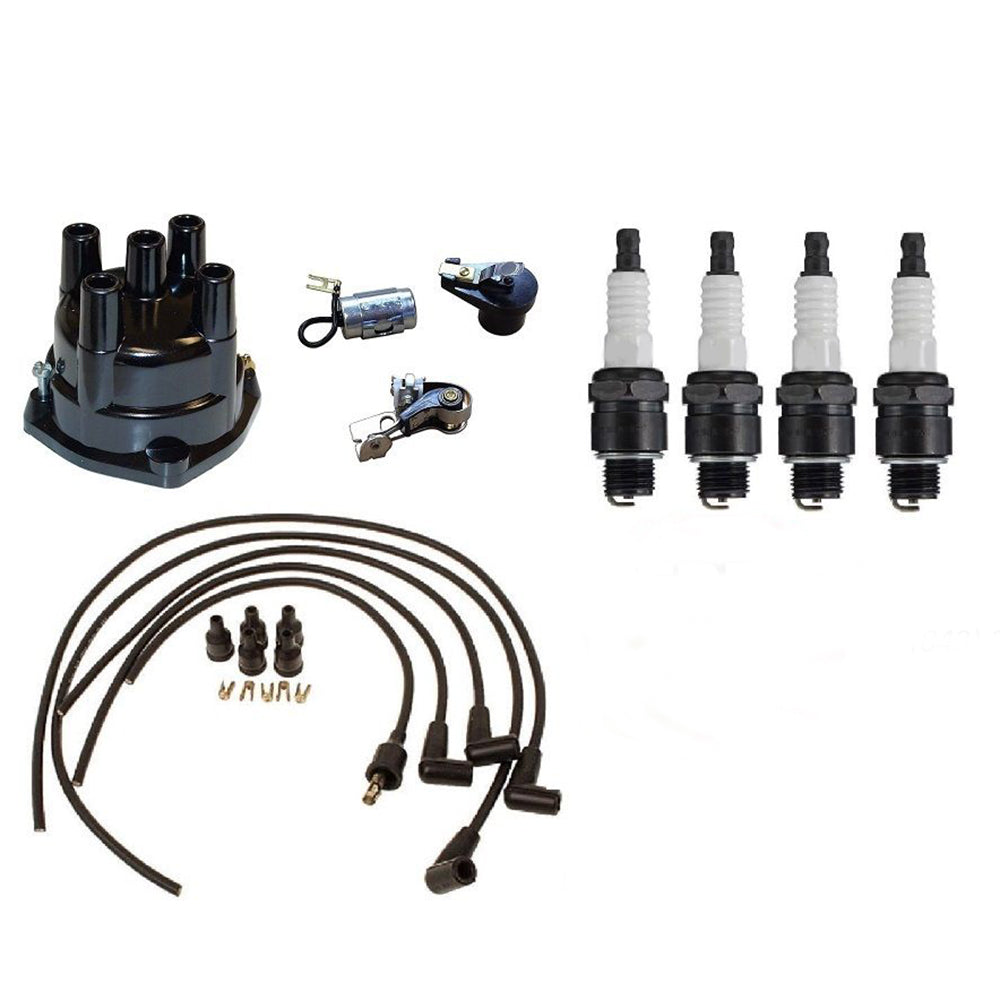

One New Aftermarket Tune-Up Kit, Spark Plugs, Wiring Set, & Distributor Cap

Tech Info:
 -(1) 4 Cylinder Spark Plug Wiring Set
 --These will fit most 4 cylinder models. They have copper core wires with aluminum coating to prevent corrosion and 90 degree boots.
 --Note: You must cut the wires to length and crimp the ends with a crimping tool.
 --Wire lengths are approximately;
 -(2) 24-3/4" spark plug wires
 -(1) 29-3/4" spark plug wire
 -(1) 34-1/2" spark plug wire
 -(1) 23-1/2" long coil wire.
 --The coil wire is made from excess wire left over from the spark plug wire.
 -
 -(4) Spark Plugs
 -Thread Size: 18mm
 -Hex Size: 13/16" (20.6mm)
 -Reach: 12mm (.472")
 -Gap: .028" (0.7mm)
 -Heat Range: 2
 -Resistor: No
 -Thread Pitch: 1.5mm
 -
 -
 -(1) Distributor Cap
 -For use on 4 cylinder Delco distributor with screw held cap (1963 and up)
 -Replaces Part Number(s): 4058876, 74058876, R11257, 1024914M91, 10P3022, 30-3024016
 -
 -(1) Ignition Tune-Up Kit
 -Contains: Points, Rotor and Condenser
 -Fits distributors with screw held cap
 -Point Gaps vary by applications
 -Replaces Part Number(s): 79001128, 79001168, 19545587, 1954566, 1956007, 1962640, AR12000, AR31814, AR4864, AT14468, AT14873, AT15929, ATK10DSR, R12260, 1024916M1, 839008M1, 839008M91, 10P3024, 10P3025, 156360A, 156365A, 156367A

Made to Fit Massey Ferguson:
Tractor Models: 35, 50, 65, 135, 150, 165, 175, 180, 255
Model Breaks: 35 (SN: 245034 and up with screw held cap), 50 (SN: 536250 and up with screw held cap), 65 (SN: 702827 and up with screw held cap)
Replaces Part Number(s): 1024914M91, 1024916M1, 839008M1, 839008M91

Industrial/Construction Models: 30, 202, 204, 302, 304, 356, 2135, 2200, 2500, 3165
Model Breaks: All with screw held cap202 (SN: 308963 and up), 204 (SN: 343689 and up), 302 (SN: 1326 and up), 304 SN: 1326 and up)
Replaces Part Number(s): 1024914M91, 1024916M1, 839008M1, 839008M91

Models This Part Fits:

304, 65, 2135, 35, 135, 3165, 356, 165, 204, 302, 2200, 202, 255, 150, 175, 30, 180, 2500, 50

Additional Information:

(1) 4 Cylinder Spark Plug Wiring Set -These will fit most 4 cylinder models. They have copper core wires with aluminum coating to prevent corrosion and 90 degree boots. -Note: You must cut the wires to length and crimp the ends with a crimping tool. -Wire lengths are approximately; (2) 24-3/4" spark plug wires (1) 29-3/4" spark plug wire (1) 34-1/2" spark plug wire (1) 23-1/2" long coil wire. -The coil wire is made from excess wire left over from the spark plug wire. (4) Spark Plugs Thread Size: 18mm Hex Size: 13/16" (20.6mm) Reach: 12mm (.472") Gap: .028" (0.7mm) Heat Range: 2 Resistor: No Thread Pitch: 1.5mm (1) Distributor Cap For use on 4 cylinder Delco distributor with screw held cap (1963 and up) Replaces Part Number(s): 4058876, 74058876, R11257, 1024914M91, 10P3022, 30-3024016 (1) Ignition Tune-Up Kit Contains: Points, Rotor and Condenser Fits distributors with screw held cap Point Gaps vary by applications Replaces Part Number(s): 79001128, 79001168, 19545587, 1954566, 1956007, 1962640, AR12000, AR31814, AR4864, AT14468, AT14873, AT15929, ATK10DSR, R12260, 1024916M1, 839008M1, 839008M91, 10P3024, 10P3025, 156360A, 156365A, 156367A

Reference Numbers:

1024914M91, 1024916M1, 839008M1, 839008M91
