TX11830 Tie Rod Fits Long
TX11830 Tie Rod Fits Long
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

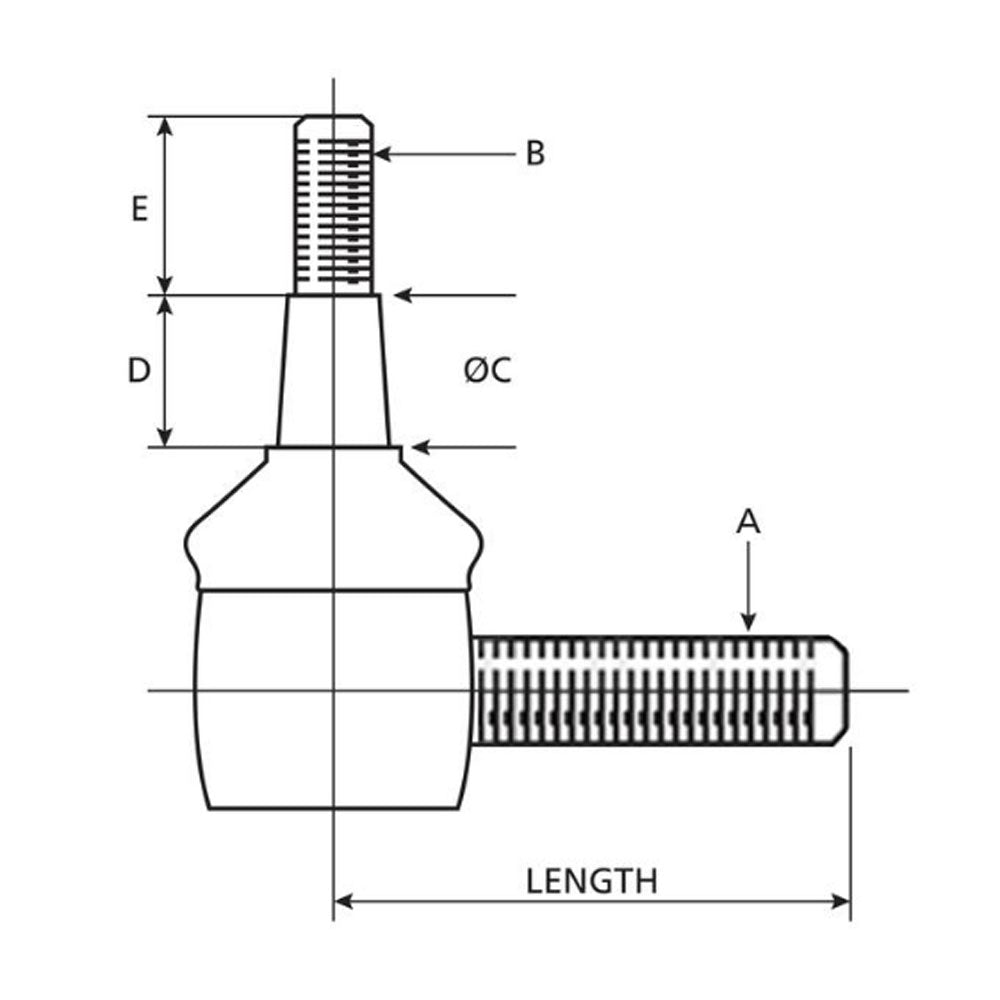

Aftermarket Tie RodTech Info:
-Inner side thread Ø A (mm) M20 x 1
-Length (mm) 80
-Outer side thread Ø B (mm) M16 x 1.5
-Taper C (mm) 20.1 - 18.2
-Taper length D (mm) 20
-Thread length E (mm) 21
-Type Male Thread - StraightFits Long:
Replaces Part Number(s): TX11830
-Inner side thread Ø A (mm) M20 x 1
-Length (mm) 80
-Outer side thread Ø B (mm) M16 x 1.5
-Taper C (mm) 20.1 - 18.2
-Taper length D (mm) 20
-Thread length E (mm) 21
-Type Male Thread - StraightFits Long:
Replaces Part Number(s): TX11830
Models This Part Fits:
2910, 5610, 7610, 3910, 4610, 6610Additional Information:
Inner Side Thread Diameter: A M20 x 1mm Length: 80mm Outer Side Thread Diameter: B M16 x 1.5mm Taper C 20.1 - 18.2mm Taper length: D 20mm Thread length: E 21mm Type Male Thread: Straight Tie RodReference Numbers:
TX11830Makes This Part Fits:
Product Category:
Product Group:
Product Sub Group:
