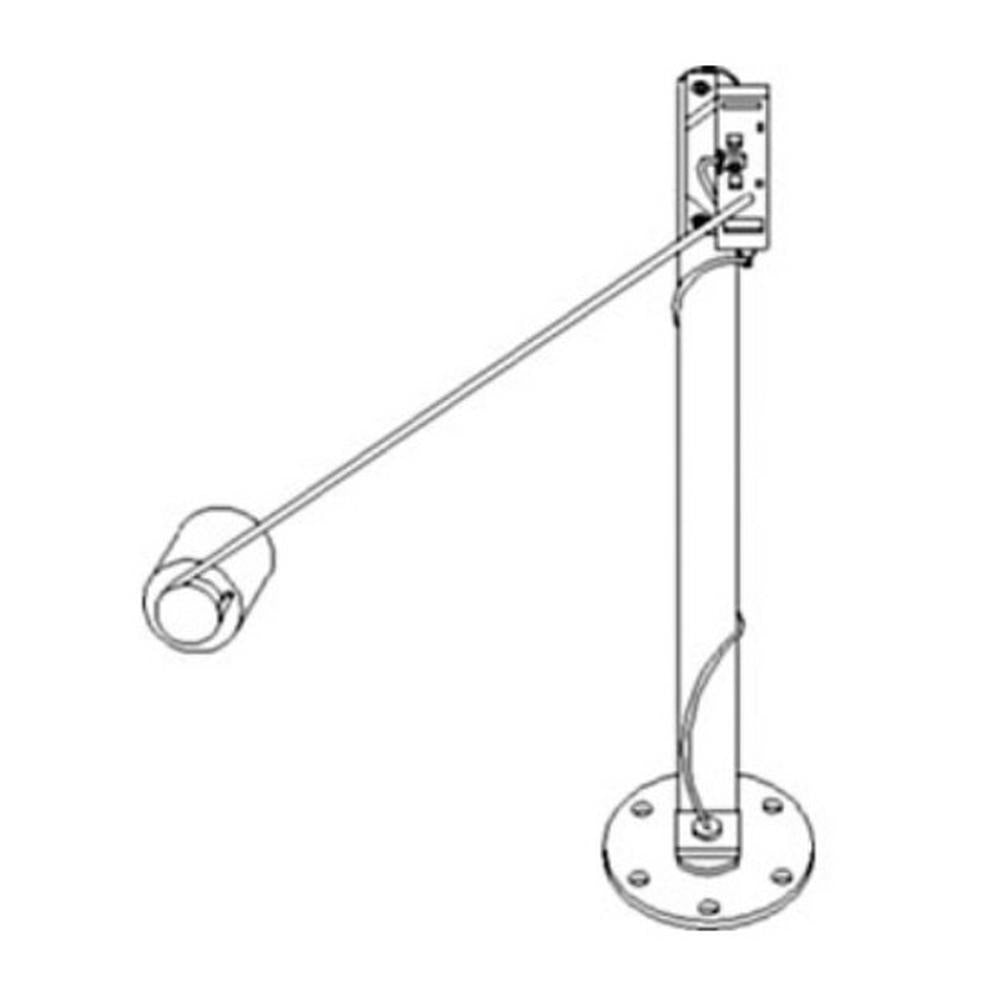

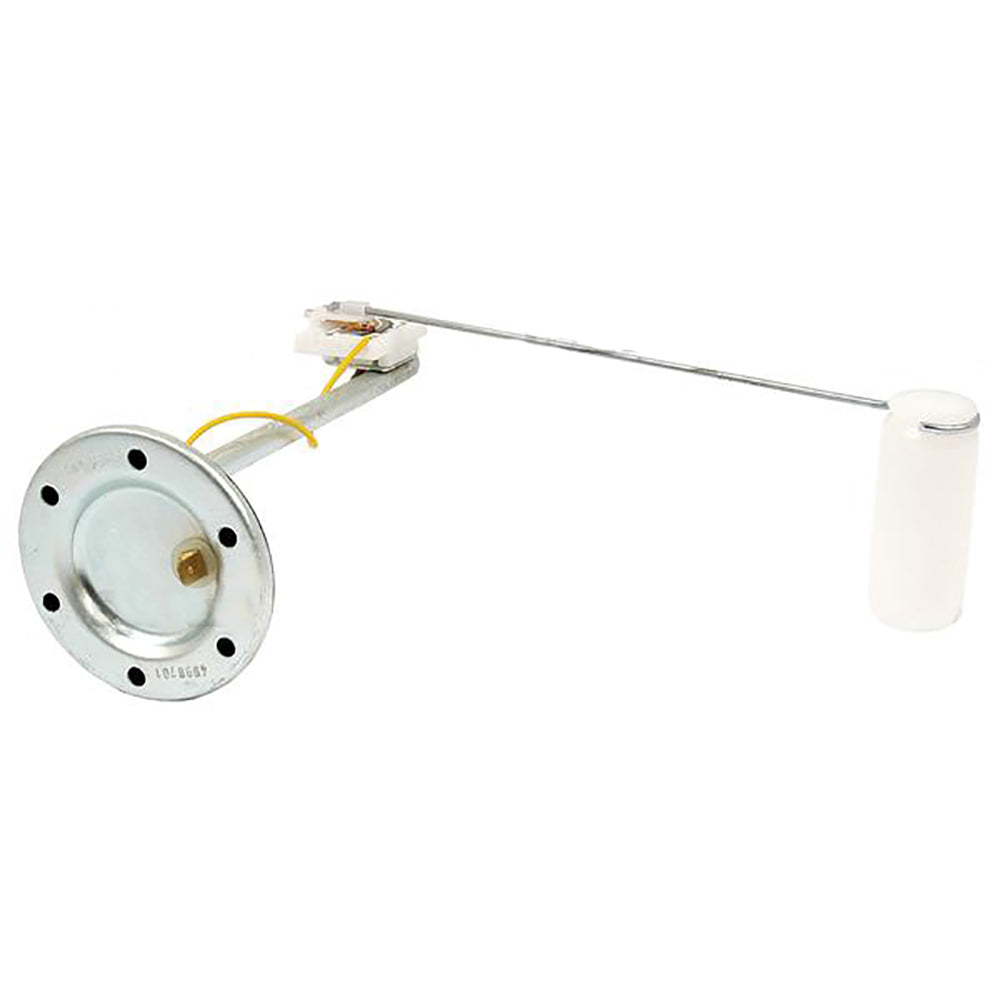

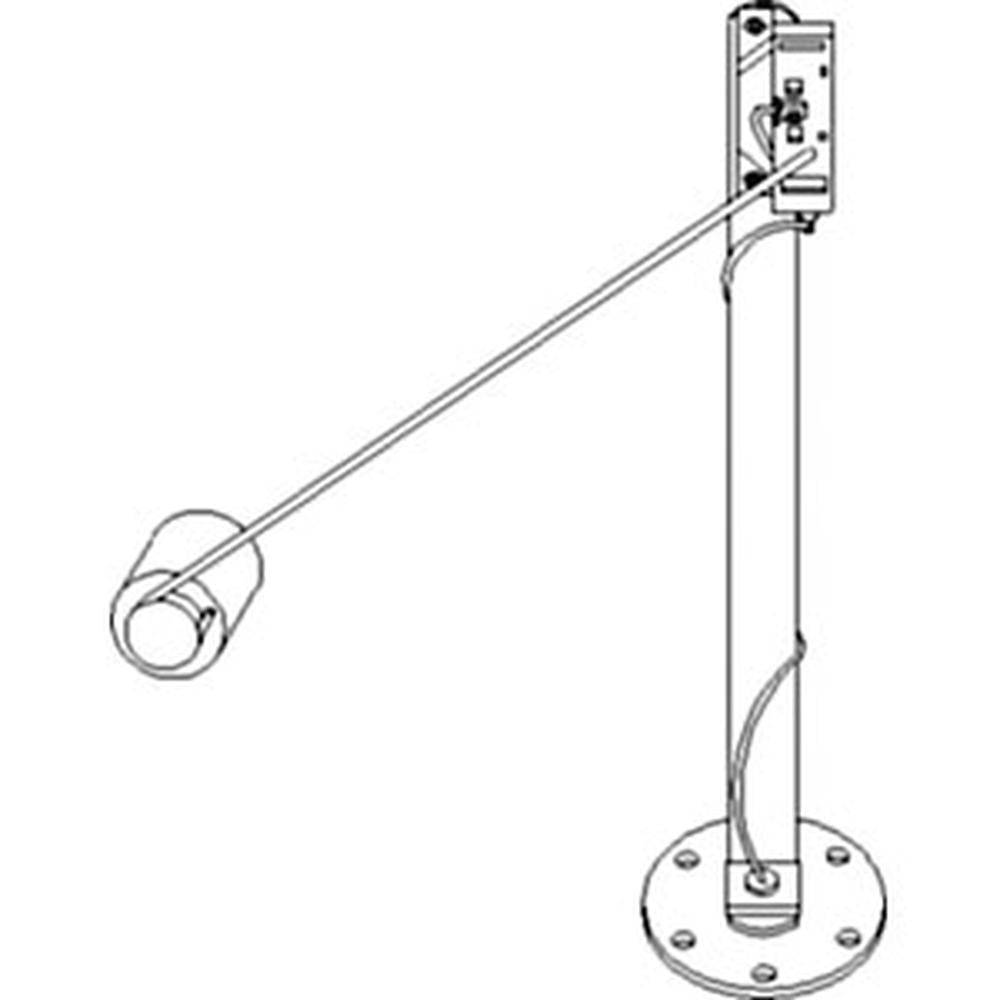

One New Aftermarket Replacement Fuel Level Sender for Long, Oliver, White, Allis Chalmers, and Fiat Tractors

This fuel sending unit (also known as a fuel level sender) mounts in the fuel tank and sends a variable resistance signal to the dash-mounted fuel gauge, giving the operator an accurate reading of remaining fuel. Resistance range: 317 ohms empty to 5 ohms full. 12-volt system. Fits a wide range of Long, Oliver, White, and Allis Chalmers (AC) tractors built on the same Fiat-derived platform.

Specifications

• Voltage: 12V
• Resistance: 317 ohms (Empty) / 5 ohms (Full)

Compatible Models

Long Tractor: 260C, 310, 310C, 310DT, 320, 350, 350DT, 360, 360C, 360DT, 445, 445DT, 445SD, 445V, 460, 460DT, 460SD, 460V, 550, 550DT, 560, 560DT, 560DTE, 610, 610C, 610DT, 610DTE, 2260, 2310

Oliver / White Oliver: 1250 (s/n 360745 and later), 1255 (s/n 303397 and later), 1265, 1270, 1355 (s/n 503289 and later), 1365, 1370, 2-50, 2-60

Allis Chalmers: 5040, 5045, 5050

Fiat: 450, 480, 500, 540, 550, 600, 640

Universal Tractors: 300, 320, 340, 350, 445, 500, 530, 550, 640, 1033

Note: Serial number restrictions apply to Oliver models 1250, 1255, and 1355 -- see fitment details above.

Replaces Part Number(s):

72091642, 30-30544292, 676887A, 5199933, TX12366, TX12295, TX14384, 31-2905050, 4243893, 4998701, 04998701, 4988620, 4180589

Aftermarket Interchange Numbers

Sparex S.62253; AGCO 5199933; Case IH 5199933, 4243893, 4998701

New aftermarket replacement part - not remanufactured, not used.
