TX15107 Standard Piston Fits Long Tractors 2510 2510DTC 2510SD 2510SD-DTE
TX15107 Standard Piston Fits Long Tractors 2510 2510DTC 2510SD 2510SD-DTE
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

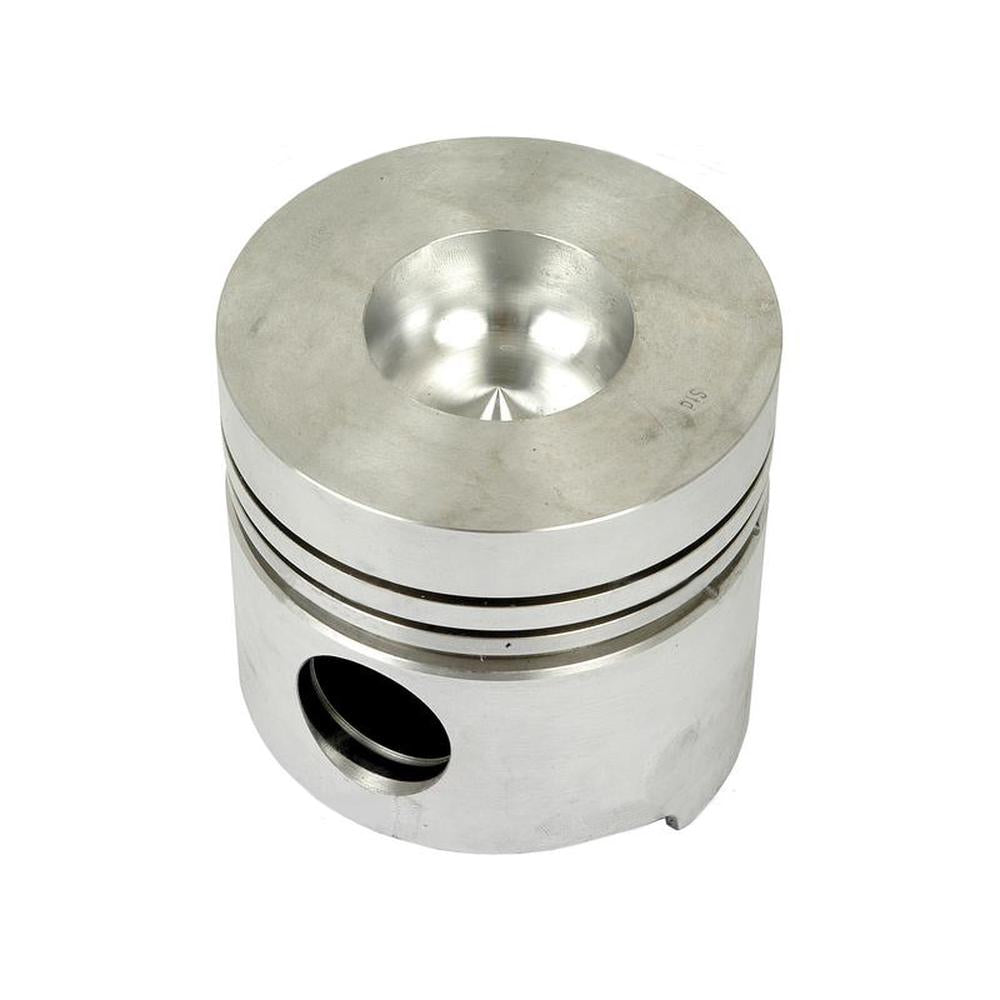

One (1) New Aftermarket Replacement Standard Piston
Fits Long Tractor Models: 2510, 2510DTC, 2510SD, 2510SD-DTE, 2610, 2610DTC, 2610SD, 2610SD-DTC, 310, 310C, 310DT, 510, 510DT, 610, 610C, 610DT, 610DTE
Specifications:
Piston Length mm: 101.40mm,
Compression Height: 59.44mm,
Bore: 101.96mm,
Bowl Depth: 24.40mm,
Chamber: 48.46mm,
Pin: 31.93mm,
No. of Rings: 3
Replaces Part Number: TX15107
Models This Part Fits:
310DT, 510, 610DTE, 610DT, 610C, 2610DTC, 2610SD-DTC, 2510, 610, 310C, 2510SD-DTE, 510DT, 310, 2610SD, 2510SD, 2510DTC, 2610Additional Information:
Piston Length: 3.99” (101.40mm) Compression Height: 2.34” (59.44mm) Bore: 4.01” (101.96mm) Bowl Depth: 0.96” (24.40mm) Chamber: 1.90” (48.46mm) Pin: 1.25” (31.93mm) No. of Rings: 3 Standard PistonReference Numbers:
TX15107, 115 03 170, 8772111, 11503170, 11503170, 115.03.170Makes This Part Fits:
Shop Fiat Wholesale PartsShop Long Wholesale Parts
Shop Universal Wholesale Parts
Product Category:
Agriculture Replacement PartsProduct Group:
Product Sub Group:
