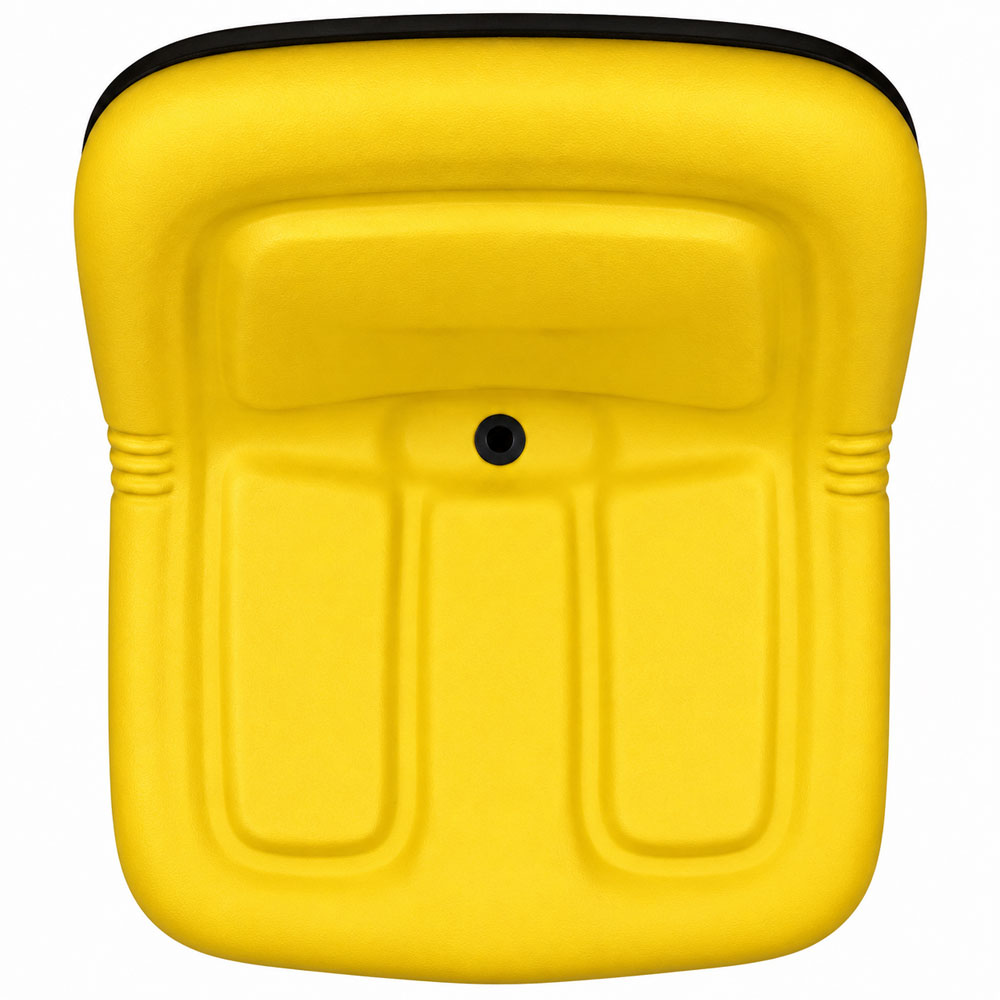

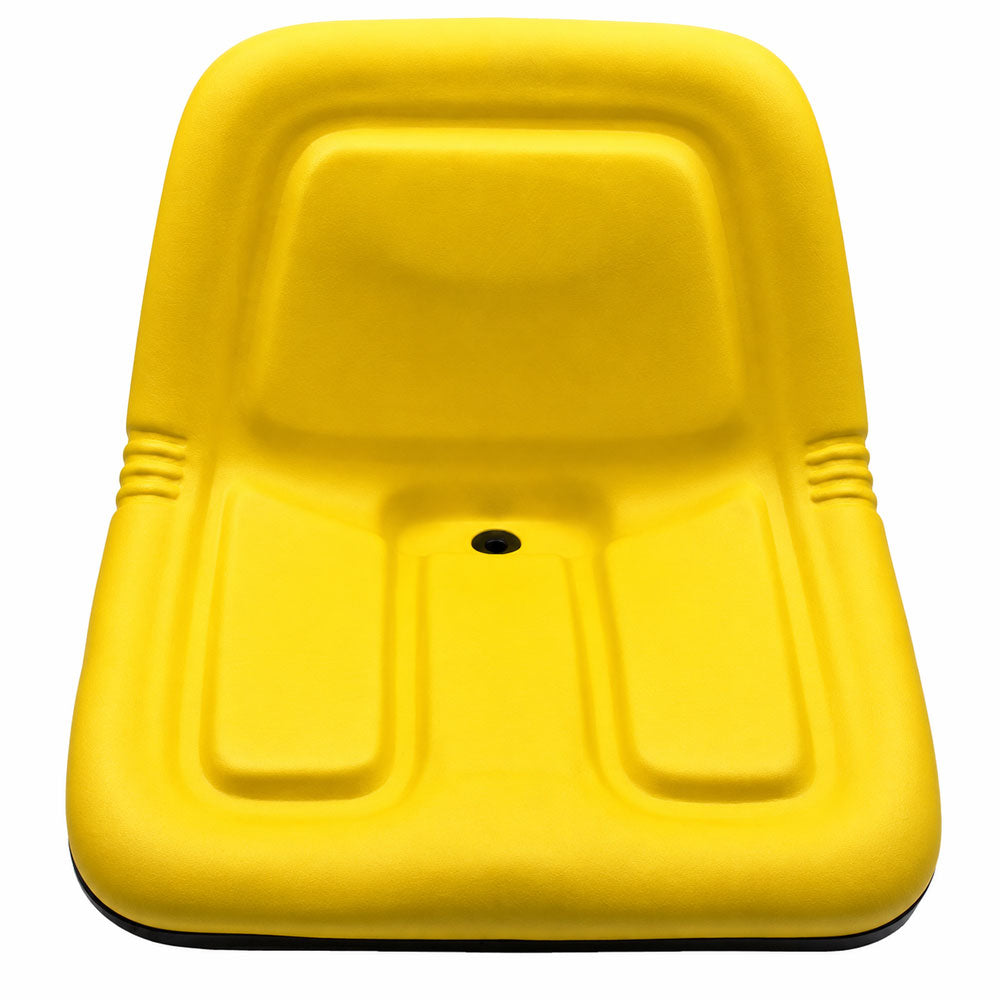

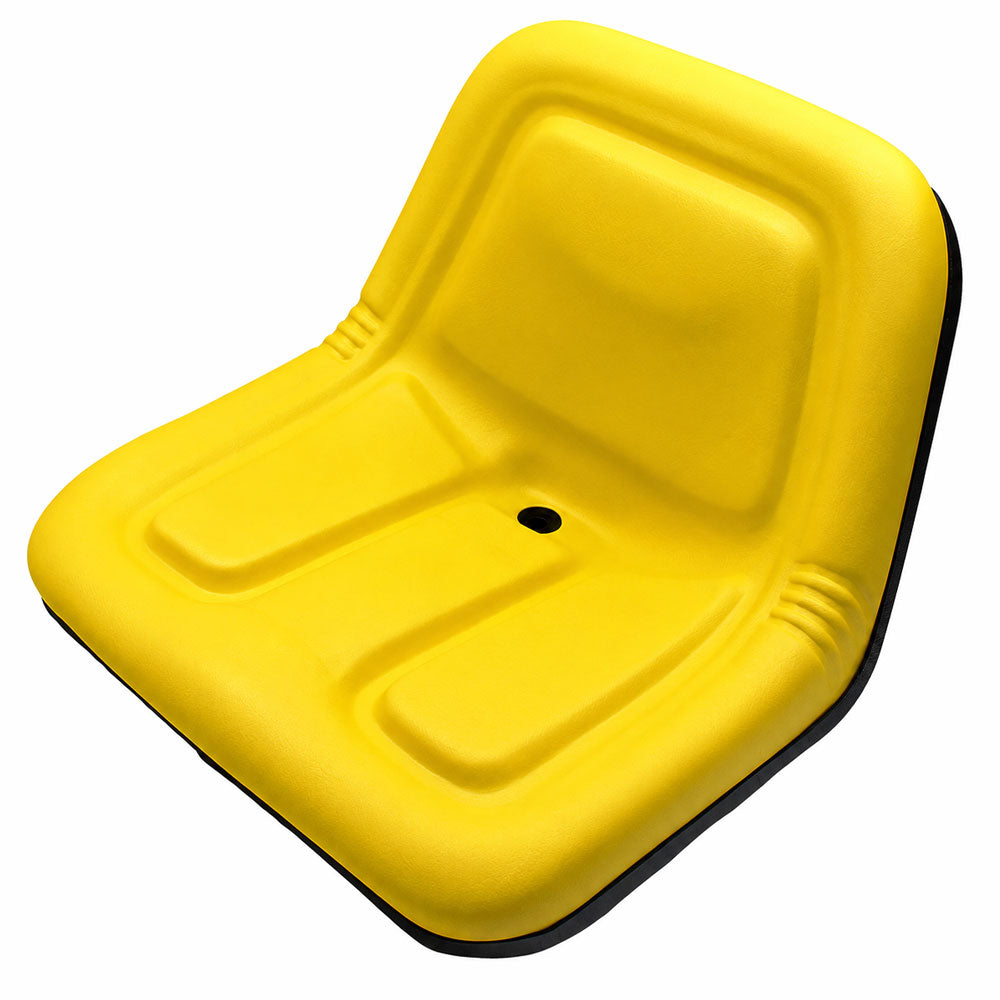

High Back Seat AM103284 Ideal for Lawn Mowers Garden Tractors Fits JD STX30 330
High Back Seat AM103284 Ideal for Lawn Mowers Garden Tractors Fits JD STX30 330
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket Replacement Lawn Mower Garden Tractor High Back Seat
Fits John Deere Lawn & Garden Tractor Models:
STX30, STX38, 160, 165, 316, 318, 322, 330, 332, 420, 430
Tech Info:
Plastic Seat Pan
Waterproof
Centralized Drain Holes
Accepts Armrests
Accepts Operator Presence Switch
Accepts Slides
Yellow (Color May Vary Slightly)

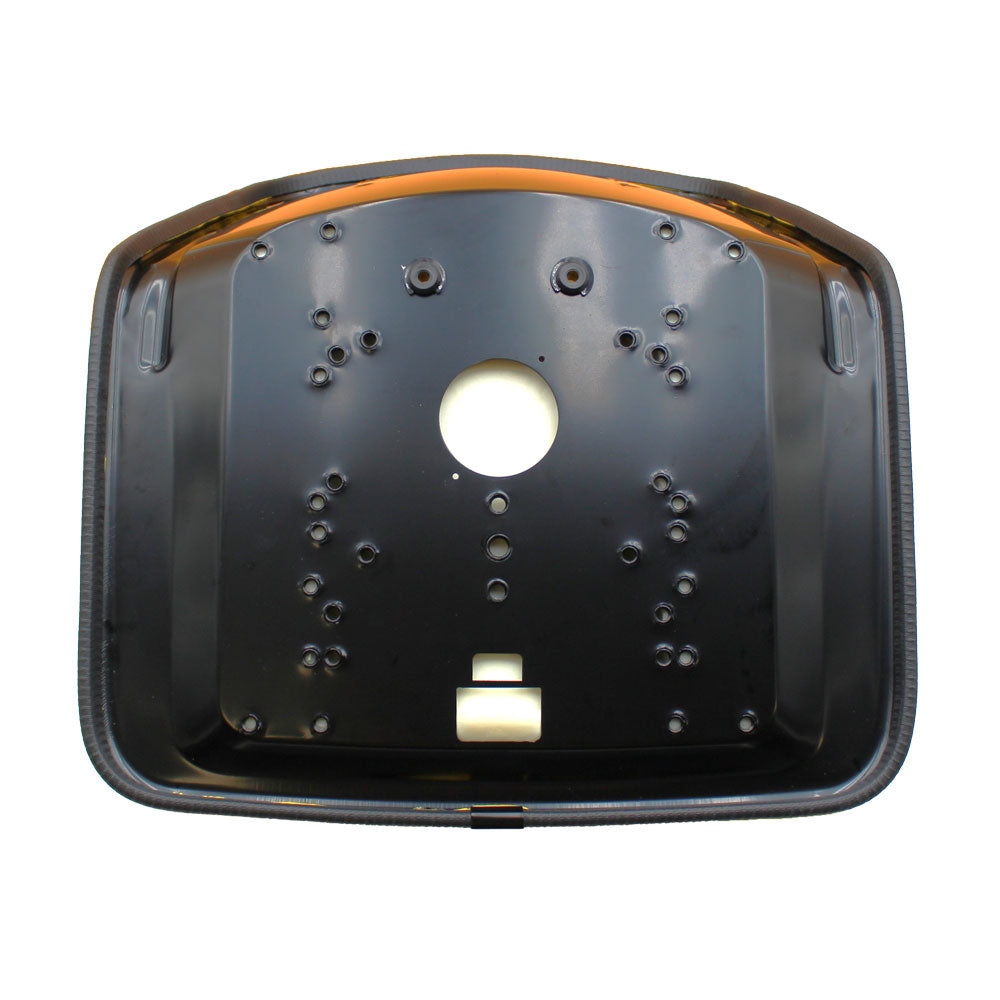

Features Multiple Bolting Patterns:
6" x 5"
7.5" x 3"
7.5” x 4"
7.5” x 6"
7.5" x 7"
8” x 11.5"
8.2" x 5"
8.25” x 3"
11.25" x 11"
(Width x Depth)
Please See Seat Image Dimensions for More Details
Replaces Part Numbers: TY15863, MG861683, AM117924, AM103284, AM105898, AM39582, ET12564, MG675408, 135001YE
Models This Part Fits:
332, 165, 430, 316, RX63, SX95, 420, RX95, RX73, 170, 330, SX75, 130, 175, STX30, 322, RX75, 318, STX38, 160, 180Additional Information:
Width: 19.625" Cushion Thickness: 5" Seat Depth: 19.5" Overall Height: 13.875 Waterproof Drain Holes Accepts Armrests (93120) Accepts Operator Presence Switch Accepts Slides Yellow Bolt Patterns (width x depth): 6" x 5" 7.5" x 3" 7.5” x 4” 7.5” x 6” 7.5" x 7" 8” x 11.5” 8.2" x 5" 8.25” x 3" 11.25" x 11" Yellow High Back SeatReference Numbers:
AM105898, AM39582Makes This Part Fits:
Shop John Deere Wholesale PartsProduct Category:
Lawn & Garden Replacement PartsProduct Group:
Product Sub Group:
View full details
