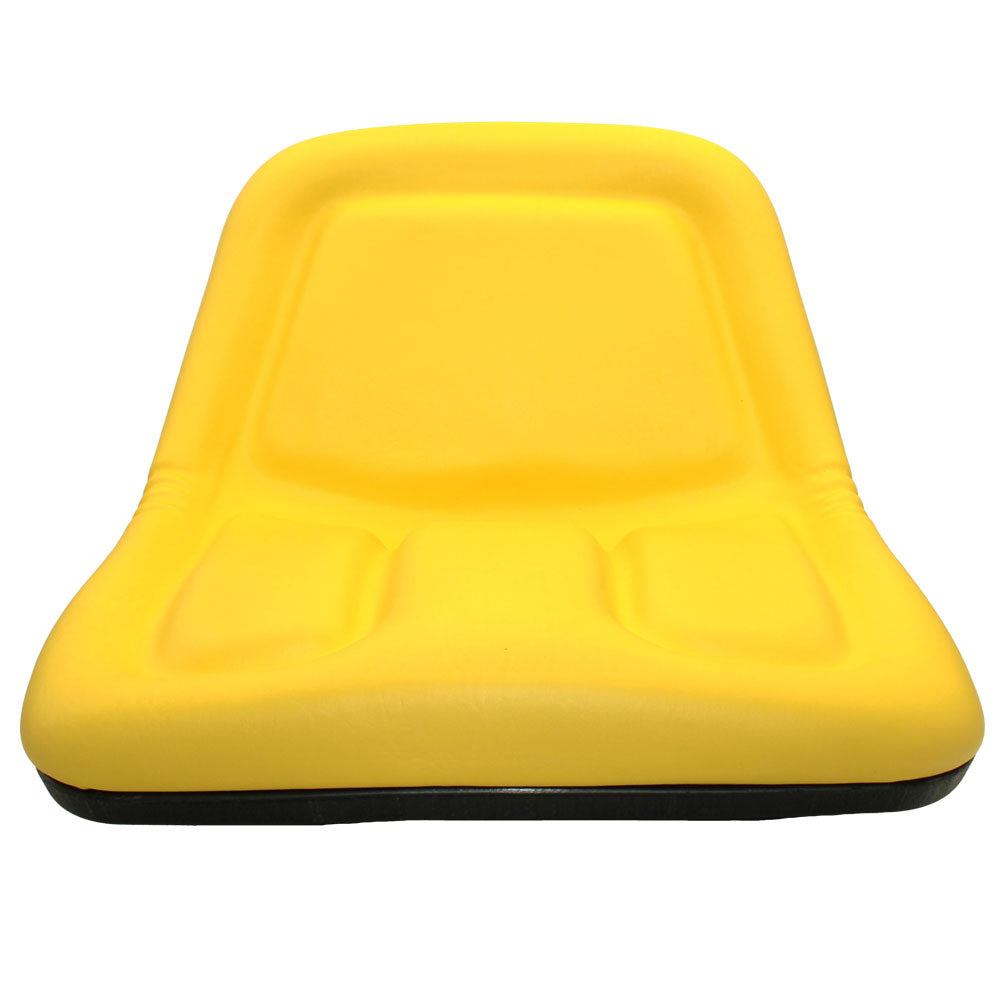

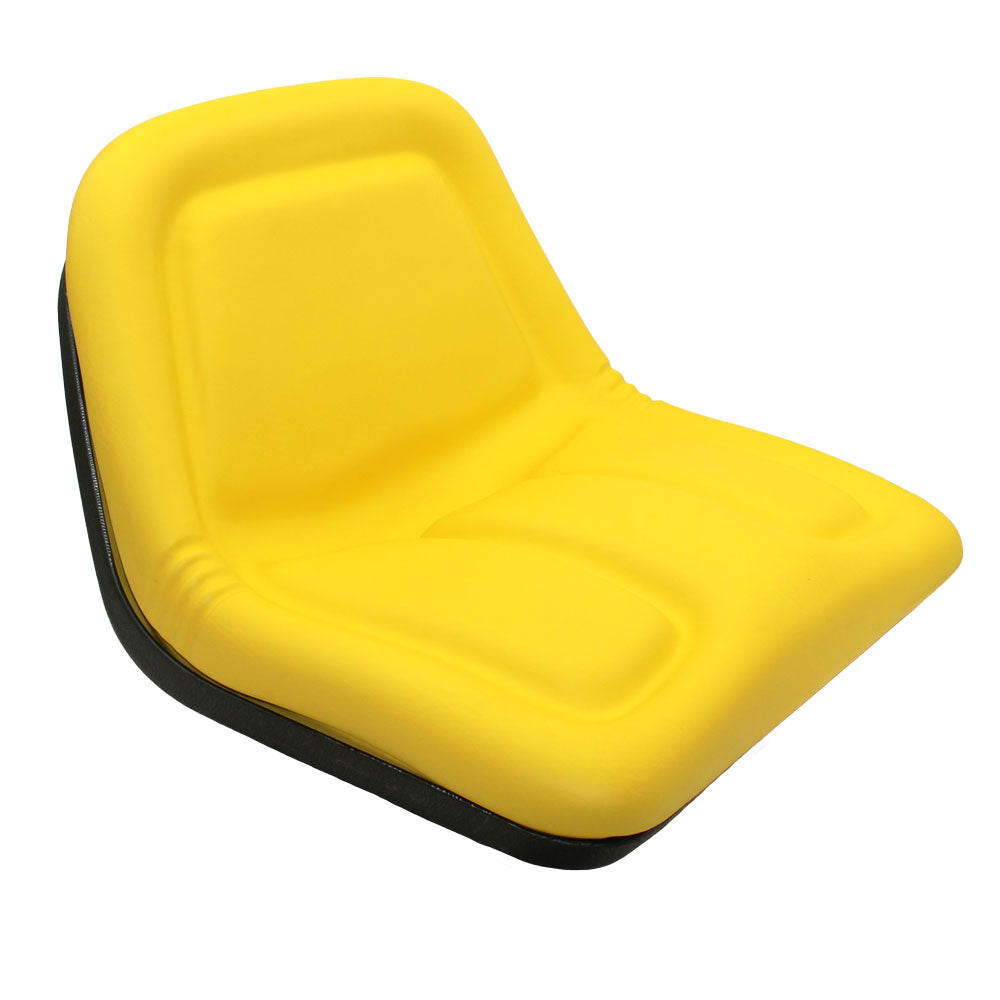

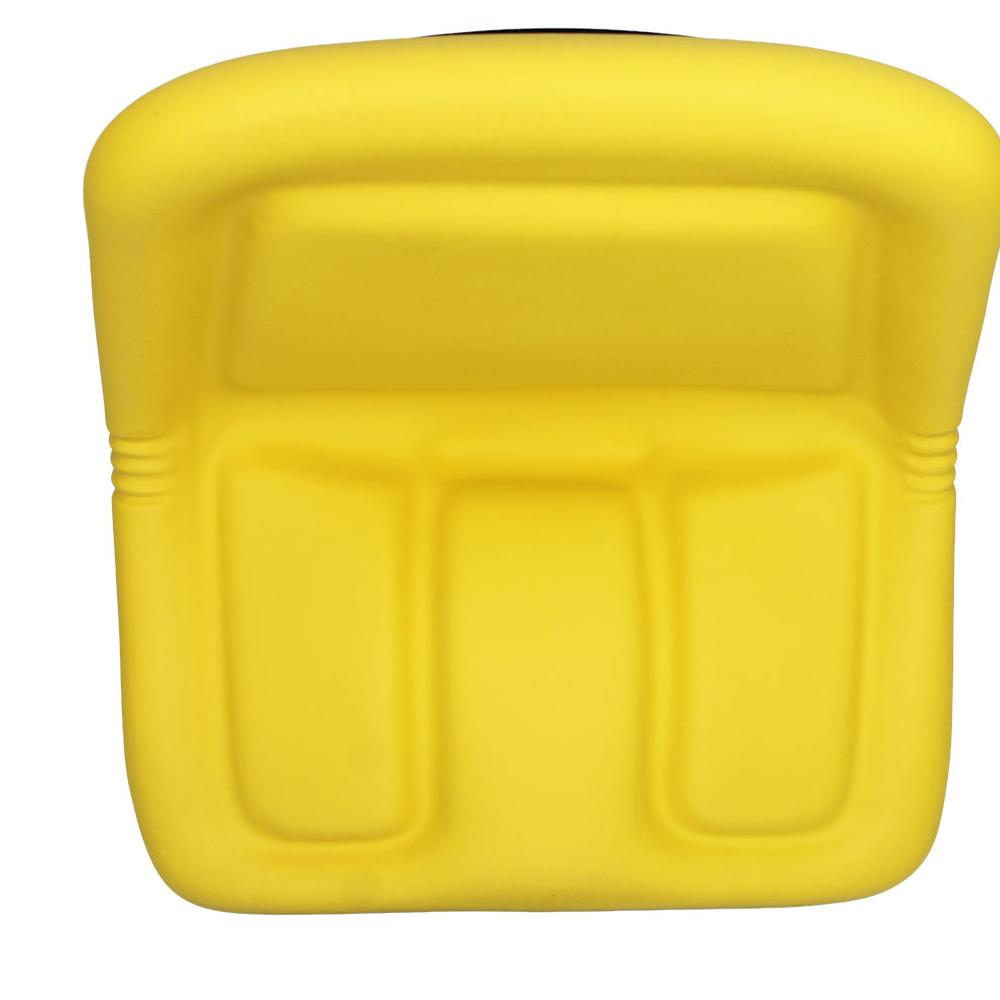

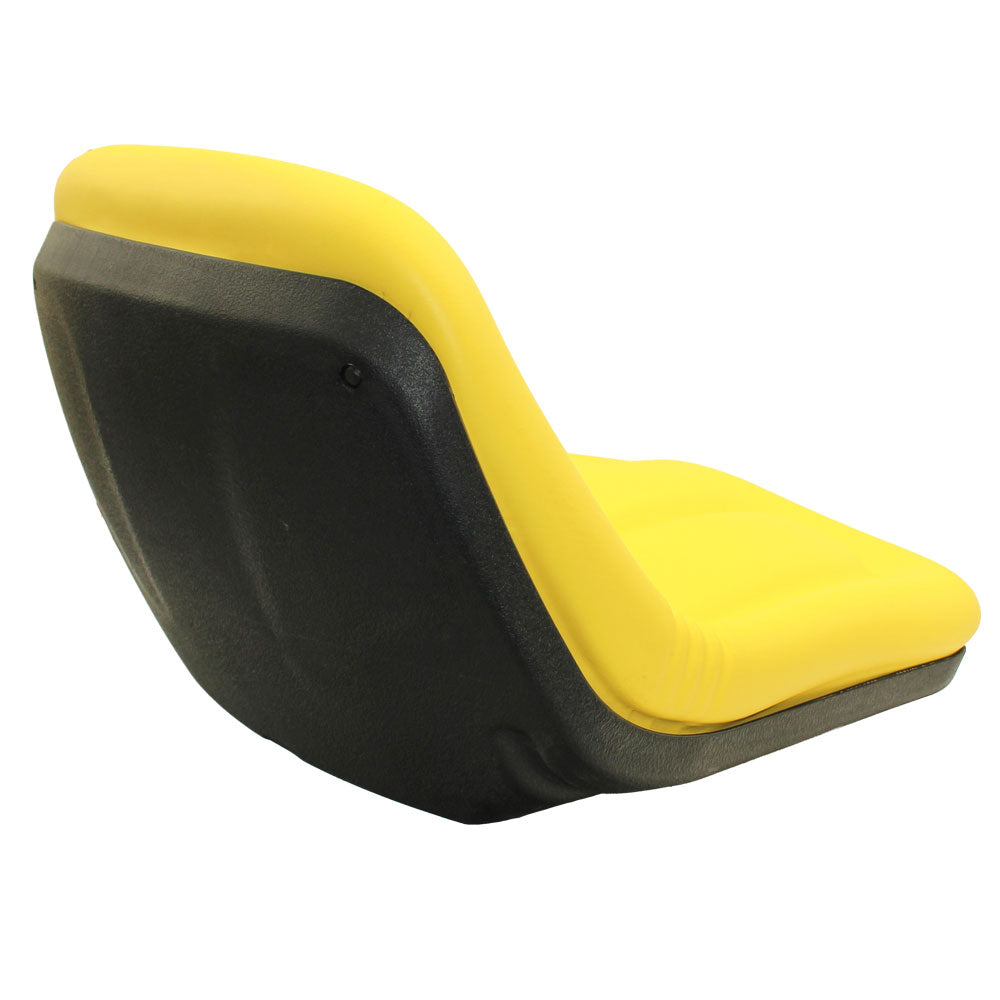

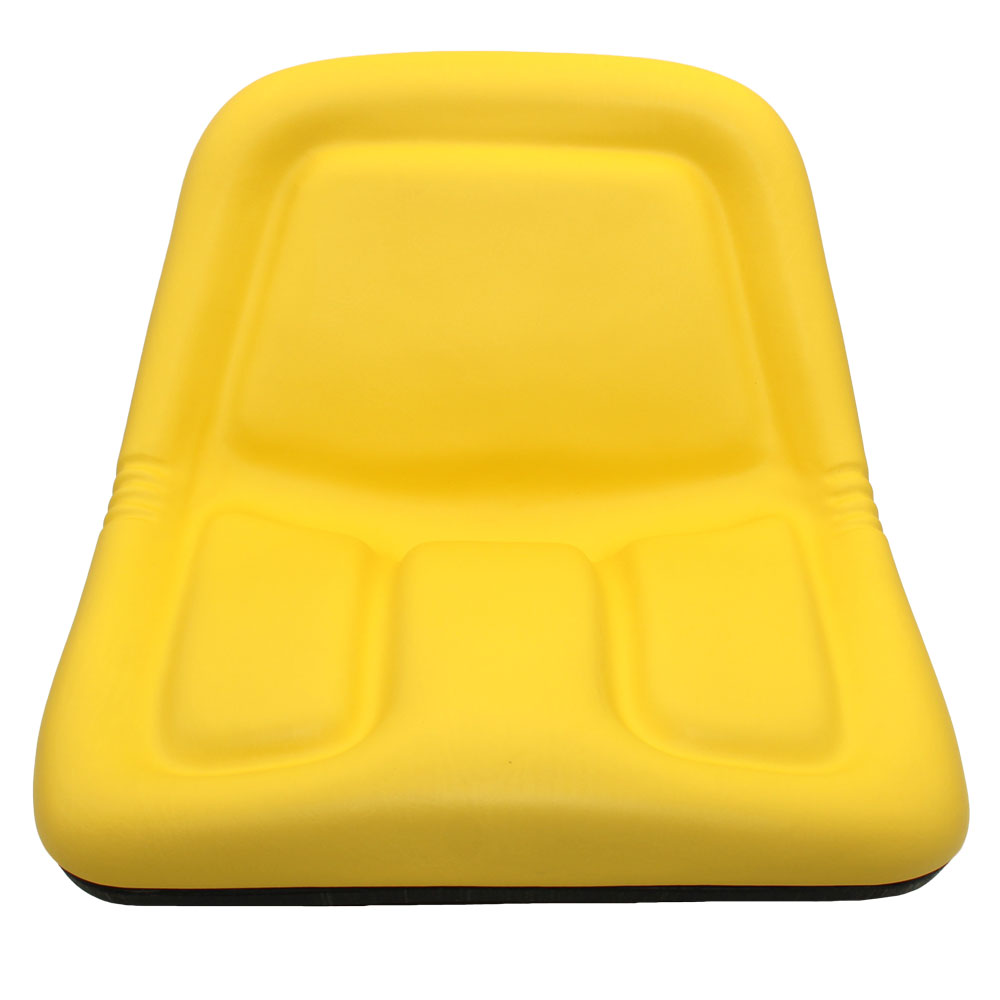

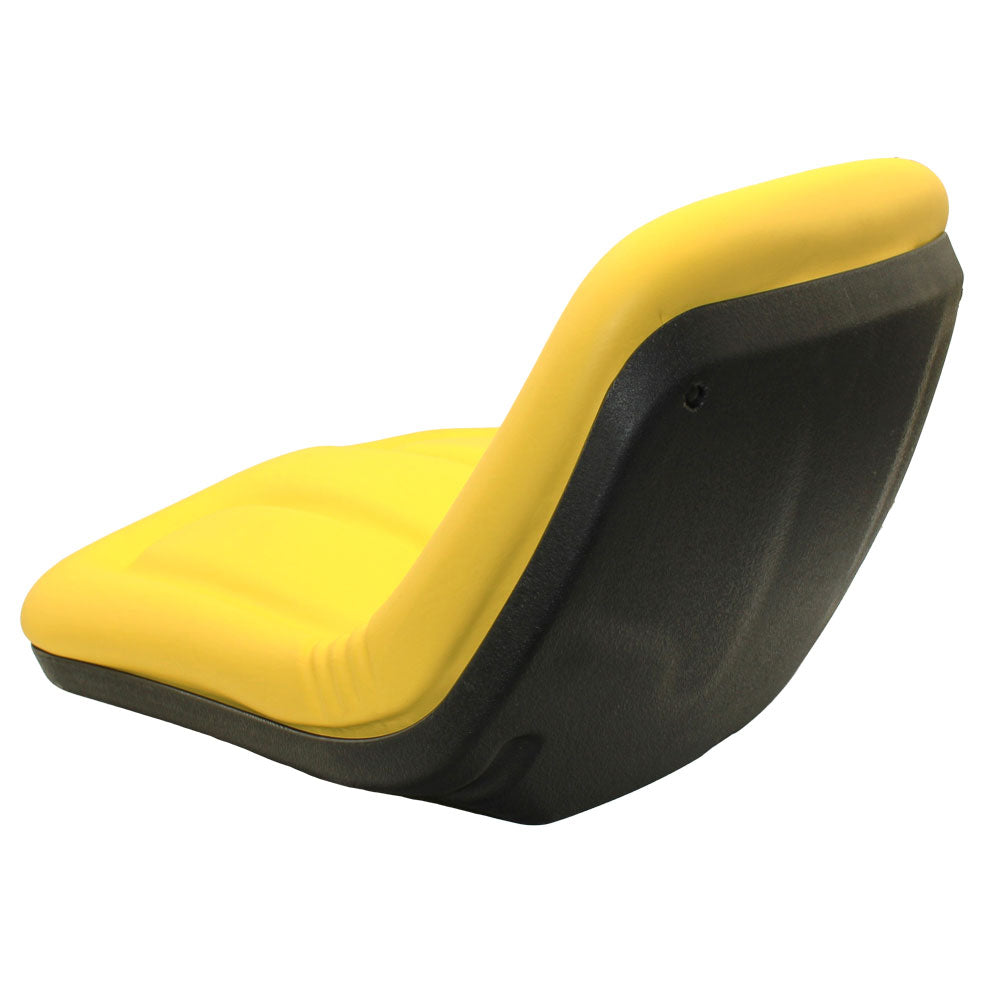

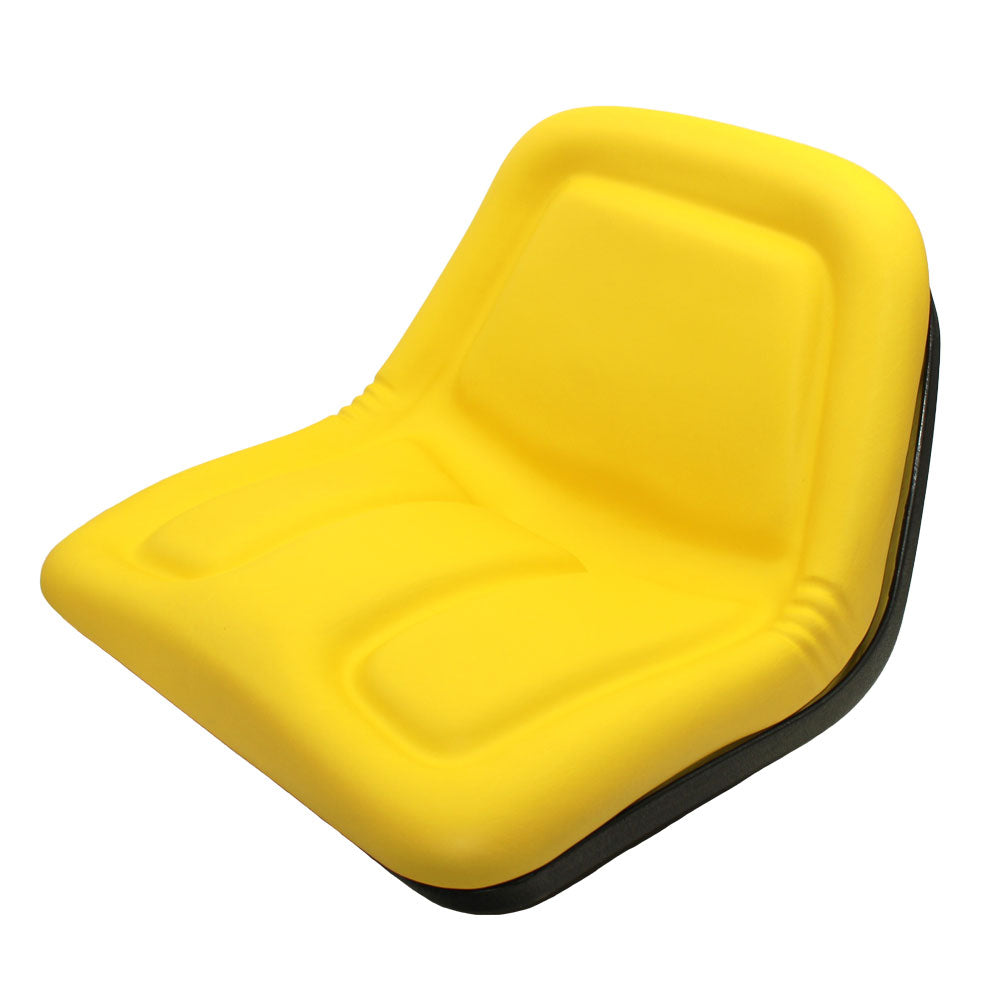

TY15863 Yellow High-Back Seat Assembly Fits John Deere AMT622 AMT626 B1TY15863
TY15863 Yellow High-Back Seat Assembly Fits John Deere AMT622 AMT626 B1TY15863
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket Replacement High-Back Seat Assembly
Fits John Deere All Material Transport Vehicle Models:
AMT622, AMT626
Fits John Deere Riding Lawn Mower Models:
316 (w/ Fits Onan Engine and Standard Suspension),
318 (with Standard Suspension),
322 (with Standard Suspension),
330,
332 (SN 475,001 and Up with Standard Suspension),
420 (with Standard Suspension),
430
Tech Info:
No Drain Hole
Heavy-Duty, Molded Yellow, Vinyl Cover for Durability
One to Two Inches of High Resiliency Foam Padding for Comfort
Poly Base
Installs Easily at Four Bolting Points for More Rigidity

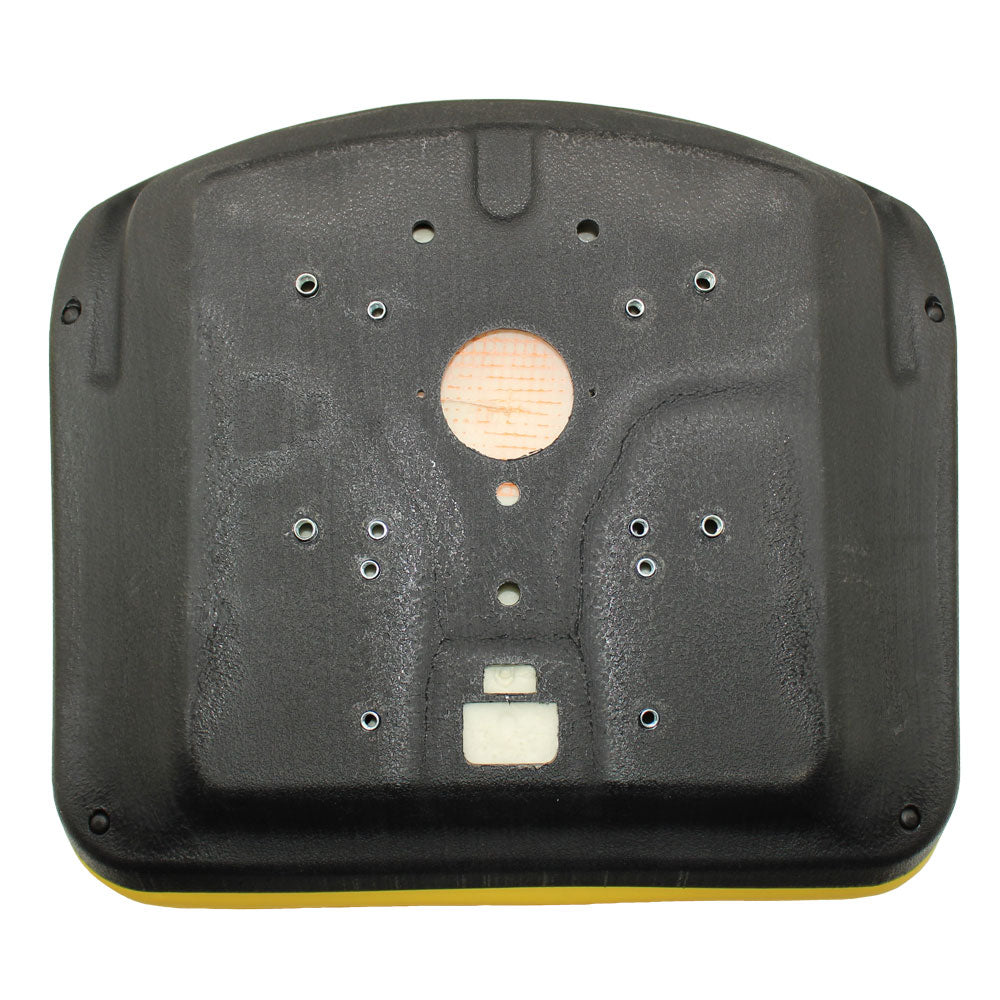

Bolt Pattern:
8-1/4-inch W x 5-inch D w/ 3/8-inch Threads
5-1/4-inch W x 4-1/2-inch D w/ 5/16-inch Threads
Replaces Part Numbers: TY15863, AM117924, B1AM117924, B1TY15863, AM103284, AM105898, AM39582, ET12564, MG675408, MG861683
Models This Part Fits:
STX38, 175, 4475, 5575, STX30, 420, 170, 430, 180, 3375, 375, 185, 318, 570, Fits Gator: 4X2 TURFAdditional Information:
Length (front to back): 23.5 in Width: 21 in Height: 10.4 in No drain hole Bolt Pattern: 8-1/4-inch W x 5-inch D w/3/8-inch threads 5-1/4-inch W x 4-1/2-inch D w/5/16-inch threads Heavy-duty, molded yellow, vinyl cover for durability One to two inches of high resiliency foam padding for comfort Poly base Installs easily at four bolting points for more rigidity ***SEE TY15863 FOR DIFFERENT BOLT PATTERN (MORE BOLT HOLES) Yellow High Back SeatReference Numbers:
TY15863, AM103284, AM105898, AM39582, ET12564, MG675408, MG861683Makes This Part Fits:
Shop John Deere Wholesale PartsProduct Category:
Lawn & Garden Replacement PartsProduct Group:
Product Sub Group:
View full details
