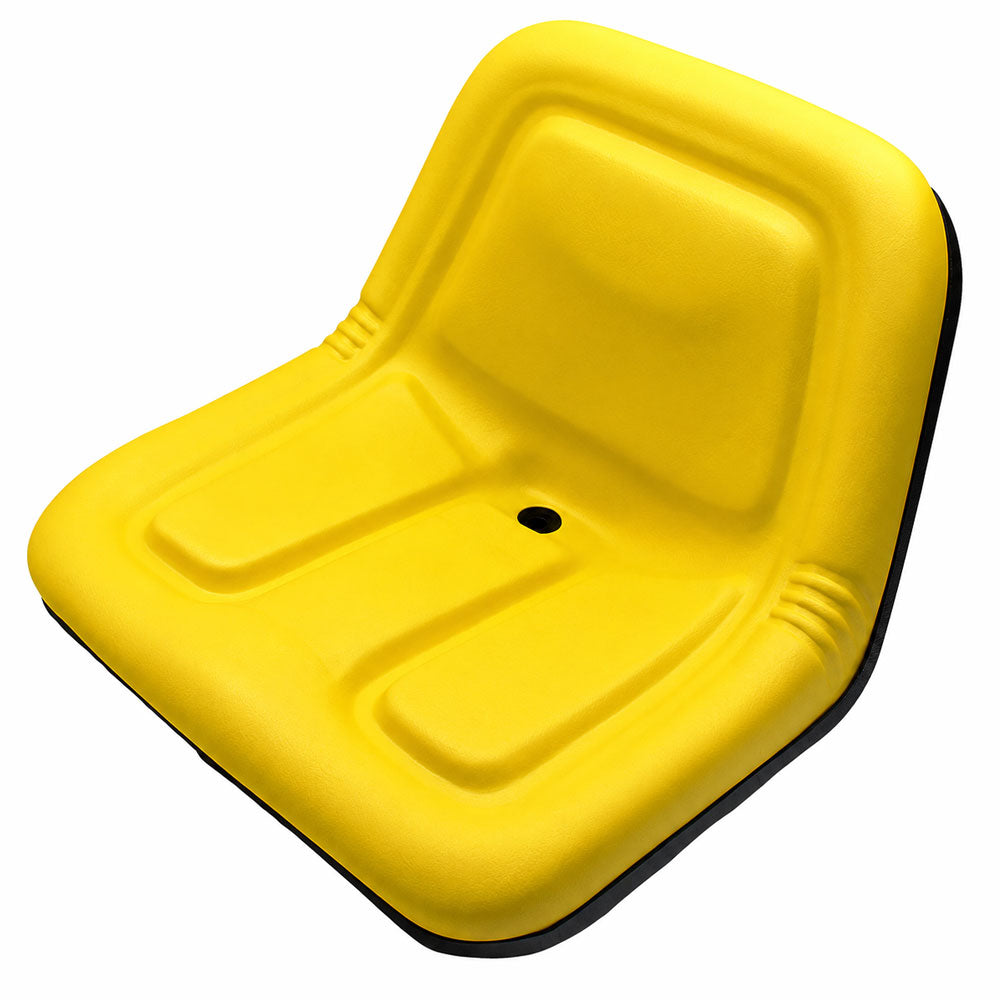

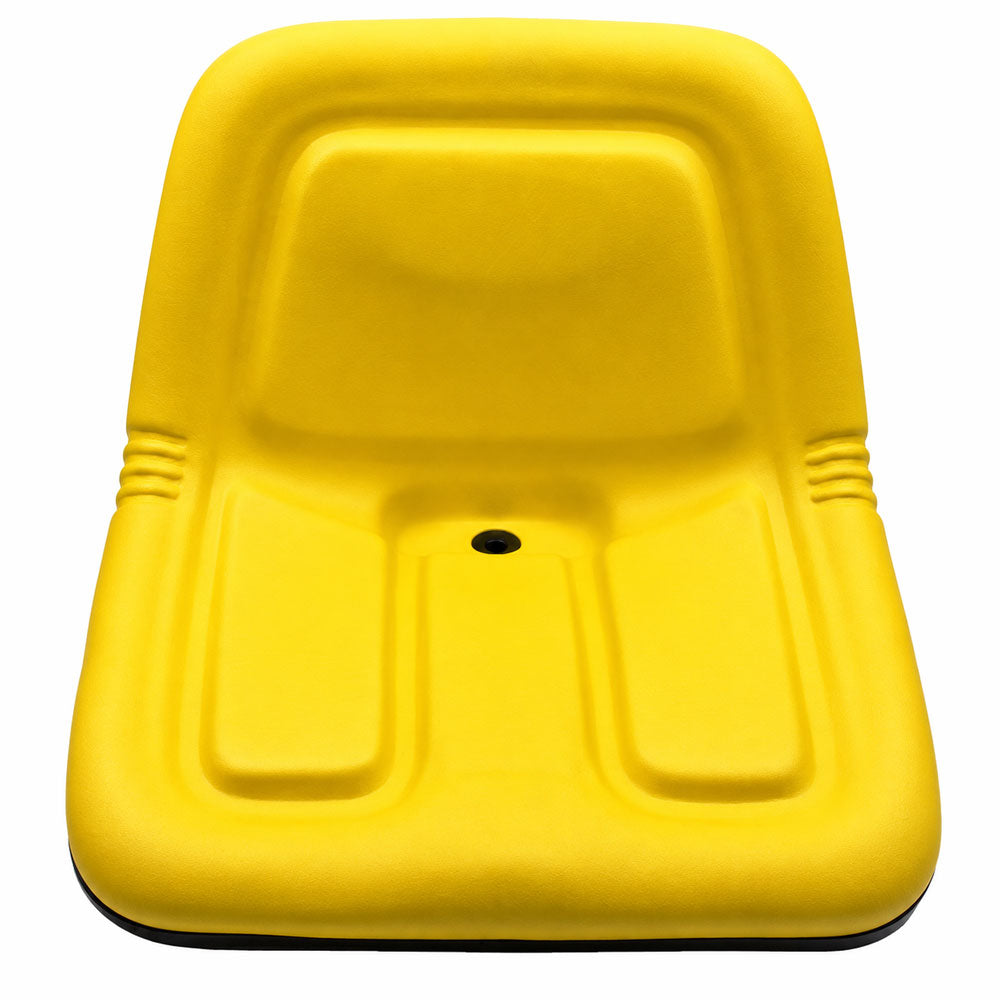

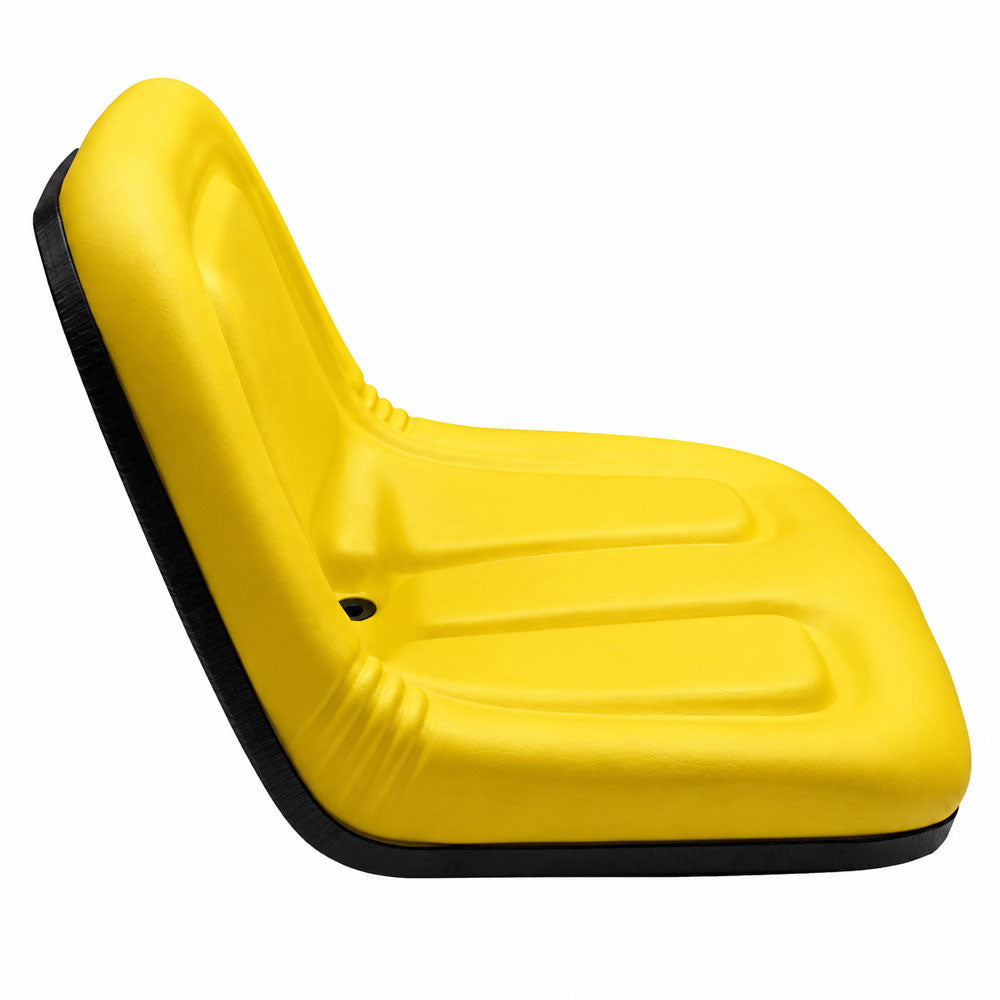

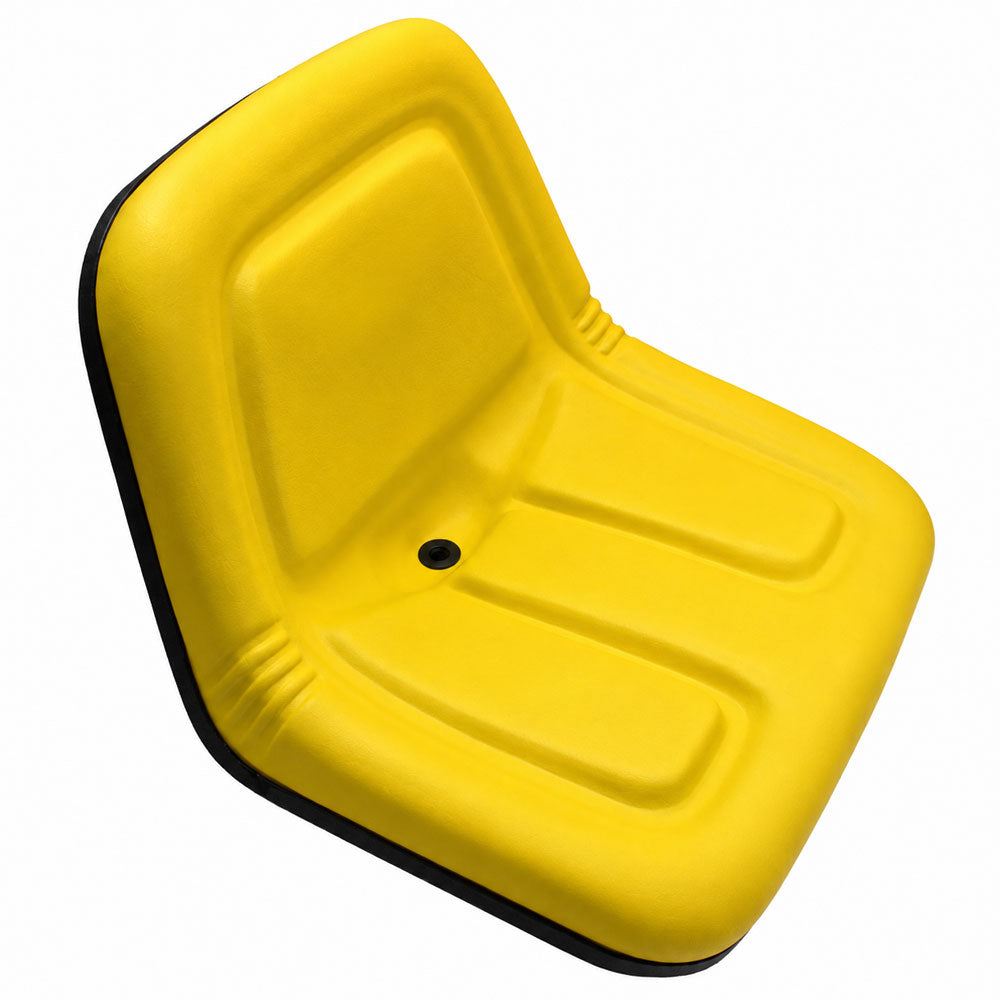

TY15863 High Back Seat - Yellow Fits John Deere 1090 3005 4005 4500
TY15863 High Back Seat - Yellow Fits John Deere 1090 3005 4005 4500
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

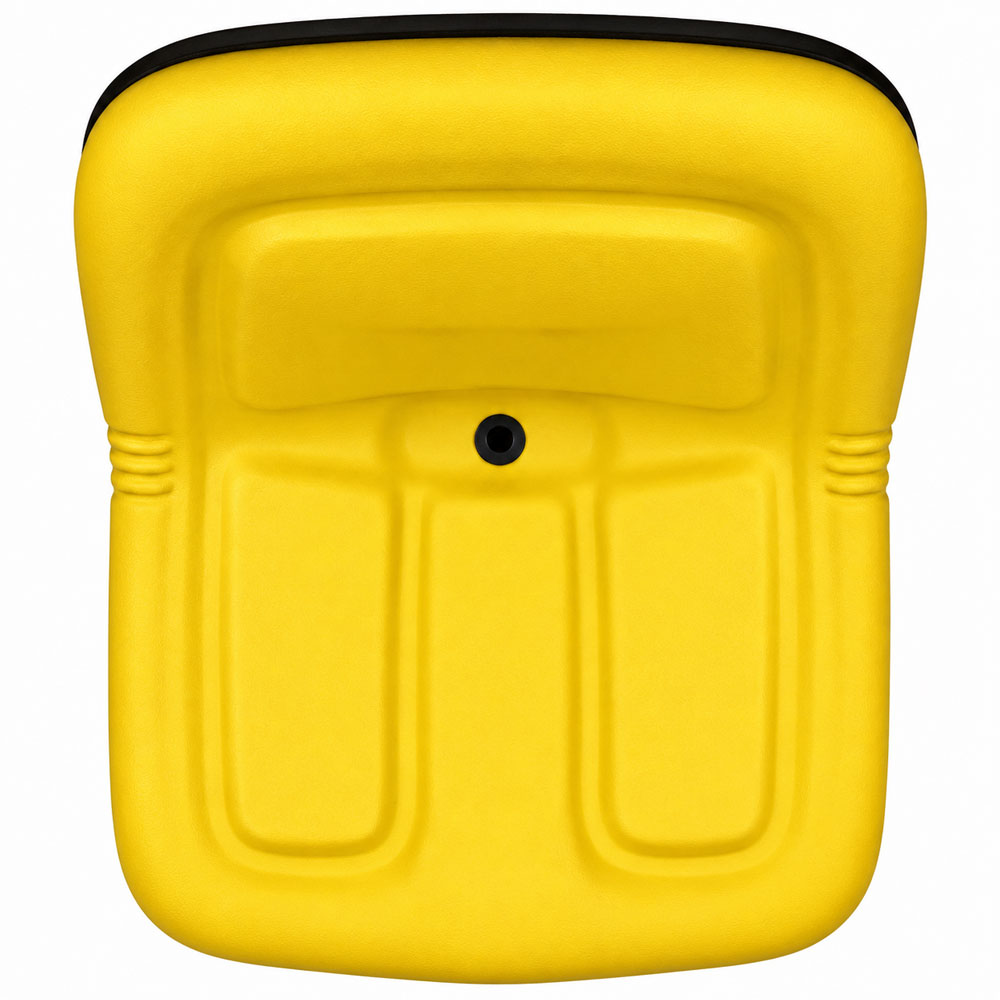

One New Aftermarket Replacement Yellow High Back Seat
Fits John Deere Models:
655, 755, 756, 855, 856, 955, 670, 770, 800HC, 870, 970, 1070, 790, 990, 1090, 3005, 4005, 4500
Tech Info:
Plastic Seat Pan
Waterproof
Centralized Drain Holes
Accepts Armrests
Accepts Operator Presence Switch
Accepts Slides
Yellow (Color May Vary Slightly)

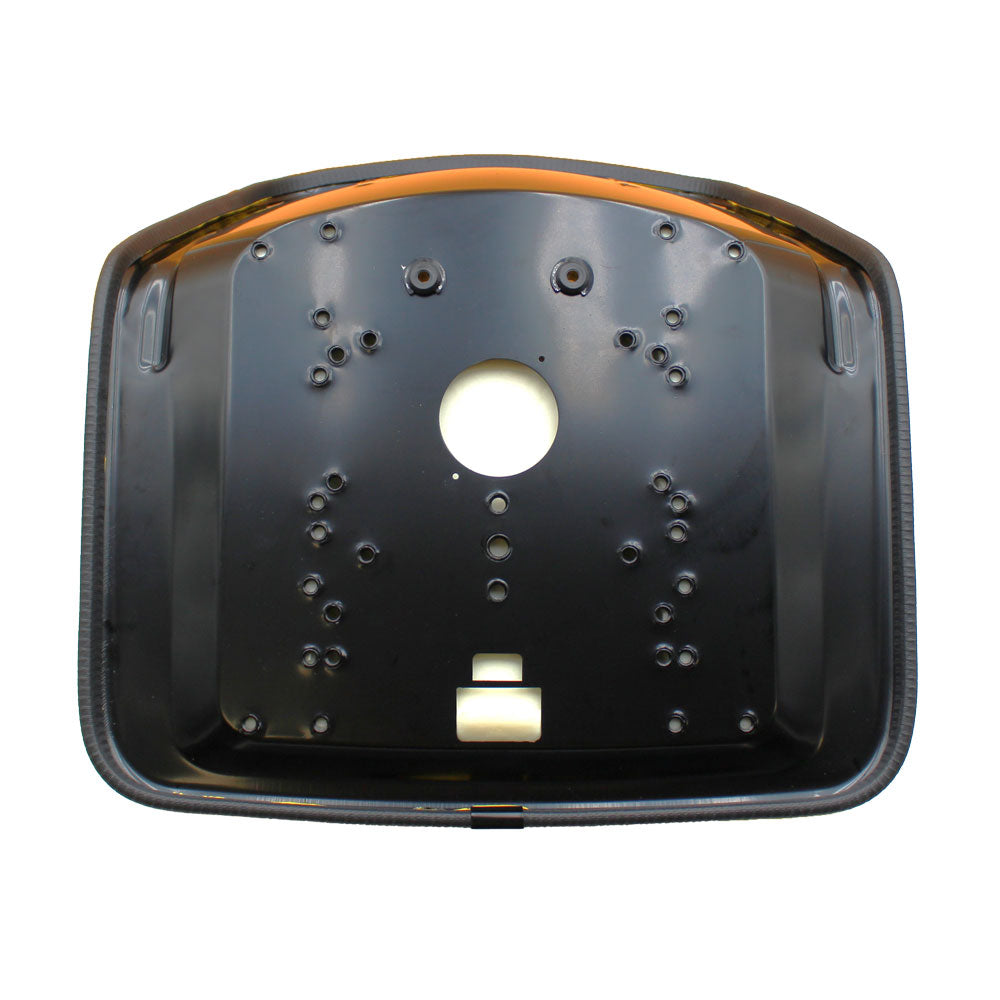

Multiple Bolting Patterns:
6" x 5"
7.5" x 3"
7.5” x 4"
7.5” x 6"
7.5" x 7"
8” x 11.5"
8.2" x 5"
8.25” x 3"
11.25" x 11"
(Width x Depth)
Please See Seat Image Dimensions for More Details
Replaces Part Numbers: TY15863, MG861683, AM117924, AM103284, AM105898, AM39582, ET12564, MG675408, 135001YE
Models This Part Fits:
RX75, 420, 180, 330, 160, 322, STX38, 175, SX75, 130, RX63, RX95, 316, 318, RX73, STX30, 430, 165, 170, 332, SX95Additional Information:
Width: 19.625" Cushion Thickness: 5" Seat Depth: 19.5" Overall Height: 13.875 Waterproof Drain Holes Accepts Armrests (93120) Accepts Operator Presence Switch Accepts Slides Yellow Bolt Patterns (width x depth): 6" x 5" 7.5" x 3" 7.5” x 4” 7.5” x 6” 7.5" x 7" 8” x 11.5” 8.2" x 5" 8.25” x 3" 11.25" x 11" Yellow High Back SeatReference Numbers:
AM105898, AM39582Makes This Part Fits:
Shop John Deere Wholesale PartsProduct Category:
Lawn & Garden Replacement PartsProduct Group:
