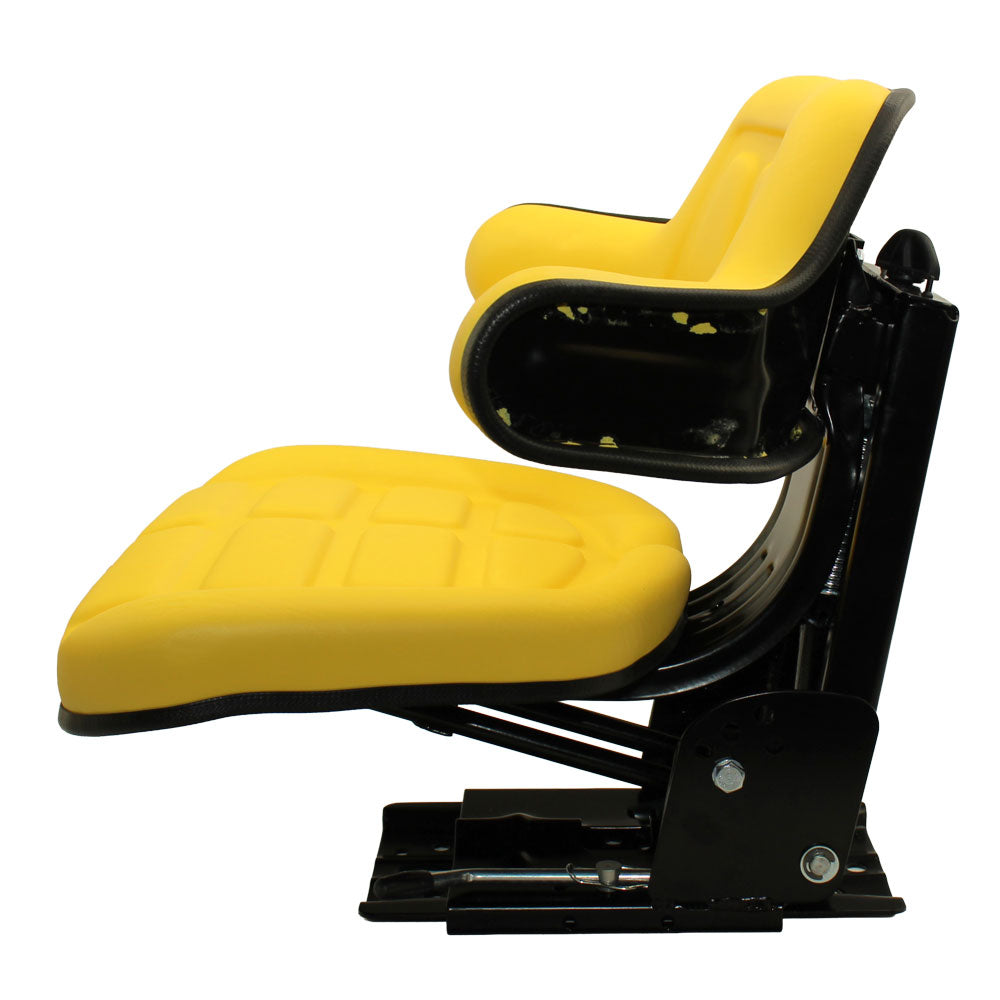

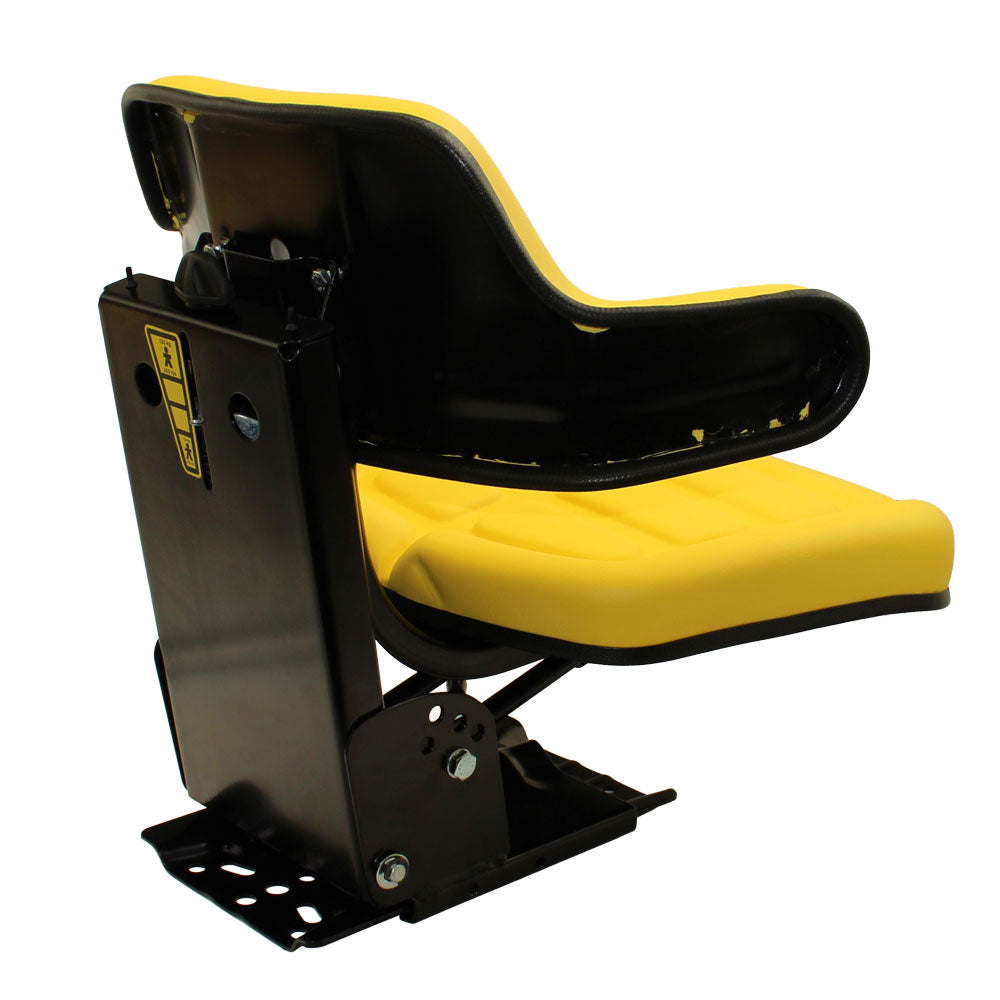

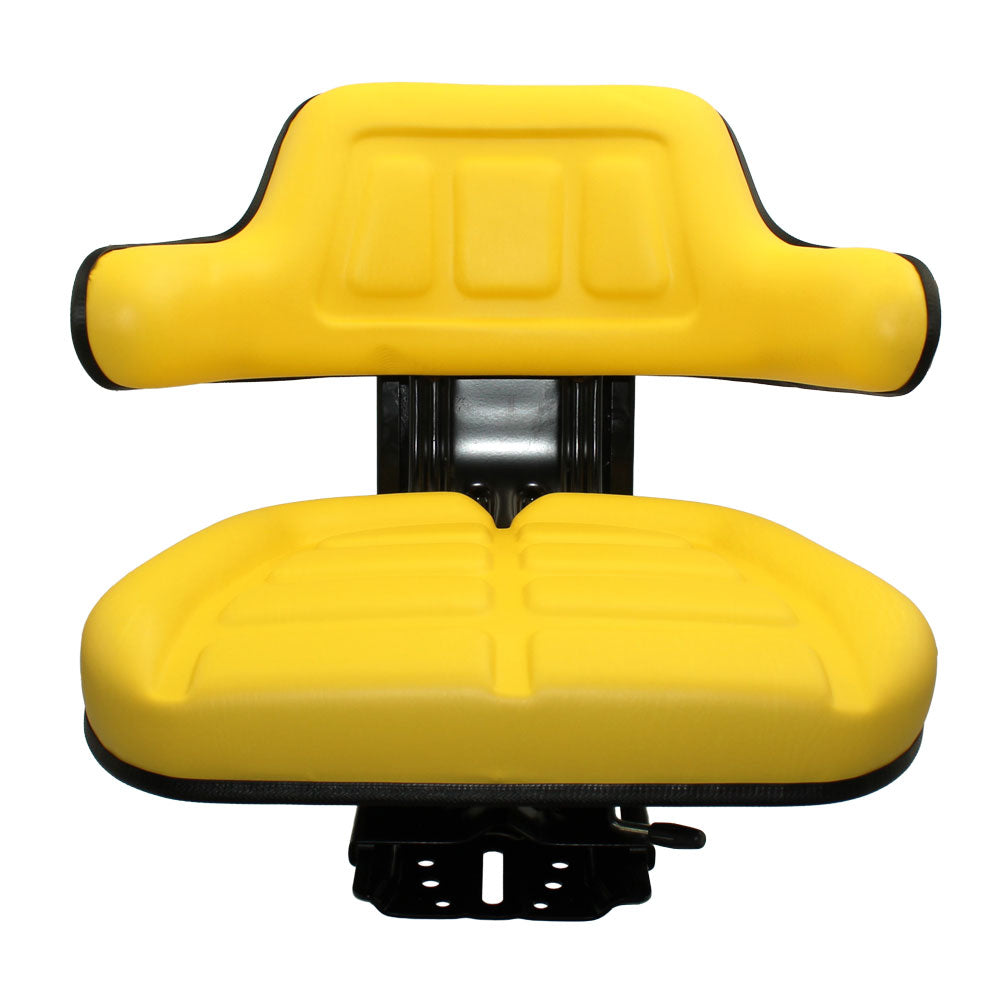

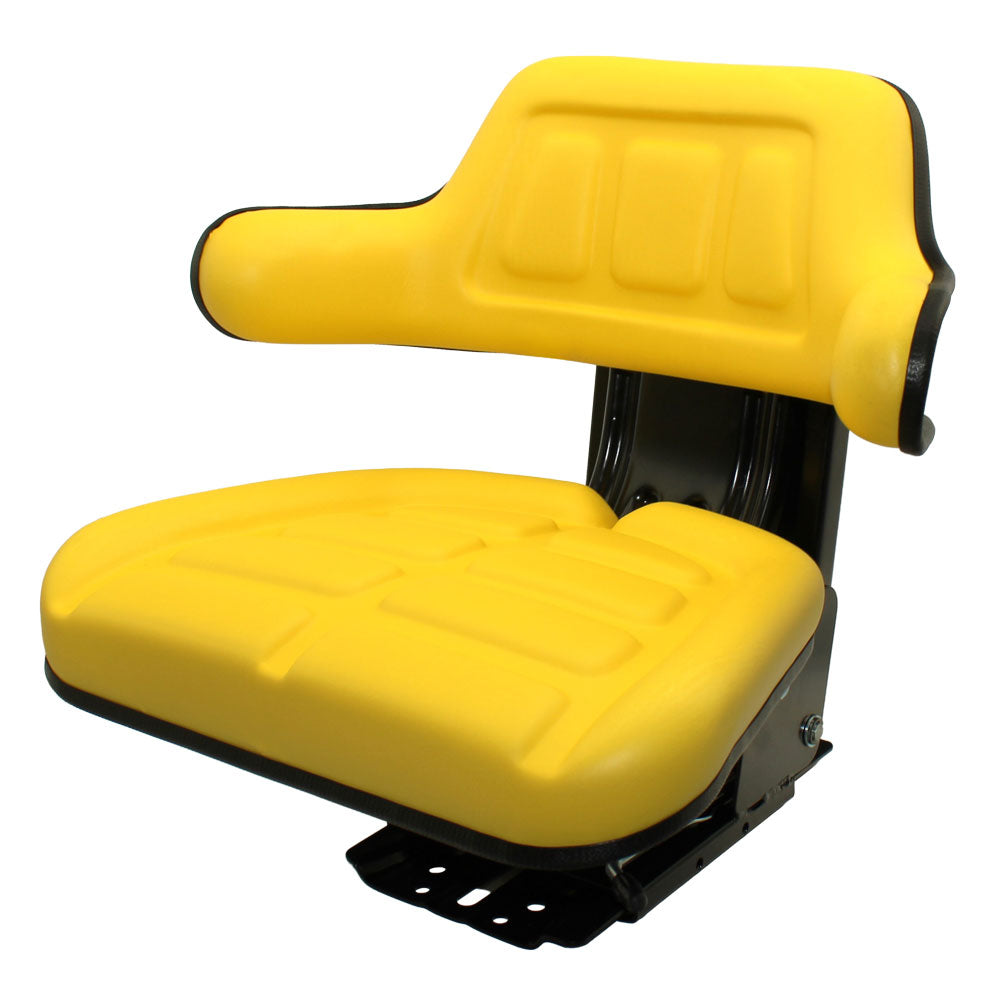

TY24763 Wrap Around Back Seat Fits John Deere 1020 1030 1120 1130 1530 1630
TY24763 Wrap Around Back Seat Fits John Deere 1020 1030 1120 1130 1530 1630
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

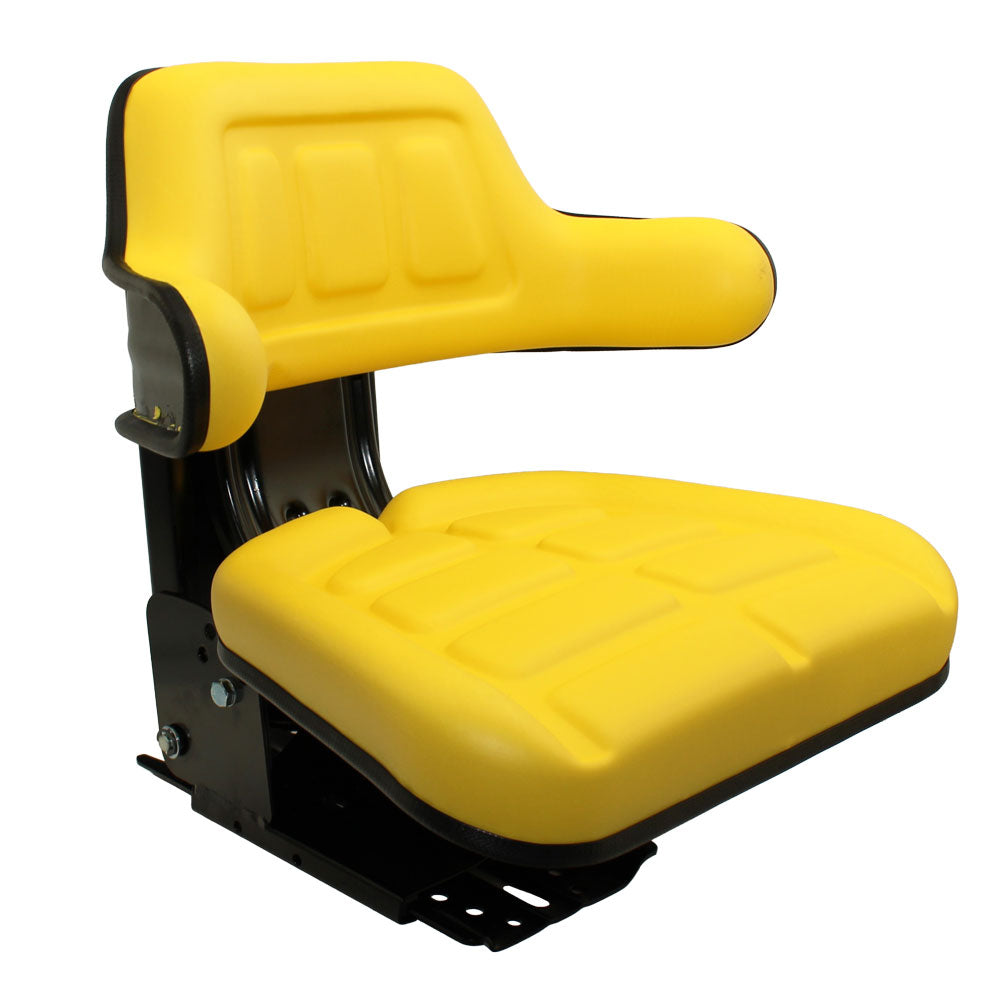

One New Aftermarket Replacement Yellow seat w/ Full Suspension
Fits John Deere Swather/Windrower Models: 2280, 2320, 2420
Fits John Deere Tractor Models:
1020, 1030, 1120, 1130, 1530, 1630, 1640, 1830, 1840, 2020, 2030, 2040, 2040S, 2120, 2130, 2140, 2155, 2240, 2255, 2350, 2355, 2355N, 2440, 2550, 2555, 2640, 2750, 2755, 2840, 2855N, 2940, 2950, 2955, 3030, 3040, 3130, 3140, 820, 830,920, 930
Fits John Deere Skidder Models: 540D, 548D, 640D, 648D

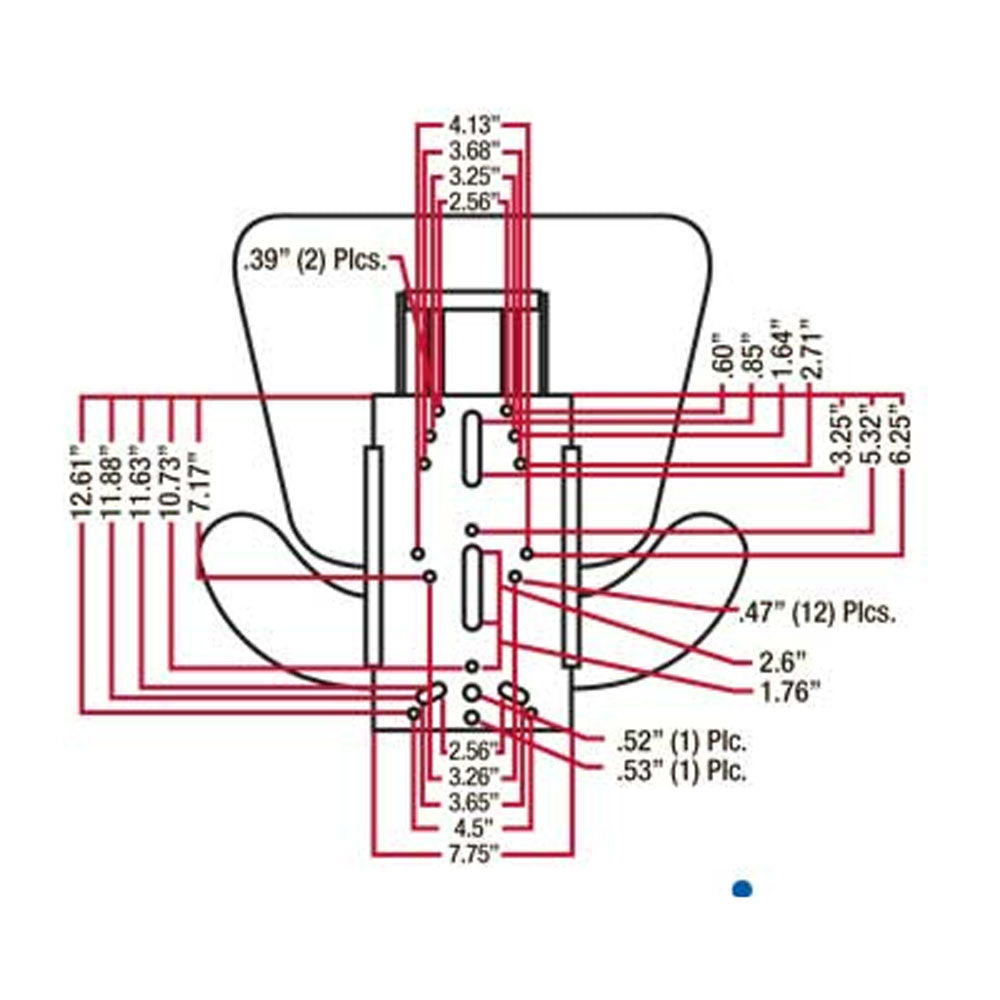

Tech Info:
Dim A (1) 21 3/4"
Dim B (2) 7 3/4"
Dim C (3) 20"
Dim D (4) 9 1/2"
Dim E (5) 21 1/4"
Dim F (6) 20 1/2"

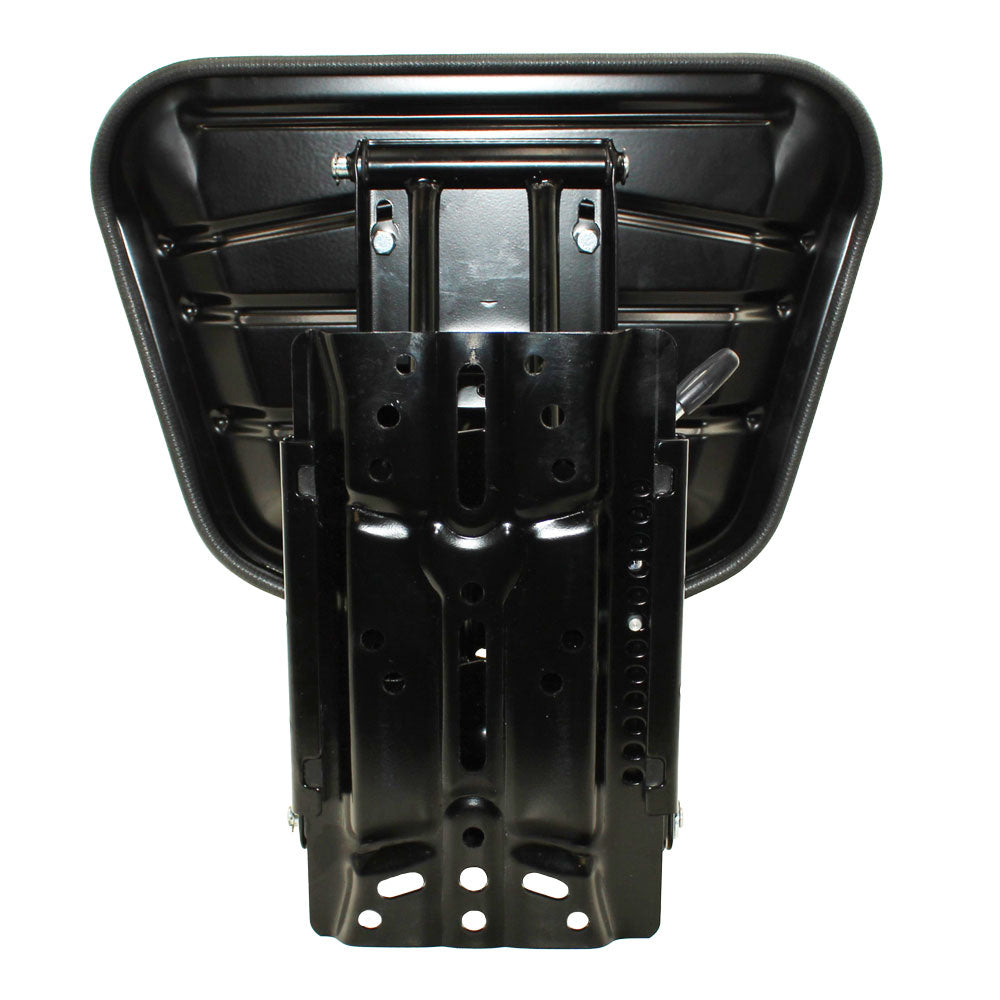

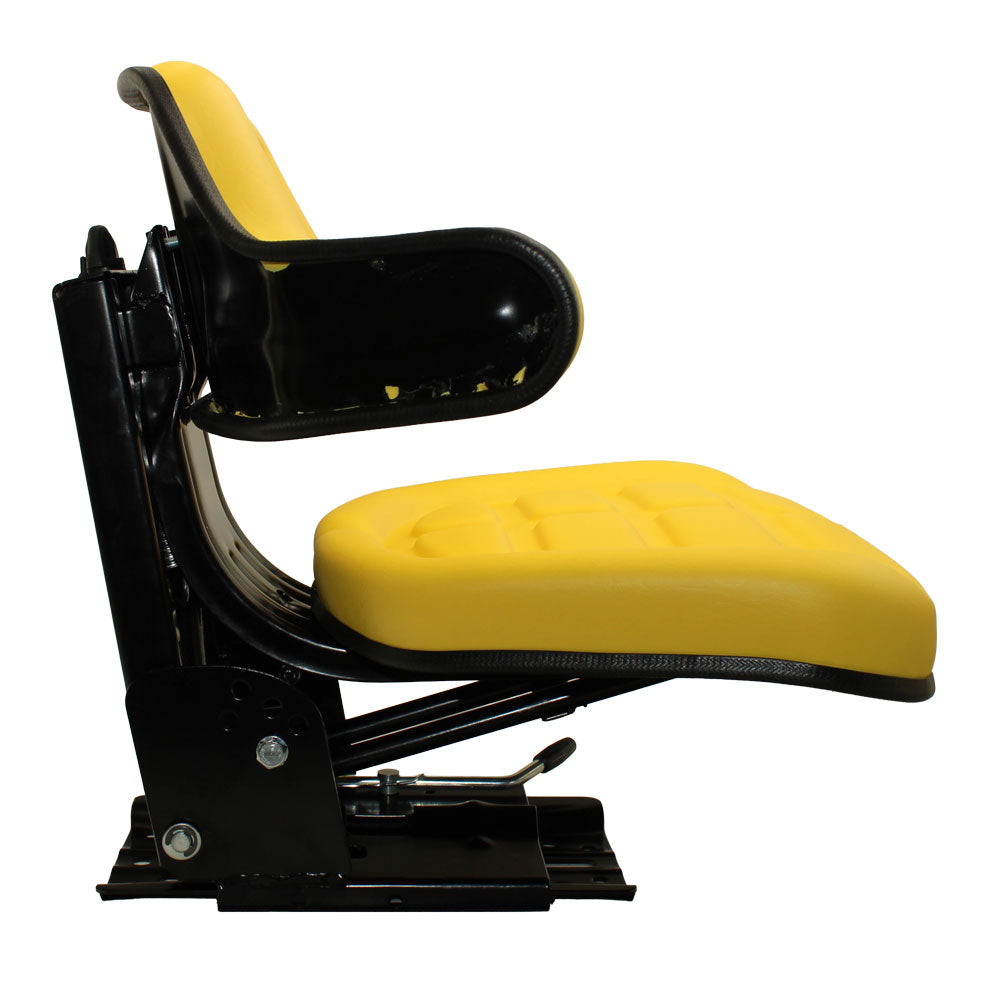

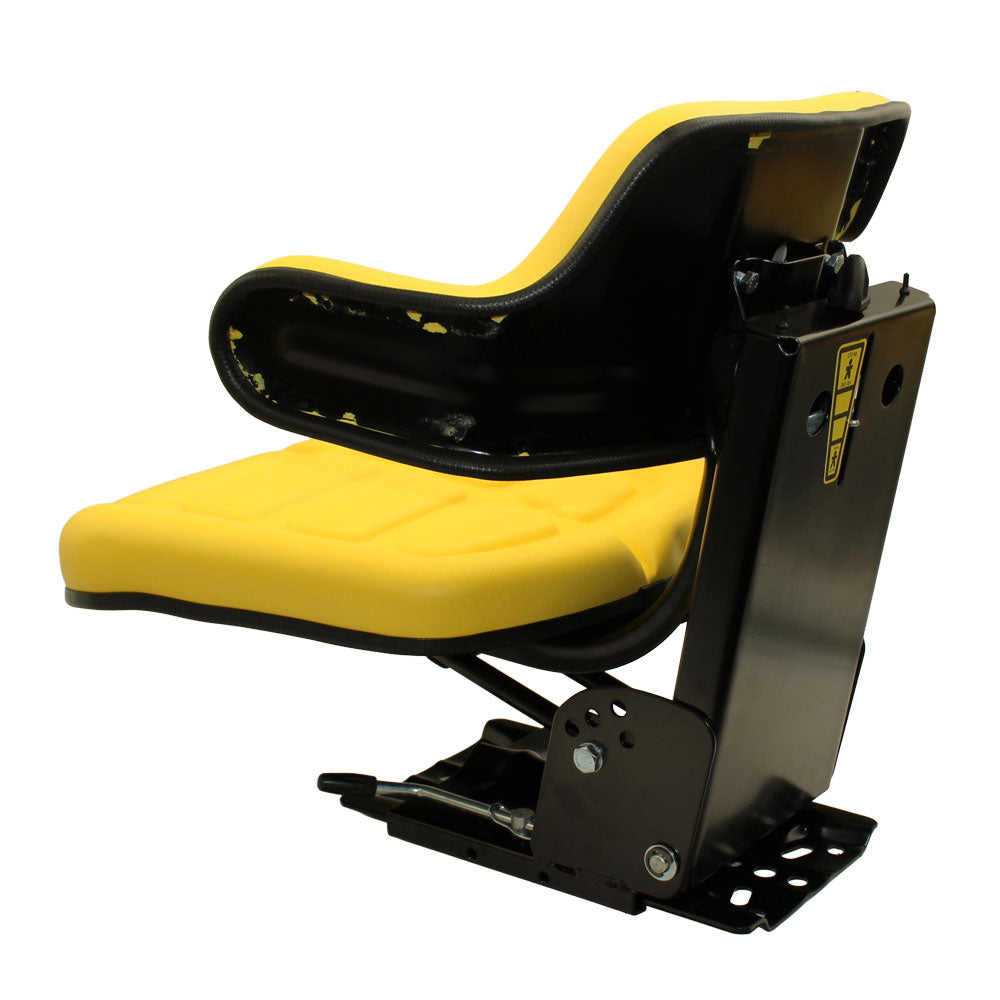

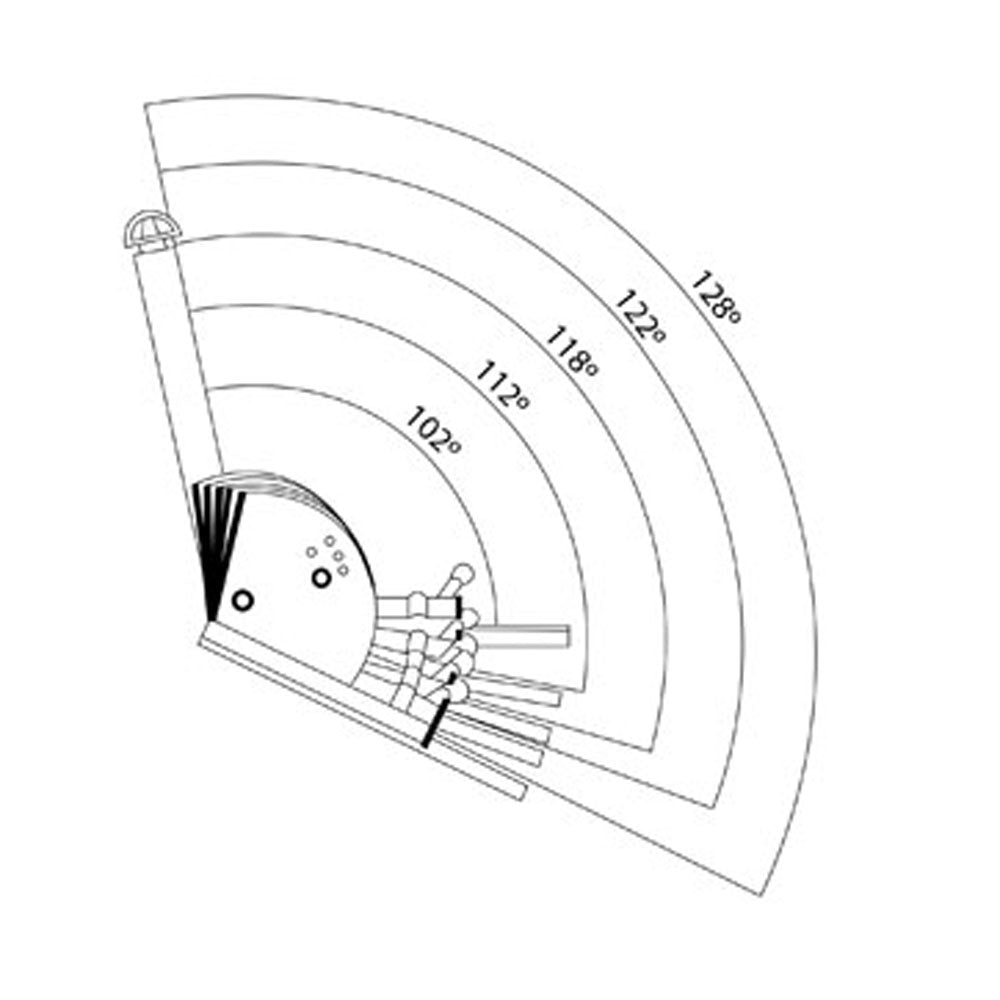

Yellow seat w/ full suspension, adjustable 5 angle base, slide track & mounting brackets.
Replaces Part Numbers:
AL66103, AL68098, AL68099, TS1040AT, TS840, TS865, TS940T, W116YL, W200YL, W222YL
Models This Part Fits:
SeveralAdditional Information:
Yellow Seat w/ Full Suspension Adjustable 5 angle base Slide Track and Mounting Brackets Overall Width: 21-3/4" Seat Height: 7-3/4" Overall Depth: 20" Overall Height: 9-1/2" Material: Vinyl 300 lb / 136 kg weight limit Yellow Wrap Around Seat with ArmsReference Numbers:
TS1040AT, TS840, TS865, TS940T, W116YL, W200YL, TY24763, TY26544Makes This Part Fits:
Shop John Deere Wholesale PartsShop Universal Wholesale Parts
Product Category:
Agriculture Replacement PartsProduct Group:
Product Sub Group:
