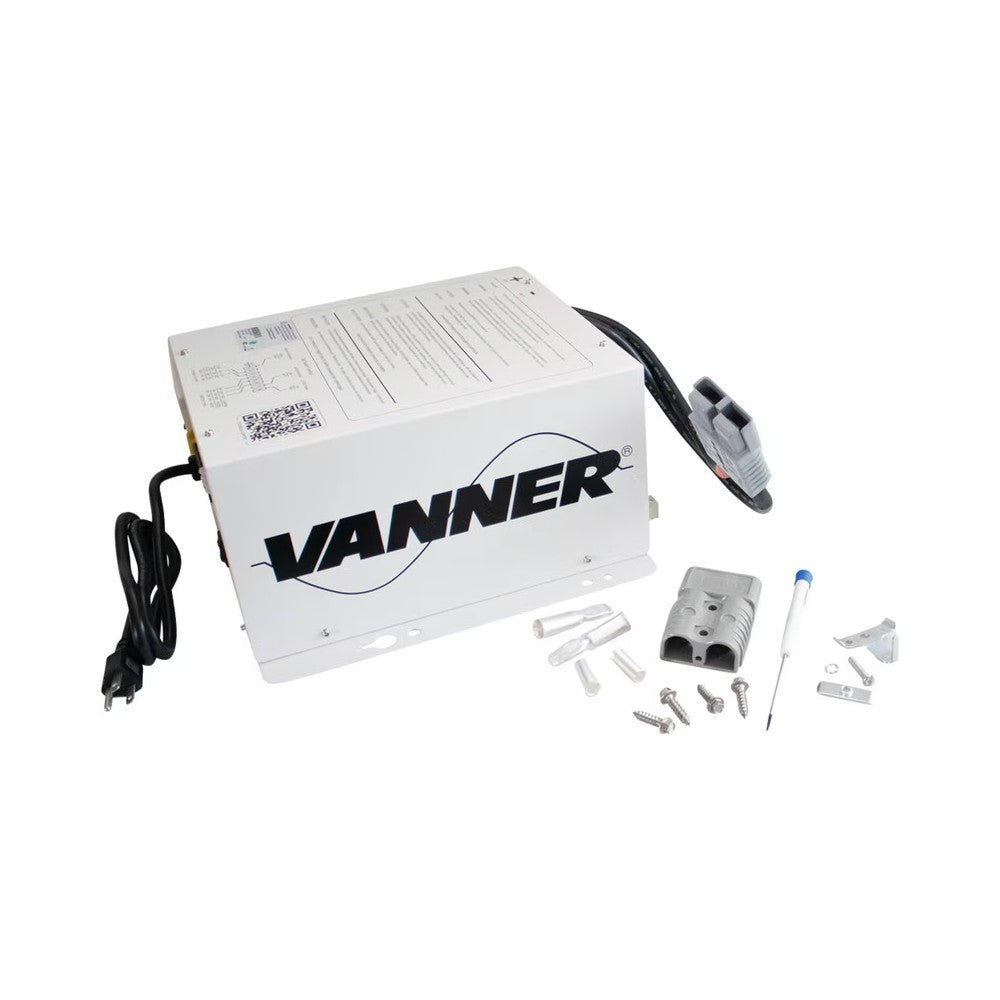

Vanner LifeStar Ambulance Power Module, Model 20-1050CUL-DC
A single module that does three jobs in an emergency vehicle: it inverts 12 volt battery power to 120 VAC, it charges the batteries at up to 55 amps from shore power, and it transfers between the two automatically.
Output
- 1050 watts continuous at 120 VAC
- 2100 watts surge, three second rating
- 120 VAC plus or minus 5 percent, 60 Hz plus or minus 0.2 percent
- Duplex GFCI receptacle
- Transfer switch rated 12 amps
Input and charging
- 12 VDC nominal, operating range 10.5 to 16.0 VDC
- Battery charger 55 amps on the high setting, 15 amps on low
- Suits flooded lead acid and gel lead acid batteries
- Hardwire AC input
Physical
- 11.57 in wide by 5.94 in high by 11.04 in deep
- 22 lb
Standards
- Complies with KKK-A-1822 section 3.7.7.2 for the portable equipment charging circuit
- AC input branch protection is required per the National Electric Code, NFPA 70
