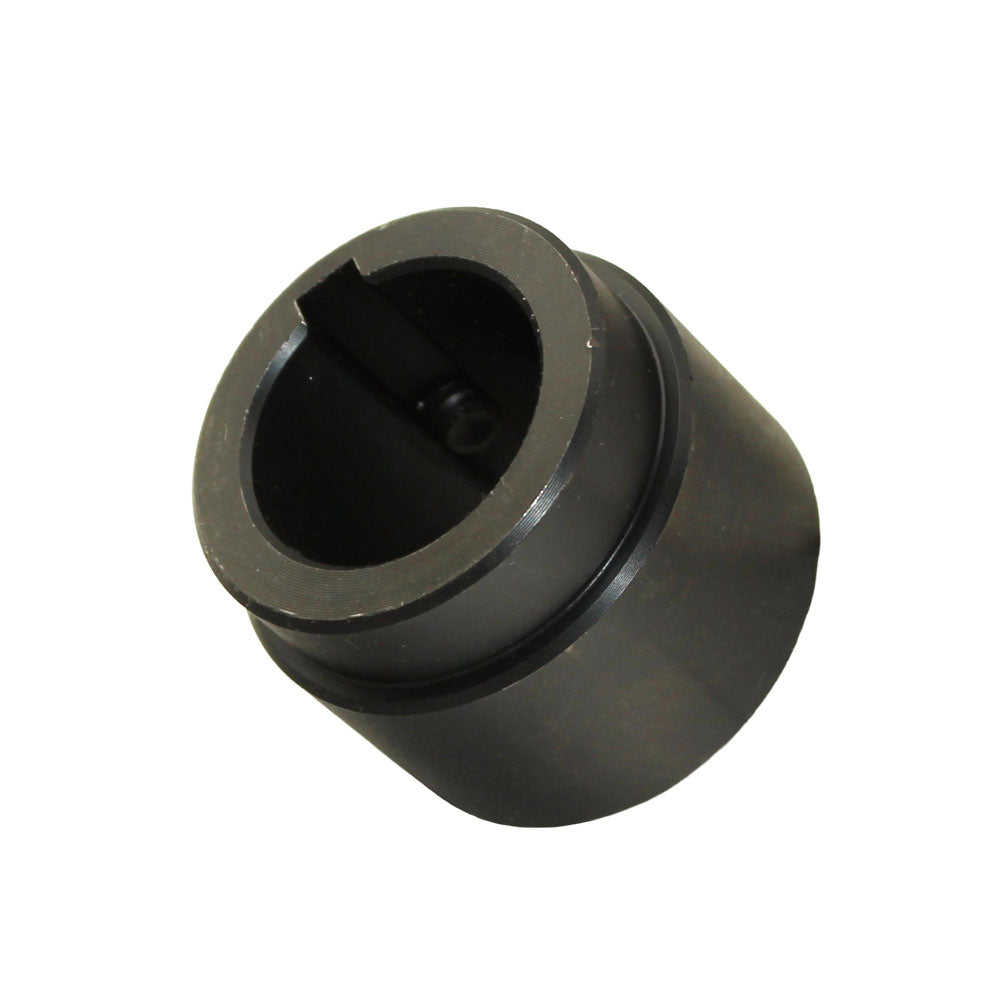

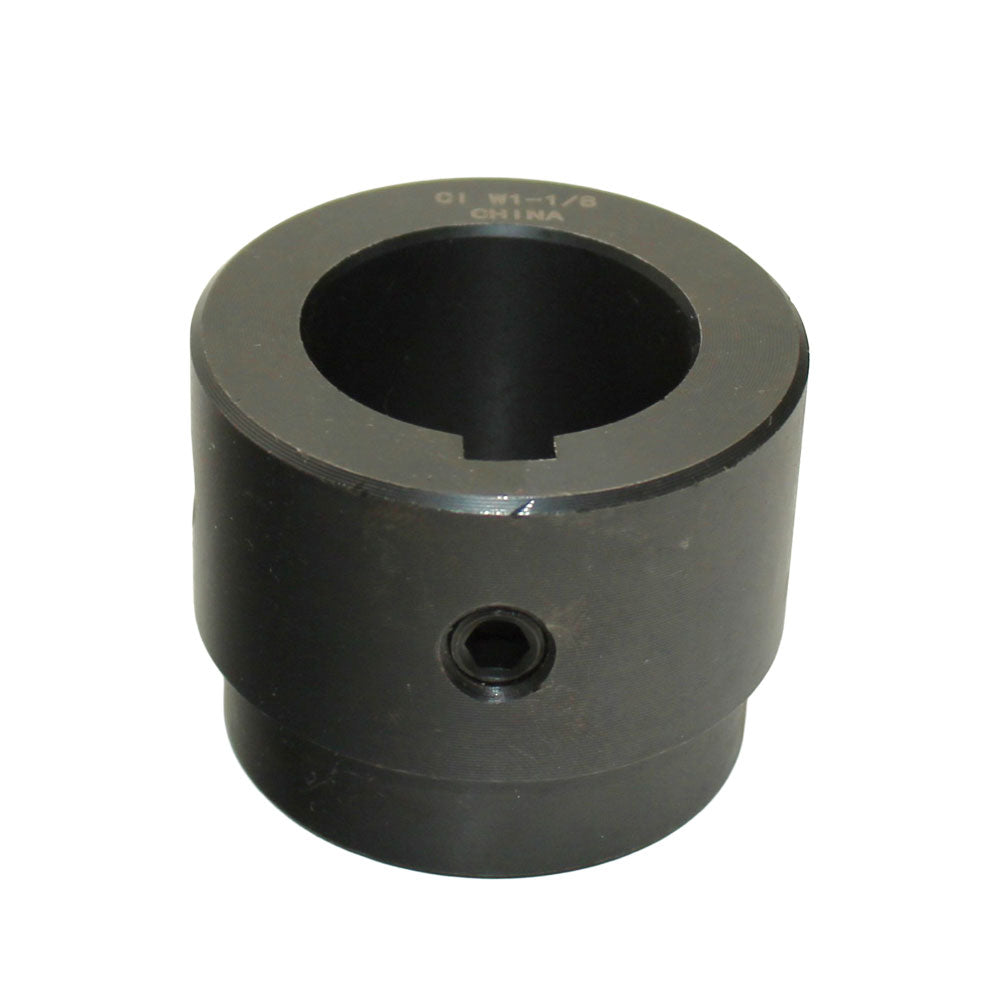

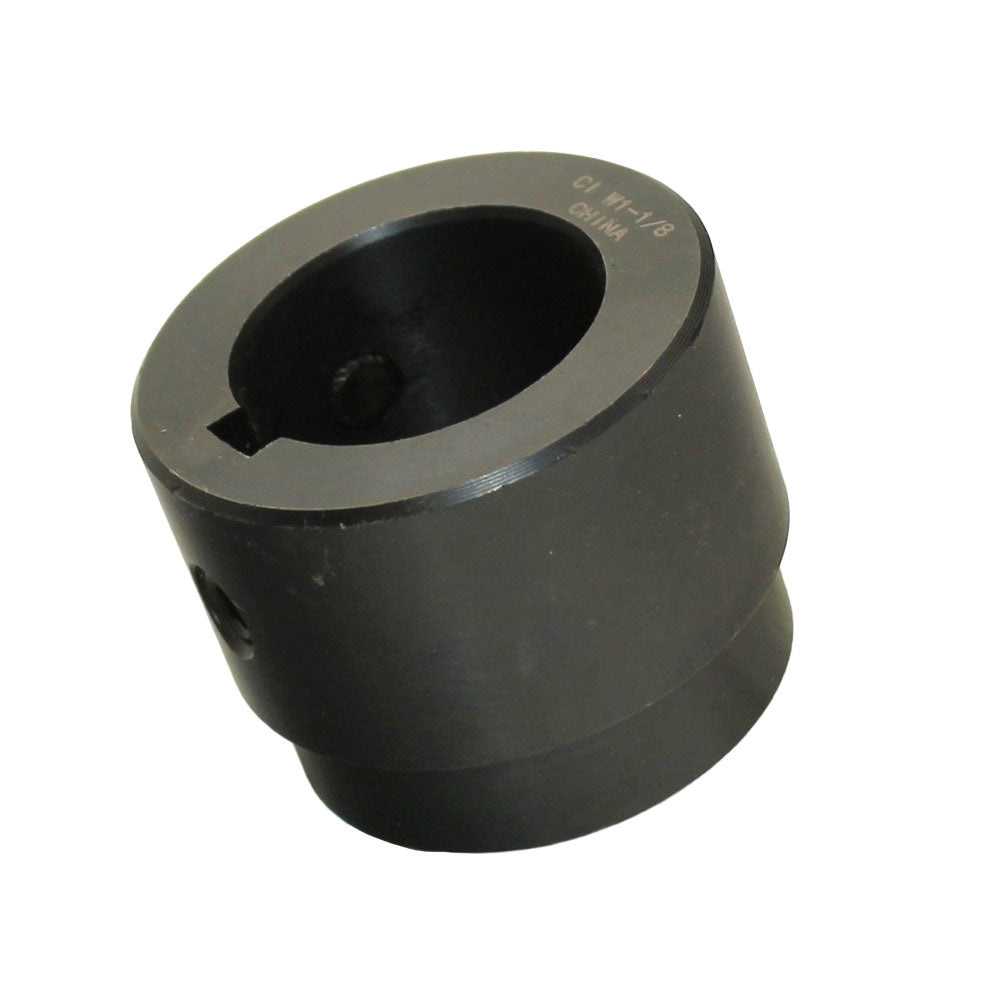

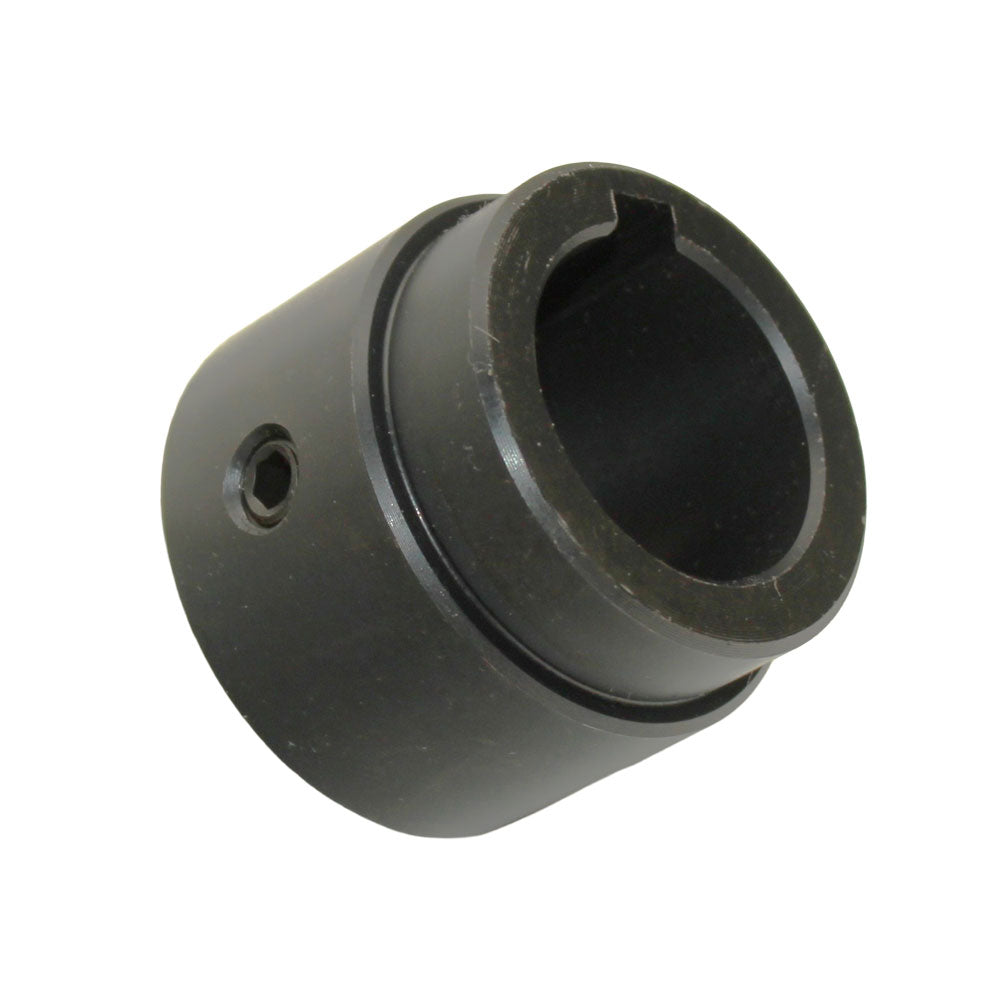

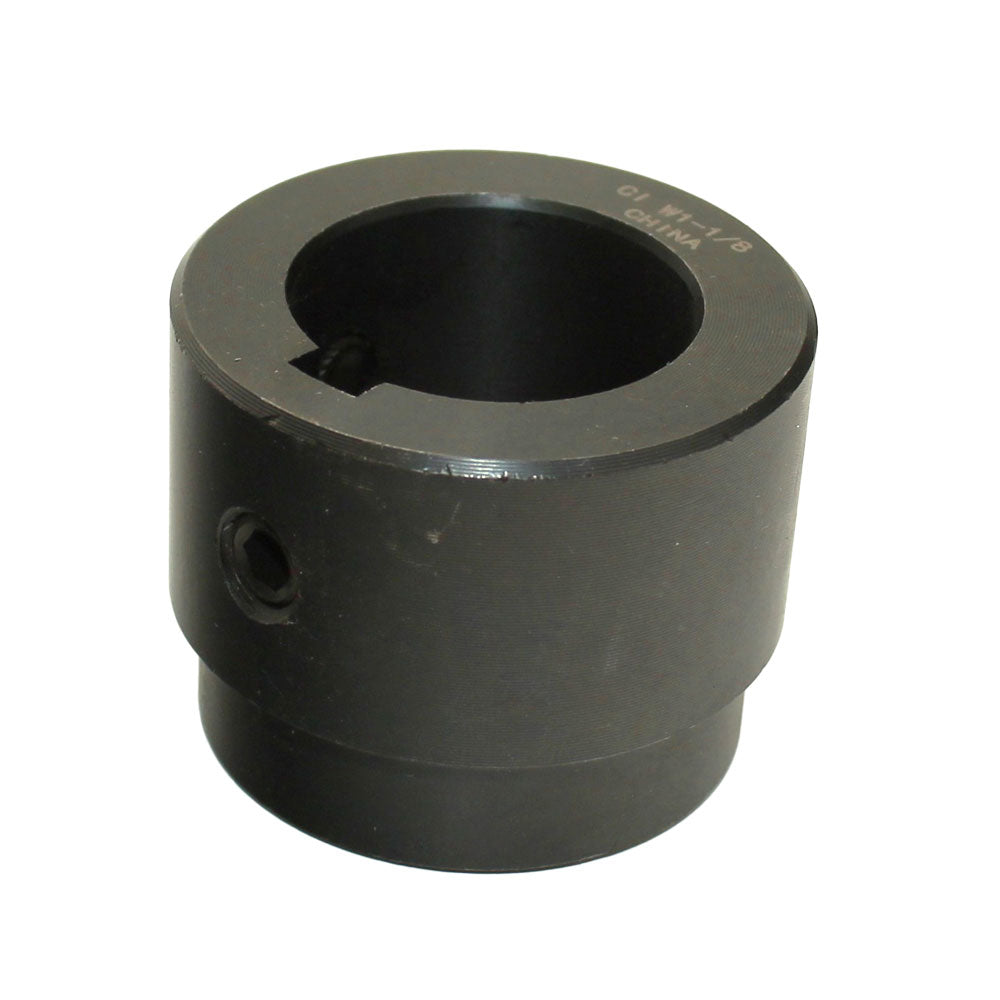

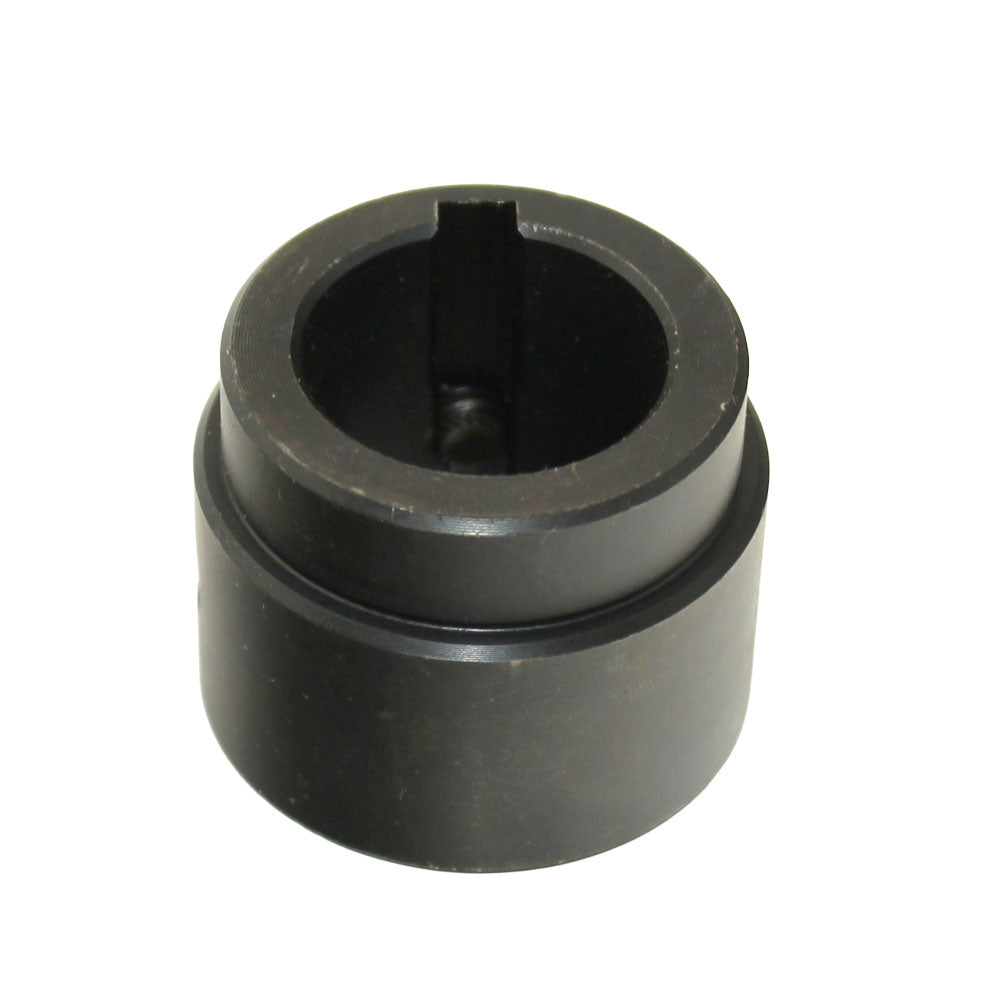

W Series Weld Hub 1 1/8" Round Bore RBW1-18 HW1-1/8 Keyway 1/4" x 1-1/4"
W Series Weld Hub 1 1/8" Round Bore RBW1-18 HW1-1/8 Keyway 1/4" x 1-1/4"
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One Aftermarket Replacement W Series Weld Hub
Tech Info:
Fits 1-5/8" ID Sprocket/Pulley
Bore: 1 1/8" Round
Outside Diameter (Larger Section): 1 13/16"
Outside Diameter (Smaller Section): 1 5/8"
Keyway Size: 1/4" x 1-1/4"
Fits "W" type sprockets and pulleys.
Furnished with standard keyway and two set screws
Replaces Part Numbers:
RBW1-18, HW1-1/8
Models This Part Fits:
Additional Information:
Fits 1-5/8" ID Sprocket/Pulley Bore: 1 1/8" Round Outside Diameter (Larger Section): 1 13/16" Outside Diameter (Smaller Section): 1 5/8" Keyway Size: 1/4" x 1-1/4" Fits "W" type sprockets and pulleys. Furnished with standard keyway and two set screws W Series Weld On HubReference Numbers:
Makes This Part Fits:
Shop Universal Wholesale PartsProduct Category:
Lawn & Garden Replacement PartsProduct Group:
Roller Chain Replacement PartsProduct Sub Group:
