One New Aftermarket Replacement Front Wheel Bearing Kit for John Deere Tractors

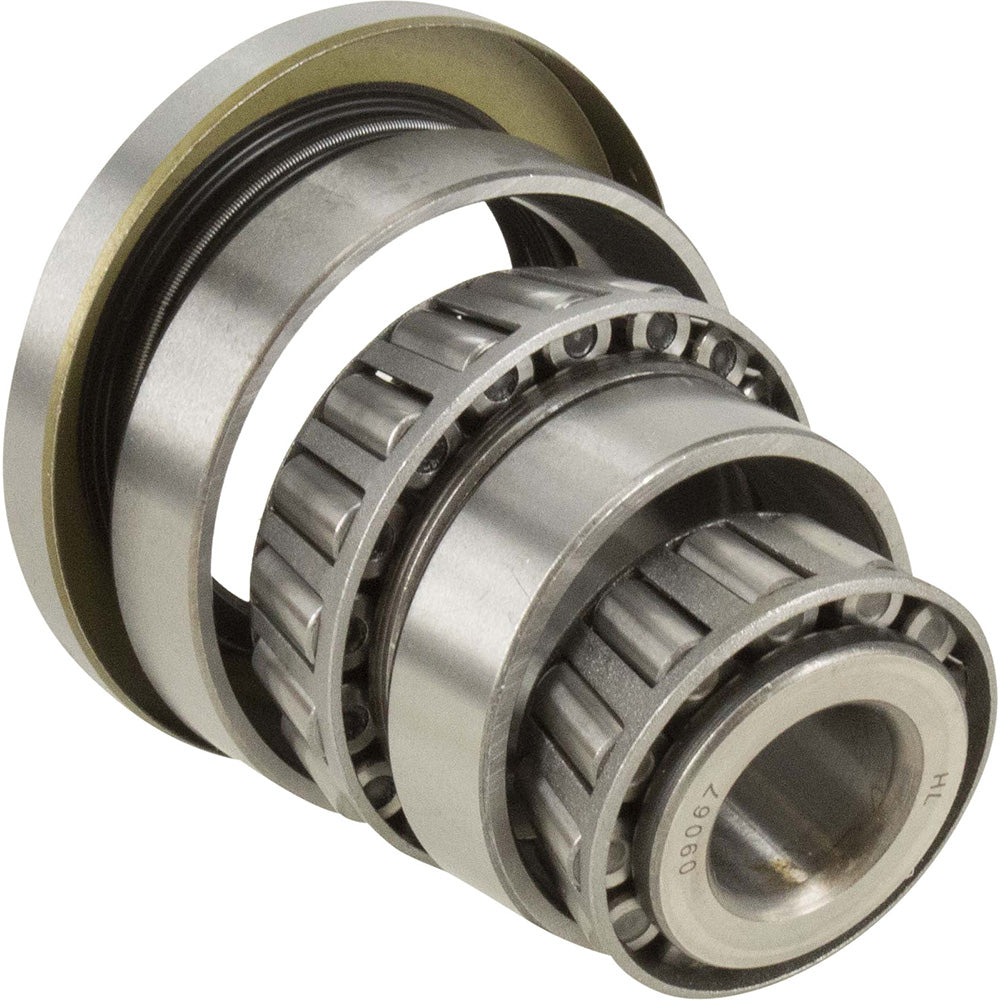

This front wheel bearing kit services one front wheel on John Deere standard-axle tractors and the 1010 single row crop configuration. The kit includes all components needed to rebuild the front hub: inner cone (09067), inner cup (09195), outer cone (15123), outer cup (15245B), and an AM3094T felt seal. Designed for 2WD standard front axle applications.

Kit Includes

• Inner Cone - 09067
• Inner Cup - 09195
• Outer Cone - 15123
• Outer Cup - 15245B
• Front Hub Seal - AM3094T

Specifications

• Inner Cup OD: 2.441"
• Inner Cone Bore: 1.250"
• Outer Cup OD: 1.938"
• Outer Cone Bore: 0.750"
• Seal ID: 1.75" | Seal OD: 2.814"
• Kit covers 1 wheel (order 2 for both front wheels)

Compatible Models

John Deere: 40 (SN# over 69404), 320 (standard axle), 330 (standard axle), 420 (standard axle, 2WD), 430 (standard axle, 2WD), 435, 1010 (single row crop)

Standard axle / 2WD applications only. Verify front axle type before ordering.

Replaces Part Number(s):

09067-I, 09195-BP, 15123-BP, 15245B-BP, AM1728T, AM3094T, JD7438, JD7449, JD8134, JD8135, JD8145, WBKJD11, A-WBKJD11

New aftermarket replacement part - not remanufactured, not used.
