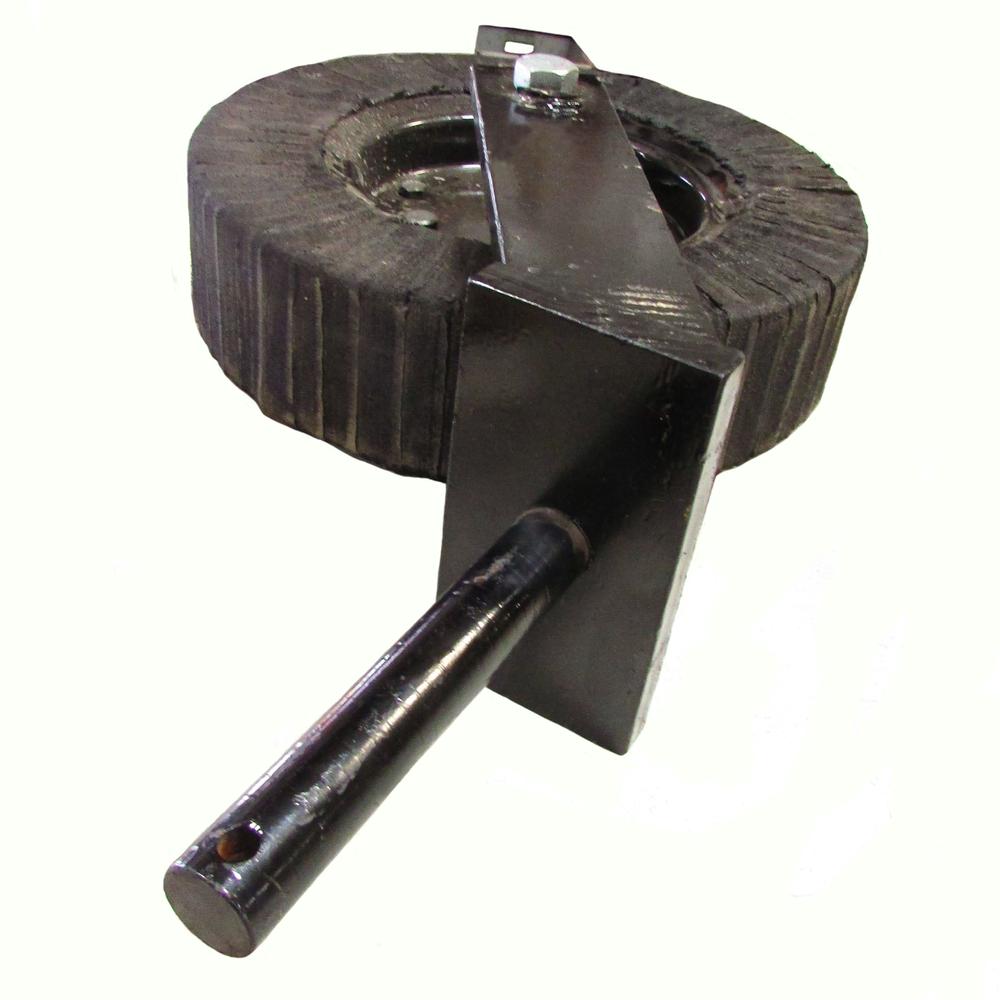

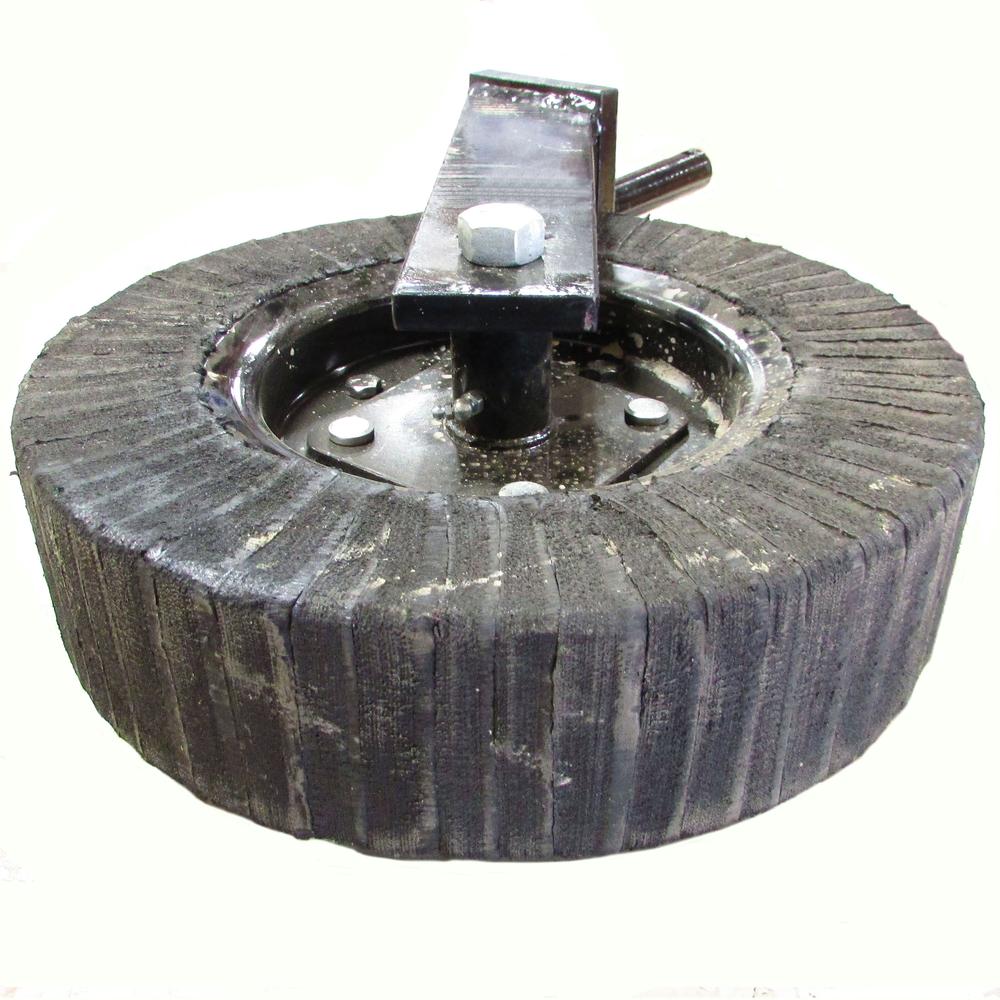

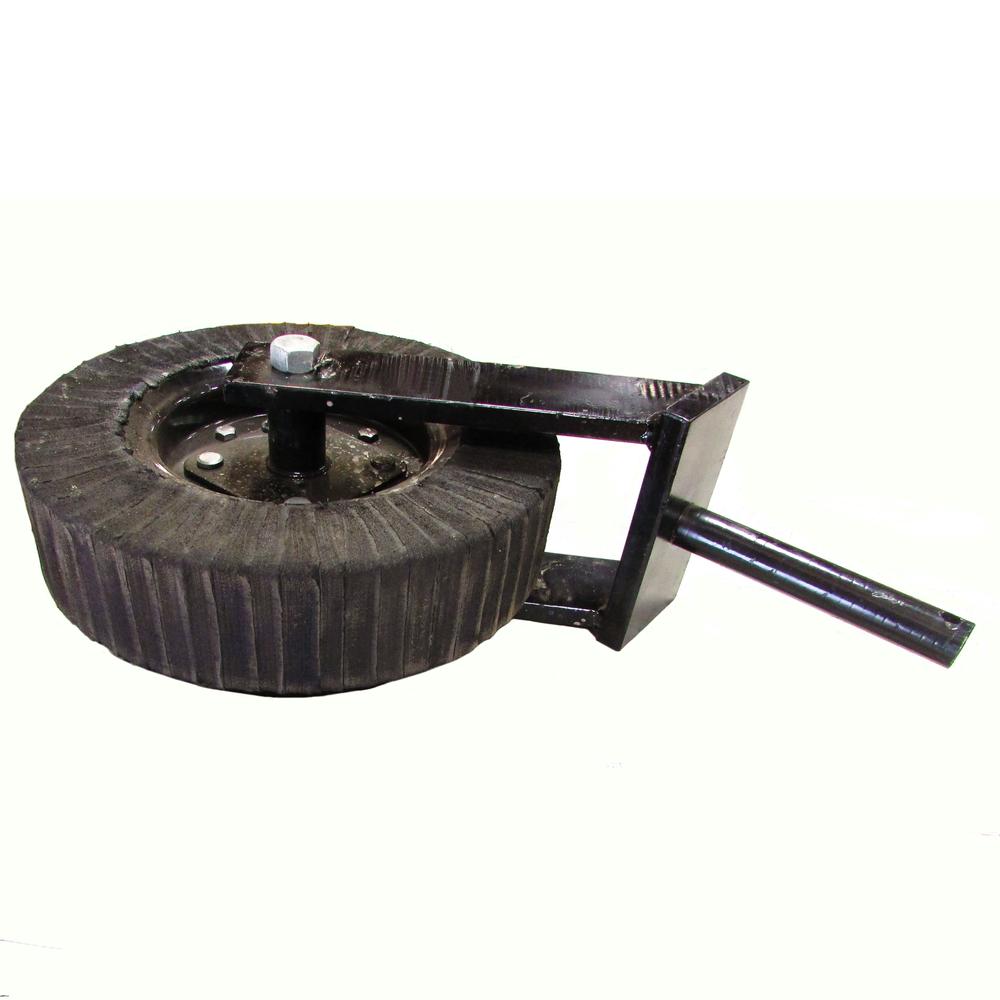

WHU90-0114-AIC Laminated Tail Wheel Assembly with Fork

WHU90-0114-AIC Laminated Tail Wheel Assembly with Fork

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


Aftermarket Replacement Laminated Tail Wheel Assembly with Fork

Makes:
-Fits BUSH HOG
-Fits Brush Hog

Reference Number(s): WHU90-0114

Models This Part Fits:

Additional Information:

Post Diameter: 1-1/4" Post Length: 5-1/4" 9-5/8" Tall Inside the Fork Fork Width (Inside): 5-1/2" Tire Height: 15" 3/4" Axle Hole Diameter The hub is the 4 bolt fabricated hub with replaceable bushings. The hubs are greasable and the bolt pattern is 3-9/16" going clockwise from bolt to bolt hole. Laminated Tail Wheel Assembly with Fork

Reference Numbers:

WHU90-0114

Makes This Part Fits:

Shop Bush Hog Wholesale Parts
Shop Universal Wholesale Parts

Product Category:

Lawn & Garden Replacement Parts

Product Group:

Hay Cutting Components Replacement Parts

Product Sub Group:

Rotary Cutter Replacement Parts
