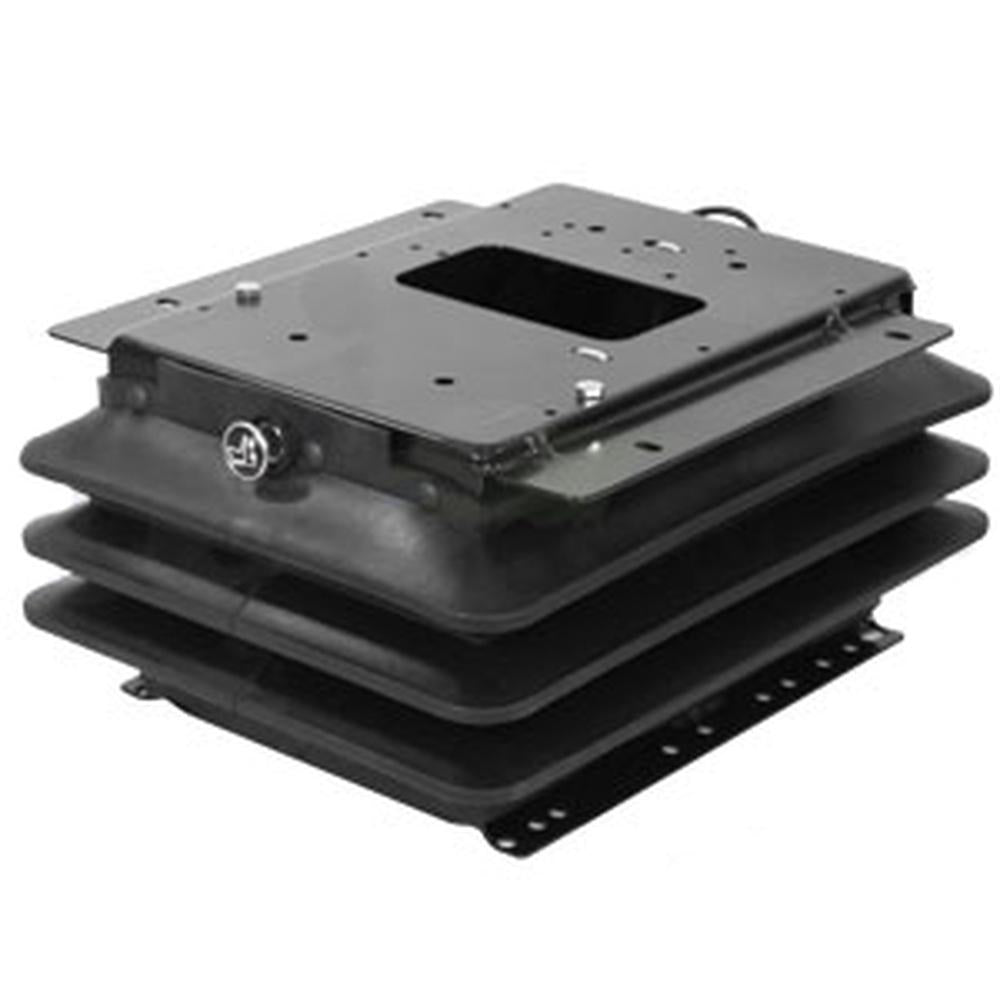

Wide Base Air Suspension Seat Base 12 volt Fits Several Models

Wide Base Air Suspension Seat Base 12 volt Fits Several Models



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


One New Aftermarket Replacement Wide Base Air Suspension Seat Base (12 Volt) for Agco, Allis Chalmers, Case/IH, Ford/New Holland, John Deere, Massey Ferguson, McCormick, Deutz, and White Tractors

This universal 12-volt wide base air suspension seat base provides operator comfort and vibration isolation across a broad range of agricultural tractors and equipment. The pneumatic air ride system adjusts automatically to operator weight and is designed to mount on a flat surface -- slide tracks are not included. Compatible seats (sold separately) include models F20ST105, F20ST135, F20ST145, F20ST155, TMS444BL, TMS444YL, TMS444GR, T500BL, T500GY, FLS122BL, FLS322BL, and T122BL. A 12-volt electrical connection is required. Some applications may require drilling and bracket fabrication to mount. Verify all dimensions and specifications before ordering.

Specifications

  • Type: Air Suspension - Wide Base
  • Suspension Stroke: 4 in. / 100mm
  • Weight Adjustment Range: 110 - 330 lbs. / 50 - 150 kg
  • Voltage: 12V DC
  • Max Amperage: 9A
  • Slide Tracks: Not Included
  • Reference: ST87

Compatible Models

Agco: DT160, DT180, DT180A, DT200, DT200A, DT205B, DT220A, DT225, DT240A, DT250B, LT70, LT75, LT75A, LT85, LT85A, LT90, LT90A, LT95A, RT100, RT100A, RT110A, RT115, RT120, RT120A, RT130, RT135, RT140A, RT145, RT150, RT155A, XTX185, XTX215, ZTX230, ZTX260, ZTX280

Allis Chalmers: 100, 120, 125 WORKHORSE, 140, 145 WORKHORSE, 160, 170 WORKHORSE, 185, 195 WORKHORSE

Case/International Harvester: MAXXUM 110, MAXXUM 115, MAXXUM 120, MAXXUM 125, MAXXUM 130, MAXXUM 140, MX80C, MX90C, MX100, MX100C, MX110, MX120, MX135, MX150, MX170, MXM110, MXM115, MXM120, MXM125, MXM130, MXM140, MXU100, MXU110, MXU125, MXU130, MXU135, PUMA 115, PUMA 125, PUMA 140, PUMA 145, PUMA 155, PUMA 210, C100, CX50, CX60, CX70, CX75, CX80, CX85, CX90, CX95, CX100, CX105, CX110

Deutz: DX3.50, DX3.70, DX3.90

Ford/New Holland: TS90, TS100, TS110, TS115, TS115A, TS125A, TS130A, TS135A, T6070, T6080, T7030, T7040, T7050, T7060, T7070, TL70, TL80, TL90, TL100, TTX190, TTX210, TTX230

John Deere: 2640, 3060, 3070, 3075, 3120, 3315, 3325, 3330, 3340, 3350, 3355, 3525, 3545, 3625, 3635, 3645, 3650, 3660, 3680, 3690, 4225, 4235, 4240, 4243, 4245, 4253, 4255, 4260, 4263, 4265, 4270, 4325, 4335, 4345, 4355, 4360, 4370, 4835, 5065M, 5075M, 5085M, 5095M, 5095MH, 5105M, 5120, 5130, 5140, 5220, 5230, 5240, 5250, 5425, 5435, 5445, 5455, 5460, 5465, 5470, 5475, 5480, 6065, 6085, 6100, 6100D, 6105, 6110, 6110D, 6110L, 6115D, 6120, 6124, 6125, 6125D, 6130D, 6140D, 6144, 6145, 6150, 6170, 6175, 6180, 6190, 6195, 6200, 6210, 6210L, 6215, 6220, 6230, 6245, 6255, 6260, 6265, 6270, 6275, 6280, 6290, 6300, 6310, 6310L, 6310S, 6320, 6320L, 6330, 6400, 6410, 6410L, 6410S, 6415, 6420, 6420L, 6430, 6445, 6455, 6460, 6465, 6470, 6475, 6480, 6485, 6490, 6495, 6497, 6499, 6500, 6510, 6510L, 6510S, 6520L, 6615, 6635, 6710, 6715, 6810, 6920, 7085, 7110, 7120, 7130, 7145, 7220, 7230, 7320, 7330, 7420, 7430 PREMIUM, 7465, 7475, 7480, 7485, 7490, 7495, 7497, 7499, 7520, 7530 PREMIUM, 7635, 7740, 8110, 8120, 8140, 8150, 8160, 8210, 8220, 8240, 8250, 8270, 8310, 8410, 8450, 8460, 8470, 8480, 8510, 8560, 8610, 8630, 8650, 8660, 8670, 8680, 8690, 8710, 8745, 8765, 8775, 8785, 9110, 9120, 9130, 9150, 9170, 9180, 9190, 9191, 9435, 9455, 9630, 9635, 9650, 9655, 9670, 9675, 9690, 9695, 9735, 9745, 9755, 9765, 9815

Massey Ferguson: 5635, 6010, 6410 (also listed as 6410S/L), 669, 670, 690, 698, 699

McCormick: MC90, MC100, MC105, MC110, MC115, MC120, MC130, MC135, MTX110, MTX120, MTX125, MTX135, MTX140, MTX145, MTX150, MTX165, MTX175, MTX185, MTX200

White: 4835

Note: This is a universal air suspension designed for a flat mounting surface. Some installations may require drilling and bracket fabrication. Verify all dimensions before ordering. Slide tracks are not included.

Replaces Part Number(s):

MA2C12

Aftermarket Interchange Numbers

SEN10-0122, SEN100122, A-MA2C12, SLP78-74778T, A-MA2C12-AI

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

8680, MAXXUM 125, 8470, 2640, 4335, RT140A, TS135A, TL70, C100, 3340, 8460, MXM125, 6470, MAXXUM 130, 5475, 6310, LT90A, 7120, 6455, 9130, MXM115, 6510L, MXU125, CX75, 5460, 5470, 4240, MTX145, 8120, CX110, MTX140, MTX185, 5425, 5095MH, 6105, 8210, 3350, 4835, CX95, 120, 6120, 9170, 3625, T7040, 6200, 8450, 5085M, MAXXUM 120, 6270, TS100, 6420L, 6110L, 6145, CX60, 8250, MXU135, 699, 6144, MTX165, 4265, 7520, 6615, 4235, 6180, LT75A, CX50, MC135, 6265, 6110, 9815, MTX135, 7085, MC130, RT145, PUMA 210, 6320, 5120, LT70, 6410L, MC100, 9180, MC120, 4370, TTX190, 8610, 6635, LT75, DT160, 4360, 6190, PUMA 140, 3070, 8110, 5435, MXU130, MTX110, 7330, 7499, T7050, 6920, 140, 6085, 8310, 5095M, 6130D, 3120, 3325, XTX185, 6245, 7480, MAXXUM 115, MTX200, RT95, 8710, 6320L, 6215, 8140, PUMA 155, 6710, 7430 PREMIUM, 8410, 670, CX105, 8220, 8775, RT110A, CX100, 8670, XTX215, T7070, 6290, TS90, 6125D, 9630, 3645, 5140, MXM130, 170 WORKHORSE, LT95A, 8765, MTX120, DT225, 5240, 8150, RT120A, CX80, DT240A, 6495, RT100A, 5230, 7220, 7145, RT155A, 3355, 6490, 6175, 6150, 4253, 6310S, 6275, DT180, 6810, MXU110, 6510, 7465, 6100D, DT205B, 3525, 6415, PUMA 145, 3330, 5445, 6445, 6465, MXM110, 4270, 5075M, 185, 7740, 160, MAXXUM 110, 3635, MX110, LT85A, 7495, 6500, 6497, MXU100, 3315, 6420, MX100, RT120, 6140D, 5105M, MC110, 9655, 698, 3060, 9191, 6260, TL90, 7110, 6065, 4245, 8690, MAXXUM 140, 8650, ZTX230, 6410, 6124, 6410S, 6310L, PUMA 115, 8280, 6235, 6475, MTX150, RT100, 3680, 6230, MX90C, LT90, 8270, 6510S, RT115, 9435, 9670, MXM120, 9690, 7635, 3660, TL80, 8660, 6010, 125 WORKHORSE, 9110, 8510, 7420, DX3.50, 9190, 3690, 7485, 5065M, DX3.70, DT220A, 8745, CX70, 6100, 7530 PREMIUM, LT85, 6400, 5635, TL100, 6210, MXM140, 7475, MC115, 145 WORKHORSE, 6195, 9695, PUMA 125, DX3.90, DT180A, RT130, 7497, ZTX260, 5250, 3075, MC105, 6499, 8240, 9650, 9150, 5220, TS110, 6460, 8560, MX170, DT200A, 6520L, 9735, DT200, 9745, RT150, 4345, TS125A, CX85, TS115A, T7060, 5465, 6485, 6220, 9120, RT135, 9675, T7030, TS130A, ZTX280, MX100C, 6110D, 3650, MX120, TS115, 7320, 9455, 6170, 7490, 4263, 4243, 7130, 9635, T6070, 4260, MX80C, 3545, 9765, 8630, 8160, CX90, 6430, DT250B, 6480, TTX210, T6080, 690, 4325, 4355, 6300, 6125, 9755, 6115D, 5130, 6715, 195 WORKHORSE, TTX230, 4255, 6330, 7230, MX150, 8785, 8480, 5455, MX135, 5480, 6210L, 6255, MTX175, MTX125, 6280, 4225, MC90, 100

Additional Information:

Reference: ST87 Air Suspension - Wide Base Suspension Stroke 4" / 100mm Weight Adjustment 110 - 330 lbs. / 50 - 150kg Slide Tracks Not Included All Dimensions & Specifications Must Be Checked Before Ordering. This Is a Universal Suspension Meant for a Flat Mounting Surface. Some Applications May Require Drilling & Bracket Fabrication to Mount. The Following Seats Can Be Added to This Suspension: F20ST105, F20ST135, F20ST145, F20ST155, TMS444BL, TMS444YL, TMS444GR, T500BL, T500GY, FLS122BL, FLS322BL, T122BL Amperage: 9 Max Volt: 12 Wide Base Seat Air Suspension

Reference Numbers:

MA2C12
