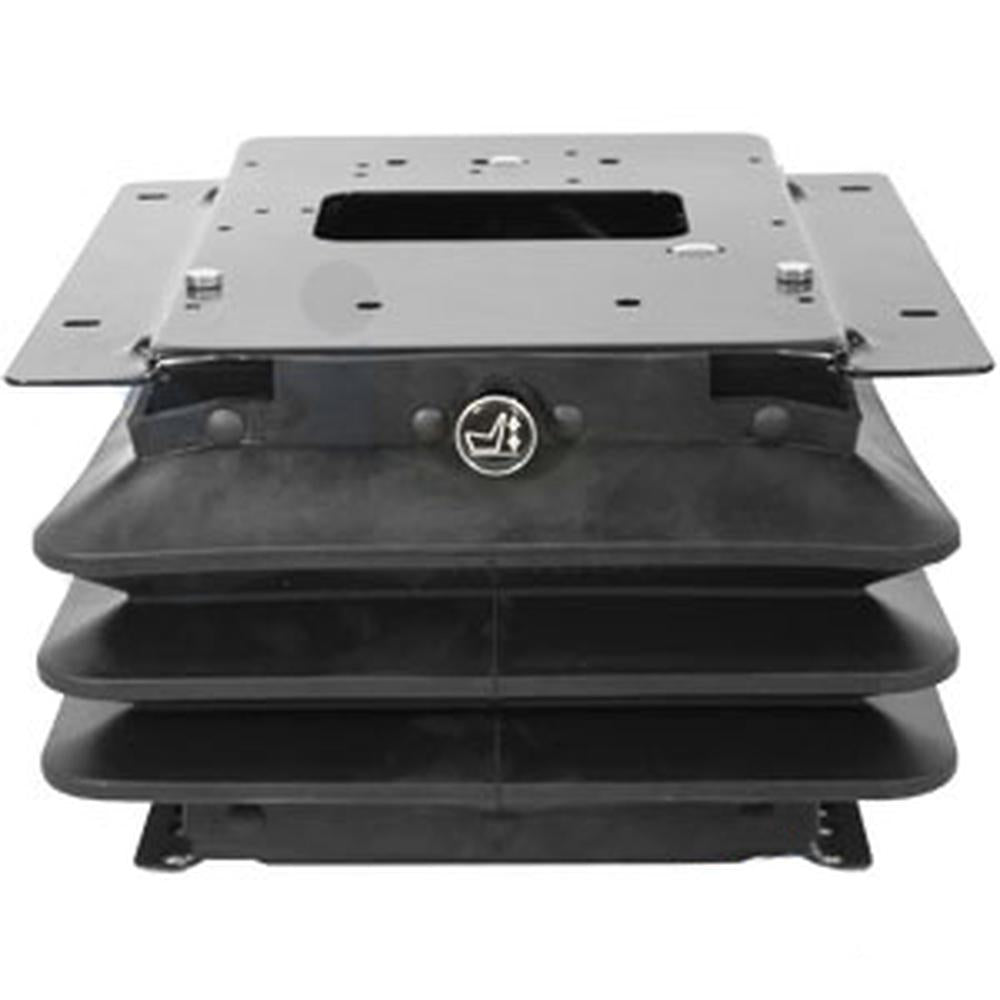

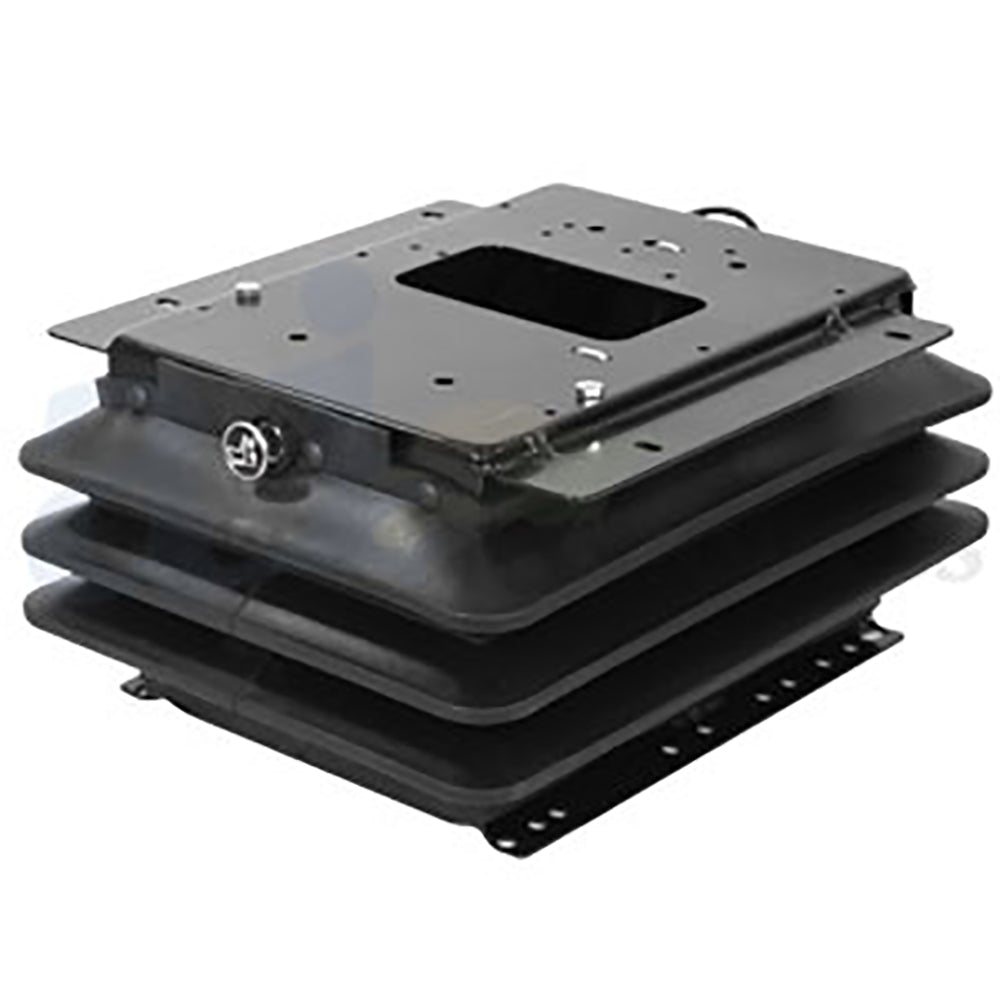

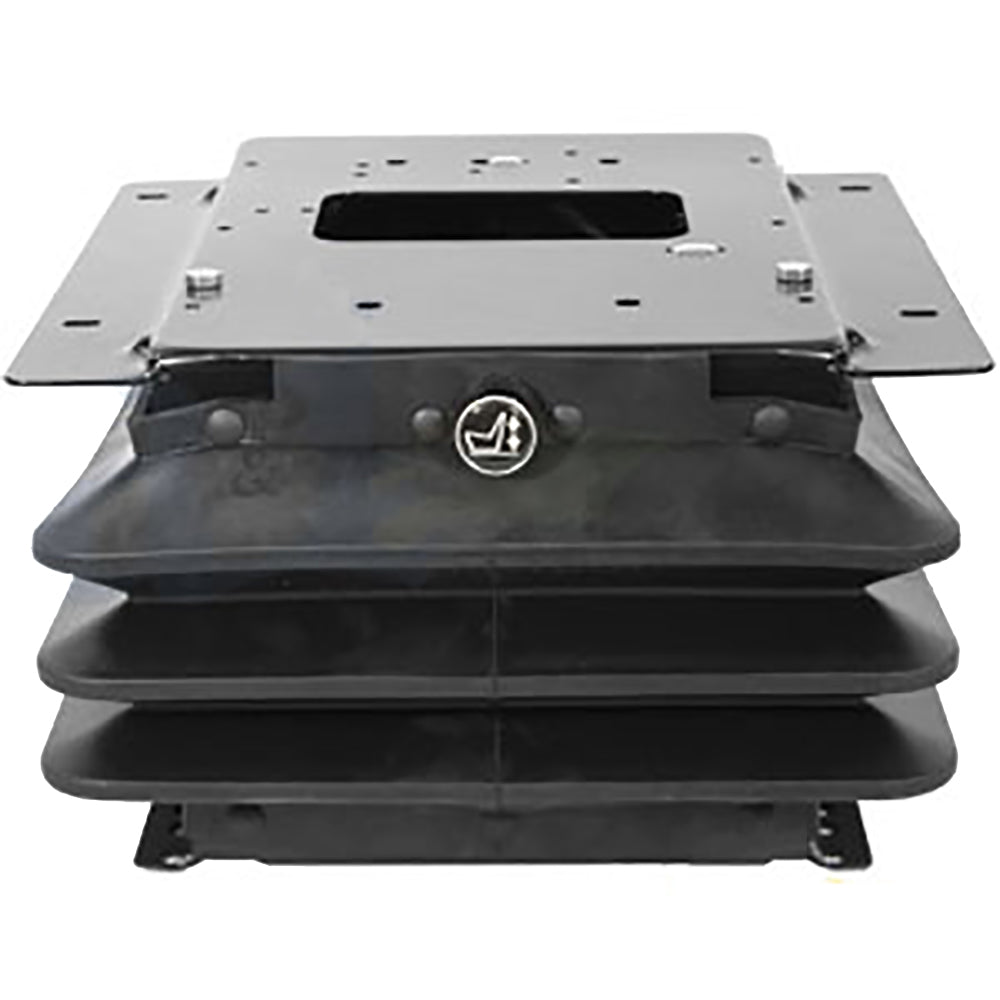

Wide Base Air Suspension Seat Base 12 volt Fits Several Models MA2C12

Wide Base Air Suspension Seat Base 12 volt Fits Several Models MA2C12



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


One New Aftermarket Replacement Wide Base Air Suspension Seat Base for Agco, Case/International Harvester, John Deere, Massey Ferguson, and More

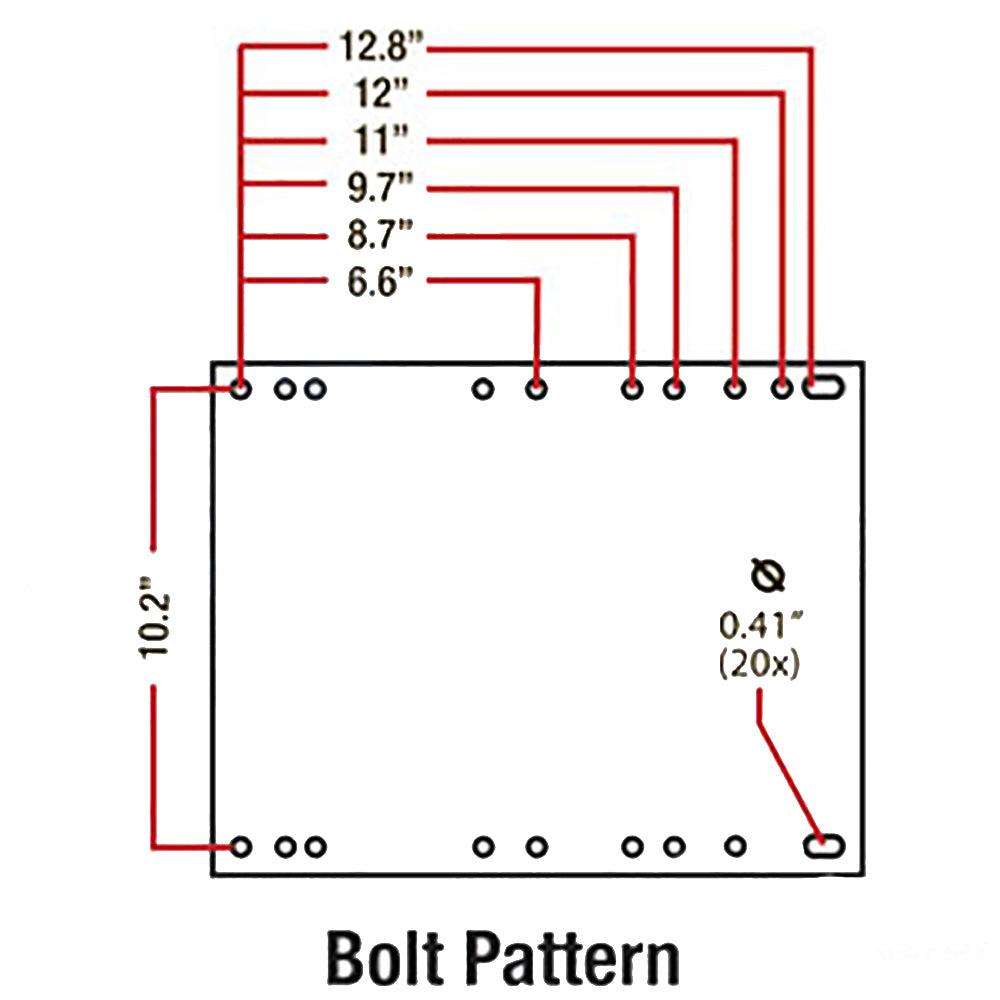

This 12-volt wide base air suspension seat base is a universal replacement unit designed to restore operator comfort on a broad range of agricultural tractors. It mounts to a flat surface and provides pneumatic ride control with an integrated 12V compressor. Slide tracks are not included. Note: this is a suspension base only -- a compatible seat top must be ordered separately. All dimensions and specifications must be verified before ordering. Some applications may require drilling and bracket fabrication to mount.

Specifications

  • Type: Air Suspension - Wide Base
  • Suspension Stroke: 4 in. / 100mm
  • Operator Weight Adjustment: 110 - 330 lbs. / 50 - 150 kg
  • Voltage: 12V DC
  • Amperage: 9A Max
  • Slide Tracks: Not Included
  • Reference: ST87

Compatible Seat Tops (Sold Separately)

The following seat tops are compatible with this suspension base: F20ST105, F20ST135, F20ST145, F20ST155, TMS444BL, TMS444YL, TMS444GR, T500BL, T500GY, FLS122BL, FLS322BL, T122BL

Compatible Models

Agco: DT160, DT180, DT180A, DT200, DT200A, DT205B, DT220A, DT225, DT240A, DT250B, LT70, LT75, LT75A, LT85, LT85A, LT90, LT90A, LT95A, RT100, RT100A, RT110A, RT115, RT120, RT120A, RT130, RT135, RT140A, RT145, RT150, RT155A, XTX185, XTX215, ZTX230, ZTX260, ZTX280, 120, 125 WORKHORSE, 140, 145 WORKHORSE, 160, 170 WORKHORSE, 185, 195 WORKHORSE

Allis Chalmers: 670, 690, 698, 699

Case / Case IH / International Harvester: CX50, CX60, CX70, CX75, CX80, CX85, CX90, CX95, CX100, CX105, CX110, MAXXUM 110, MAXXUM 115, MAXXUM 120, MAXXUM 125, MAXXUM 130, MAXXUM 140, MX80C, MX90C, MX100, MX100C, MX110, MX120, MX135, MX150, MX170, MXM110, MXM115, MXM120, MXM125, MXM130, MXM140, MXU100, MXU110, MXU125, MXU130, MXU135, PUMA 115, PUMA 125, PUMA 140, PUMA 145, PUMA 155, PUMA 210, TTX190, TTX210, TTX230

Deutz: DX3.50, DX3.70, DX3.90

Ford / New Holland: T6070, T6080, T7030, T7040, T7050, T7060, T7070, TL70, TL80, TL90, TL100, TS90, TS100, TS110, TS115, TS115A, TS125A, TS130A, TS135A, 5065M, 5075M, 5085M, 5095M, 5095MH, 5105M

John Deere: 7110, 7120, 7130, 7145, 7220, 7230, 7320, 7330, 7420, 7430 PREMIUM, 7480, 7490, 7495, 7497, 7499, 7520, 7530 PREMIUM, 7635, 8110, 8120, 8140, 8150, 8160, 8210, 8220, 8240, 8250, 8280, 8310, 8410, 8450, 8460, 8470, 8480, 8510, 8560, 8610, 8630, 8650, 8660, 8670, 8680, 8690, 8710, 8745, 8765, 8775, 8785, 9110, 9120, 9130, 9150, 9170, 9180, 9190, 9191, 9435, 9455, 9630, 9635, 9650, 9655, 9670, 9675, 9690, 9695, 9735, 9745, 9755, 9765

Massey Ferguson: 3060, 3070, 3075, 3120, 3315, 3325, 3330, 3340, 3350, 3525, 3545, 3625, 3635, 3645, 3650, 3660, 3680, 3690, 4225, 4235, 4240, 4243, 4245, 4253, 4255, 4260, 4263, 4265, 4270, 4325, 4335, 4345, 4355, 4360, 4370, 5120, 5130, 5140, 5220, 5230, 5240, 5250, 5425, 5435, 5445, 5455, 5460, 5465, 5470, 5475, 5480, 6065, 6100, 6100D, 6105, 6110, 6110D, 6110L, 6115, 6115D, 6120, 6124, 6125, 6125D, 6130D, 6140D, 6144, 6145, 6150, 6170, 6175, 6180, 6190, 6195, 6200, 6210, 6210L, 6215, 6220, 6230, 6235, 6245, 6255, 6260, 6265, 6270, 6275, 6280, 6290, 6300, 6310, 6310L, 6310S, 6320, 6320L, 6330, 6400, 6410, 6410L, 6410S, 6415, 6420, 6420L, 6430, 6445, 6455, 6460, 6465, 6470, 6475, 6480, 6485, 6490, 6495, 6497, 6499, 6500, 6510, 6510L, 6510S, 6520L, 6615, 6635, 6710, 6715, 6810, 6920, 7085, 7465, 7475, 7485

McCormick: MC90, MC100, MC105, MC110, MC115, MC120, MC130, MC135, MTX110, MTX120, MTX125, MTX135, MTX140, MTX145, MTX150, MTX165, MTX175, MTX185, MTX200, XTX185, XTX215

White: 100, 140, 160, 185

Replaces Part Number(s):

MA2C12

Aftermarket Interchange Numbers

A-MA2C12, SEN10-0122, SEN100122, SLP78-74778T

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

8680, MAXXUM 125, 8470, 2640, 4335, RT140A, TS135A, TL70, C100, 3340, 8460, MXM125, 6470, MAXXUM 130, 5475, 6310, LT90A, 7120, 6455, 9130, MXM115, 6510L, MXU125, CX75, 5460, 5470, 4240, MTX145, 8120, CX110, MTX140, MTX185, 5425, 5095MH, 6105, 8210, 3350, 4835, CX95, 120, 6120, 9170, 3625, T7040, 6200, 8450, 5085M, MAXXUM 120, 6270, TS100, 6420L, 6110L, 6145, CX60, 8250, MXU135, 699, 6144, MTX165, 4265, 7520, 6615, 4235, 6180, LT75A, CX50, MC135, 6265, 6110, 9815, MTX135, 7085, MC130, RT145, PUMA 210, 6320, 5120, LT70, 6410L, MC100, 9180, MC120, 4370, TTX190, 8610, 6635, LT75, DT160, 4360, 6190, PUMA 140, 3070, 8110, 5435, MXU130, MTX110, 7330, 7499, T7050, 6920, 140, 6085, 8310, 5095M, 6130D, 3120, 3325, XTX185, 6245, 7480, MAXXUM 115, MTX200, RT95, 8710, 6320L, 6215, 8140, PUMA 155, 6710, 7430 PREMIUM, 8410, 670, CX105, 8220, 8775, RT110A, CX100, 8670, XTX215, T7070, 6290, TS90, 6125D, 9630, 3645, 5140, MXM130, 170 WORKHORSE, LT95A, 8765, MTX120, DT225, 5240, 8150, RT120A, CX80, DT240A, 6495, RT100A, 5230, 7220, 7145, RT155A, 3355, 6490, 6175, 6150, 4253, 6310S, 6275, DT180, 6810, MXU110, 6510, 7465, 6100D, DT205B, 3525, 6415, PUMA 145, 3330, 5445, 6445, 6465, MXM110, 4270, 5075M, 185, 7740, 160, MAXXUM 110, 3635, MX110, LT85A, 7495, 6500, 6497, MXU100, 3315, 6420, MX100, RT120, 6140D, 5105M, MC110, 9655, 698, 3060, 9191, 6260, TL90, 7110, 6065, 4245, 8690, MAXXUM 140, 8650, ZTX230, 6410, 6124, 6410S, 6310L, PUMA 115, 8280, 6235, 6475, MTX150, RT100, 3680, 6230, MX90C, LT90, 8270, 6510S, RT115, 9435, 9670, MXM120, 9690, 7635, 3660, TL80, 8660, 6010, 125 WORKHORSE, 9110, 8510, 7420, DX3.50, 9190, 3690, 7485, 5065M, DX3.70, DT220A, 8745, CX70, 6100, 7530 PREMIUM, LT85, 6400, 5635, TL100, 6210, MXM140, 7475, MC115, 145 WORKHORSE, 6195, 9695, PUMA 125, DX3.90, DT180A, RT130, 7497, ZTX260, 5250, 3075, MC105, 6499, 8240, 9650, 9150, 5220, TS110, 6460, 8560, MX170, DT200A, 6520L, 9735, DT200, 9745, RT150, 4345, TS125A, CX85, TS115A, T7060, 5465, 6485, 6220, 9120, RT135, 9675, T7030, TS130A, ZTX280, MX100C, 6110D, 3650, MX120, TS115, 7320, 9455, 6170, 7490, 4263, 4243, 7130, 9635, T6070, 4260, MX80C, 3545, 9765, 8630, 8160, CX90, 6430, DT250B, 6480, TTX210, T6080, 690, 4325, 4355, 6300, 6125, 9755, 6115D, 5130, 6715, 195 WORKHORSE, TTX230, 4255, 6330, 7230, MX150, 8785, 8480, 5455, MX135, 5480, 6210L, 6255, MTX175, MTX125, 6280, 4225, MC90, 100

Additional Information:

Reference: ST87 Air Suspension - Wide Base Suspension Stroke 4" / 100mm Weight Adjustment 110 - 330 lbs. / 50 - 150kg Slide Tracks Not Included All Dimensions & Specifications Must Be Checked Before Ordering. This Is a Universal Suspension Meant for a Flat Mounting Surface. Some Applications May Require Drilling & Bracket Fabrication to Mount. The Following Seats Can Be Added to This Suspension: F20ST105, F20ST135, F20ST145, F20ST155, TMS444BL, TMS444YL, TMS444GR, T500BL, T500GY, FLS122BL, FLS322BL, T122BL Amperage: 9 Max Volt: 12 Wide Base Seat Air Suspension

Reference Numbers:

MA2C12
