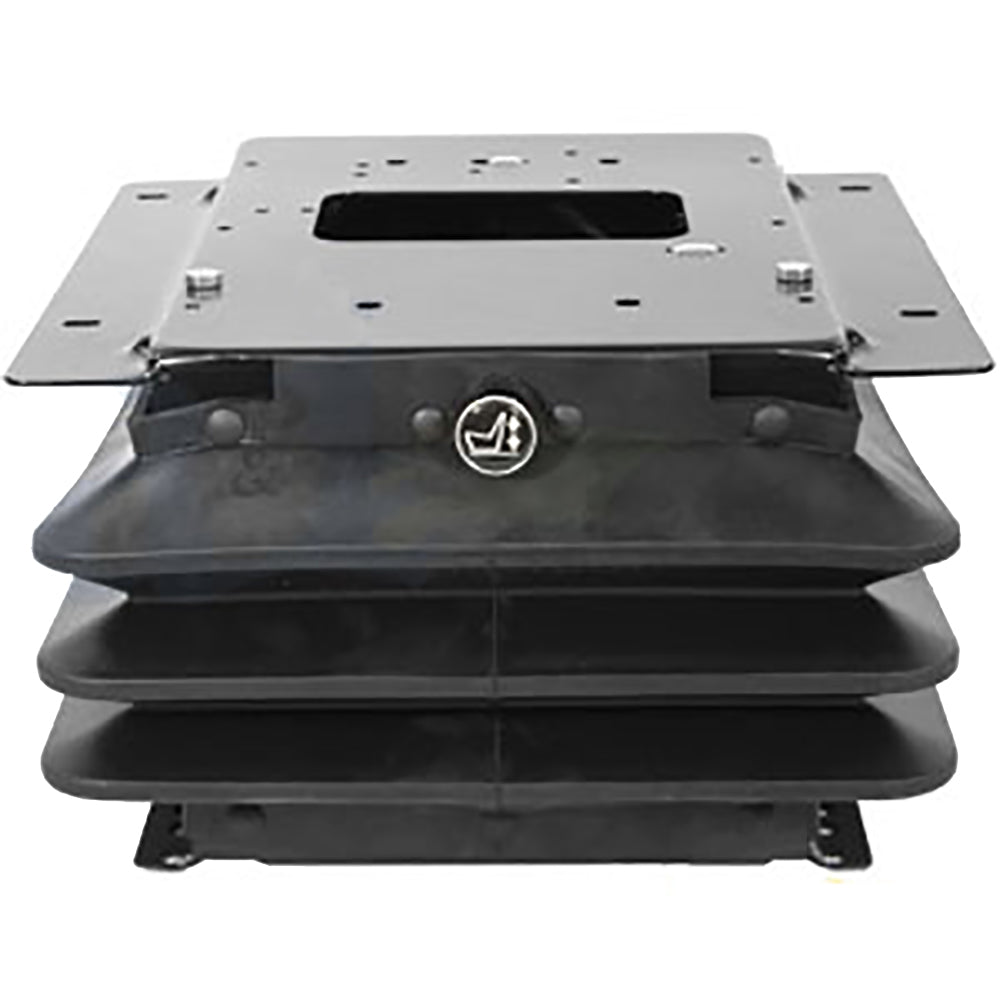

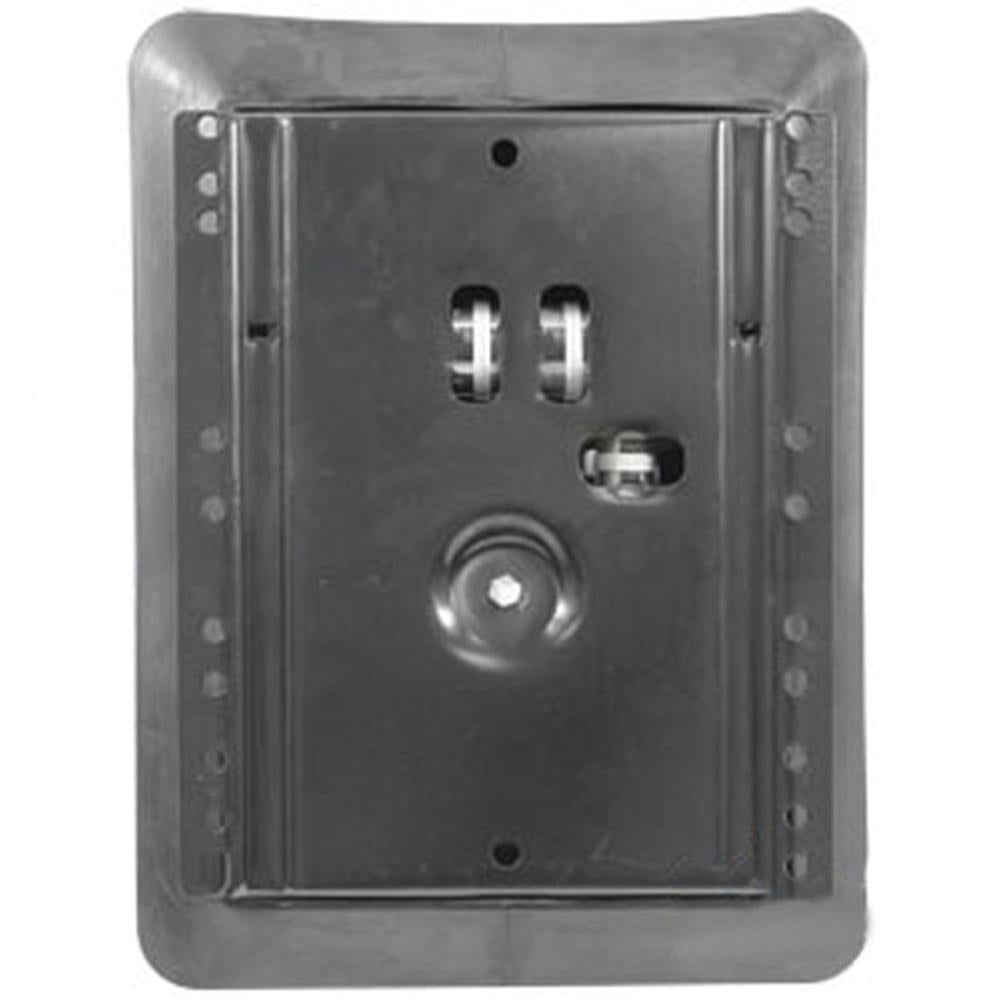

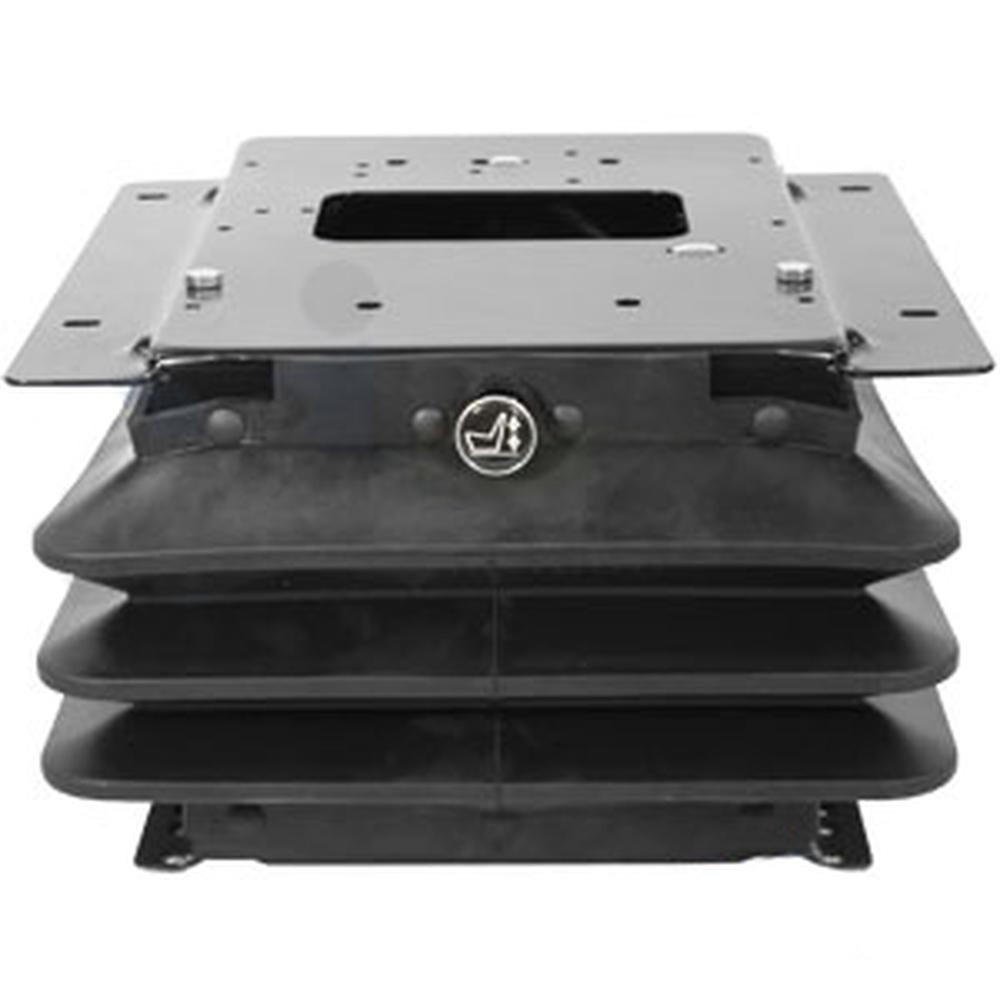

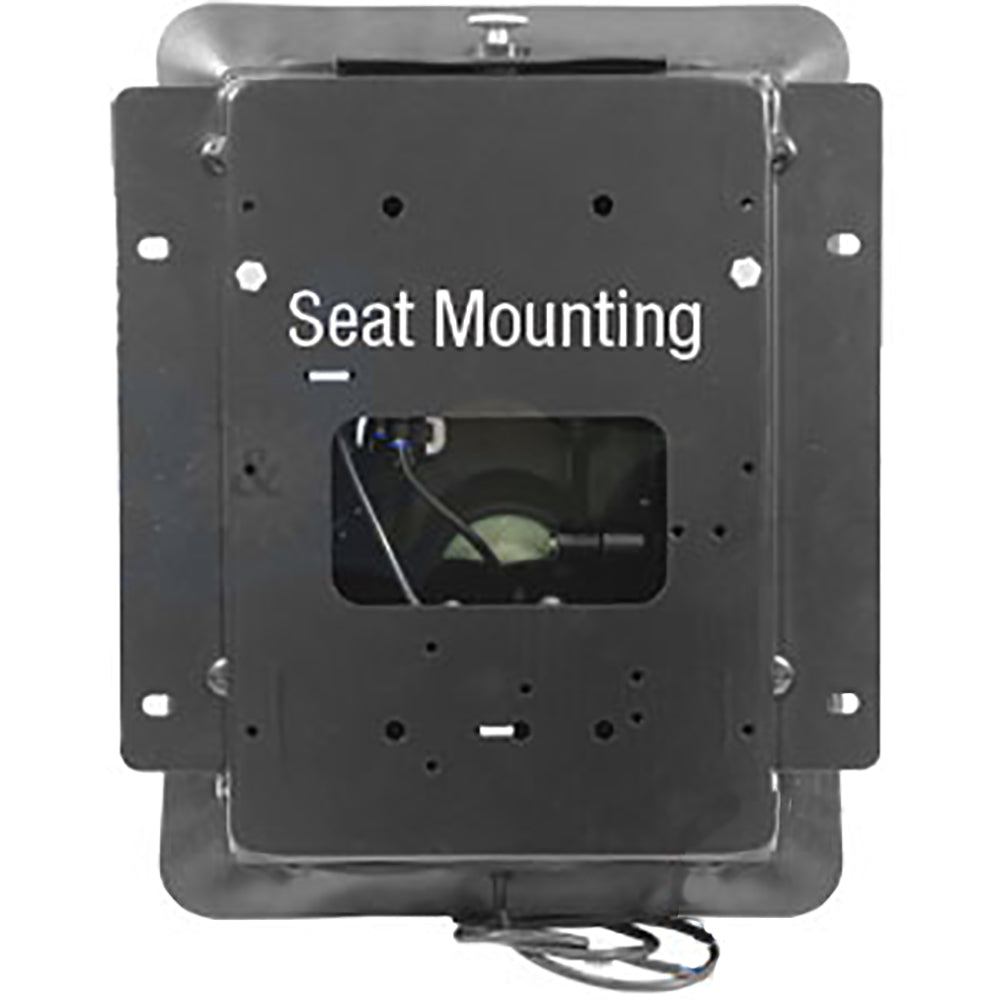

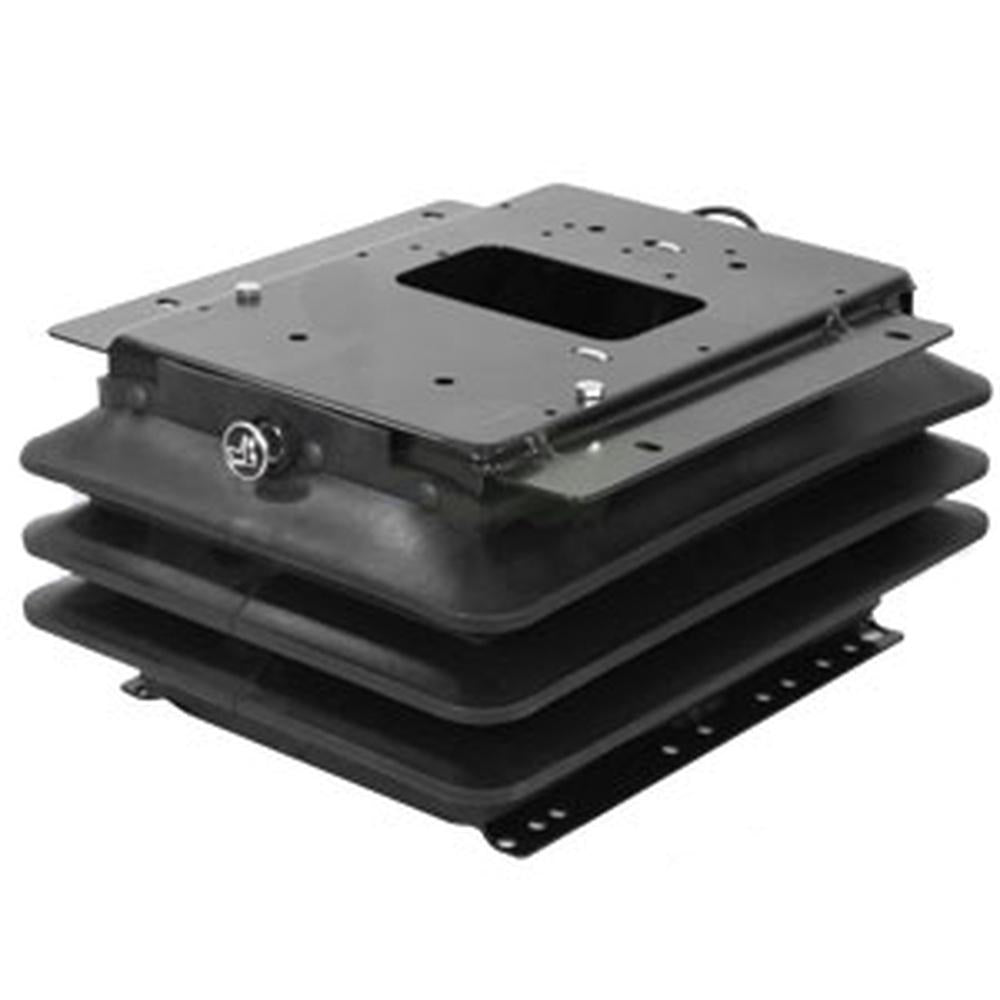

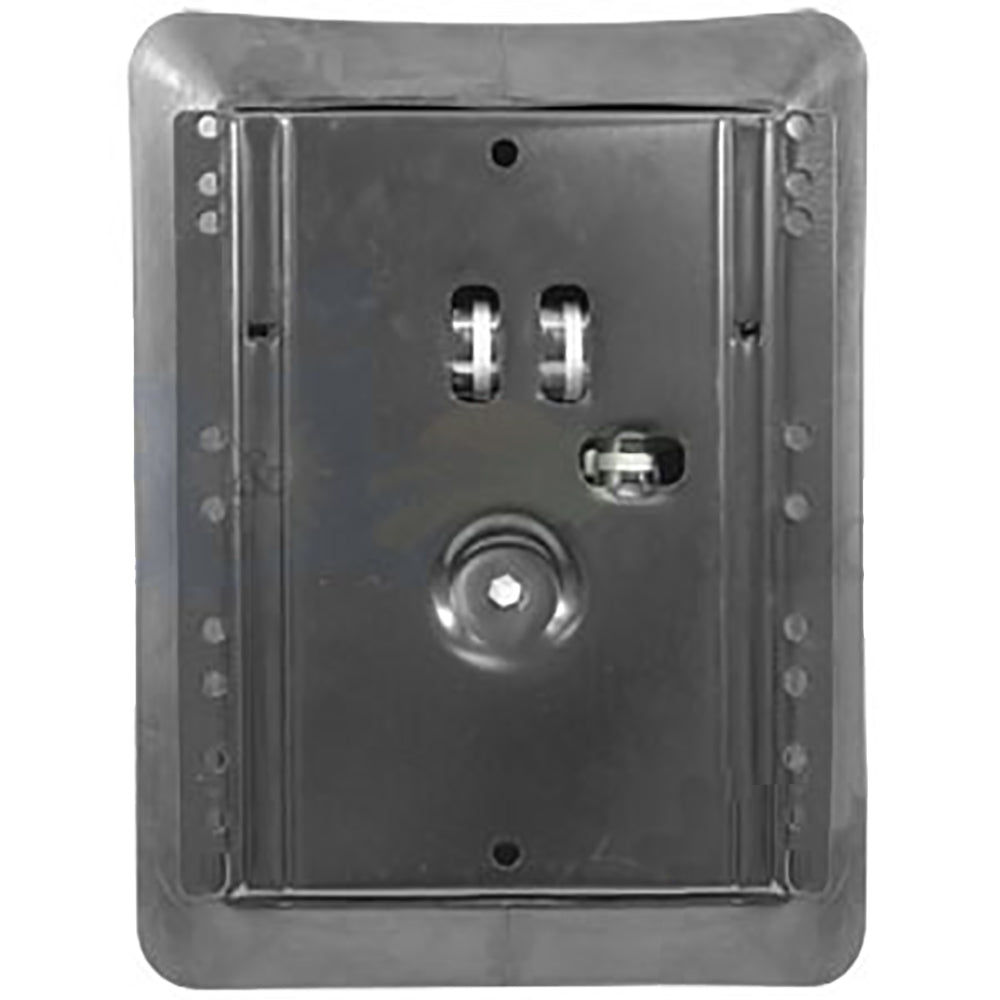

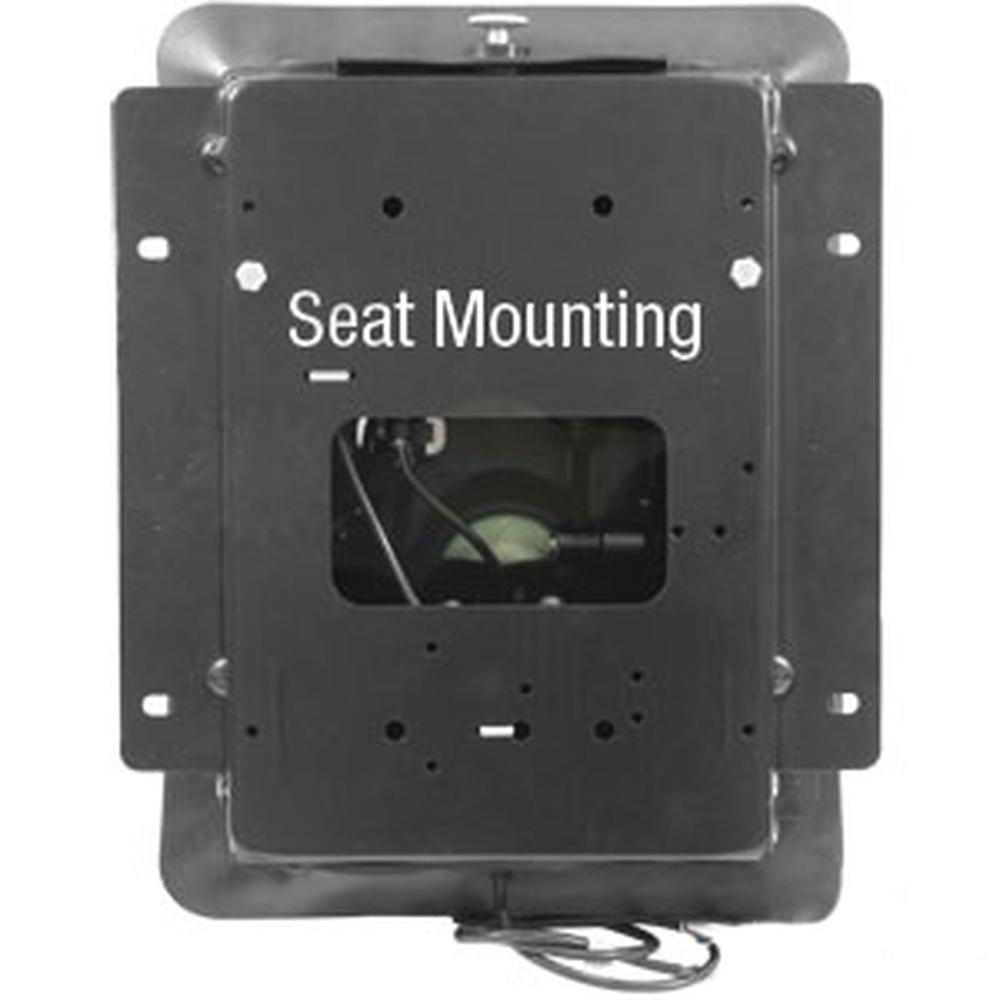

Wide Base Seat Air Suspension Fits Allis Chalmers Replaces MA2C12
Wide Base Seat Air Suspension Fits Allis Chalmers Replaces MA2C12
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket Wide Base Seat Air SuspensionTech Info:
-Reference: ST87
-
-Air Suspension - Wide Base
-Suspension Stroke 4" / 100mm
-Weight Adjustment 110 - 330 lbs. / 50 - 150kg
-Slide Tracks Not Included
-
-All Dimensions & Specifications Must Be Checked Before Ordering.

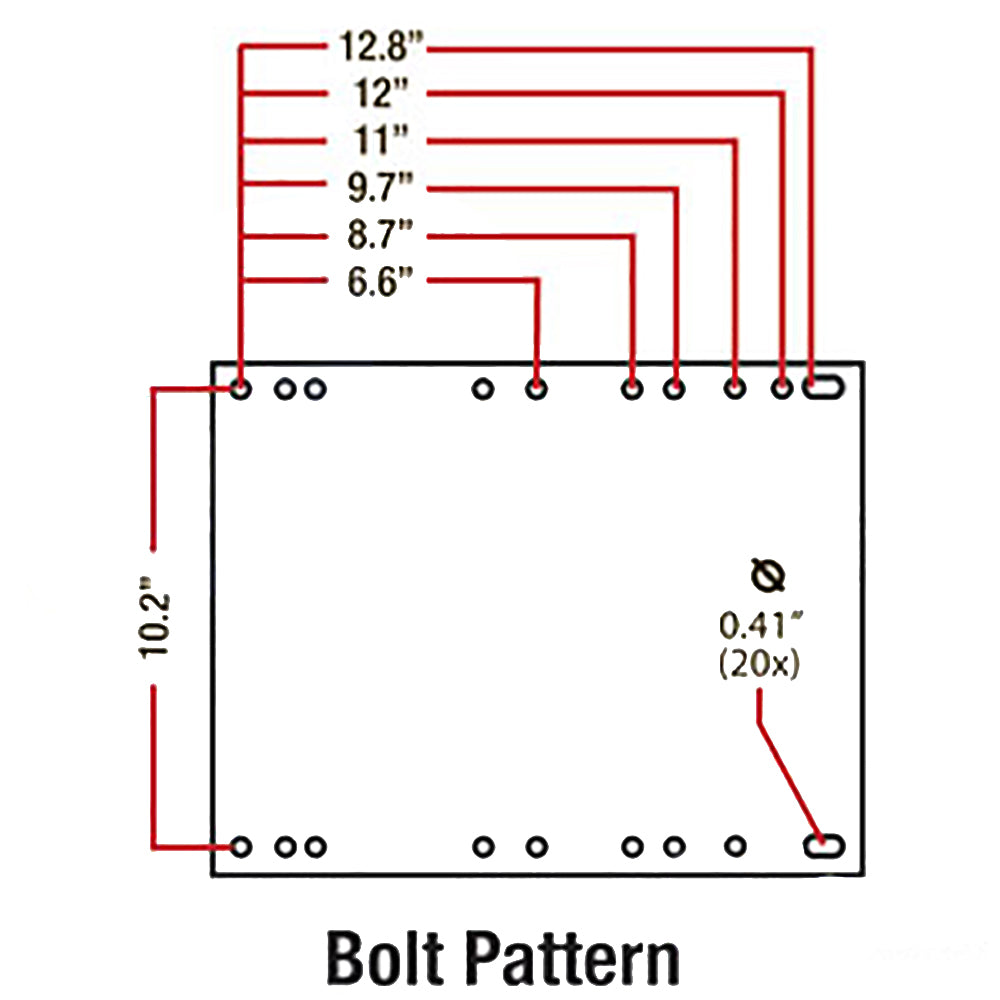

-This Is a Universal Suspension Meant for a Flat Mounting Surface.
-Some Applications May Require Drilling & Bracket Fabrication to Mount.
-
-The Following Seats Can Be Added to This Suspension: F20ST105, F20ST135, F20ST145, F20ST155, TMS444BL, TMS444YL, TMS444GR, T500BL, T500GY, FLS122BL, FLS322BL, T122BL
-
-Amperage: 9 Max
-Volt: 12Made to Fits Allis Chalmers:
Tractor Models: 8745, 8630, 7085, 9170, 9435, 9190, 9635, 7120, 9765, 9650, 6265, 6275, 7110, 8775, 9455, 8765, 9675, 9735, 9755, 9815, 9690, 9745, 9150, 9130, 6260, 9670, 9695, 9655, 8785, 9630, 7145
Model Breaks: 6260 (Star Cab), 6265 (Star Cab), 6275 (Star Cab)
Replaces Part Number(s): MA2C12
-Reference: ST87
-
-Air Suspension - Wide Base
-Suspension Stroke 4" / 100mm
-Weight Adjustment 110 - 330 lbs. / 50 - 150kg
-Slide Tracks Not Included
-
-All Dimensions & Specifications Must Be Checked Before Ordering.
-This Is a Universal Suspension Meant for a Flat Mounting Surface.
-Some Applications May Require Drilling & Bracket Fabrication to Mount.
-
-The Following Seats Can Be Added to This Suspension: F20ST105, F20ST135, F20ST145, F20ST155, TMS444BL, TMS444YL, TMS444GR, T500BL, T500GY, FLS122BL, FLS322BL, T122BL
-
-Amperage: 9 Max
-Volt: 12Made to Fits Allis Chalmers:
Tractor Models: 8745, 8630, 7085, 9170, 9435, 9190, 9635, 7120, 9765, 9650, 6265, 6275, 7110, 8775, 9455, 8765, 9675, 9735, 9755, 9815, 9690, 9745, 9150, 9130, 6260, 9670, 9695, 9655, 8785, 9630, 7145
Model Breaks: 6260 (Star Cab), 6265 (Star Cab), 6275 (Star Cab)
Replaces Part Number(s): MA2C12
Models This Part Fits:
9690, 7145, 8745, 8630, 7110, 6265, 9815, 6275, 8785, 9675, 9630, 7085, 9455, 9650, 9150, 9170, 9755, 7120, 8765, 9635, 9130, 9190, 9735, 9655, 9745, 8775, 9695, 9435, 6260, 9670, 9765Additional Information:
Reference: ST87 Air Suspension - Wide Base Suspension Stroke 4" / 100mm Weight Adjustment 110 - 330 lbs. / 50 - 150kg Slide Tracks Not Included All Dimensions & Specifications Must Be Checked Before Ordering. This Is a Universal Suspension Meant for a Flat Mounting Surface. Some Applications May Require Drilling & Bracket Fabrication to Mount. The Following Seats Can Be Added to This Suspension: F20ST105, F20ST135, F20ST145, F20ST155, TMS444BL, TMS444YL, TMS444GR, T500BL, T500GY, FLS122BL, FLS322BL, T122BL Amperage: 9 Max Volt: 12 Wide Base Seat Air SuspensionReference Numbers:
MA2C12Makes This Part Fits:
