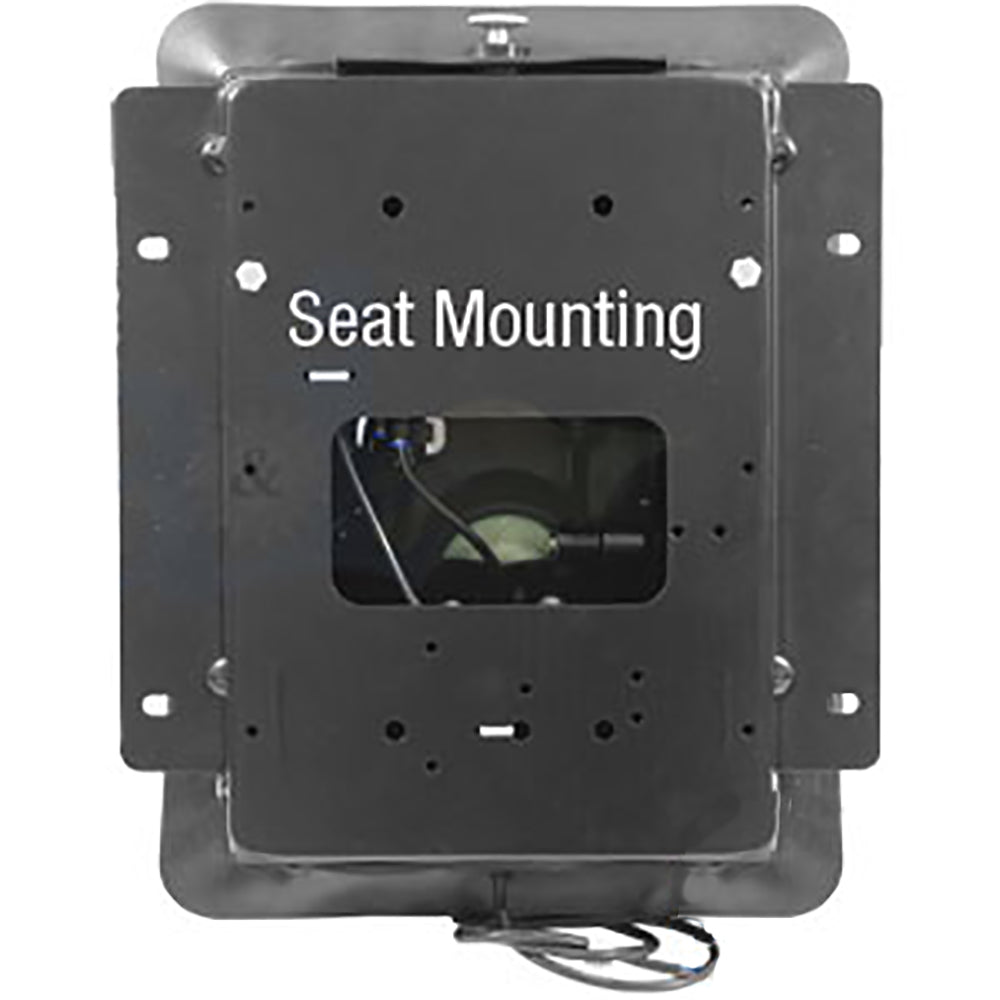

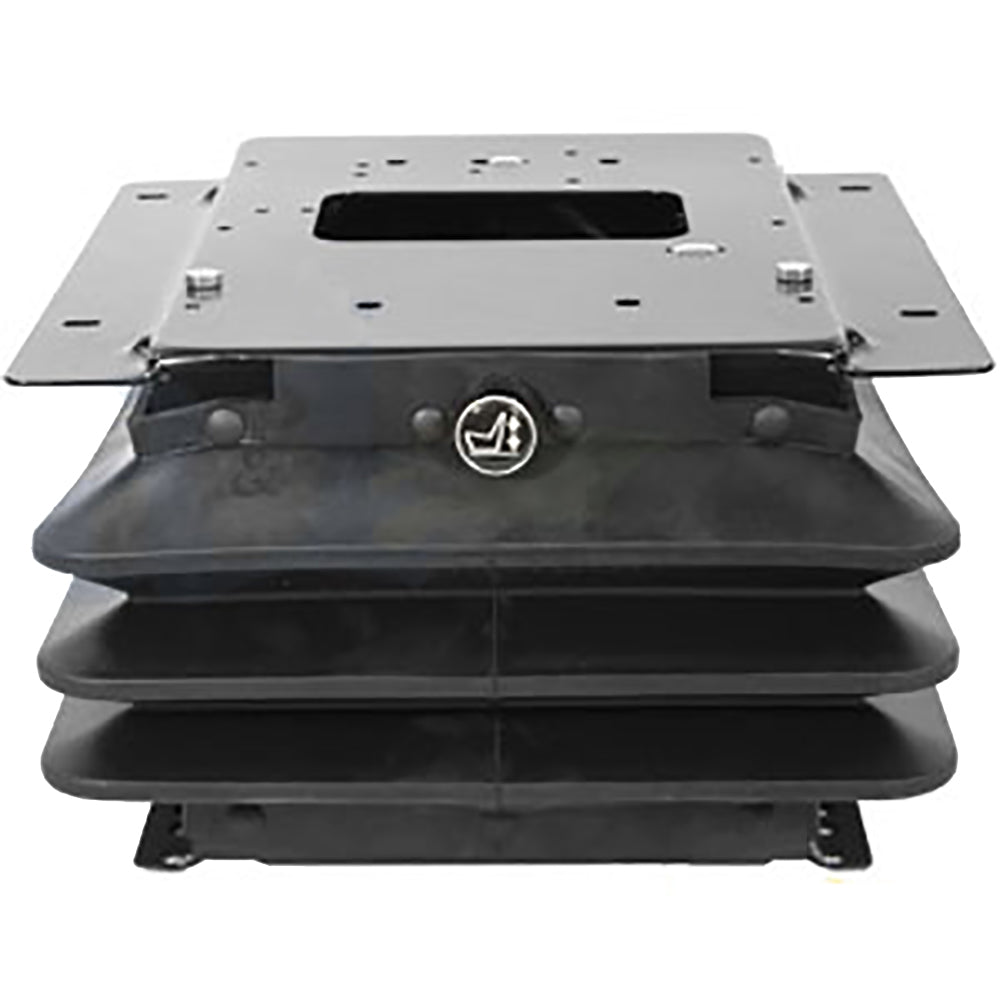

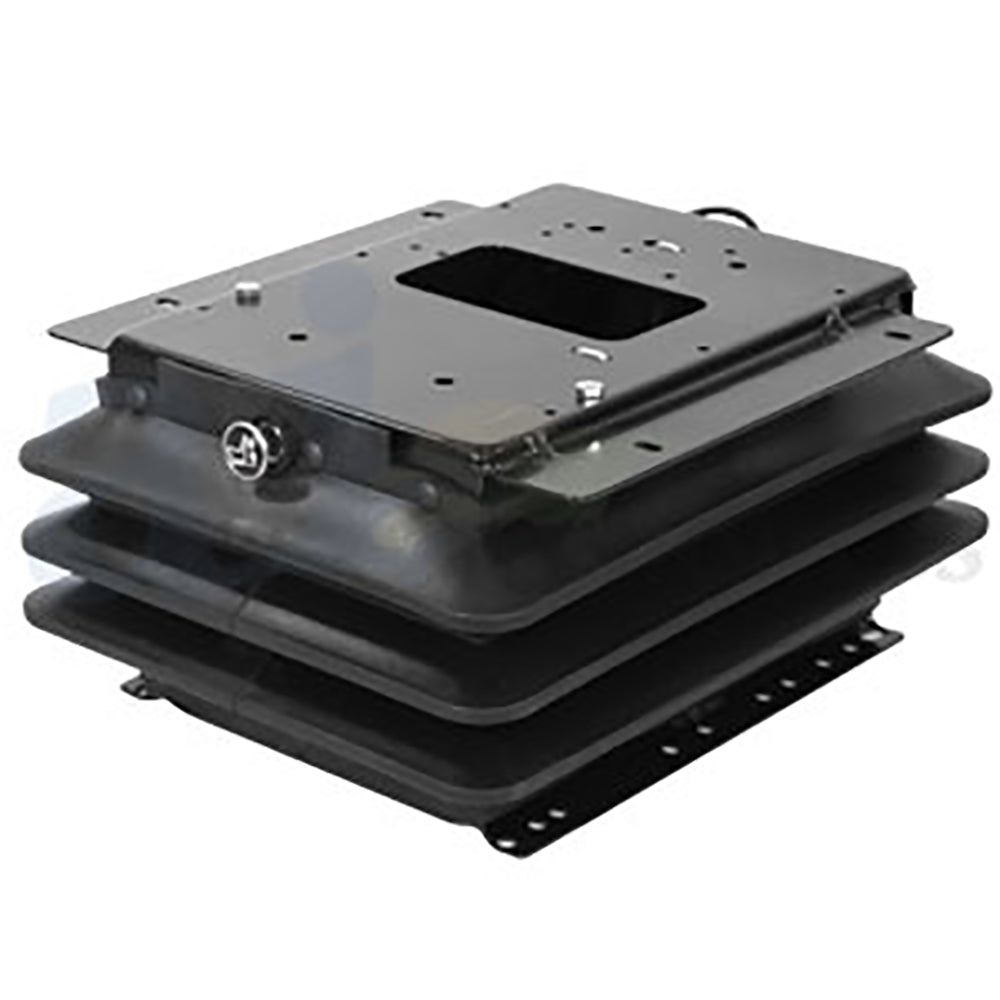

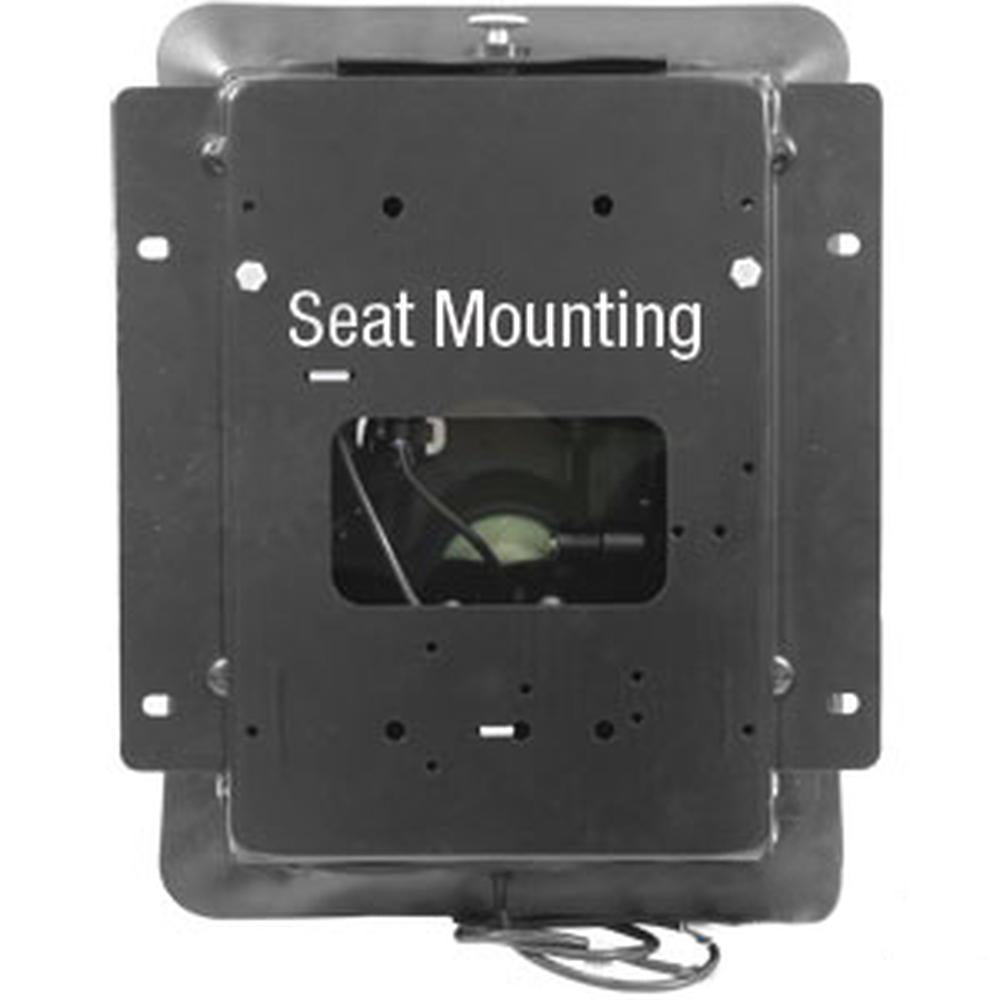

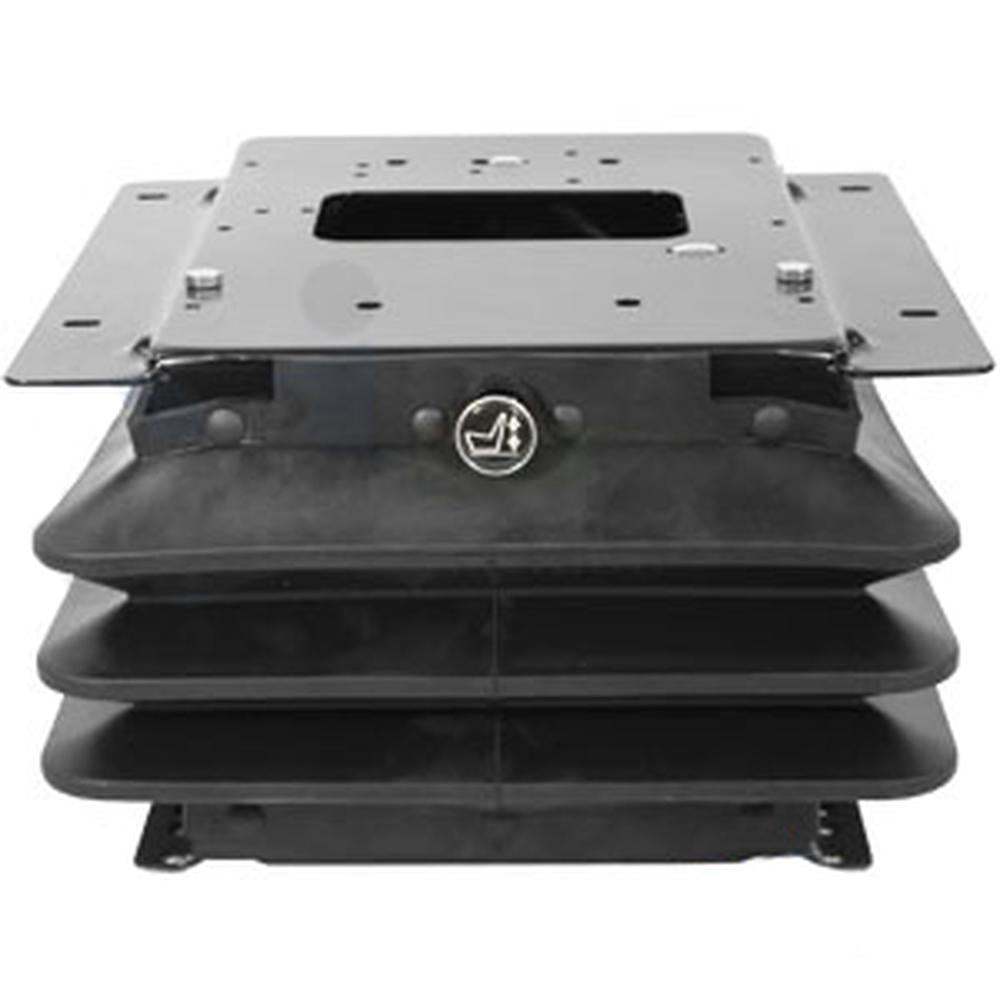

Wide Base Seat Air Suspension Fits Ford/New Holland Replaces MA2C12
Wide Base Seat Air Suspension Fits Ford/New Holland Replaces MA2C12
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket Wide Base Seat Air SuspensionTech Info:
-Reference: ST87
-
-Air Suspension - Wide Base
-Suspension Stroke 4" / 100mm
-Weight Adjustment 110 - 330 lbs. / 50 - 150kg
-Slide Tracks Not Included
-
-All Dimensions & Specifications Must Be Checked Before Ordering.
-This Is a Universal Suspension Meant for a Flat Mounting Surface.
-Some Applications May Require Drilling & Bracket Fabrication to Mount.
-
-The Following Seats Can Be Added to This Suspension: F20ST105, F20ST135, F20ST145, F20ST155, TMS444BL, TMS444YL, TMS444GR, T500BL, T500GY, FLS122BL, FLS322BL, T122BL
-
-Amperage: 9 Max
-Volt: 12Made to Fit Ford/New Holland:
Tractor Models: TS115, 7740, TL90, 7635, 4835, 8240, T7050, TS125A, T7030, T7060, TS130A, T7040, 5635, TL70, TS110, 8560, TS90, T6080, TL100, T7070, TS100, 6635, TL80, TS115A, T6070, TS135A
Replaces Part Number(s): MA2C12
-Reference: ST87
-
-Air Suspension - Wide Base
-Suspension Stroke 4" / 100mm
-Weight Adjustment 110 - 330 lbs. / 50 - 150kg
-Slide Tracks Not Included
-
-All Dimensions & Specifications Must Be Checked Before Ordering.
-This Is a Universal Suspension Meant for a Flat Mounting Surface.
-Some Applications May Require Drilling & Bracket Fabrication to Mount.
-
-The Following Seats Can Be Added to This Suspension: F20ST105, F20ST135, F20ST145, F20ST155, TMS444BL, TMS444YL, TMS444GR, T500BL, T500GY, FLS122BL, FLS322BL, T122BL
-
-Amperage: 9 Max
-Volt: 12Made to Fit Ford/New Holland:
Tractor Models: TS115, 7740, TL90, 7635, 4835, 8240, T7050, TS125A, T7030, T7060, TS130A, T7040, 5635, TL70, TS110, 8560, TS90, T6080, TL100, T7070, TS100, 6635, TL80, TS115A, T6070, TS135A
Replaces Part Number(s): MA2C12
Models This Part Fits:
T7030, TL70, TL100, T7070, TS100, T7060, 8240, TS125A, 7740, 8560, 7635, TS110, TS130A, TS115A, T7050, TS90, 5635, TS115, 6635, T6070, T7040, 4835, TS135A, TL90, T6080, TL80Additional Information:
Reference: ST87 Air Suspension - Wide Base Suspension Stroke 4" / 100mm Weight Adjustment 110 - 330 lbs. / 50 - 150kg Slide Tracks Not Included All Dimensions & Specifications Must Be Checked Before Ordering. This Is a Universal Suspension Meant for a Flat Mounting Surface. Some Applications May Require Drilling & Bracket Fabrication to Mount. The Following Seats Can Be Added to This Suspension: F20ST105, F20ST135, F20ST145, F20ST155, TMS444BL, TMS444YL, TMS444GR, T500BL, T500GY, FLS122BL, FLS322BL, T122BL Amperage: 9 Max Volt: 12 Wide Base Seat Air SuspensionReference Numbers:
MA2C12Makes This Part Fits:
