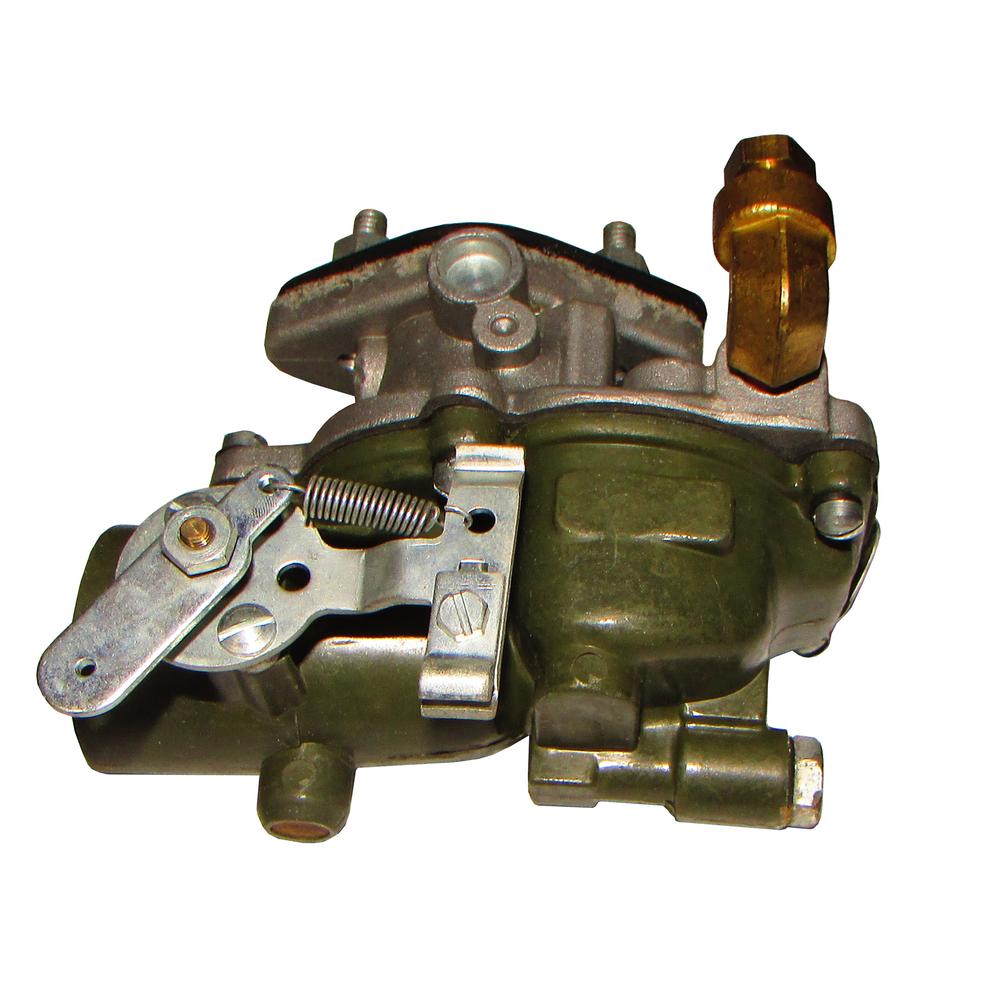

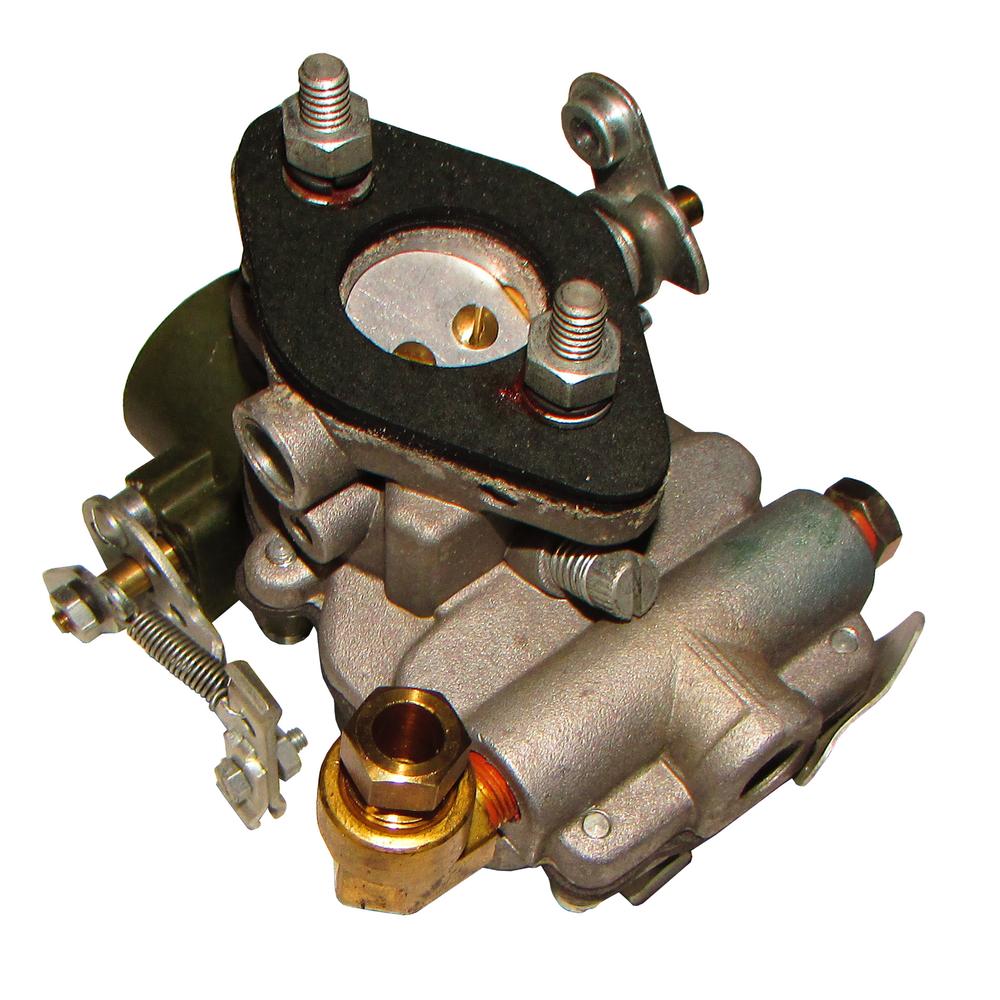

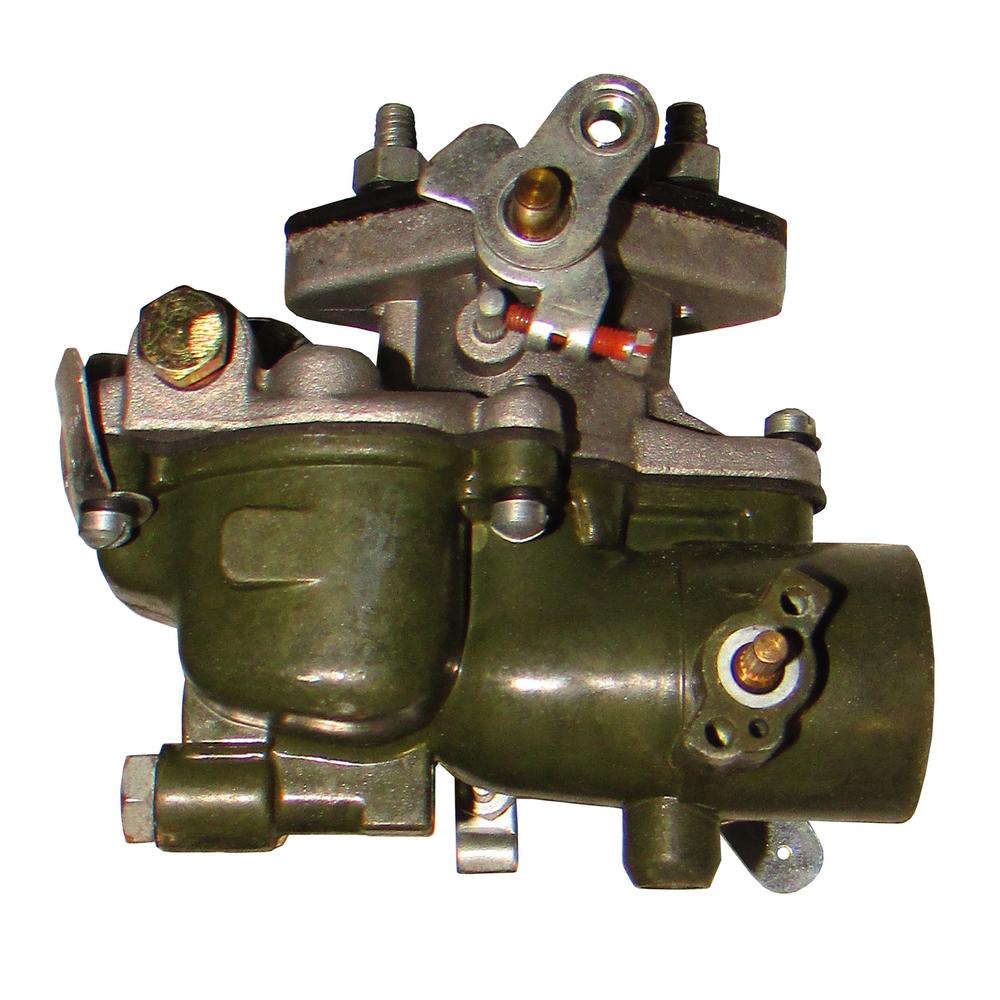

(1) One New Aftermarket Replacement Zenith-Style Carburetor

Fits Case, Fits IH Fits FARMALL, Fits Cub Tractor:
154, 184, 185 With Engine Serial Number 312390 and up13781, 13794

Fits Cub, Fits Cub 154 LO-BOY, Fits Cub 184 LO-BOY, Fits Cub LO-BOY

Fits The Listed Zenith Style Carb Only

Replaces Part Number(s):
Zenith style Carburetor: 70949C92 71523C93 70949C91

Tech Info:
The throttle bore measures 1-1/64".
The carb mounting studs measure 1-13/16" center to center.
The choke air horn (air inlet) measures 1-5/8" OD.
The fuel inlet measures 1/8" NPT.
The carb mounting flange gasket is included.

NOTE: On Older Fits Cub Tractors, you may need to use 2 carb gaskets to clear the butterfly.
